เครื่องดัดวัสดุ (อะครีลิค) หน้ากว้าง 94 นิ้ว （Acrylic Bender Bending Machine） --- 94" (2400mm) Acrylic Bender Bending Machine

See larger image and other views (with zoom)

เครื่องดัดวัสดุ (อะครีลิค) หน้ากว้าง 94 นิ้ว （Acrylic Bender Bending Machine） --- 94" (2400mm) Acrylic Bender Bending Machine

| 100 Transactions

รหัสสินค้า:ABM-SB-2400A

ราคา : ฿ 92,094/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

จำนวน: set(s) Total Cost:
THB ฿92,094
น้ำหนักการส่ง: 418.0lb (190kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿
Customers Who Bought This Item Also Bought

< >
ชุดดัดป้ายตัวอักษรโลหะรูปแบบแกนคู่ระยะความกว้างการดัด 100 ม.ม.--- Dual-axis Metal Channel Letter Angle Bender Bending Tools, Bending Width 100mm

฿1,369 - 1,556/set

เครื่องปั้มอากาศแม่เหล็กไฟฟ้า ขนาด 45 วัตต์ สำหรับเครื่องตัดเลเซอร์ --- 45W Electromagnetic Air Pump for Laser Cutter Laser Engraving Machine, 220V

฿375 - 408/pc

เครื่องดัดอะคริลิกด้วยแกนความร้อนสำหรับดัดแผ่น PVC, อะคริลิก, พลาสติกสำหรับผลิตป้ายกล่องไฟขนาดตัวเครื่อง 24"(600mm) ---Bending Machine Heater

฿1760/set

1200mm เครื่องดัดอะคริลิก ด้วยความร้อน สำหรับดัดแผ่น PVC , อะคริลิก , พลาสติก เพื่อผลิตป้ายไฟกล่องแสง , ขนาดตัวเครื่อง 48"(1200 ม.ม.) ความหนาของ วัสดุอะคริลิก 1 - 6 ม.ม.

฿2040/set

ชุดดัดป้ายตัวอักษรโลหะรูปแบบแกนคู่ระยะความกว้างการดัด 100 ม.ม.--- Dual-axis Metal Channel Letter Angle Bender Bending Tools, Bending Width 100mm

฿1,369 - 1,556/set

เครื่องปั้มอากาศแม่เหล็กไฟฟ้า ขนาด 45 วัตต์ สำหรับเครื่องตัดเลเซอร์ --- 45W Electromagnetic Air Pump for Laser Cutter Laser Engraving Machine, 220V

฿375 - 408/pc

เครื่องดัดอะคริลิกด้วยแกนความร้อนสำหรับดัดแผ่น PVC, อะคริลิก, พลาสติกสำหรับผลิตป้ายกล่องไฟขนาดตัวเครื่อง 24"(600mm) ---Bending Machine Heater

฿1760/set

1200mm เครื่องดัดอะคริลิก ด้วยความร้อน สำหรับดัดแผ่น PVC , อะคริลิก , พลาสติก เพื่อผลิตป้ายไฟกล่องแสง , ขนาดตัวเครื่อง 48"(1200 ม.ม.) ความหนาของ วัสดุอะคริลิก 1 - 6 ม.ม.

฿2040/set

Related Products

- Metal Letters Bending Tool for 3D Channel Letters (Enhanced Version)
- ฿4,830 / set
- Buy Now >>

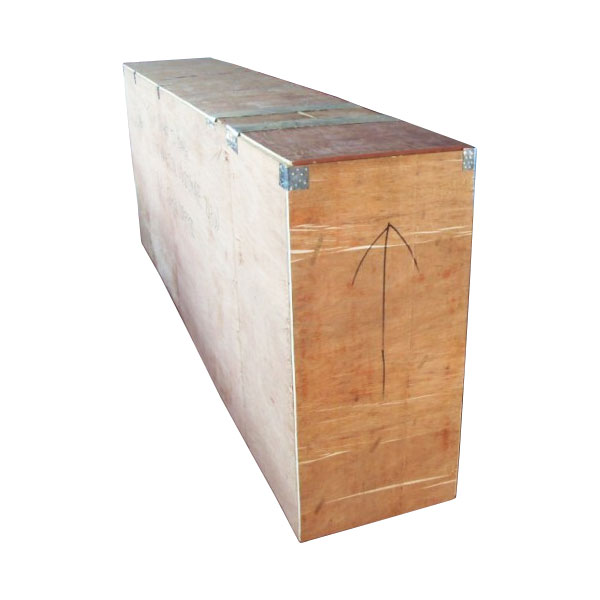

Wooden Box: There is total one wooden box.

Machine Dimension	116" x 20" x 44" (2950mm x 500mm x 1100mm)
Machine Weight	160kg
Package	Fumigation free package
Packing Size	118" x 22" x 47" (3000mm x 550mm x 1200mm)
Gross Weight	190kg

Standard Accessories

No.	Name	Qty
1	Acrylic Bender	1 set
2	Heating Tubes	3 pcs
3	8-10 fork wrench	1 pc
4	Hexagon wrench	1 pc
5	Water Tank	1 pc
6	Water Pump	1 set
7	Training CD	1 set

Remarks: The package contains two extra heating tubes, which are extra gifts, not include in the price you paid , in order to prevent the heating tube from being damaged in the transit and used as spare heating tubes.

The guarantee period of the laser machine is one year, since the goods' arrival at Destination Port.

If there is standard part breaks with quality problem within warranty, buyer mail seller the broken part, seller will send a new part to buyer soon and guide buyer how to change it as has been taught in training.

User-friendly English manual for machine using and maintaining

Technical Supports
About Machines
• We have the professional after-sale services teams. We can provide the professional Training to our clients.
• In the training, we will teach them the general operation rule, maintenance method, and the solution of the general problems of the machines.
• During the working process of the laser machine in customer side, if there is any very difficult problems which the customers don't know how to solve, we will provide the corresponding solution to customers via telephone or internet (Such as e-mail, MSN, Skype).
• At the same, if the problems still can't be solved via telephone and internet, we will send our technical engineer to visit customer side to solve the problem directly according to the actual situation at that moment.

About Spare Parts
If the parts were broken during the guarantee period, we will provide a new part free of charge; if the parts were broken during the guarantee period is expired; customer can buy a new one from our company.

The optional spare parts for the acrylic bending machine:

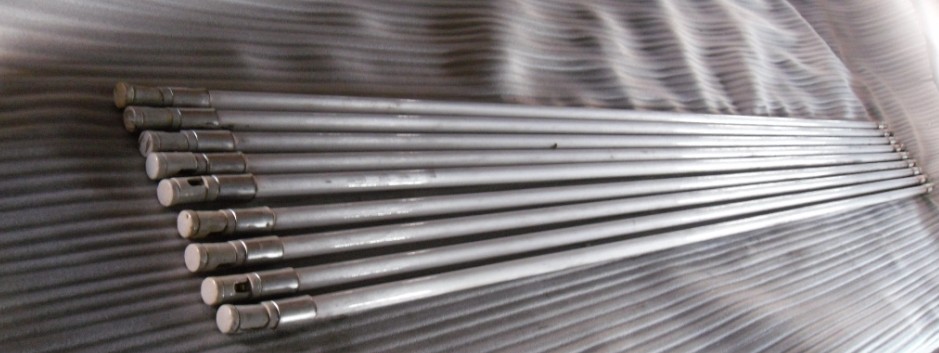

Heating tube: $32 / pc (Add an extra fee to the price)
CW3000 Water chiller: $218 / set (Add an extra fee to the price)

Remark: The price will float subject to foreign exchange. Please ask our salesman for the final quotation before you make an order.

Operation video for benging machine-1

Operation video for benging machine-2

Working video for machine

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 100

Buyer
ราคา Unit
จำนวน
Order Date

Sol****
$89385.00
1 set
2023-07-12

Gae****
$115468.00
1 set
2023-06-19

Tan****
$90288.00
1 set
2023-05-22

Roc****
$91191.00
1 set
2023-04-22

Shi****
$117801.00
1 set
2023-04-08

Aft****
$118967.00
1 set
2023-03-19

Rob****
$117801.00
1 set
2023-02-22

Pac****
$115468.00
1 set
2023-02-06

Cop****
$116635.00
1 set
2023-01-19

Che****
$118967.00
1 set
2023-01-01

Cra****
$118967.00
1 set
2022-12-10

Alf****
$123633.00
1 set
2022-11-21

Gon****
$125969.00
1 set
2022-10-18

Sha****
$125969.00
1 set
2022-10-03

Val****
$99652.00
1 set
2022-09-05

Cla****
$99652.00
1 set
2022-08-14

Cla****
$100565.00
1 set
2022-07-17

Joh****
$125732.00
1 set
2022-06-23

Reb****
$97804.00
1 set
2022-05-31

Ama****
$97804.00
1 set
2022-05-02

ดูทั้งหมด 100 Transaction History

เครื่องดัดวัสดุ (อะครีลิค) หน้ากว้าง 94 นิ้ว （Acrylic Bender Bending Machine）

สามารถดัดงอ วัสดุประเภทอะครีลิคเช่น พลาสติค, PC, PVC และ PP ซึ่งดัสวัตถุด้วยความร้อน และดัดวัตถุขึ้นมุมได้ตั้งแต่ 30 - 180 องศา
• มีฟังก์ชั่นการทำงานทั้งระบบอัตโนมัติ ด้วยระบบการทำงานแบบเครื่องตัด CNC
• ฟังก์ชั่นดัด งอ กระดาษอัตโนมัติ
• ร่องหนีบอ่อน สามารถปรับร่องได้ตามความหนาวัสดุ
• แผ่นความร้อนที่ยึดติดแน่น ลดการผิดพลาดจากการทำงาน
• เครื่องดัดใช้รังสีอินฟาเรดในการให้ความร้อน ดังนั้นอุปกรณ์จึงใช้งานได้อย่างคงทน ยาวนาน กว่า ชนิดความร้อนธรรมดา
• แรงดัน และความร้อนปรับได้ตามขนาดและความหนาวัสดุ
• มีระบบป้องกันอุปกรณ์จากการทำงาน
• ใช้งานได้กับวัสดุอื่นเช่น PVC, PE, PS, ABS, PP และอื่นๆ
• ดัดวัสดุได้จากความหนาตั้งแต่ 0.8 มม - 6 มม โดยไม่ทำจำเป็นต้องเจาะรูบนวัสดุ และ 6 มม - 20 มม โดยไม่ทำจำเป็นต้องเจาะรูบนวัสดุ

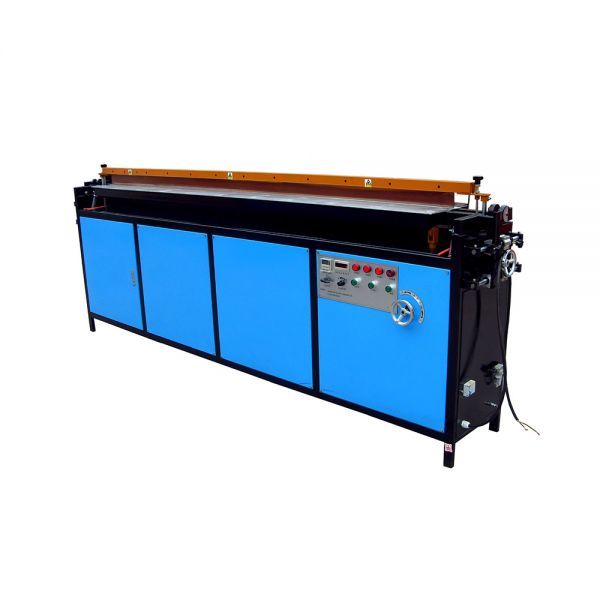

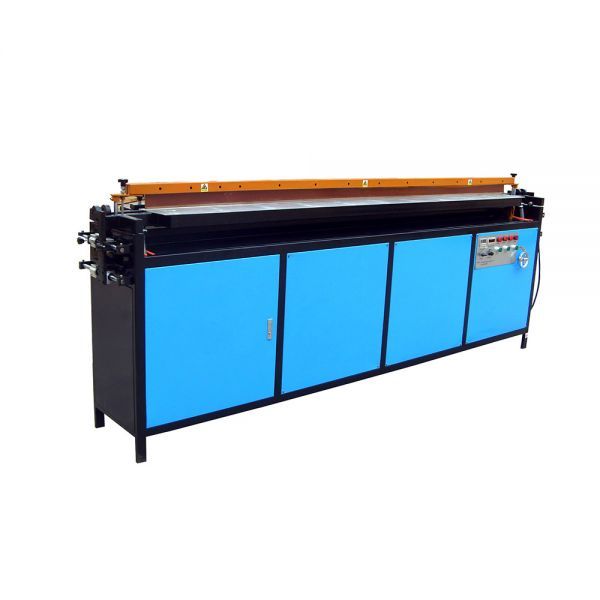

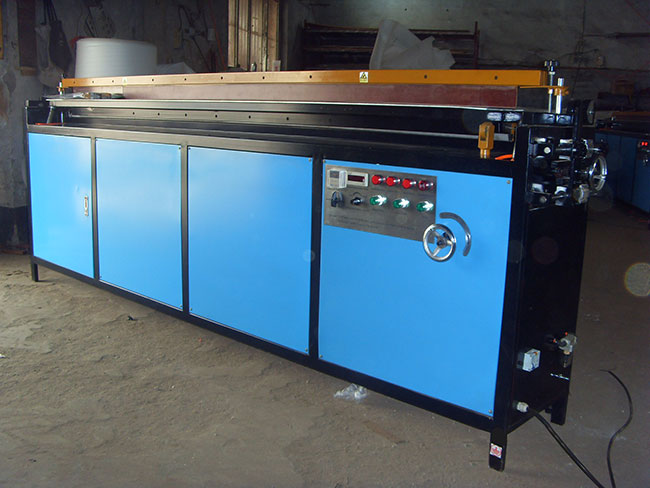

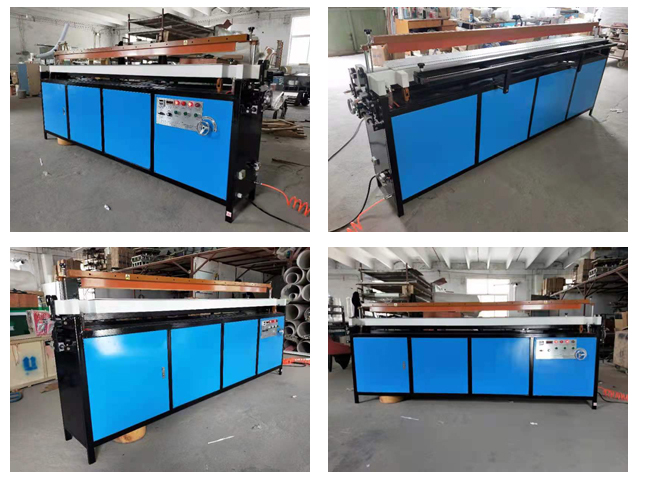

94" (2400mm) Bending Acrylic Machine

Bending the materials like acrylic, plastic, PC, PVC and PP. Hot bending process equipment, the acrylic bender can be adjust any angle and shape within 30-180 degree.

• Automatic and manual function with CNC operations
• Automatic function to bend the sheet
• Softening crevice can be adjusted according to the thickness of plate
• The heating plate can be fixed avoiding defamation
• The Acrylic Bending Machine has an infrared heating system to prolong the lifespan for more time rather than the hot furnace filament.
• The temperature and working voltage can be adjusted according to the material and thickness.
• Water circulation protects the configuration and the overheating alarm temperature ensures the safety of the machine.
• The current package protects the equipment.
• Bending acrylic support for PVC, PE, PS, ABS, PP and more.
• Thickness range ending: 0.8mm to 6mm (there is no need to cut a slot on the sheet), 6.00mm to 20mm (there is need to cut a slot on the sheet).

This 94" (2400mm) Automatic Acrylic Plastic PVC Bending Machine is increasingly applied in school technological innovation course, decoration projects, packing of square columns or wall corners, fish tank, window edge, display counter, supermarket shelves, advertising light box, art products making, etc.

Decoration industry: Acrylic bending side, acrylic display rack, acrylic decoration bending, etc
Industry: safety guard on machinery, protective cover for production line, production line exhibition stand, storage box, etc.

Specifications
Model	ABM-SB-2400A
Angle	30°-180°
Bending Thickness	Up to 0.8" (20mm)
Working Length	94" (2400mm)
Power	7.5KW (Working power 2.5KW)
Power Supply	1PH 220VAC

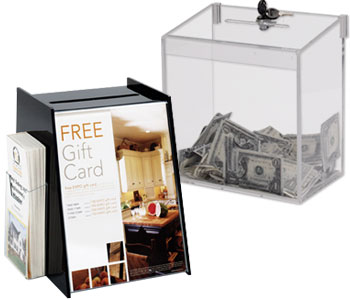

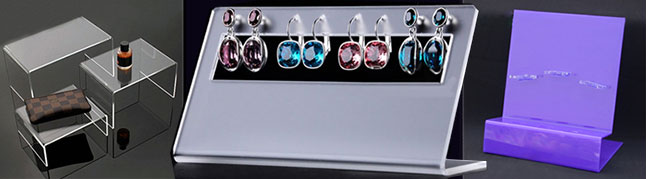

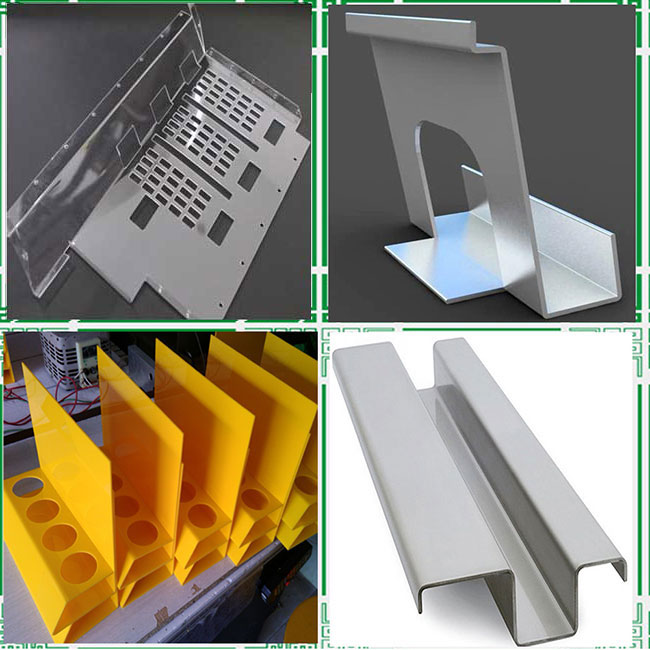

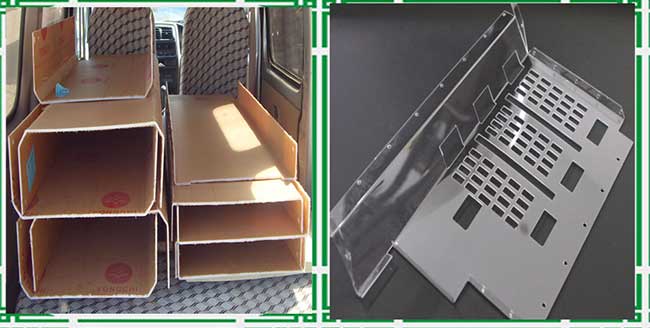

Samples:

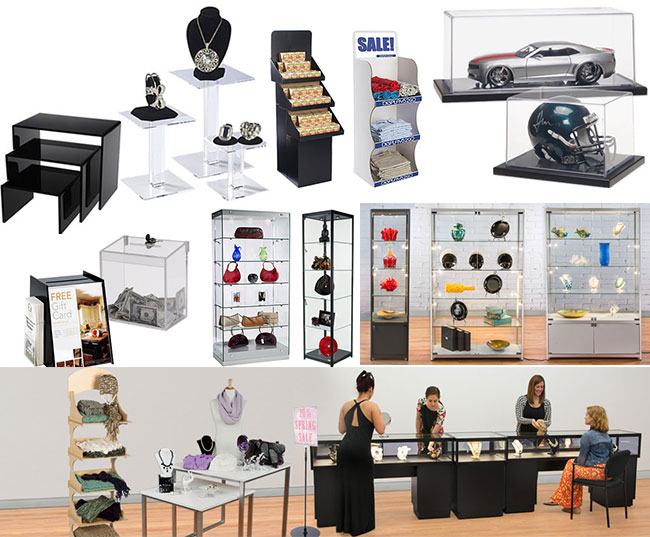

Application:

1. I don’t know this website well, how can I trust you?

Sign-in-Thai.com has launched online bussiness for 6 years who already has established customers over 120 countries and areas. We are the lifelong member of ISA and SGIA, and the verified user of PayPal as well as approved by BBB certification.

Learn more about us from the following links:

19th Reklama Pholygraf Trade Fair 2012

ISA International Sign Expo 2012

Exhibition of International Trade Fair for Visual Communication, Technology and Design in Düsseldorf, 2011

Buyers say:

John Hanmer from USA

Jackson, Andy and David from UK

Ben Wong from Thailand

Adam Fernanders from South Africa

JLuciano from Brazil

Adam Fernanders from Australia

More

2. Not clear about the Price Policy of Sign-in-Thai.com?

3. How to pay? Can I use credit card?: You may use the following methods of payment: PayPal online payment, PayPal direct payment, credit card (through PayPal gateway, some areas may be restricted), bank transfer, and Telegraphic Transfer (T/T) payment.; For details, please refer to the following:; a) PayPal online payment
https://www.paypal.com/webapps/mpp/buying-online

b) PayPal direct payment (our PayPal account: lyh@chinasigns.cn)
https://www.paypal.com/webapps/mpp/make-online-payments

c) Credit card payment (through PayPal gateway, some areas may be restricted)
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94038&topicID=11500008&m=TTQ

d) Bank transfer
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94040&topicID=11500008&m=TTQ

e) Telegraphic Transfer (T/T) payment
(1) Place an order
(2) Get the bank account information of Sign-in-Thai.com
(3) Make the payment at the bank, and get the Payment Receipt
(4) Send the Payment Receipt to service@sign-in-global.com
(5) Receive the Tracking Number of your order
(6) Wait for your order.

4. Is it safe to pay online? Will it occur any security problems concerning my personal information?: PayPal, one of the faster and safer ways to pay and get paid online, has worldwide 113 million active accounts, and supports 190 markets and 25 currencies. As a result, PayPal enables global commerce. For details:
https://www.paypal.com/webapps/mpp/paypal-safety-and-security

5. Why did my PayPal payment fail?: The main reasons of failures and solutions:; a) Confirm if your credit card requires verification:
https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=10568&m=SRE; b) Confirm if you have exceeded the limitation of maximum amount
https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=11516&m=SRE; c) Confirm if you have any other restrictions
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94053&m=SRE

6. How can I know if it is paid successfully?: We will send you a payment confirmation email upon receiving your payment, and your purchase order in “My Account” will be categorized as “Paid”. If you use check or Telegraphic Transfer (T/T) payment, we will change the status of your order until your payment confirmed , and then we will send you the conformation email.

7. How long can I receive the items?: Normally speaking, we will spend 1 or 2 days to prepare the order and if it requires longer time, we will inform you as soon as possible. The general shipping time will be 3 to 7 days. Therefore, under normal situation, you will receive the items in 4 to 9 days.

8. How to receive my order ? Is it safe during shipping?: For the items you purchased online, we will arrange international express delivery to ship and usually the carriers are FedEx, TNT, UPS, DHL, or EMS. It shall be quite safe during shipping with substantial package. Additionally, we will purchase insurance as a gift for your package.

9. How to obtain the tracking number of shipment? And how to contact the carrier (express delivery company)?: We will send you the tracking number after shipping your items, hereby please keep on checking your email.

10. How to return items and how about the warranty?: For details, please click the following links:; Changes & Returns: http://www.sign-in-thai.com/info/ChangesandReturns.html; Warranty: http://www.sign-in-thai.com/info/QualityWarranty.html

11. If I still have questions to this product, what shall I do?: Please click on the product page and submit your questions, we will reply you as soon as possible.

12. How to change my shipping address?

You can change your shipping address on the confirmation page of your purchase order.

พื้นที่การทำงาน	94" / 2400mm (W) x Unlimited (L)
ความหนาการประมวลผลสูงสุด	0.8" (20mm)
การใช้งานหลัก	Bending the materials like acrylic, plastic, PC, PVC and PP. Hot bending process equipment. It can be adjust any angle and shape within 30-180 degree.

Q&A

Q	What do you mean by gas connection as mentioed in the users manual?
A	Since the bending machine is pneumatic, it takes advantage of gas for bending. ตอบกลับโดย sign in china
Q	Your machine operates between 30-180 degrees,what shall we do if we have bending angles between 0-30 degrees ?
A	You can also bend angles between 0-30 degrees, but need one extra acetabula, extra cost is 180USD. ตอบกลับโดย sign in china
Q	What do you mean by supports for bending arcs?
A	The machine supports for bending arcs, but need some mould. ตอบกลับโดย sign in china
Q	Do you give technical support in time as soon as there is problem with the machine after we get?
A	Yes, sure. ตอบกลับโดย sign in china
Q	Can this machine bend angles between 0-30 degrees ?
A	Yes, you can, but need extra mould. ตอบกลับโดย sign in china
Q	Can the machine only bend sharp angel?
A	Both sharp angel and arcs with extra mould. ตอบกลับโดย sign in china
Q	About the heating tube, is it easy to change? and how much it cost for each tube?
A	the heating tube is easy to change,and a heating tube working life normally is 1 year ,it depends on the daily working time.each tube cost $25 ตอบกลับโดย sign in china
Q	Is there 2 heating tube on the surface and the bending knife or only one heating tube.
A	we can supply both 2 kinds of machine,it is up to you . ตอบกลับโดย sign in china
Q	what is the thickness of the acrylic bending machine can bend?
A	:The maximum thickness is 20mm.and 1mm-10mm no need to cut a slot, 10mm-20mm must to cut a slot when bending ,because it is too thick to bend ,if not, there will be a bulb to bending the thick acrylic . ตอบกลับโดย sign in china
Q	What type of gas is required for the gas connection?
A	Hello, the gas is air. Any more questions, please send email to info@sign-in-china.com Thanks ตอบกลับโดย sign in china
