เครื่องตัดเลเซอร์ (1300mm x 900mm) Detachable High Precision CO2 Laser Cutting Machine,Yongli 130W/150W Laser
  • เครื่องตัดเลเซอร์ (1300mm x 900mm) Detachable High Precision CO2 Laser Cutting Machine,Yongli 130W/150W Laser

See larger image and other views (with zoom)

เครื่องตัดเลเซอร์ (1300mm x 900mm) Detachable High Precision CO2 Laser Cutting Machine,Yongli 130W/150W Laser

   |   192 Transactions

รหัสสินค้า:SIT-QL-1390

  • ราคา Unit : ฿ 142,000/set   (ขอส่วนลดพิเศษ) (สินค้าพร้อมส่ง)

  • กรุณาเลือกประเภท

    กรุณาเลือกประเภท: 130W 150W
  • จำนวน: set(s) Total Cost: ฿142,000
  • น้ำหนักการส่ง: 880.0lb (400kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart
Buyer Protection



ZnSe Focus Lens:Diameter 20mm,Focal Length 2" (50.8mm)  SIT-CS-FL-BL20
Reflection Mirrors:Diameter 20mm,Lens Thickness 3mm
SIT-CS-BL-20-3

คำอธิบาย :

วัสดุที่ใช้ตัด : วัสดุที่ไม่ใช่โลหะ เช่น ไม้ไผ่,ลูกแก้ว,อะคริลิค, ยาง, กระดาษ, และอื่นๆ  พร้อมด้วยรางสไลด์ที่ได้ถูกปรับปรุงพัฒนาด้านประสิทธิภาพทำให้เครื่องนี้มีความแม่นยำในการตัดหรือแกะสลักได้อย่างสมบูรณ์แบบ

Description:
Materials that can be cut: Non-metal materials, such as bamboo, plexiglass, acrylic, rubber, paper, and so on. With the improved linear guide, this machine has a perfectly cutting or engraving precision.

คุณสมบัติ:

•การออกแบบระดับมืออาชีพสำหรับลูกค้าในอุตสาหกรรมที่แตกต่างกัน,ด้วยโครงสร้างที่เหมาะสม,รูปทรงที่น่าพอใจและเหมาะสมในทางปฏิบัติ

•มีความแข็งแรงสูงและโครงสร้างทางเทคนิคที่มีเสถียรภาพสูงซึ่งถูกประกอบด้วยแม่แบบที่มีความละเอียด,เครื่องจักรเคลื่อนที่ได้เสถียรด้วยความเร็วสูงและแม่นยำ,ออกแบบด้วยการเปิดออกจากด้านหลังทำให้สะดวกสำหรับกระบวนการที่เกี่ยวข้องกับวัสดุและไม่มีขีดจำกัดในด้านความยาวของวัสดุ

•ได้นำเอาการออกแบบของเส้นทางการบินมาใช้ที่มีโครงสร้างแบบพิเศษ,มีส่วนเบี่ยงเบนเส้นทางเล็กน้อย,มีประสิทธิภาพสูงและง่ายต่อการปรับแต่ง

• ระบบควบคุมแบบออฟไลน์ของยูเอสบีและหน่วยความจำขนาดใหญ่ที่ได้มีการปรับปรุงพัฒนาให้มีความทันสมัย เพื่อช่วยให้การทำงานมีความรวดเร็วและมีประสิทธิภาพมากขึ้น

Feature:
• Professional design for client in different industry, reasonable structure, pleased appearance & practical.
• High strength & high stable mechanical structure composed of high precision mould, machine moved stable, in high speed & precision, back - open design convenient for material process & no limit for material length.
• Adopt flight path design, special structure, little path deviation, high performance & easy adjustment.
• Update USB offline control system & large memory capacity to improve work speed & efficiency.

จุดเด่น:

•หลีกเลี่ยงการเสียดสี,การประมวลผลด้วยความเร็วสูงและความแม่นยำสูง

•การประยุกต์หน้าต่างแบบกระจกสำหรับดูการทำงานของเลเซอร์เพื่อป้องกันความปลอดภัย

•เลนส์ของแท้นำเข้าจากสิงคโปร์สามารถปรับปรุงประสิทธิภาพการทำงานและลดค่าใช้จ่ายได้อย่างมาก;

•ทำการดูดซับการปล่อยไอเสียจากเครื่องและช่วยระบบการเป่า ช่วยยืดอายุของหลอดเลเซอร์

•แพลตฟอร์มรูปทรงริ้วทำด้วยอลูมิเนียมสามารถแบกรับวัสดุที่มีน้ำหนักได้มากขึ้นเช่นอะคริลิค,ไม้และอื่นๆ ที่ไม่ใช่วัสดุที่เป็นโลหะ;

•ความจุหน่วยความจำภายในขนาดใหญ่ที่ช่วยเพิ่มความเร็วในการทำงานได้อย่างมีประสิทธิภาพมากขึ้น;

• ส่งผลให้การตัดผลออกมาดีและได้เปรียบด้านราคา

Advantage:
• Avoid polishing, processing high speed, and high precision;
• Glass viewing windows creating a safe enclosure for laser processing;
• Original Singapore imported lens can greatly improve working efficiency and reduce cost;
• Exhausting, absorbing and assistant blowing systems extend the life of the laser tube;
• Aluminum strip shape platform can bear heavier materials, such as acrylic, wood and much more non - metal materials;
• Large internal memory capacity improves the working speed with greater efficiency;
• With a fine cutting effect and price advantage.

ใช้สำหรับ:

•อุตสาหกรรมการโฆษณา: อะคริลิค, กระดานสีคู่และการแกะสื่อโฆษณาอื่นๆและการตัด

•อุตสาหกรรมเครื่องหนัง: การแกะสลักและงานแกะสลักบนหนังและผ้าโดยตรง

•อุตสาหกรรมหัตถกรรม: แกะสลักและตัดบนกระดาษ,วัสดุที่ทำจากไม้, ไม้ไผ่, เครื่องหนัง, เปลือกหอยและวัสดุประเภทงาช้าง

•อุตสาหกรรมแบบ: การตัดแบบด้านสถาปัตยกรรมและรูปแบบสัญลักษณ์เส้นทางการบิน, ของเล่นที่ทำจากไม้

•อุตสาหกรรมบรรจุภัณฑ์: แกะสลักและตัดบนแป้นยาง,แผงประกอบและแป้นพิมพ์เลเซอร์

•การแกะและตัดในอุตสาหกรรมการประดับตกแต่งและวัสดุอุตสาหกรรมเครื่องใช้ไฟฟ้า

Used for:

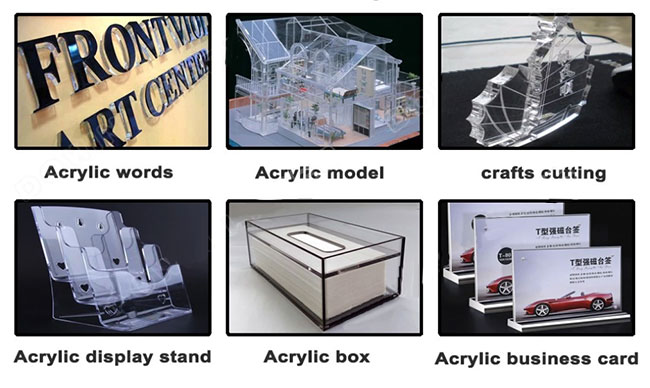

• Advertising Industry: Acrylic, double color board & other advertising material engraving & cutting.
• Leather Industry: Engraving & through - carving on leather & cloth.
• Craft Industry: Engrave and cut on paper, wooden material, bamboo, leather, seashell & ivory material.
• Model Industry: Cutting for architectural model, Aviation and navigation model, wooden toy.
• Packaging Industry: Engrave & cut on rubber, composite board & Laser die board.
• Engrave & cut in decoration industry & electronic appliance industry materials.

ประโยชน์

•พื้นที่การทำงาน 51 "x 35" (1300มม. x 900มม.)

• การทำงานด้วยความเร็วสูง อยู่ที่ 48 IPS (1200มม. / วินาที)

•วัสดุผ่านเข้าทางด้านหน้าและทะลุออกทางประตูหลังเพื่อรองรับชิ้นงานที่มีขนาดยาว

•ติดตั้งมากับเครื่องทำน้ำเย็นคุณภาพสูงCW3000 ซึ่งสามารถยืดอายุการใช้งานของหลอดเลเซอร์และสร้างความมั่นใจในผลการแกะสลักที่ดีขึ้น

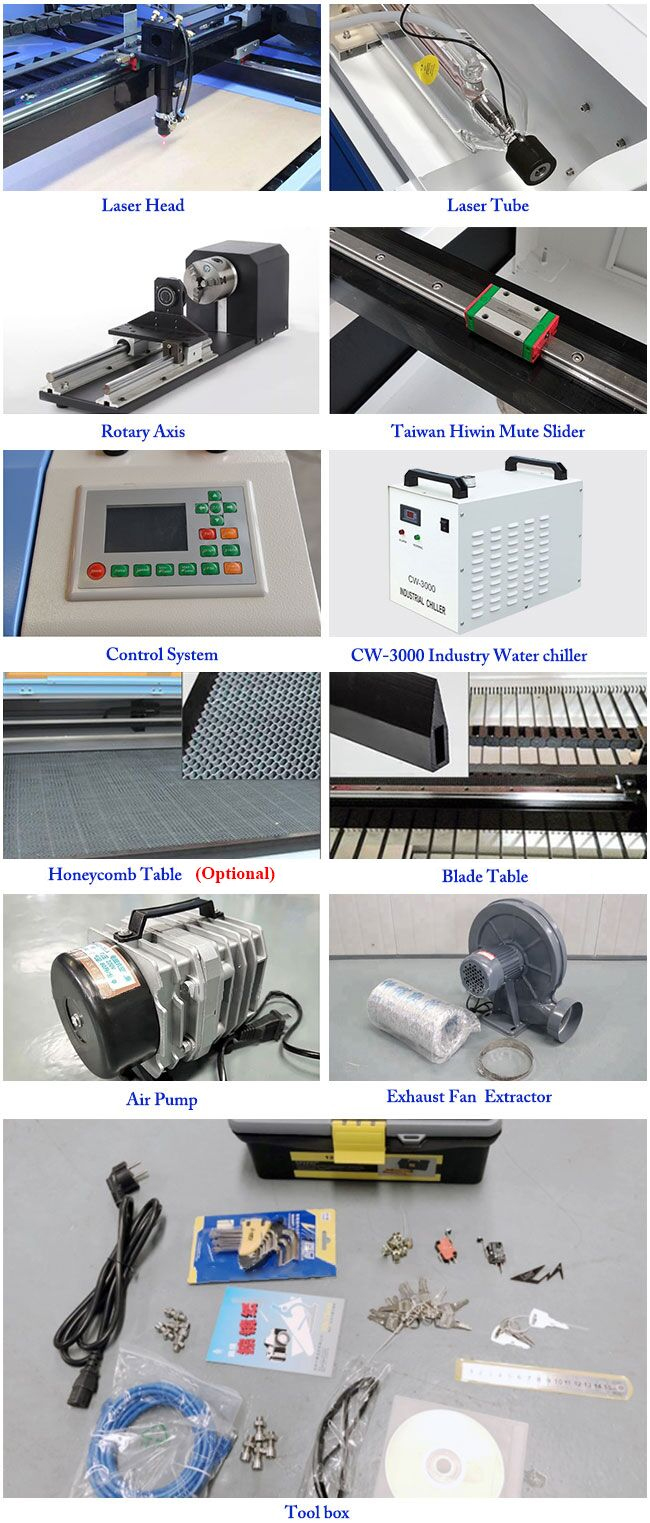

Details:




Why buy from us?

Best quality control system in low power laser industry!

Parts quality guaranteed
The main board and power supply of laser cutting machine were put into an oven at temperature of 50 degree for an aging test, minimally 4 hours.

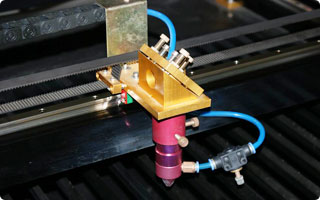

Laser head
Enclosed, with air blowing device, which is safer than unclosed head.

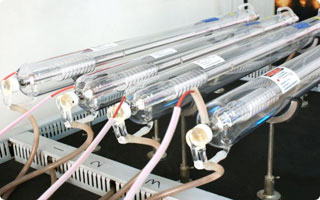

Laser Test
Each laser tube and its power source shall be tested for 8 hours on/off power test: There are strict inspection criterions for its light beam quality and laser power.

Guide rail

High precision equilibrium linear guide rail imported from Korea. Each guide rail shall be tested before installation.

100% Check of Materials
We perform 100% check to all the parts of laser cutting machine in order to avoid any disqualified parts coming into the next step of work.

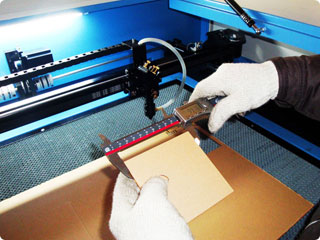

Inspection Before Delivery
Any laser cutting machine before departing the factory, we will perform cutting test with the cutting precision at 0.1mm to test its verticality and dimensional deviation.

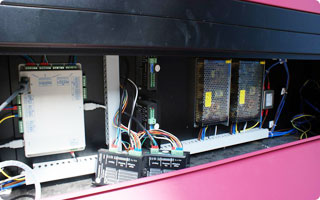

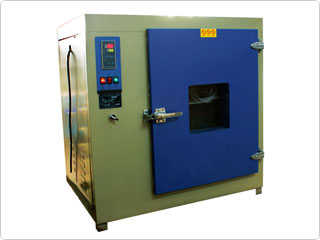

Test of Main Board & Power Supply
Put the main board and power supply of laser cutting machine into an oven at temperature of 50 degree for an aging test, minimally 4 hours.

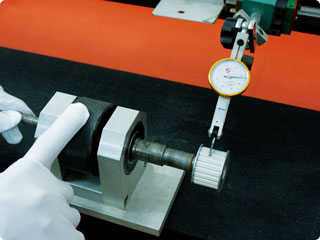

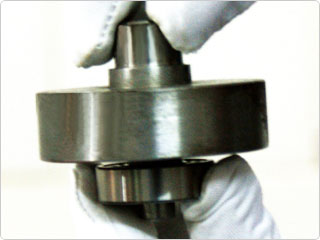

Test of Transmission Parts
Check the synchronizing wheel and bearing of the laser engraver whether are concentric and easy in rotation as well as its deviation whether is less or equal to 0.02mm.
Processing Crotrol
During the production of laser engraving machines, our quality inspector will patrol and check its installation quality. It is mainly to check the parts of mechanics and electrics, cables whether satisfy the requirements of installation blueprint. If any error or problem found, the correction treatment will be executed immediately.

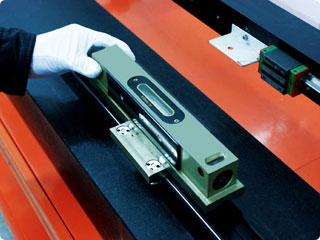

Test of Guideway and Rectangular Tube
Mainly to test the flatness, linearity and torsion resistance of t the guideway and rectangular tube. Put the rectangular tube and the guideway onto a marble platform, then use dial gage calibrator to check: the tolerance bigger than 0.05mm/m is disqualified.

Stretching Force Tester for the Belt of Laser
Cutting Machine
Ensure the machine platform cutting in consistency.

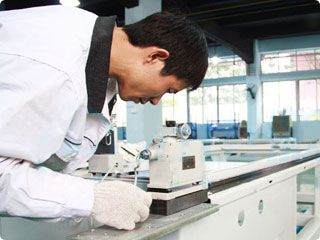

Collimator Test
The test method for the linearity, flatness and verticality of the laser cutting machine’s guideway is to use Auto Pricise Collimator 1401 Double-way.

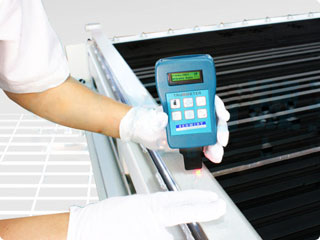

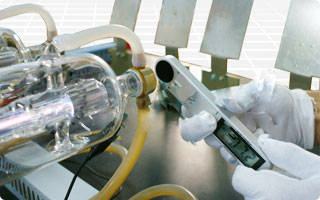

Handy Power Indicator of Laser Cutting Machine
Any point of the laser cutting machine’s power test, ensure the laser cutting machine to give best cutting effect.
Electromagnetic Oscillograph of Laser Cutting Machine
To test the electromagnetic interference and ensure the running stability of laser cutting machine.

Aplicaciones:
1.Industria de moldes(construcciones, navegacion aerea), anuncios, decoraciones, industria de regalos, industria electrica y de electronicos.
2.Acrilico, placa de madera, bamboo, placa de doble color, papel, cuero, concha, coco, cuernos, placa ABS y otros materiales no metalicos.

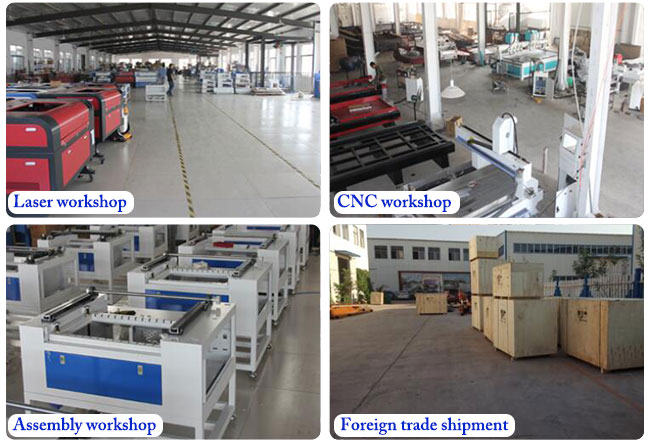

Factory:

Exhibition Gallery:

Certifiation:


  • ทั้งหมด
  • คำแนะนำ
  • รายละเอียดสินค้า
  • การส่งสินค้า
  • การชำระเงิน
  • อื่น ๆ
ถามคำถาม

เลือกหัวข้อ:

รายละเอียดสินค้า การส่งสินค้า การชำระเงิน อื่น ๆ


Content:


แนบไฟล์:

Preview Size State Operation


รหัสยืนยัน:

การส่งสินค้า :
We ship to more than 200 countries and 300 ports worldwide!
By Express: 3-5 business days
By Sea: 20-60 business days
How much to ship to
my place?
การชำระเงิน:
T/T Bank Transfer:
:
:

Video Guide:
