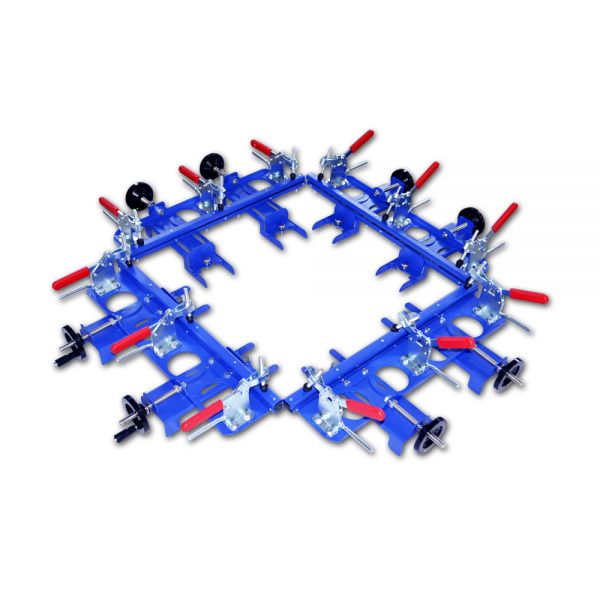

ชุดเครื่องยืดผ้า    ขึงบล็อกสกรีน      ขนาด 40" x 40"   ลงมา    20 ชิ้น----20pcs 40" x 40" Below Any Combined of Manual Screen Stretcher Screen Printing Stretcher
  • ชุดเครื่องยืดผ้า    ขึงบล็อกสกรีน      ขนาด 40" x 40"   ลงมา    20 ชิ้น----20pcs 40" x 40" Below Any Combined of Manual Screen Stretcher Screen Printing Stretcher

See larger image and other views (with zoom)

ชุดเครื่องยืดผ้า ขึงบล็อกสกรีน ขนาด 40" x 40" ลงมา 20 ชิ้น----20pcs 40" x 40" Below Any Combined of Manual Screen Stretcher Screen Printing Stretcher



รหัสสินค้า:SPM-TJ-ST710-20P

  • ราคา Unit : ฿ 15,955 - 17,728/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

    ราคาขายส่ง :
    • จำนวน (sets) ส่วนลด Amount/set
      1. 1 0% ฿17,728
      2. 2 - 5 5% ฿16,842
      3. 6 - 10 10% ฿15,955
    • Need more quantities, please click Bulk Order
  • จำนวน: set(s) Total Cost: ฿17,728
  • น้ำหนักการส่ง: 187.0lb (85kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection



ชุดเครื่องยืดผ้าขึงบล็อกสกรีนขนาด 40" x 40"   ลงมา    20 ชิ้น

เครื่องยืดผ้าขึงบล็อกสกรีนของบริษัทเรานี้ผ่านการออกแบบใหม่ใช้ขึงด้วยมือ

มีฐานรูปแบบเป็นสากล, จำนวนสองและสาม ที่หนีบที่มีความเร็วซึ่่งติดตั้งแยกกันต่างหากแผ่นกดสามารถถอดเปลี่ยนได้,  โดยผู้ใช้งานสามารถเปลี่ยนความยาวแผ่นกดที่แตกต่างกันออกไปซึ่งมีขนาดที่   70.80.90.100cm  ซม  ได้ตามความต้องการที่แตกต่างกัน



สามารถบรรลุผลการใช้งานได้ อย่างหลากหลาย, และสามารถประหยัดวัสดุ, ให้ผลการยืดขึงบล็อกสกรีนที่ดียิ่งกว่า, แผ่นกด    ฐานรูปแบบสากลประเภท710  นี้สามารถเปลี่ยนได้จากที่ขนาด  70.80.90.100 ซม. เมื่อใช้เพียงแค่ต้องเลือกผ้าขึงบล็อกที่มีจำนวนตาข่ายที่เหมาะสมตามขนาดของบล็อกสกรีนและติดตั้งแผ่นกดบนฐานเพื่อให้เหมาะสมกับผ้าขึง









20pcs 40" x 40" Below Any Combined of Manual Screen Stretcher Screen Printing Stretcher

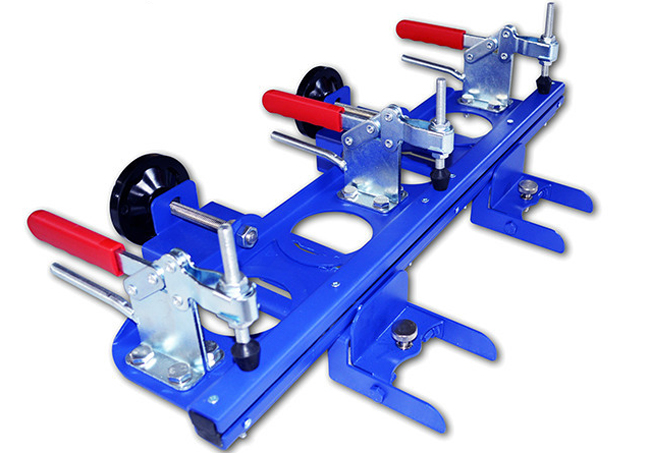

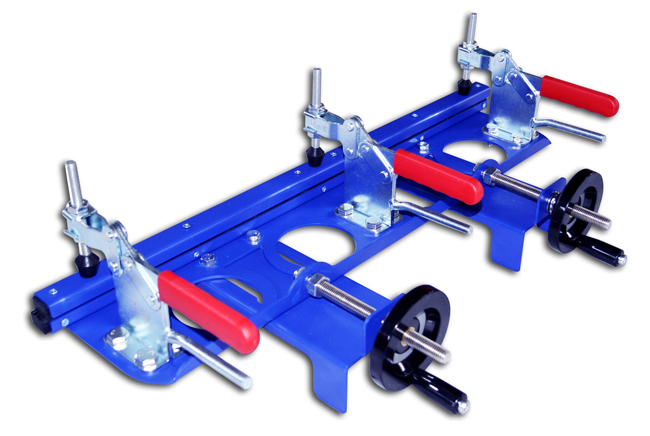

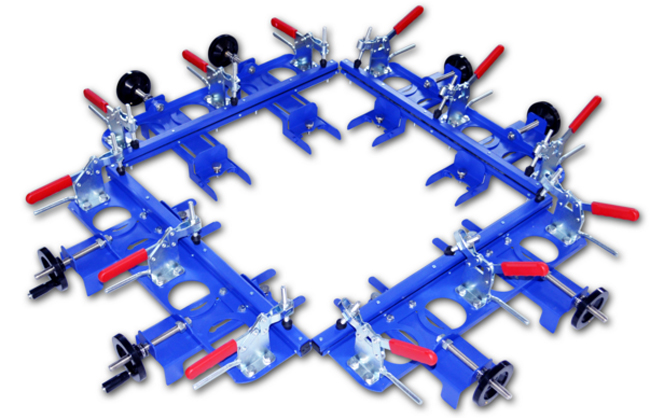

My company's new design ---any combination of manual screen stretcher; The base is universal, and there are two and three fast clips installed separately ;The pressing plate is replaceable, users can replace different length pressing plate from 70.80.90.100cm according to different needs . It can achieve multi-usage, and it can save materials, the stretching effect is better.

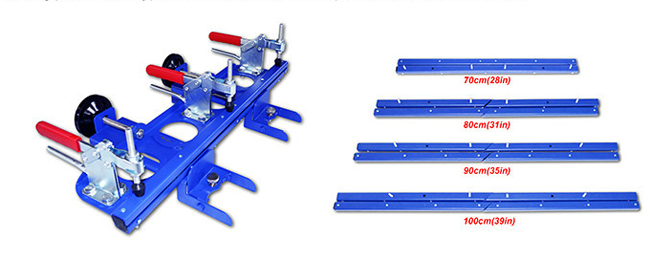

Pressing plate of 710 type universal base can be replaced from 70.80.90.100cm;
When using ,users just need to choose suitable mesh pressing plate according to the size of the screen frame,and install the pressing plate on the base to finish the suitable stretcher.

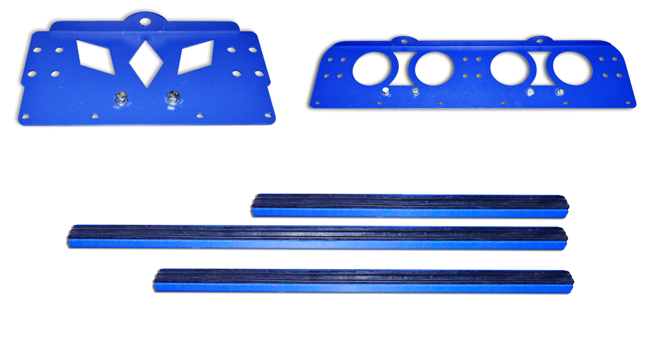

ชุดสินค้านี้ประกอบด้วยฐานสากล  4 ชุด ประเภท 710,  แต่ละขนาดมี 4  แผ่นและมีความยาวที่  70.80.90.100 ซม. ซึ่งขนาดเหล่านี้ผู้ใช้งานสามารถยืดขึงบล็อกสกรีนได้ที่ขนาดดังต่อไปนี้     70 x 70;70 x 80;70 x 90;70 x 100;80 x 80 ;80 x 90;80 x 100;90 x 90;90 x 100;100 x 100.





This combination include 4 sets 710 type universal base, each size 4 pieces pressing plate,and the length is 70.80.90.100cm.Using these users can stretch 70 x 70;70 x 80;70 x 90;70 x 100;80 x 80 ;80 x 90;80 x 100;90 x 90;90 x 100;100 x 100.



เครื่องนี้สามารถทำให้เกิดความตึงได้ไม่เกิน  24N


ฟังก์ชั่นและคุณสมบัติของสินค้าเครื่องนี้   :

1. ชั้นยางเว้าเป็นนูนซึ่งใช้ยางรสจืดและมีความทนทานแข็งแรง





Use the machine can reach the tension within 24N

The functions and features of this machine:
1.The rubber layer is concave convex; using tasteless and resistant to aging rubber;

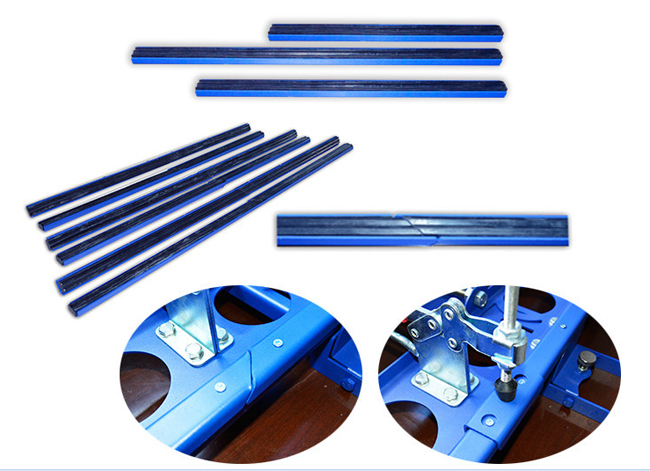

2. แผ่นกดชนิด  710   นี้ใช้แผ่นกดแบบแยกประกบมุมที่  45 องศาร่วมกันโดยไม่ต้องประสาน, แรงยึดมีความสม่ำเสมอกัน



2.The 710 type adopts split pressing plate; Strip adopts 45 degree angle cutting splicing, the joint plane without line interface, the bonding strength is evenly.



3. ความแข็งของยางมีความสม่ำเสมอสมดุลช่วยให้ผ้าขึงบล็อกไม่หลวม

4. ยางด้านบนและชุดยึดอย่างรวดเร็วนั้นใช้โครงสร้างที่แบ่งส่วนและมียางที่ด้านบนซึ่งสะดวกสำหรับการใช้งาน

5.  ติดตั้งได้อย่างรวดเร็วโดยที่จับมีประสิทธิภาพดียิ่งขึ้นในการลดความหลวมของการยึด





3.The hardness of rubber is reasonable,make the mesh is not loosen .

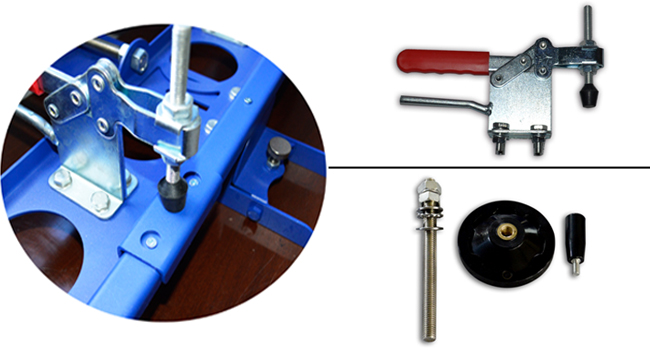

4.The top rubber and fast fixture adopts split structure,place the top rubber is more convenient .
5.The fast fixture uses auxiliary handle,buckle and loose are more effort.



6. เหมาะสำหรับใช้ขึงบล็อกสกรีนที่มีความหนาที่แตกต่างกันโดยการปรับด้วยน็อตสกรู

7. หมุนลูกบิดที่จับให้แน่นซึ่งหมุนได้ง่ายมากยิ่งขึ้น





6.Suitable for the thickness of different frame by adjust the screws.

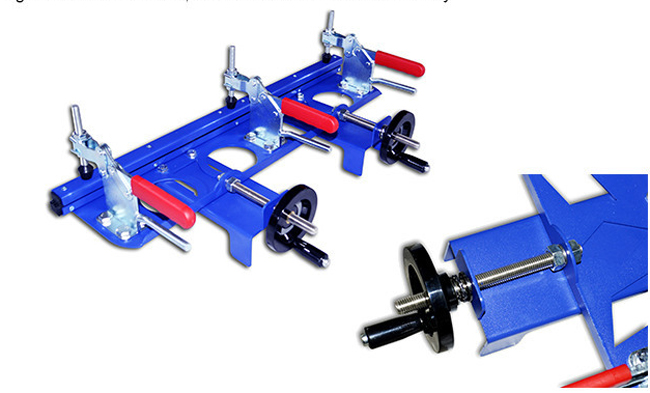

7.Tighten the handle wheel, rotate the handle wheel more easily.

8  ตัวเครื่องผ่านการออกแบบโครงสร้างรูปแบบรวบรวมผสมผสานเข้าไว้ด้วยกันโดยลูกค้าสามารถติดตั้งตัวเครื่องได้อย่างง่ายดาย     อย่างมากโดยใช้ชุดเครื่องมือสำหรับติดตั้งทั้งหมดตามคำแนะนำในการติดตั้ง

9  ชิ้นส่วนหลักของตัวเครื่องถูกบรรจุลงในแพ็คเก็จรูปแบบแยกชิ้นส่วนและใช้กล่องบรรจุภัณฑ์มาตราฐานการส่งออกยุโรป      และอเมริกาซึ่งบรรจุภัณฑ์มีขนาดเล็กและสามารถรับประกันความปลอดภัยของผลิตภัณฑ์ได้ช่วยลดต้นทุนการขนส่ง



คำแนะนำ:

1. ขึ้นอยู่กับขนาดของบล็อกสกรีนและตำแหน่งขึงบล็อกสกรีน

2. ขึ้นอยู่กับความหนาของบล็อกสกรีนและการปรับน็อตสกรูโดยบล็อกสกรีนจะสูงกว่าโครงเครื่องขึงที่  2-4    มม.

3. วางบล็อกสกรีนลงบนตำแหน่งของเครื่องขึง,  เคลือบกาวเป็นอันดับแรกตำแหน่งสำหรับช่วงเวลาหนึ่ง, ในขณะที่พื้นผิวของกาวแห้ง (กาวไม่ยึดติดกับนิ้วมือของคุณ)

4. ผลักที่หนีบไว้ด้านในแผ่ผ้าขึงบล็อกวางชั้นยางด้านบนลงโดยใช้ชุดกดติดตั้งอย่างรวดเร็วของชั้นยางด้านบน

5. หมุนลูกบิดมือ 4 ชิ้นและเริ่มต้นยืดผ้าขึงบล็อกสกรีนทดสอบความตึงขันกระชับความตึงผ้าขึงบล็อกสกรีนตามสถานการณ์ที่เหมาะสมเพื่อให้บรรลุความตึงตามความต้องการ

6.ทากาวอีกครั้งวางไว้ระหว่างช่วงเวลาหนึ่ง, ในขณะที่กาวแห้งสนิทและเอากรอบบล็อกสกรีนออก

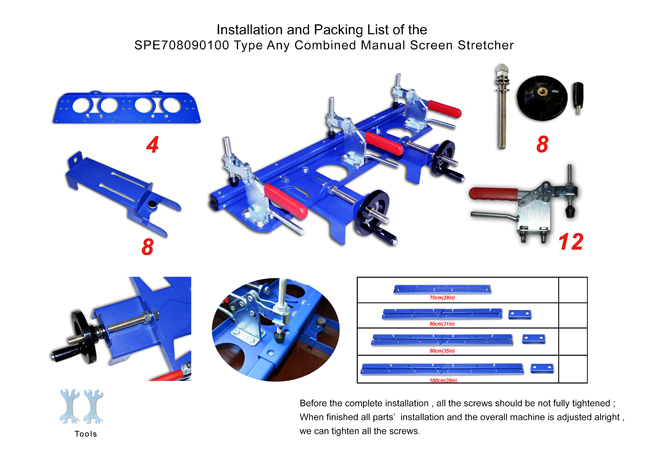

8.The machine adopts combined structure, customers can install the machine easily by using the full set of installation tools according to the installation instructions.
9.The machine adopts the main parts split packing, and it adopts the European and American standard export packing; Package volume is small, and it can ensure the safety of products; Lower transport costs.

Instructions:
1.According to the size of frame and place the stretcher.
2.According to the thickness of frame and adjust screws ,the frame is higher than the stretcher baffle 2-4mm.
3.Place the frame into stretcher,coating the glue for the first time,place for a period of time,while the surface of glue is dry(the glue is not stick to your fingers )
4.Push the clipboard to the inside,flatten the screen mesh,put the top rubber layer;using the fast fixture presses the top rubber layer.
5.Turn four hand wheels and start to stretch screen mesh; using tension meter tests tension,tighten the screen mesh according to the situation,achieve the required tension.
6.Costing the glue again;place a period of time,while the glue dry completely and remove the frame.

Details:





แพ็คเก็จ:

น้ำหนักรวม :  60 กก

ขนาดบรรจุภัณฑ์: 76 x 76 x 35cm





Package:
Gross weight: 60 kg
Packing size: 76 x 76 x 35cm
