เครื่อง Router CNC 1300 ม.ม.x 2500 ม.ม. พร้อมแกนหมุน 3KW    1300mm x 2500mm CNC Router Machine with 3KW Spindle
  • เครื่อง Router CNC 1300 ม.ม.x 2500 ม.ม. พร้อมแกนหมุน 3KW    1300mm x 2500mm CNC Router Machine with 3KW Spindle

See larger image and other views (with zoom)

เครื่อง Router CNC 1300 ม.ม.x 2500 ม.ม. พร้อมแกนหมุน 3KW 1300mm x 2500mm CNC Router Machine with 3KW Spindle

   |   12 Transactions

รหัสสินค้า:SIT-CNC-SK1325

Buyer Protection

เครื่อง Router CNC 1300 ม.ม.x 2500 ม.ม. พร้อมแกนหมุน 3KW

1300mm x 2500mm CNC Router Machine with 3KW Spindle


รายละเอียด:
รุ่น CK1325 มีฟังก์ชั่นการทำงานที่ดีมีประสิทธิภาพดีใช้งานง่ายมั่นคงและทนทาน มันถูกใช้อย่างกว้างขวางในไม้, โฆษณา, PVC, อะคริลิค,    แผ่นพลาสติกอลูมิเนียม ฯลฯ

Description:
CK1325 series has strong function with good performance, easy to use, solid and durable. It is applied extensively in wood, advertising, PVC, acrylic, aluminum plastic plate, etc.

Specification   คุณสมบัติเฉพาะ
Rail   ราง configure with Taiwan LAPPING Linear Rail
Package size  ขนาดบรรจุภัณฑ์ 3180*1980*1800mm;Gross Weight :1280KGS
X,Y working area   พื้นที่ทำงาน X,Y 1300x2500mm,Machine transmitting by rack and gear
Z working area  พื้นที่ทำงาน Z 150mm-200mm
Max. speeding  ความเร็วสูงสุด 30m/min
Work-holding  งาน-ยึดจับ Standard with wide and hard aluminum table with high quality clamps
(vacuum system with 7.5KW vacuum pump is optional)
Processor  หน่วยประมวลผล Adopt the most advanced FPGA LCM controlling system
Spindle motor power  กำลังมอเตอร์แกนหมุน 3KW water cooling spindle motor
Surroundings for software  ใช้กับซอฟแวร์ Windows10/7/XP

Power(spindle is not included)

กำลัง (ไม่รวมแกนหมุน)

4000W
Working voltage  แรงดันไฟฟ้าในการทำงาน AC220V/50HZ/60Hz for standard machine,
if optional vacuum system or servo system, it need 380V 3 phase
Main axis rotating speed   ความเร็วในการหมุนแกนหลัก 0-24000rpm/min
Work Mode  โหมดการทำงาน Large Stepper motors and drivers ;Servo (Optional)
Control mode  โหมดการควบคุม Handle control

Engraving tools & collets

เครื่องมือแกะสลักและ collets

3.175mm;6mm;12.7mm;(sending you 10 pcs with the machine ).
2 collets standard with the machine
Software ซอฟแวร์ new version type3 software:Router 8
Warranty  การรับประกัน One year without the tools
Optional    ตัวเลือก Dust collector; Servo system,Vacuum system



การกำหนดค่า:
●ความเร็วในการเดินทางอาจสูงถึง 20 เมตร / นาที
●การกำหนดค่าด้วยระบบควบคุม CNC แบบมืออาชีพ
●เข้ากันได้กับซอฟต์แวร์ CAD / CAM ต่างๆเช่น Type3 / Artcam / Casmate / CAXA / Artcut เป็นต้น
●สามารถรองรับรหัส G-code และ IJK ได้สูง
●ฟังก์ชั่นการกู้คืนจากการปิดเครื่องความต่อเนื่องจากจุดพักใบมีดป้อนวัสดุอัตโนมัติการแกะสลักซ้ำ ๆ รองรับการวางตำแหน่งพิกัดเก้าจุด
●มาตรฐานพร้อมรางไต้หวันเพื่อให้แน่ใจว่ามอเตอร์แกนหมุนเย็น 3kw มีความแม่นยำมากขึ้น
●ไดรฟ์ Powerfun YAKO ที่มีอินเวอร์เตอร์กำลังสูงเพื่อให้เครื่องแข็งแรงขึ้น
●สามารถเลือกระบบสูญญากาศและระบบเก็บฝุ่น



Configuration:

● Traveling speed can be up to 20m/min.
● Configured with professional CNC controlling system.
● Be compatiable with various CAD/CAM software as Type3/Artcam/Casmate/CAXA/Artcut etc.
● Can high support G-code and IJK code.
● Own functions of restoring from power off, continuation from break point, auto feeding blades, repeat engraving, support nine coordinate positioning.
● Standard with Taiwan linear rail to ensure more accuracy 3kw water cooling spindle motor standard.
● Powerfun YAKO drive board with high power inverter to make the machine more stronger.
● Can optional the vacuum system and dust collector system.

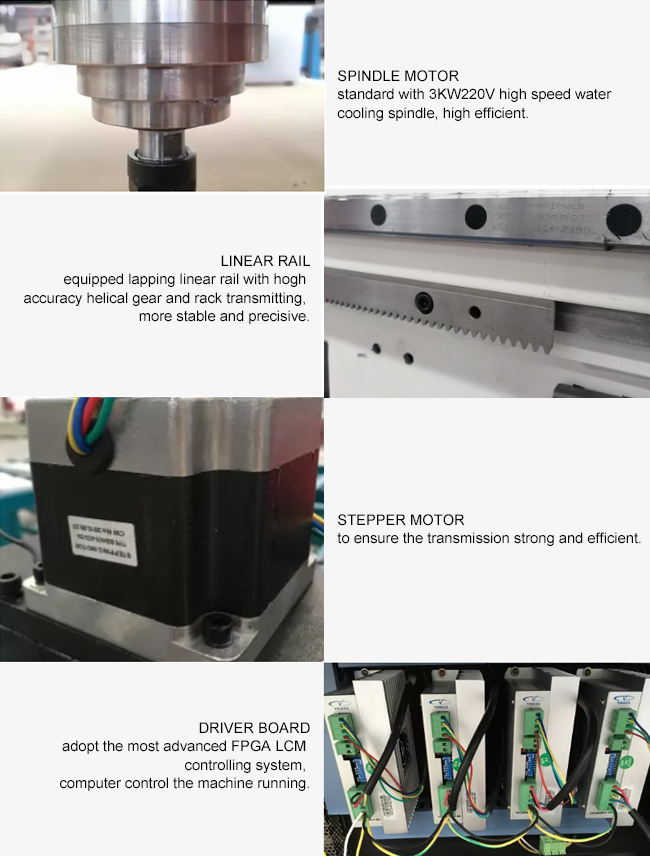

Main parts:
