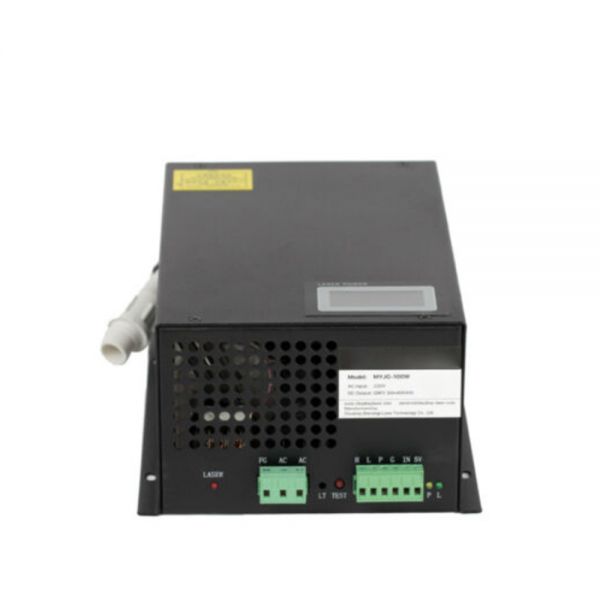

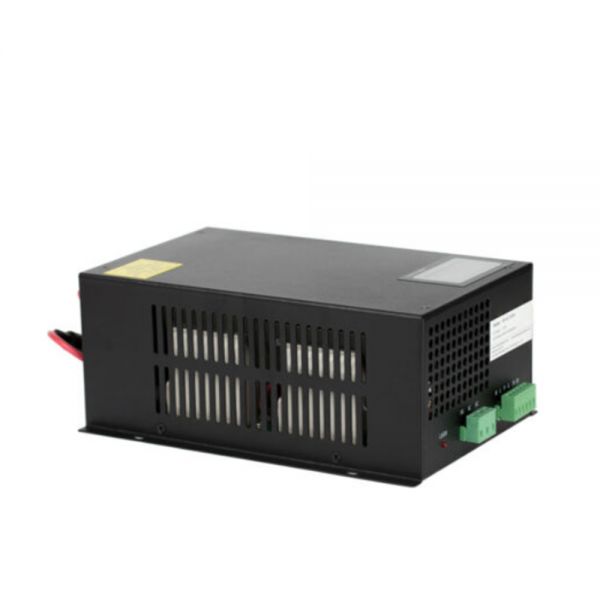

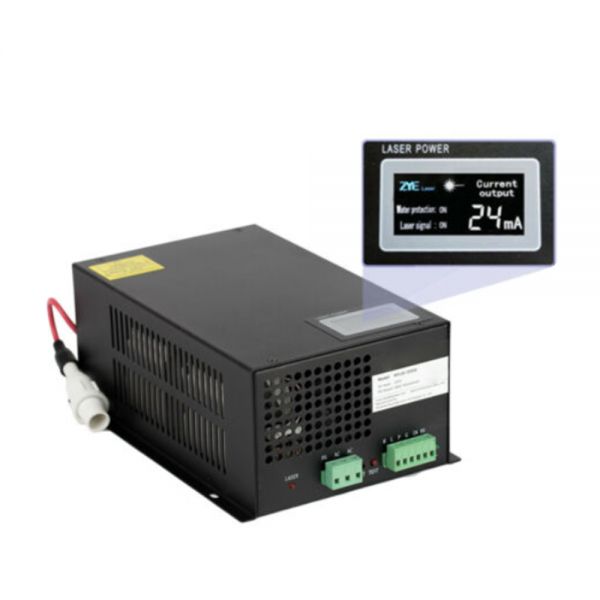

100W Power Supply with Screen for 80-100W CO2 Laser Engraving Machine, 220V
  • 100W Power Supply with Screen for 80-100W CO2 Laser Engraving Machine, 220V
  • 100W Power Supply with Screen for 80-100W CO2 Laser Engraving Machine, 220V
  • 100W Power Supply with Screen for 80-100W CO2 Laser Engraving Machine, 220V

See larger image and other views (with zoom)

100W Power Supply with Screen for 80-100W CO2 Laser Engraving Machine, 220V



รหัสสินค้า:SIT-CS-PS-T100A

  • ราคา Unit : ฿ 12,636/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 12-18 วัน)

  • จำนวน: set(s) Total Cost: ฿12,636
  • น้ำหนักการส่ง: 7.7lb (3.5kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart inquire

Buyer Protection

Features:

1. Input voltage: AC 220V
2. Response speed: ≤ 1mS.
3. Zero-current half-bridge soft-switching circuit. High efficiency and fast response. Match various manufacturers of laser tubes.
4. TTL level switch control: the active level can be high or low.
5. Protection switch: can be used for the detection of waterway, protect the laser
6. Laser power regulation:
    (1) The output current of the laser power source is adjusted by a potentiometer.
    (2) Controlled by PWM (amplitude is TTL level).
7. Open Circuit Protection Function: avoid the damageto laser power supply due to laser tube burst.

8. Operating environment: temperature (-10~40) °C, humidity: ≤85%.

Specification:

Item   SIT-CS-PS-T100A
Input Input Voltage AC220V (The order should be especially instructions )
  AC Frequency 47 - 440Hz
Output Max output Voltage 30KV
  Max Output current 28mA
Efficiency equal or more than 90% ( load down )
Time no-failure equal or more than10000h
Response speed

equal or less than 1mS (the time from output of switch signal to 90%
of initial setting current )

Voltage - resisting Input - Output ,input - machine hull: C1500V 10mA 60s; output cathode and machine hull connection
Usage environment Work temperature (-10 ~ 40) , Relative humidity: Equal or  less than 90%
Cooling Type The compulsive air cooling
