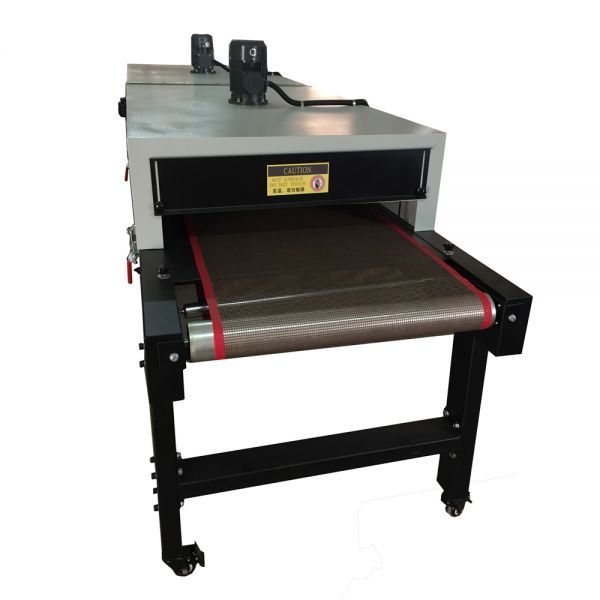

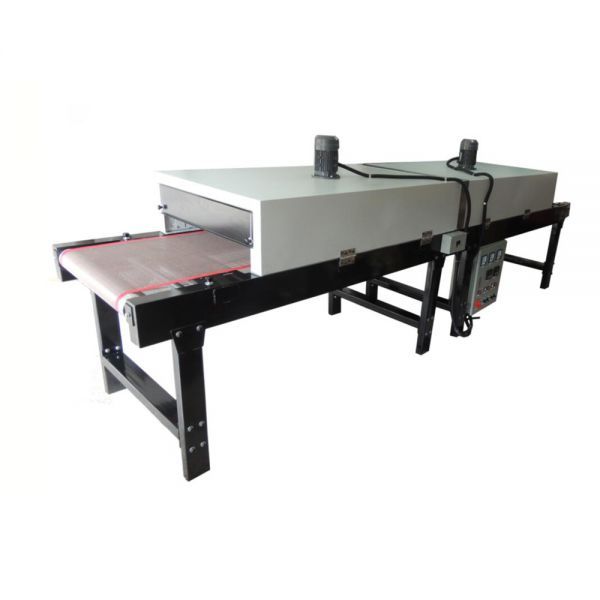

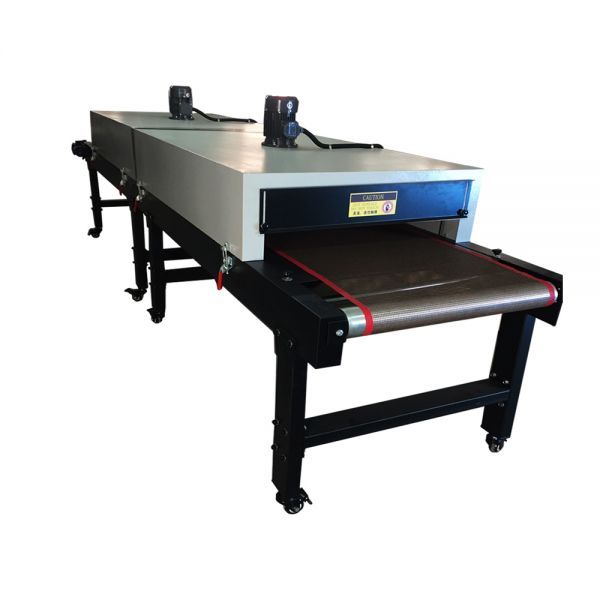

380V 14KW Conveyor Tunnel Dryer 13ft. Long x 25.6" Belt for Screen Printing
  • 380V 14KW Conveyor Tunnel Dryer 13ft. Long x 25.6" Belt for Screen Printing
  • 380V 14KW Conveyor Tunnel Dryer 13ft. Long x 25.6" Belt for Screen Printing
  • 380V 14KW Conveyor Tunnel Dryer 13ft. Long x 25.6" Belt for Screen Printing

See larger image and other views (with zoom)

380V 14KW Conveyor Tunnel Dryer 13ft. Long x 25.6" Belt for Screen Printing



รหัสสินค้า:SPM-RD-ND4065

  • ราคา Unit : ฿ 105,609 - 117,343/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

    ราคาขายส่ง :
    • จำนวน (sets) ส่วนลด Amount/set
      1. 1 0% ฿117,343
      2. 2 - 5 5% ฿111,476
      3. 6 - 10 10% ฿105,609
    • Need more quantities, please click Bulk Order
  • จำนวน: set(s) Total Cost: ฿117,343
  • น้ำหนักการส่ง: 1012.0lb (460kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

380V 14KW Conveyor Tunnel Dryer 13ft. Long x 25.6" Belt for Screen Printing

Parameters:

1. Power: Power: 380V/14KW (Three phase)
2. Lamp: IR heating lamp.
3. Machine length: 157.5" / 400cm
4. Heating area: 25.6" x 10 FT(300x65cm) or customized
5. Constant temperature range: 0-482℉ / 0-250 ℃
6. Pavking: 2 plywood box
7. Gross weight: 1012 lb / 460kg
8. Packing Size:
  1# 87.8" x 41.7"x 33.9"/223 x 106 x 86 cm 218 kg/480 lb
  2# 80.3"x 43.3"x 33.9"/204 x 110 x 86 cm 242 kg/532 lb
9. 2 Year Heater Warranty! (except lamp)

Note: This machine has no plug. You need to wire it by yourself.


Feature:
1. All machine size be customized. we only showing some simple photos.
2. Temperture and working speed are simply and easily adjustable.
3. Digital speed meter enables operator to adjust working speed accurately.
4. The heating element is silicon carbide tube. which has high efficiently light source to dry clothes exhaust fan eliminates the scrape outside.
5. It is suitable for drying various kinds of textile printing ink. such as plastic ink. silica gel printing ink. paste. and water based ink.

Application:

This tunnel dryer is suitable for heating printing ink on clothes. even heat-set ink.
Nice designed structure to make sure the best drying effect.
Furnished with fire-resistant PTFE Coated Fiberglass belt. efficient IR heating tube and constant heat circulation.
Adopting intelligent digital display temperature control system. temperature error within 1 cent degree.
Steady belt transport. little noise and steeples speed change.
Owning a very short warm-up time to reach operational temperature.
Energy-saving and high efficiency
