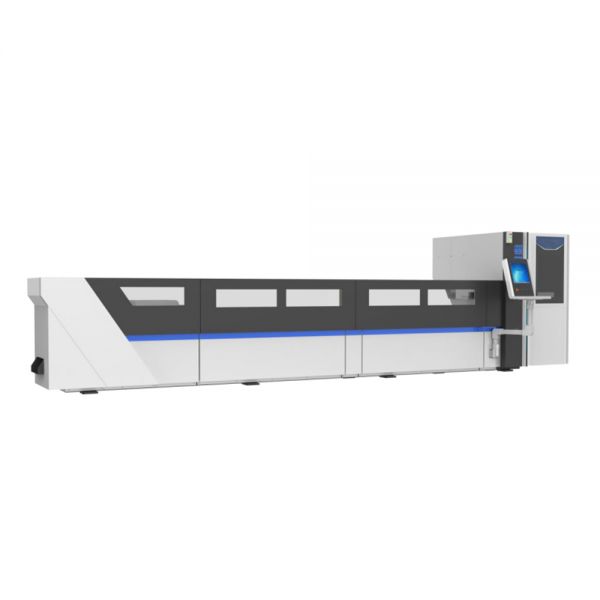

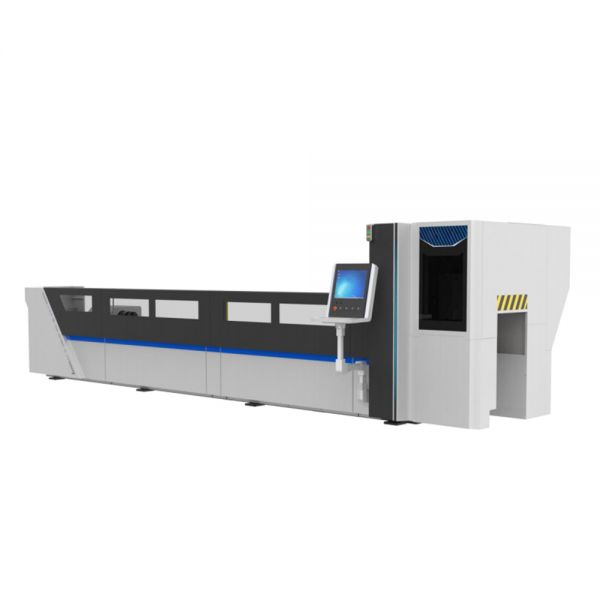

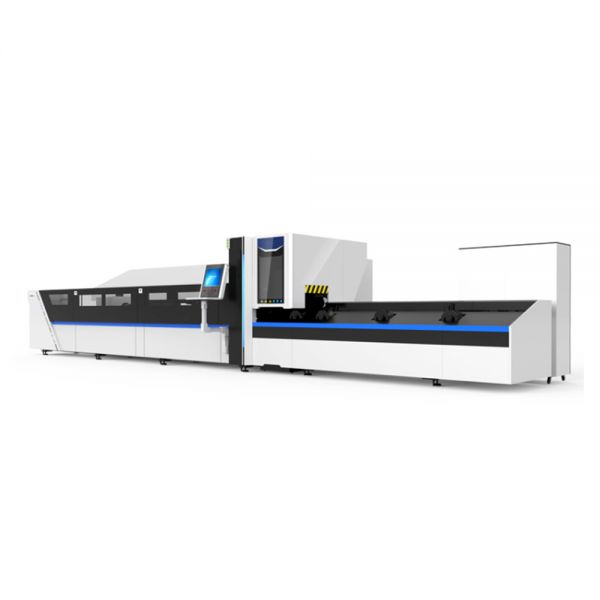

6020T Automatic Fiber Laser Tube Cutting Machine
  • 6020T Automatic Fiber Laser Tube Cutting Machine
  • 6020T Automatic Fiber Laser Tube Cutting Machine
  • 6020T Automatic Fiber Laser Tube Cutting Machine

See larger image and other views (with zoom)

6020T Automatic Fiber Laser Tube Cutting Machine

   |   36 Transactions

รหัสสินค้า:SIT-FIBER-6020T

  • ราคา : ฿ 4,590,514/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

    • กรุณาเลือกประเภท

    กรุณาเลือกประเภท: 1000W/Raycus 1000W/IPG
  • จำนวน: set(s) Total Cost: ฿4,590,514

  • น้ำหนักการส่ง: 15620.0lb (7100kg) freightขนส่งสินค้า

  • inquire
Buyer Protection

6020T Automatic Fiber Laser Tube Cutting Machine

Introduction:
6020T fiber laser tube cutting machine is a fully automatic laser tube cutting machine. This series of products is the preferred model in metal pipe processing industry. The bed is made of honeycomb carbon structure after annealing treatment and welded by precision welding process. It has extremely high strength and stability. The running speed of the machine can reach 80 m/min，which is can process round pipes with diameter less than 200 mm and square pipes with side length less than 140 mm.

Specification:
Model 6020T
Laser device 1000W Raycus/IPG
Cutting length of pipe 0~6000mm
Cutting Diameter of Pipe 20~200mm
Wavelength 1060-1080 nm
Beam quality (BPP,mm*mrad) 1.27
Positioning accuracy ±0.05mm/m
Repeated positioning ±0.03mm/m
Maximum airspeed 80m/min
Controlling system TubePro
Electromechanical SCHNEIDER
Cutting bed 6020T
Water cooling Specialized
Dust exhausting fan Specialized
Document Specialized
Document Operating
Power parameters Three-phase AC 380V 50Hz
Protection Level of Total Power Supply IP54
Outline size 9000x2900x2400

Features:
The machinery is composed of bed, Z-axis device, operation part, air-way and water-way, etc, which is equipped with German equipment layout, with fast speed, design and manufacture of reinforced precision welding bed, two aging treatments to ensure the accuracy and stability of long-term operation of the bed, good rigidity and high acceptance of acceleration; the bed adopts steel structure precision welding, stress failure treatment, large gantry with guide seat. Processing from the center.

The special numerical control system for laser pipe cutting machine is selected: TubePro pipe cutting software and TubesT pipe sleeving software. CypCut TubePro pipe cutting software is a professional cutting software for processing various types of pipe. Perfect seamless docking with layout software Tubes T. Tubes T achieves parts layout, common edge, basic process and special process processing. After exporting the processing file, it can be cut directly by TubePro.

(1) Obtaining the center deviation in the process of machining
TubePro can acquire the deviation between the center of pipe and the center of chuck rotation by collecting the Z-axis information in real time during processing. Real-time compensation for subsequent cutting graphics is carried out to achieve high precision processing.

(2) Two modes
TubePro can select processing mode before processing. The first mode is to use fixed tools, suitable for drilling the cut pipe, and the second mode is to use the Y axis of the cutting head as a tool for processing at any time and anywhere.

(3) Seven-Axis Drawing Material
TubePro supports two chucks and seven-axis machines. After setting up the seven-axis mode, zero tailings can be processed through a moving chuck and a fixed chuck, thus saving more pipe materials for customers.

(4) Bracket
When a long pipe is processed, a bracket is usually needed to support the pipe. TubePro supports the bracket function. During the whole processing, the bracket can rise or fall automatically according to the position of the chuck, and the bracket has automatic alarm function to ensure absolute safety between the chuck and the bracket. At the same time, brackets can be used to achieve the purpose of automatic blanking.

(5) Corner Technology
TubePro specially introduces the process of pipe corner to solve the problems of difficult cutting and poor cutting. Through debugging and testing, a set of reasonable corner pressure, peak power, duty cycle and so on are set to make the cutting of pipe corners faster and more perfect.

(6) Z-axis follow-up control
When cutting pipes, there are usually situations where the corner can not be cut well. When TubePro is processed, the Z-axis not only plays the role of following and lifting, but also controls instructions.
TubePro automatically calculates the height difference between the tube before and after rotation based on the cross-section information of the graph, and sends an upward or downward instruction to the Z-axis on the basis of random cutting at the corner.

(7) Rapid operation
TubePro can ensure the reasonable height of Z axis according to the section of pipe in West Sydney and the location of pipe hole. In the process of air movement, the three axes of XYB and Z axes move simultaneously, avoiding the time of Z axis rising and following the time, so as to achieve high efficiency.

(8) Cutting of profiled steel
TubePro not only supports the cutting of circular and square tubes. At the same time, it also supports the cutting of various profiles. For example, I-beam, channel, angle, elliptical, waist, polygon and so on. For these special-shaped pipes, the center deviation can also be automatically obtained。

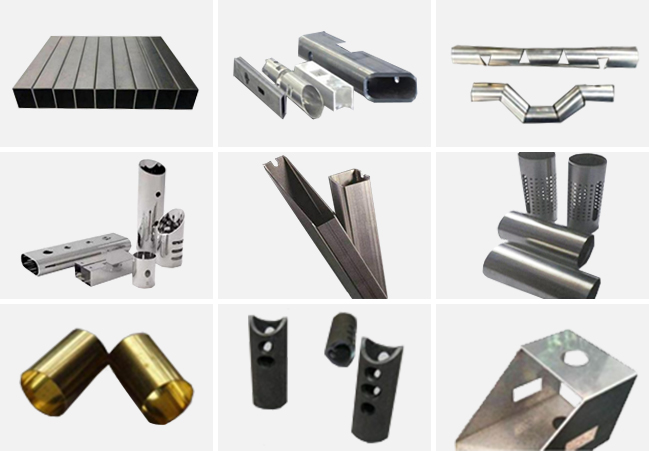

Application & Capability:
1. Cutting materials: carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized steel, silicon steel plate, electrolytic plate, titanium alloy, manganese alloy;
2. Cutting range: 0.5-12mm carbon steel, 0.5-6mm stainless steel, 0.5-6mm aluminum alloy, 0.5-6mm brass;


3. Applied industries：Rail transit, automobile, construction machinery, agricultural and forestry machinery, electrical manufacturing, elevator manufacturing, household appliances, grain machinery, textile machinery, tool processing, petroleum machinery, food machinery, Kitchenware and bathroom, decorative advertising, laser processing services and other machinery manufacturing and processing industries;
