เครื่องเลื่อย สำหรับ   ,ระดับความเอียง 0-45 องศา สำหรับ กระดานไม้อัด ชนิดแข็ง , กระจกอินทรีย์ ,ไม้อัด ฯลฯ---Woodworking Machinery 3200mm Round Stick Rail 0-45 Degree Tilting Saw Blade Sliding Table
  • เครื่องเลื่อย สำหรับ   ,ระดับความเอียง 0-45 องศา สำหรับ กระดานไม้อัด ชนิดแข็ง , กระจกอินทรีย์ ,ไม้อัด ฯลฯ---Woodworking Machinery 3200mm Round Stick Rail 0-45 Degree Tilting Saw Blade Sliding Table
  • เครื่องเลื่อย สำหรับ   ,ระดับความเอียง 0-45 องศา สำหรับ กระดานไม้อัด ชนิดแข็ง , กระจกอินทรีย์ ,ไม้อัด ฯลฯ---Woodworking Machinery 3200mm Round Stick Rail 0-45 Degree Tilting Saw Blade Sliding Table

See larger image and other views (with zoom)

เครื่องเลื่อย สำหรับ ,ระดับความเอียง 0-45 องศา สำหรับ กระดานไม้อัด ชนิดแข็ง , กระจกอินทรีย์ ,ไม้อัด ฯลฯ---Woodworking Machinery 3200mm Round Stick Rail 0-45 Degree Tilting Saw Blade Sliding Table

   |   13 Transactions

รหัสสินค้า:SIT-MJ6132-45F-1

Buyer Protection

เครื่องเลื่อย สำหรับ   ,ระดับความเอียง 0-45 องศา สำหรับ กระดานไม้อัด ชนิดแข็ง , กระจกอินทรีย์ ,ไม้อัด ฯลฯ

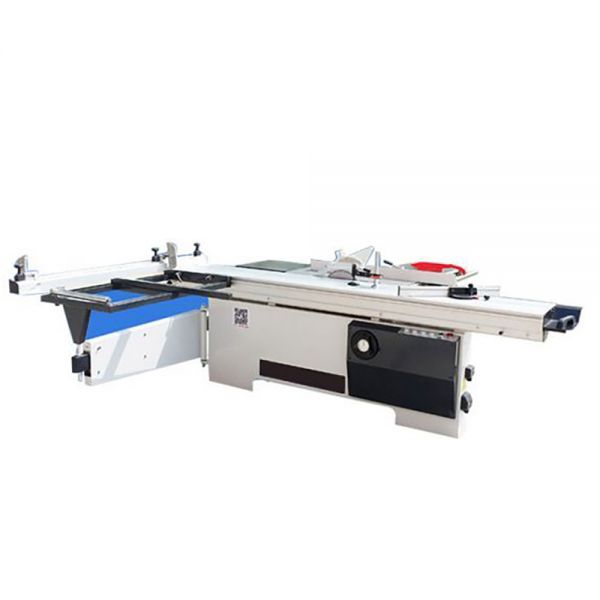

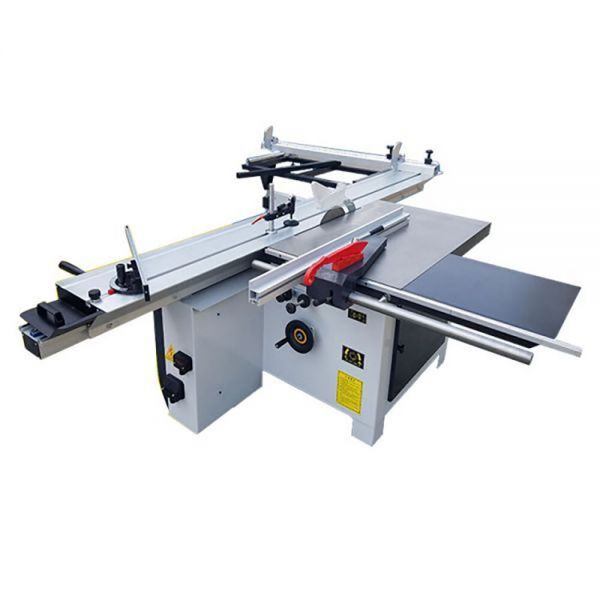

Woodworking Machinery 3200mm Round Stick Rail 0-45 Degree Tilting Saw Blade Sliding Table Saw

Details - รายละเอียดสินค้า  :

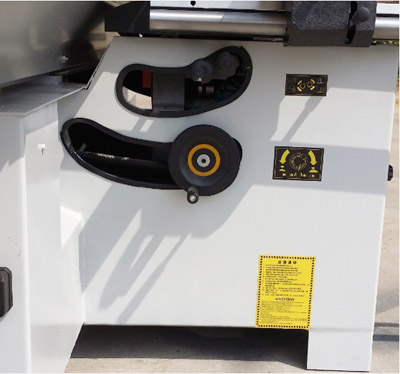

1. Manual lifting ( ที่จับ ควบคุมการยก )

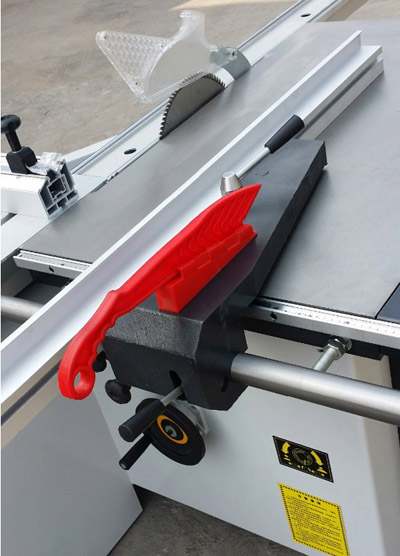

2. Rip fence (ขอบกั้น สำหรับตัด)

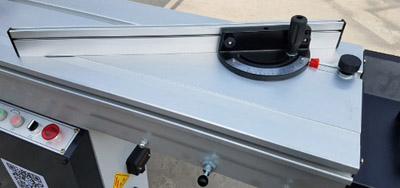

3. Miter fence ( ขอบกั้น ไม้มิเตอร์)

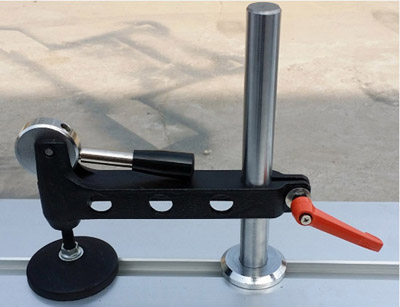

4. Manual pressure clamp/feeder (ที่จับควบคุมแรงดัน การยึด / การป้อน นำส่ง)

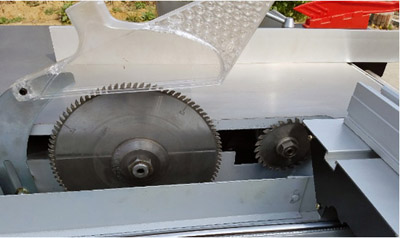

5. Double saw unit, main and scoring saw blade (ใบเลื่อยหลัก และใบเลื่อยรอง )

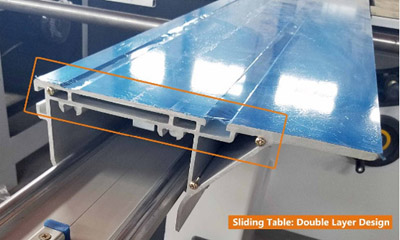

6. Double layer sliding table, more sturdy and stable (แท่นเลื่อน 2 ชั้น ซึ่งมีความแข็งแรงทนทาน  และมีความมั่นคงมากยิ่งขึ้น)


Specification - รายละเอียดสินค้า :

Dimension of Sliding Table

ขนาดบริเวณสไลด์  ของแท่นทำงาน

3200x375mm

Max.Cutting Length

ขนาดความยาวสูงสุด ที่สามารถตัดได้

3200mm

Max.Cutting Width

ขนาดความกว้างสูงสุด  ที่สามารถตัดได้

1250mm

Max.Cutting Height

ขนาดความสูง สูงสุดที่สามารถตัดได้

80mm

Max.Cutting Height at 45°

ระดับความสูงสูงสุด  ที่ 45 องศา

60mm

Main Saw Blade Diameter

ขนาดเส้นผ่านศูนย์กลาง ใบมีดเลื่อยหลัก สำหรับตัด

300mm/30mm

Scoring Saw Blade Diameter

ขนาดเส้นผ่านศูนย์กลาง ใบเลื่อย สำหรับตัด ชิ้นอื่น

120mm/20mm

Speed of Main Saw Shaft

ความเร็ว แกนเพลา ใบเลื่อยหลัก

4000-6000r/min

Main Saw Shaft Diameter

ขนาดเส้นผ่านศูนย์กลาง ขนาดแกนเพลา ใบเลื่อยหลัก

30mm

Speed of Scoring Saw Shaft

ความเร็ว แกนเพลา ใบเลื่อย อีกชิ้น

7000-8000r/min

Scoring Saw Shaft Diameter

ขนาดเส้นผ่านศูนย์กลาง ขนาดแกนเพลา ใบเลื่อยอีกชิ้น

20mm

Voltage

220v

380v

Motor Power

พลังงาน มอเตอร์

3kW+0.75kW

4kW+0.75kW

Tilting Saw Blade

ระดับความเอียง ใบเลื่อย

0°-45°

Overall Dimensions

ขนาดโดยรวม

3200*1100*1200mm

Gross Weight

น้ำหนักรวม

800kg

Application materials - วัสดุที่สามารถนำมาใช้ตัดได้ :

กระดานไม้อัด ชนิดแข็ง (Solid wood board) , กระจกแก้วอินทรีย์ (Organic glass board),ไม้อัด (Playwood) ,กระดานบอร์ด ABS (ABS board) ,กระดานบอร์ด  PVC (PVC board),วัสดุไม้อัด MDF, ไม้อัด ประเภทparticleboard
