3.2m Large Format Direct to Fabric Digital Flag Printer with 4/8 Epson 3200 Printhead

See larger image and other views (with zoom)

3.2m Large Format Direct to Fabric Digital Flag Printer with 4/8 Epson 3200 Printhead

รหัสสินค้า:SIT-QZJ-ST3208F

ราคา : ฿ 705,373/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน25-45วัน)

กรุณาเลือกประเภท

4-head 8-head

จำนวน: set(s) Total Cost:
THB ฿705,373
น้ำหนักการส่ง: 3696.0lb (1680kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿
Customers Who Bought This Item Also Bought

< >
ฟิลเตอร์ที่กรองหมึก (5 ไมครอน) สำหรับเครื่องพิมพ์ Infiniti/JHF/Allwin/Phaeton/CrystalJet (หมึก Solvent)

฿23.00/pc

ฟิลเตอร์ที่กรองหมึก (5 ไมครอน) สำหรับเครื่องพิมพ์ Infiniti/JHF/Allwin/Phaeton/CrystalJet (หมึก Solvent)

฿23.00/pc

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 0

3.2m Large Format Direct to Fabric Digital Flag Printer with 4/8 Epson 3200 Printhead

Size:

Specification:

Model		JC3204	JC3208
Print head		4pcs Epson i3200	8pcs Epson i3200
Maximum print width		3200mm
Product mode		2 pass 160m²/h	1 pass 313m²/h
Resolution mode		4 pass 90m²/h	2 pass 177m²/h
Ink	Sort	Sublimation ink

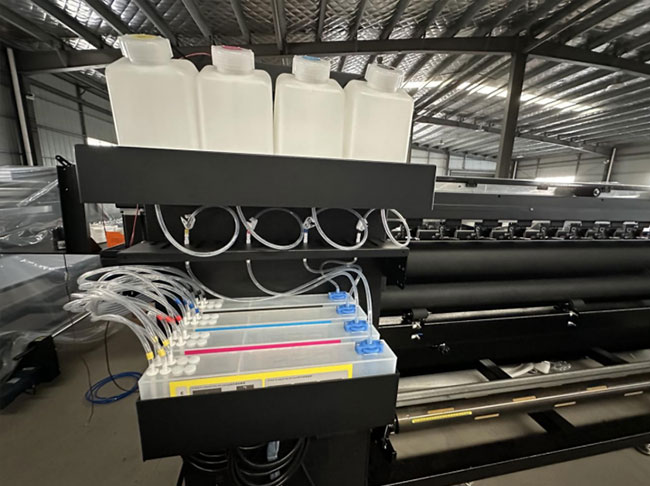

	Capacity	Empty ink supply system
Media	Thickness	1.5mm to 8mm adjustable
	Material weight	75KG
	Sort	Digital flag banner / Flag material
High printing quality		VSD technology
Media take-up device		Double motor automatic media take-up device.
Drying system		Separating roast dry system
		10*1000W heating lamp	14*1000W heating lamp
Interface		1000 Mbit/s
RIP software		MainTop,Photo Print
Voltage		AC 220V± 10%,50/60 ±1Hz
Operation environments		Temperature: 15°C-30°C, Humidity: 35%RH-65%RH
Power		14 KW	18 KW

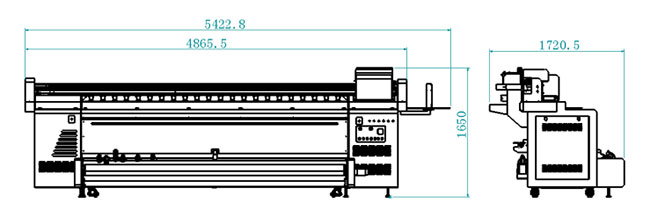

Dimensions of printer (LWH)		542317211650mm
Dimensions of packing (LWH)		500011401700mm	500011401750mm
Net weight		1500kg
Gross weight		1680kg

Computer requirements:

◆ Motherboard ASUS: B250M,

◆ Processor: 15-7500,

◆ Video card: Onda GT7301GD5

◆ Memory Kingston God bar single 8G Hard disk ST500G,

◆ Gigabit network adapter

◆ Computer system win7/win10 64-bit

◆ Equipped with voltage regulator more than 3000 watts.

The voltage regulator is used for the power supply of the machine, and the infrared drying does not require a voltage regulator

Details:

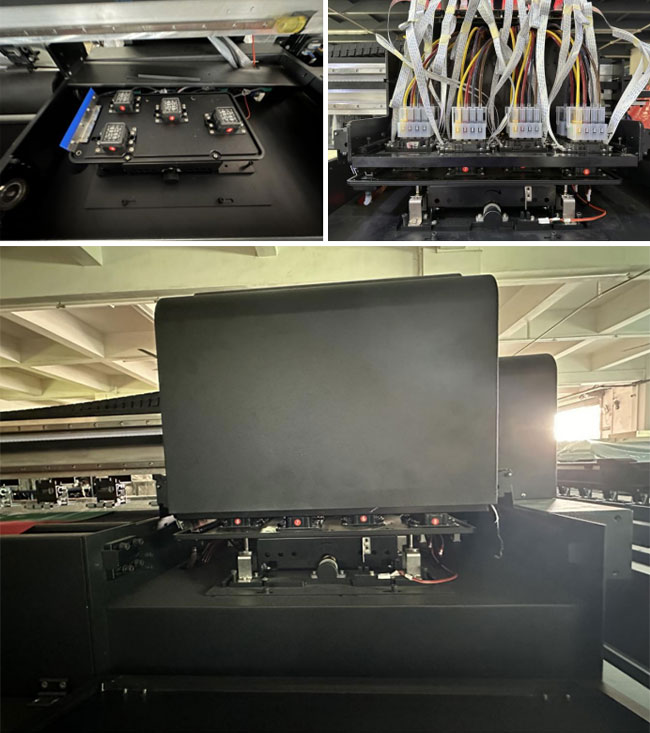

Easy-to-install baseplate, integrated lifting ink station, silent ink pump, ensuring that the print head can be completely sealed when the printer is not working.

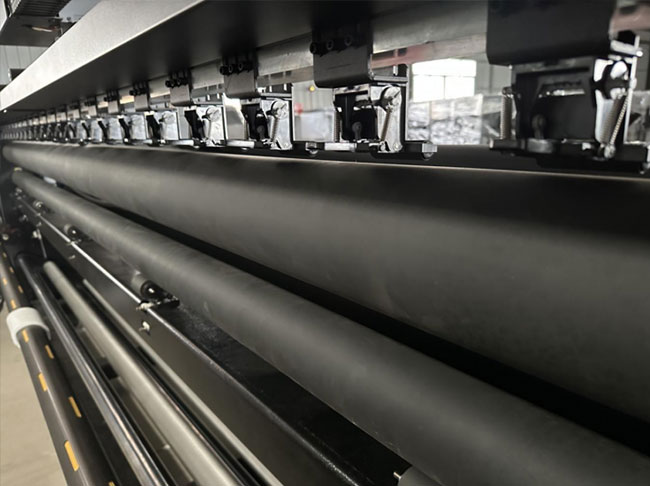

Dual silent linear guides, adjustable pressure rollers, and silicone-coated material feeding rollers. Pressure can be adjusted for different materials.

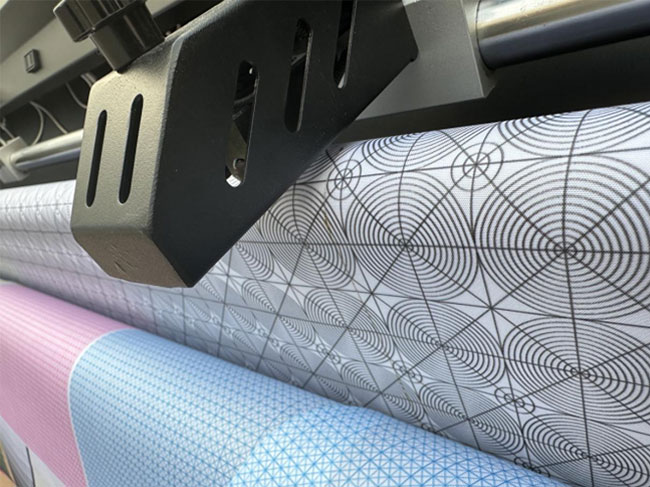

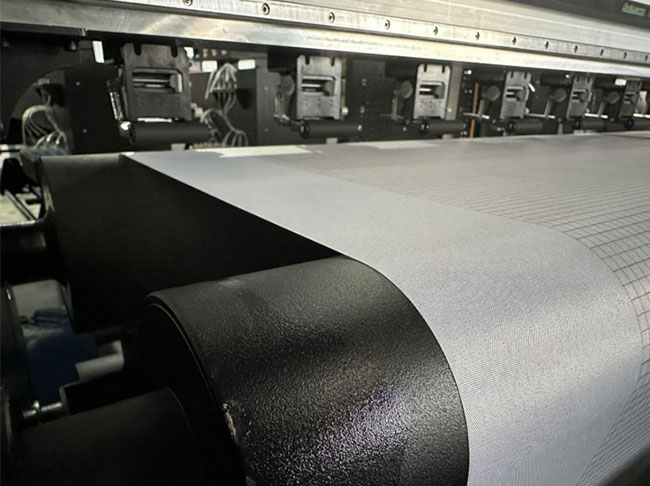

Equipped with rubber roller to ensure flatness during wide-format printing of materials.

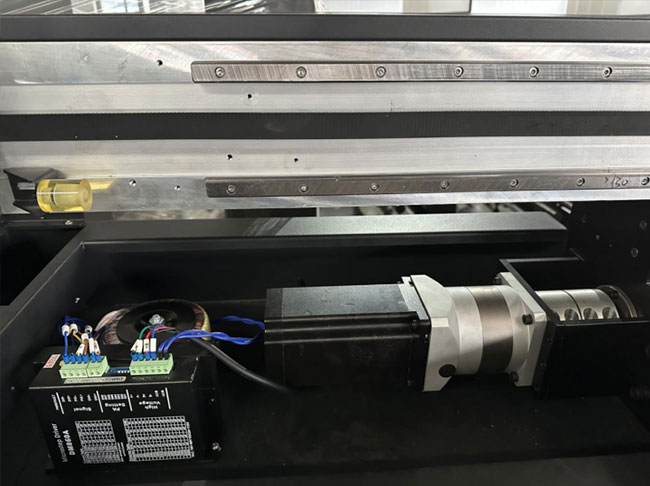

Stepper motor to ensure superior paper feeding performance for materials.

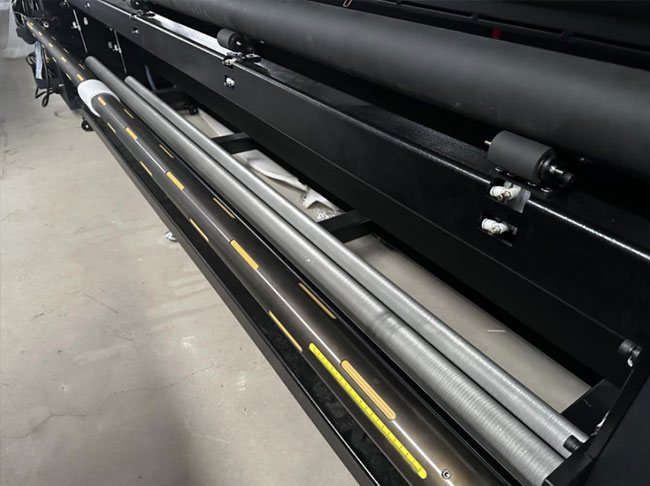

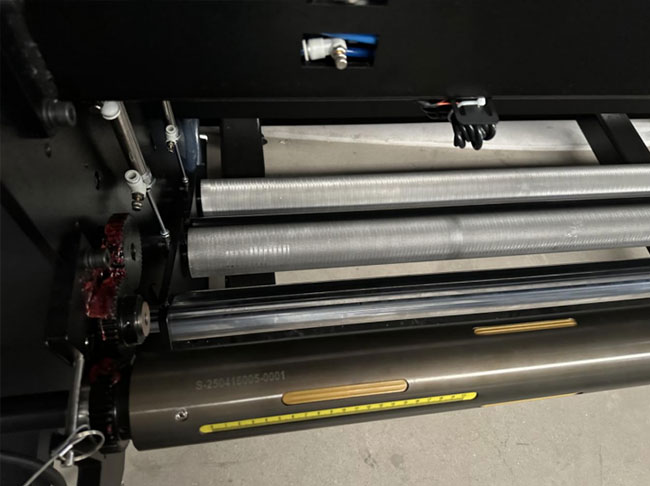

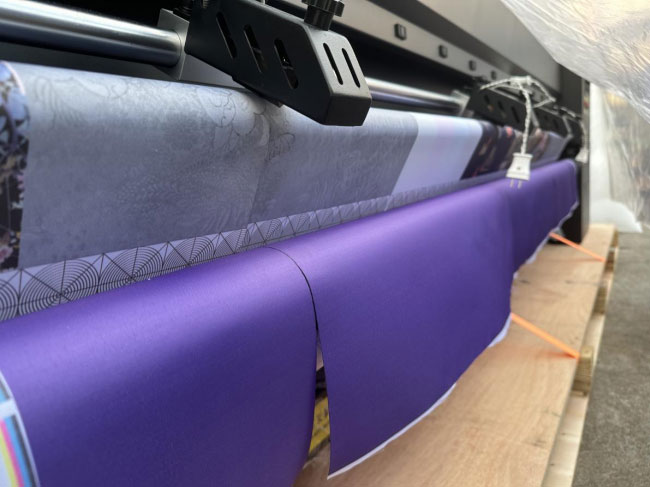

Different rods are used to convey materials to ensure the smooth feeding of materials with a width of 3.2 meters, making the feeding more stable for long-term printing.
