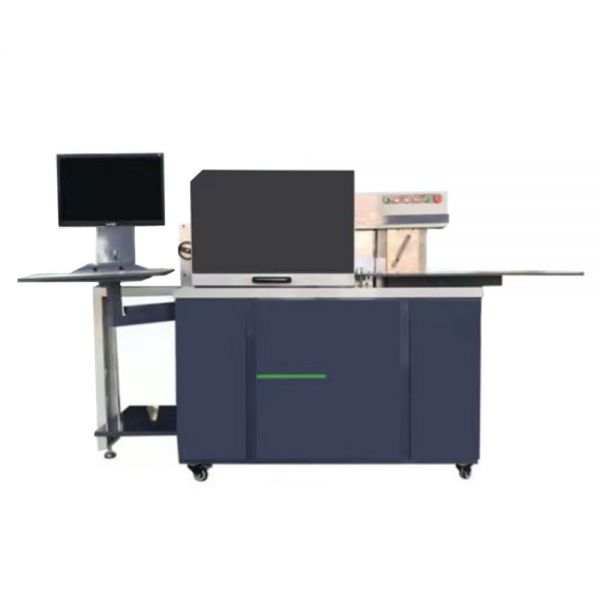

Automatic CNC Channel Letter Bender-All In One for Aluminum, SS, Copper, Iron

See larger image and other views (with zoom)

Automatic CNC Channel Letter Bender-All In One for Aluminum, SS, Copper, Iron

รหัสสินค้า:SIT-DSD-M220

ราคา Unit : ฿ 197,621/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

กรุณาเลือกประเภท

130mm 220mm

จำนวน: set(s) Total Cost:
THB ฿197,621
น้ำหนักการส่ง: 880.0lb (400kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 0

Automatic CNC Channel Letter Bender-All In One for Aluminum, SS, Copper, Iron

Features:
- Using manipulator alternate feeding mechanism,to ensure the stability of the feeding process effectively.The material clamp adopts structural casting, While improving the feeding grip, avoid scratching the material.

- Double-blade alternate bending structure, high forming degree and strong stability.

- Automatic adjustment of cutting depth for planer system, easy to operate.

- The planer is made with hard alloy finished, cuting stable and smooth, blade grain with a number of tips can be used separately, mainfenance--free, and free grinding, low cost. Automatic adjust for plane blade, free adjust for sloting depth.

- Ball screw and double Square rail four sliders positioning for transmission, more powerful, more stable cutting.

- High power servo control system, high precision, fast speed, high torque, improve working efficiency.

- With length closed-loop control system, length precision software control, error <0.1mm.

- Independent material rack, to ensure the stability of equipment feeding.

- Full chrome plating for machine, Wear-resistant and corrosion-resistant.

- Software can switch between two slotting system freely, simple interface, easy to learn and operate.

Specification:

Material Width	20-220mm
Application Materials	Stainiess steel, galvanized, sheet,iron, aluminum coil etc. flat metal
Min.Bending Radius	R≥5mm
Materials Thickness	0.3-1.2mm
Total Power	2000W
Accuracy	0.2mm/M
Peak feeding Torque	>8Nm
Peak Slotting Torque	>80Nm
Peak Bending Torque	>250Nm
Machine Size	2600cm800cm1750mm
Net Weight	400KG
Power Supply	AC220V
Air Pressure	0.4-0.8mpa
