750W Pulse Model Fiber Optical Advertising Channel Letter Laser Welding Machine for Stainless Steel Aluminum

See larger image and other views (with zoom)

750W Pulse Model Fiber Optical Advertising Channel Letter Laser Welding Machine for Stainless Steel Aluminum

รหัสสินค้า:SIT-DSD-QCW-750W

ราคา Unit : ฿ 214,563/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

จำนวน: set(s) Total Cost:
THB ฿214,563
น้ำหนักการส่ง: 616.0lb (280kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 0

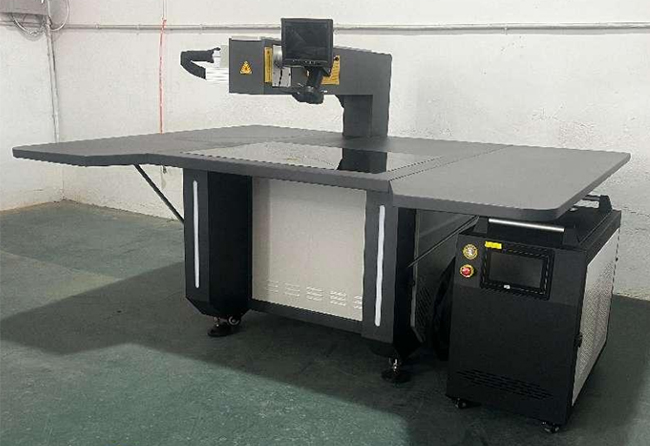

750W Pulse Model Fiber Optical Advertising Channel Letter Laser Welding Machine for Stainless Steel Aluminum

Dual-Beam Path System
- Hybrid Configuration: Benchtop workstation + handheld welding head
- Precision Control: Micron-level accuracy in benchtop mode (resolution: ±0.01 mm)
- Advanced Fiber Delivery: QBH fiber-coupled soft beam path ensures:
Enhanced beam quality (M² < 1.1)
Increased weld penetration depth
Breakthrough solutions for:
- Large-scale thin-sheet metal welding (0.1-3 mm thickness)
- Complex 3D spatial welding applications

Features:

1. High Energy Density: Capable of delivering high energy in a short time, making it suitable for welding materials with high reflectivity or thermal conductivity (such as copper and aluminum).

2. Low Thermal Impact: The pulsed nature reduces heat input, minimizing thermal deformation and damage.

3. Precision Control: By adjusting pulse parameters, the welding process can be precisely controlled.

4. Adopting a pump source optical path design, there are no other optical components inside the optical path (no cavity, no crystal, no xenon lamp, no total reflection, no semi reflection lamp lens), greatly reducing post sales costs
5. Strong Adaptability: Suitable for a variety of materials, including metals, alloys, and non-metals.

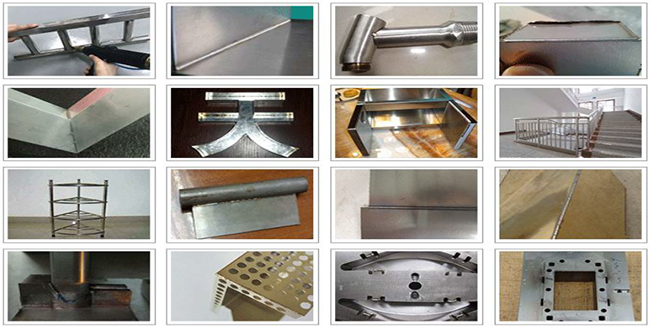

Welding Materials:

0.1-3mm stainless steel, galvanized plate and bronzing plate; 1mm copper and aluminum.

Specification:

Model No.	QCW -750W
Laser source	QCW Fiber Laser source
Rated Power	750W
Max. pulse energy	30J
Laser welding depth	0.1-3mm
Pulse width	0.2-50ms
Laser welding frequency	1-1000Hz
Sight positioning	CCD synchronous high-definition camera+red light
Device vertical travel	≈200mm
Length of optical cable	5-8m
Whole power consumption	2KW
Voltage	AC220V±10% 50HZ
