เครื่องทำน้ำเย็น  ,ประเภทอุตสาหกรรม ,รุ่น CW-5202AH  สำหรับ ระบายความร้อน แกนหมุน 8 กิโลวัตต์ ,อุปกรณ์เชื่อม หรือ หลอดเลเซอร์  คู่  CO2,100 วัตต์---Industrial Water Chiller
  • เครื่องทำน้ำเย็น  ,ประเภทอุตสาหกรรม ,รุ่น CW-5202AH  สำหรับ ระบายความร้อน แกนหมุน 8 กิโลวัตต์ ,อุปกรณ์เชื่อม หรือ หลอดเลเซอร์  คู่  CO2,100 วัตต์---Industrial Water Chiller
  • เครื่องทำน้ำเย็น  ,ประเภทอุตสาหกรรม ,รุ่น CW-5202AH  สำหรับ ระบายความร้อน แกนหมุน 8 กิโลวัตต์ ,อุปกรณ์เชื่อม หรือ หลอดเลเซอร์  คู่  CO2,100 วัตต์---Industrial Water Chiller
  • เครื่องทำน้ำเย็น  ,ประเภทอุตสาหกรรม ,รุ่น CW-5202AH  สำหรับ ระบายความร้อน แกนหมุน 8 กิโลวัตต์ ,อุปกรณ์เชื่อม หรือ หลอดเลเซอร์  คู่  CO2,100 วัตต์---Industrial Water Chiller
  • เครื่องทำน้ำเย็น  ,ประเภทอุตสาหกรรม ,รุ่น CW-5202AH  สำหรับ ระบายความร้อน แกนหมุน 8 กิโลวัตต์ ,อุปกรณ์เชื่อม หรือ หลอดเลเซอร์  คู่  CO2,100 วัตต์---Industrial Water Chiller

See larger image and other views (with zoom)

เครื่องทำน้ำเย็น ,ประเภทอุตสาหกรรม ,รุ่น CW-5202AH สำหรับ ระบายความร้อน แกนหมุน 8 กิโลวัตต์ ,อุปกรณ์เชื่อม หรือ หลอดเลเซอร์ คู่ CO2,100 วัตต์---Industrial Water Chiller

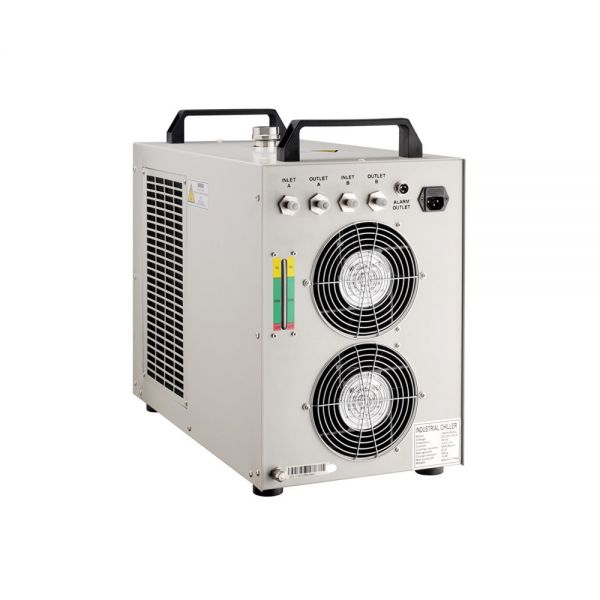

1400W cooling capacity, 50W DC pump, 2 outlets and 2 inlets. The water temperature is able to be adjusted.

   |   187 Transactions

รหัสสินค้า:CW-5202AH

  • ราคา Unit : ฿ 18,338 - 21,574/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

    ราคาขายส่ง :
    • จำนวน (sets) ส่วนลด Amount/set
      1. 1 0% ฿21,574
      2. 2 - 5 8% ฿19,848
      3. 6 - 15 15% ฿18,338
    • Need more quantities, please click Bulk Order
  • จำนวน: set(s) Total Cost: ฿21,574
  • น้ำหนักการส่ง: 81.4lb (37kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection


เครื่องทำน้ำเย็น  ,ประเภทอุตสาหกรรม ,รุ่น CW-5202AH "แบรนด์ Ving" สำหรับ ระบายความร้อน แกนหมุน 8 กิโลวัตต์ ,อุปกรณ์เชื่อม หรือ หลอดเลเซอร์  คู่  CO2,100 วัตต์

คำอธิบาย :

เครื่องทำน้ำเย็น   รุ่น   CW-5202AH  ประเภท  สำหรับระบบอุตสาหกรรม   ใช้พลังงาน  ทำความเย็น   1400 วัตต์  ถูกนำไปใช้อย่างแพร่หลาย   สำหรับจัดการ ความร้อนที่ถูกสร้างขึ้น    ระหว่างกระบวนการ   ทำงานของอุปกรณ์หลอดเลเซอร์    ซึ่งจะถูกส่งผ่านไปยัง   ระบบวงจรทำความเย็น  และในที่สุด  จะถูกส่งไปยังอากาศ    โดยสามารถ  ปรับอุณหภูมิของน้ำได้   โดยสินค้านี้  มี 2 รูปแบบ  คือ 1 ช่องระบายน้ำ  / 1ช่องทางเข้าน้ำ  และ 2 ช่องระบายน้ำ /2 ช่องทางเข้าน้ำ    ซึ่งใช้สำหรับทำความเย็น   หลอดแก้วเลเซอร์  เดี่ยว

สินค้าได้ผ่านการจดสิทธิบัตร    มาเป็นที่เรียบร้อย      รวมถึงผ่านการรับรองมาตรฐาน    CE และ  RoHS

สินค้าเครื่องทำน้ำเย็นนี้    ถูกจำหน่ายเป็นจำนวนมาก    ไปยัง   ทวีปยุโรป  ,  อเมริกาใต้ ,เอเชีย , กลุ่มตลาดอื่นๆอีกมากมาย

ซึ่งสินค้าประกอบด้วย   ชิ้นส่วนอุปกรณ์  อะไหล่ ที่มีความประหยัด   ง่ายต่อการใช้งาน   และง่ายต่อการติดตั้ง   มีขนาดเล็กกระทัดรัด   และสามารถเคลื่อนย้ายได้อย่าง  สะดวกสบาย

โดยสินค้าเครื่องทำน้ำเย็น   รูปแบบอุตสาหกรรมนี้    เป็นที่นิยมอย่างมาก  สำหรับโหมดควบคุมอุณภูมิ 2 รูปแบบ  โดยการต้านทานอุณหภูมิ    รวมถึงการควบคุมอุณหภูมิ  อย่างชาญฉลาด    ภายใต้โหมดการทำงานที่อัจริยะนี้   อุณหภูมิของน้ำสามารถปรับได้ตาม    อุณหภูมิสภาพแวดล้อม  รอบข้างได้    ด้วยเพียง 1 ปุ่มควบคุม   ซึ่งลูกค้าไม่จำเป็น   จะต้องเป็นกังวลอยู่ตลอดเวลา    เกี่ยวกับการปรับอุณหภูมิของน้ำ    ตามสภาพอาศ  ที่มีการเปลี่ยนแปลง



คุณสมบัติ:

•พลังงาน  การทำความเย็น 800 วัตต์    : สารทำความเย็น   ตัวเลือก   ซึ่งเป็นมิตรต่อสิ่งแวดล้อม

•สินค้า  มีขนาดเล็ก  กระทัดรัด ,ให้อายุการใช้งาน   ที่ยาวนาน   รวมถึงสามารถใช้งาน  ได้อย่างง่ายดาย

•ความละเอียด  สำหรับการควบคุมอุณหภูมิ  อยู่ที่ระดับ  ±0.3℃

•มีระบบควบคุมอุณหภูมิ   2 รูปแบบ  ที่อัจฉริยะ    โดยเหมาะสำหรับโอกาส  ที่แตกต่างกัน   รวมถึงมีการตั้งค่า  และฟังก์ชั่นการแสดงผล  ที่มความหลากหลาย

•ฟังก์ชัน  แสดงการแจ้งเตือน  ที่มีความหลากหลาย : แจ้งเตือนระบบบีบอัดทำความเย็น ทำงานล้าช้า ,แจ้งเตือน กระแสเกิน  สำหรับการบีบอัดทำความเย็น , แจ้งเตือนการไหล ของน้ำ  ,แจ้งเตือน  เพื่อป้องกันอุณหภูมิที่สูง และต่ำ เกินความเหมาะสม ,และแจ้งเตือน เพื่อป้องกันการแช่แข็ง

•รายละเอียด  ด้านพลังงานไฟฟ้า : ผ่านการรับรองมาตรฐาน    CE และ  RoHS

•อุปกรณ์ตัวเลือก   เครื่องทำน้ำร้อน  และเครื่องกรองน้ำ









Ving Brand CW-5202AH Industrial Water Chiller for 8KW Spindle, Welding Equipment or 2 100W CO2 Laser Tubes Cooling

Description

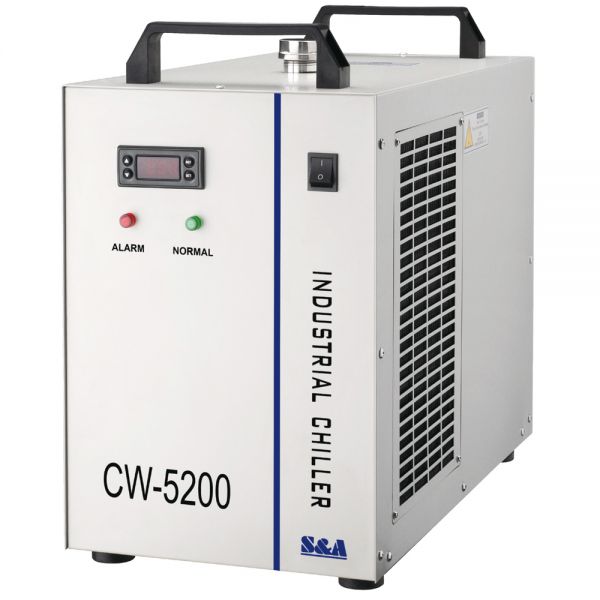

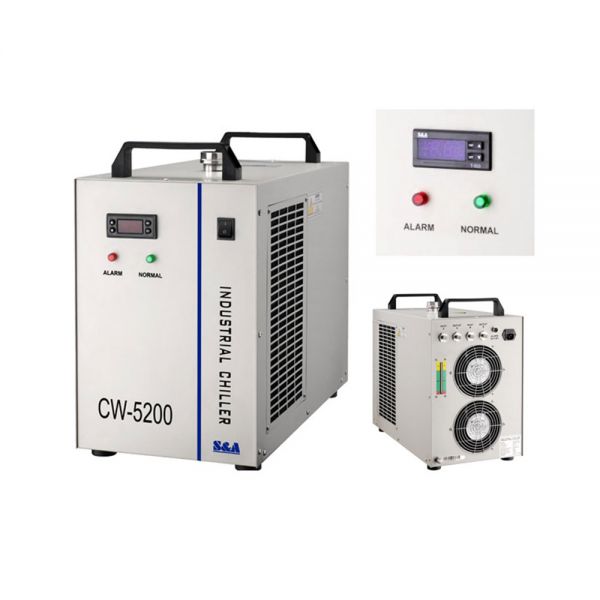

Our CW-5202AH is refrigeration type industrial Water Chiller of 1400W cooling capacity. It’s mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air. The water temperature is able to be adjusted. There are 2 specifications as 1 water outlet / inlet and dual water outlet / inlet, applicable to cool single laser glass tube.
Have design patent Certificate, CE and RoHS Certificate.
This Water Chiller has been sold largely to Europe, South America, Asia and other markets.
Economic cooling equipment, easy to install and operate, compact and easily movable.

Our industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.

Features
• 1400W cooling capacity; optional environmental refrigerant;
• Compact size, long working life and simple operation;
• ±0.3°C precisely temperature control;
• The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
• Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
• Multiple power specifications; CE approval; RoHS approval;
• Optional heater and water filter.

Details / รายละเอียด  :

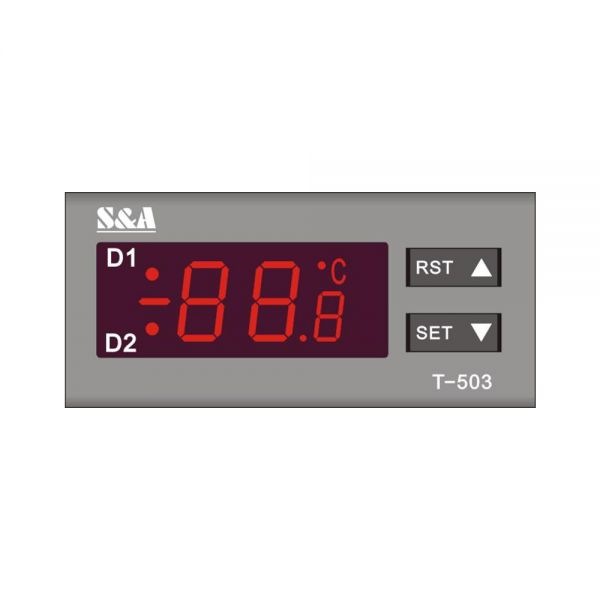

Temperature controller panel / แผงควบคุม  อุณหภูมิของน้ำ  :

ภายใต้สภาวะการณ์  ที่เป็นปกติ    ระบบควบคุมอุณหภูมิ รูปแบบใหม่  ซึ่งชาญฉลาด    โดยผู้ใช้งาน   ไม่จำเป็นต้องทำการปรับ  ตั้งค่าการควบคุม  การทำงานแต่อย่างใด     ซึ่งตัวเครื่องจะทำการ  ปรับการทำงานได้  โดยอัตโนมัติ  ตามระดับอุณหภูมิของห้อง     โดยสามารถรับประกัน  การระบายความร้อน   สำหรับการทำงาน  ของเครื่องจักร  ได้เป็นอย่างดี





Under normal circumstance, the new intelligent temperature controller does not need to adjust the controlling parameters.
It will self-adjust controlling parameters according to room temperature, guaranteeing to meet cooling requirements for machines.
Alarm Function’s Description / รายละเอียด  ฟังก์ชั่น  การแจ้งเตือน  :

พอร์ตส่งออก  และระบบ การแจ้งเตือน   :

สินค้าเรื่องทำนำเย็นนี้  สามารถรับประกันได้  การสั่งซื้อได้ว่า    อุปกรณ์จะไม่ได้รับความเสียหาย     ในขณะที่วงจร  ของเครื่องทำน้ำเย็น   หลุดออกจากการควบคุม    โดยเครื่องทำน้ำเย็นรุ่น   CW-5200 นี้   มีระบบการแจ้งเตือน  การไหลในระดับที่ต่ำ





Flow alarm and output ports:
In order to guarantee the equipment will not be damaged while cooling water circulation is out of control, CW-5200series chillers possesses an unique low flow alarm protection.

The cooling water circulation loop alarm causes and the work of the state table /  ตารางแสดงสถานะ   การทำงานของ  ระบบการแจ้งเตือน   สำหรับวงจรการทำความเย็น  ของเครื่องทำน้ำเย็น


Normal Flow
 Indicator
สถานะการไหล เป็นปกติ
Flow Alarm
 Indicator
สถานะแจ้งเตือนการไหล

Buzzer

เสียงเตือน

Output Ports
Hi, H2
พอร์ตการส่งออก Hi, H2
Output Ports
H1, H3
พอร์ตการส่งออก H1, H3

Circulating pump works properly

วงจรระบบปั้มน้ำ  สามารถทำงาน  ได้อย่างเป็นปกติ

ON / เปิด OFF/ปิด

NOT RING

ไม่มีเสียง

DISCONNECTION

หลุด  จากการเชื่อมต่อ

BREAKOVER

หลุด  จากการควบคุม

Blocked cooling water circulation loop

วงจร การทำความเย็น  ของเครื่องทำน้ำเย็น  เกิดอุตัน

OFF/ปิด ON/ เปิด RING/ มีเสียง

BREAKOVER

หลุด  จากการควบคุม



DISCONNECTION

หลุด  จากการเชื่อมต่อ

Alarm of water shortage

การแจ้งเตือน   ปริมาณน้ำไม่เพียงพอ

OFF/ปิด ON/ เปิด RING/ มีเสียง

BREAKOVER

หลุด  จากการควบคุม

DISCONNECTION

หลุด  จากการเชื่อมต่อ

Faulted circulating pump

วงจรระบบปั้มน้ำ   เกิดความผิดพลาด

OFF/ปิด ON/ เปิด RING / มีเสียง

BREAKOVER

หลุด  จากการควบคุม

DISCONNECTION

หลุด  จากการเชื่อมต่อ

Power interruption

ไฟฟ้า  หยุดการทำงาน

/ / /

BREAKOVER

หลุด  จากการควบคุม

DISCONNECTION

หลุด  จากการเชื่อมต่อ

หมายเหตุ  :  เกี่ยวกับระบบการแจ้งเตือน   เปิดการทำงานของอุปกรณ์  รีเลย์     และ  ปิดการเชื่อมต่อกับ  อุปกรณ์ รีเลย์     ซึ่งจำเป็นต้อง ใช้กระแสไฟฟ้า  สำหรับการทำงาน ที่่น้อยกว่า  ระดับ 5A  และพลังไฟฟ้า  ที่น้อยกว่า   300 โวลต์



Note: The flow alarm is connected to the normally open relay and normally closed relay contacts, requiring operating current less than 5A, working voltage less than 300V.

Comparison/การเปรียบเทียบ :



เครื่องทำน้ำเย็น  รุ่น  CW5200H

วิธีการ  ทำความเย็น : ใช้ระบบบีบอัด กักเก็บทำความเย็น

สำหรับระบายความร้อน แกนหมุน

หรืออุปกรณ์เชื่อม 8 กิโลวัตต์

และหลอด เลเซอร์ CO2,100 วัตต์

ภายใต้โหมดการทำงานที่อัจริยะนี้

อุณหภูมิของน้ำสามารถปรับได้ตาม

อุณหภูมิสภาพแวดล้อม  รอบข้างได้

ซึ่งลูกค้าไม่จำเป็น   จะต้องเป็นกังวล

อยู่ตลอดเวลา    เกี่ยวกับการปรับ

อุณหภูมิของน้ำ    ตามสภาพอาศ


ที่มีการเปลี่ยนแปลง




CW5200H
Cooling Method: Compression refrigeration
Cool for a Single 8KW Spindle or Welding Equipment or 2 x 100W CO2 laser tubes
Adopt intelligent controller, it will automatically adjust control parameters according to room temperature changes.



 เครื่องทำน้ำเย็น  รุ่น CW5000H

วิธีการ  ทำความเย็น : ใช้ระบบบีบอัด

กักเก็บทำความเย็น

สำหรับระบายความร้อน แกนหมุน

หรืออุปกรณ์เชื่อม 5 กิโลวัตต์

ภายใต้โหมดการทำงานที่อัจริยะนี้

อุณหภูมิของน้ำสามารถปรับได้ตาม

อุณหภูมิสภาพแวดล้อม  รอบข้างได้

ซึ่งลูกค้าไม่จำเป็น   จะต้องเป็นกังวล

อยู่ตลอดเวลา    เกี่ยวกับการปรับ

อยู่ตลอดเวลา    เกี่ยวกับการปรับ









CW5000H
Cooling Method: Compression refrigeration
Cool for a Single 5KW Spindle or Welding Equipment Cooling
Adopt intelligent controller, it will automatically adjust control parameters according to room temperature changes.



เครื่องทำน้ำเย็น  รุ่น CW3000F

วิธีการ  ทำความเย็น: ใช้ระบบพัดลม

สำหรับระบายความร้อน แกนหมุนเดี่ยว

0.8KW / 1.5KW

เครื่องทำน้ำเย็นนี้   นิยมใช้เป็นอุปกรณ์

สำหรับเปลี่ยนความร้อน  เป็นความเย็น

ระหว่างความร้อน   และสภาพอากาศ

 โดยวงจรอุณหภูมิของน้ำ

จะปรับการตั้งค่าได้อย่างอัตโนมัติ

ตามอุณหภูมิ  สภาพแวดล้อม  ของห้อง











CW3000F
Cooling Method: Fan Thermolysis
Cool for Single 0.8KW / 1.5KW Spindle
It's mainly used on the equipment for heat exchange between the heat and the air environment. The water temperature is related to ambient temperature.

การควบคุมอุณหภูมิ   อย่างอัจฉริยะ ครบวงจร   :  ภายใต้สภาพแวดล้อม  ของอุณภูมิ   ที่แตกต่าง   ผู้ใช้งานไม่จำเป็น   ต้องทำการเปลี่ยนการตั้งค่าใดๆ  เนื่องจาก   ตัวเครื่องจะสามารถทำงานได้  อย่างอัตโนมัติ  ภายใต้อุณภูมิ   ที่มีการเปลียแปลงอยู่ตลอดเวลา





One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature.

CW-5202AH, CW-5200BH, CW-5200DH: Applied to a cool a single 8KW CNC spindle, welding equipment or two 100W CO2 laser tubes./ ใช้สำหรับ ระบายความร้อน  แกนหมุน  เดี่ยว 8 กิโลวัตต์  ,อุปกรณ์เชื่อม  หรือหลอดเลเซอร์คู่  CO2 พลังงาน 100 วัตต์
CW-5200AG, CW-5200BG, CW-5200DG: Applied to cool a single 130W / 150W CO2 laser tube./ใช้สำหรับ   ระบายความร้อน หลอดเลเซอร์ C02 เดี่ยว  พลังงาน 130 วัตต์ /150 วัตต์
CW-5200AI, CW-5200BI, CW-5200DI: Applied to a cool single 50W-75W laser diode, a single15W-30W solid-state laser or a single 30W RF laser tube./ ใช้สำหรับ ระบายความร้อน หลอดเลเซอร์ ไดโอด เดี่ยว พลังงาน 50 วัตต์ - 75 วัตต์ /หลอดเลเซอร์ ของแข็ง เดี่ยว (solid-state laser) พลังงาน 15 วัตต์ -30 วัตต์ /หลอดเลเซอร์ RF เดี่ยว 30 วัตต์

Model / รุ่น CW-5200AG CW-5200BG CW-5200DG CW-5202AH CW-5200BH CW-5200DH CW-5200AI CW-5200-BI
Voltage / กระแสไฟฟ้า AC 1P
220V
AC 1P 220V AC 1P 110V AC 1P 220V AC 1P 220V AC 1P 110V AC 1P 220V AC 1P
220V
Frequency /ความถี่ 50Hz 60HZ 60HZ 50Hz 60HZ 60HZ 50Hz 60HZ
Current / กระแสไฟฟ้าหมุนเวียน 2.4-3.1A 2.6-3.3A 4.5-6.5A 2.4-3.1A 2.6-3.3A 4.5-6.5A 2.4-3.1A 2.6-3.3A
Compressor Power/พลังงานบีบอัดทำความเย็น 0.52KW 0.5KW 0.68KW 0.52KW 0.5KW 0.68KW 0.52KW 0.5KW
0.71HP 0.68HP 0.93HP 0.71HP 0.68HP 0.93HP 0.71HP 0.68HP

Refrigeration Capacity

กำลังผลิต ความเย็น

5084Btu/h 4982Btu/h 5186Btu/h 5084Btu/h 4982Btu/h 5186Btu/h 5084Btu/h 4982Btu/h
1.49KW 1.46KW 1.52KW 1.49KW 1.46KW 1.52KW 1.49KW 1.46KW
1281Kcal/h 1561Kcal/h 1307Kcal/h 1281Kcal/h 1561Kcal/h 1307Kcal/h 1281Kcal/h 1561Kcal/h

Refrigerant Charge

ปริมาณสารทำความเย็น

360g 380g 350g 360g 380g 350g 360g 380g

Pump Power

พลังงานปั้มน้ำ

0.03KW 0.05KW 0.1KW

Mac. Lift

ระดับการปั้มน้ำ สูงสุด

10M 12M 25M

Max. Flow

ระดับการปั้มน้ำต่ำสุด

10L/min 13L(ลิตร)/min (นาที) 16L (ลิตร)/min (นาที)

Inlet and Outlet

ช่องทางเข้า / ออกน้ำ

External Diameter: 10mm brass connector

เส้นผ่านศูนย์กลาง ภายนอก: ขั้วต่อทองเหลือง 10 มม

Diameter 10mm speedy connector

เส้นผ่าศูนย์กลาง ข้อต่อ ที่รวดเร็ว 10 มม




การใช้งาน :
การติดตั้ง  เครื่องทำความเย็น  รูปแบบอุตสาหกรรม  เป็นเรื่องที่ง่ายมาก  สำหรับการใช้เครื่องใหม่  เป็นครั้งแรก   ซึ่งคุณสามารถติดตั้ง  ได้ตามขั้นตอนดังต่อไปนี้

A. เปิดบรรจุภัณฑ์ออก   เพื่อตรวจสอบว่าตัวเครื่อง   มีสภาพสมบูรณ์หรือไม่     และอุปกรณ์เสริมทั้งหมด  ที่จำเป็น    ครบถ้วนหรือไม่

B. เปิดช่อง  เพื่อนำเข้าน้ำหล่อเย็น
สังเกตมาตรวัด  ระดับน้ำ   และเติมน้ำอย่างช้าๆ    ระวังอย่าให้น้ำไหลล้น!  อุปกรณ์เหล็กคาร์บอน  ของเครื่องทำน้ำเย็น โดยน้ำควรเติมในปริมาณ ที่เหมาะสม  สำหรับป้องกันการกัดกร่อน     โดยการใช้งาน  ในเขตพื้นที่เมืองหนาว   ควรใช้สารป้องกันของเหลวแข็งตัว  เพื่อป้องกันการกัดกร่อน
C.ตามเงื่อนไข  ของระบบการทำงาน  โปรดกรุณา   เชื่อมต่อ   ท่อทางเข้าน้ำ   และท่อระบายน้ำให้ดี
D.เสียบปลั๊ก    เปิดสวิตช์ไฟ (ห้ามเปิดเครื่อง  โดยปราศจากน้ำในถัง!)
(1) เปิดสวิตช์ของตัวเครื่อง     อุปกรณ์ปั๊ม   ของเครื่องทำน้ำเย็น   จะเริ่มต้นทำงาน   ครั้งแรกของการใช้งาน   อาจมีฟองอากาศ   ในท่อน้ำ   ซึ่งอาจก่อให้เกิด  การไหลที่ไม่ปกติ    เป็นครั้งคราว   แต่เพียงไม่กี่วินาที   หลังจากนั้น   จะกลับเข้าสู่สภาวะปกติ
(2) หลังจาก  การติดตั้งเครื่อง  เป็นครั้งแรก   คุณต้องตรวจสอบทันที   ว่าท่อน้ำ   มีการรั่วไหลหรือไม่
(3) เปิดสวิตซ์เครื่อง    หากอุณหภูมิของน้ำ   ต่ำกว่าตัวเลข   ที่ได้ตั้งค่าไว้   นั้นแสดงว่าอุปกรณ์พัดลม   และอุปกรณ์ส่วนประกอบอื่น ๆ ของตัวเครื่อง   ไม่ทำงานอย่างปกติ      การควบคุมอุณหภูมิ     ของตัวเครื่อง   จะสามารถควบคุมอุณภูมิได้อย่าง   อัตโนมัติ  ภายใต้สภาวะการทำงานของ     อุปกรณ์คอมเพรสเซอร์  ,  วาล์วแม่เหล็ก  , พัดลม   และอุปกรณ์ชิ้นส่วนอื่น ๆ   จากการตั้งค่าควบคุม   การทำงาน
(4)เนื่องจาก    ต้องใช้เวลานาน    ในการเริ่มต้น    การทำงาน  ของอุปกรณ์  คอมเพรสเซอร์    และส่วนประกอบ   ของอุปกรณ์อื่นๆ  ตามเงื่อนไข  การทำงานที่แตกต่างกัน   โดยช่วงระยะเวลา  จากวินาที    ถึงนาที    โปรดอย่าทำการปิดการทำงาน  ของตัวเครื่อง    แล้วเปิดเปิดใหม่  บ่อยครั้ง
E.ตรวจสอบ  ระดับน้ำในถังน้ำ :
การเริ่มต้น  ทำงาน  ในครั้งแรก   ของเครื่องทำน้ำเย็น   จะก่อให้เกิดอากาศ   ไหลลงสู่ท่อน้ำ    ทำให้ระดับน้ำลดลงเล็กน้อย แต่เพื่อรักษาระดับน้ำ   ให้อยู่ในเส้น   สีเขียว     สามารถเติมน้ำ  ได้อีกครั้ง    เพื่อให้เพียงพอ      โปรดสังเกต  และบันทึกระดับน้ำ   ในปัจจุบัน    และตรวจสอบอีกครั้ง    หลังจากที่เครื่องทำน้ำเย็นทำงานได้ช่วงระยะเวลหนึ่ง  ถ้าระดับน้ำลดลงอย่างเห็นได้ชัดโปรดตรวจสอบการรั่วไหลของท่อน้ำอีกครั้ง
F. การปรับ ค่าพารามิเตอร์    สำหรับการควบคุม อุณหภูมิ
เครื่องทำน้ำเย็น  รุ่น CW-5000 นี้  ใช้อุปกรณ์  เทอร์โมสตรัท ที่แสนจะอัจริยะ  ซึ่งโดยปกติแล้ว    ผู้ใช้งานไม่จำเป็น  ต้องทำการปรับเปลี่ยน  การตั้งค่าใดๆ  หากจำเป็นจริงๆโปรดดูที่   "สถานะการทำงาน   และการปรับพารามิเตอร์" สำหรับการอางอิง






Industrial cooling machine’s installation is very simple, the new machine for the first time using, you can install it as following steps.

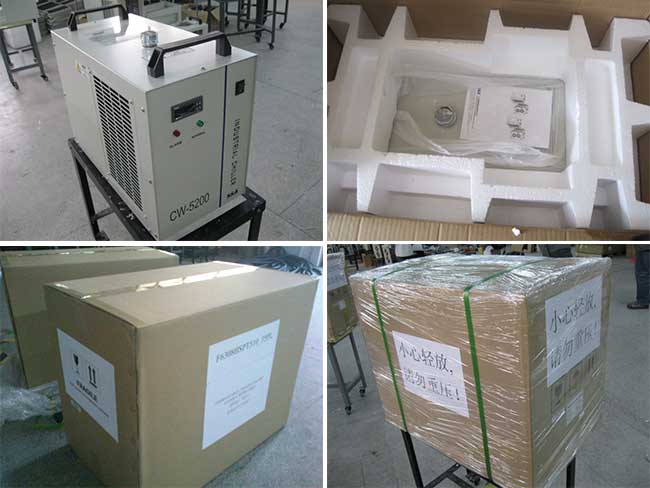

A.  Open the package to check if the machine is intact and all the necessary accessories are completed.

B.
Open the injection port to feed cooling water.
Observing the water level gauge and adding water slowly, be careful not to have the water overflowed! For the cooling of carbon steel equipment, the water should be added an appropriate amount of anti - corrosion agentia. Working in cold north area, it’s better to use noncorrosive antifreeze fluid.

C.
According to system conditions, please connect the water inlet and outlet pipe well.

D.
Plug in power, turn on the power switch. (Do not start up without water in the water tank!)
(1) Power switch turned on, the circulation pump of the chiller starts working. The first time of operating may cause more bubbles in the pipe leading to a flow alarming occasionally, but running for a few minutes later, it will go back to normal.
(2) After the first boot, you must immediately check whether the water pipe leaks.
(3) Power switched on, if the water temperature is below the set figure, it is normal that fans and other components of the machine do not work. The temperature controller will automatically control the working conditions of the compressor, magnetic valve, fans and other parts based on the set controlling parameters.
(4) As it takes a longer time to start the compressor and other components, according to different conditions, the time is range from seconds to minutes, so do not turn off the power and again on frequently.

E.  Check the water level in the water tank.
The first startup of the new chiller empties the air in the water pipe, leading a slight water level decline, but in order to keep the water level in the green area, it’s allowed to add adequate water again. Please observe and record the current water level, and inspect it again after the chiller running for a period of time, if the water level drops obviously, please re-inspect the water pipeline leakage.

F.
Adjust parameters of temperature controller.
CW-5200 series use an intelligent thermostat. Normally users do not need to adjust it. If it is really necessary, please refer to “Operating status and parameters adjustment.”



ความแตกต่างหนึ่งข้อ    ระหว่างเครื่องทำน้ำเย็น   รุ่น CW5200  และเครื่อง  ทำน้ำเย็น  รุ่น CW3000 นั้น โดยเครื่องทำน้ำเย็น รุ่น  CW5200นี้   สามารถรักษาระดับ อุณหภูมิของน้ำไว้ได้   อย่างสม่ำเสมอ

ซึ่งฟังก์ชั่นการทำความเย็น   สามารถรักษา  ระดับอุณหภูมิไว้ได้  ที่บางค่าการปรับอุณภูมิ   โดยสามารถปรับได้ด้วยตนเอง   ซึ่งทุกค่าพารามิเตอร์  ทั้งหมดที่เกี่ยวข้อง  ของเครื่องทำน้ำเย็นนั้น   ถูกตั้งค่าอย่างถูกต้อง   จากบริษัท  ของเรา  ก่อนทำการจัดส่งสินค้า

โดยผู้ใช้งาน  สามารถดูได้จาก ระดับค่าพารามิเตอร์  ที่แนะนำเพื่อเป็นการอ้างอิง   สำหรับคำอธิบาย   โดยละเอียด   จากคู่มือการใช้งานเครื่องทำน้ำเย็น  ซึ่งบนค่าพารามิเตอร์  ของเครื่องทำน้ำเย็นนั้น  เราขอแนะนำผู้ใช้งาน  ไม่ควรปรับเปลี่ยน  ค่าพารามิเตอร์   โดยไม่ได้รับอนุญาต  โดยเด็ดขาด

ซึ่งบริษัทของเรา  จะไม่รับผิดชอบต่อปัญหาใด ๆ    ที่เกิดขึ้นจากการเปลี่ยนแปลง   ค่าพารามิเตอร์  ของเครื่องทำน้ำเย็น โดยผู้ใช้งาน   ซึ่งไม่ได้รับอนุญาต  ให้เปลี่ยนแปลง



การบำรุงรักษา

หากจะรักษา  เครื่องทำน้ำเย็น   ให้สามารถใช้ได้   ในระยะที่ยาวนาน   คุณควรทำการเปิดเครื่อง    และทำความสะอาด   ฝุ่นละออง   ในแต่ละชิ้นส่วน    เพื่อให้แน่ใจว่า    สามารถระบาย   ความร้อน   ได้เป็นอย่างดี

คุณสามารถใช้สารป้องกันการแข็งตัว  เพื่อป้องกันการกัดกร่อน   หากคุณอาศัยอยู่ในเขต   พื้นที่หนาวเย็น   ทางตอนเหนือ

ข้อควรระวัง

1. โปรดตรวจสอบ  ให้แน่ใจว่า  พาวเวอร์ซัพพลาย    และอุปกรณ์เต้าเสียบไฟฟ้า   ทำการเชื่อมต่ออยู่ในสภาพที่ดี       และการติดตั้งสายดิน  จะต้องทำด้วยความแน่นหนา  ถูกต้อง !  แม้ว่ากระแสไฟฟ้า  สำหรับการทำงาน  โดยเฉลี่ย   ของเครื่องทำน้ำเย็น  ขนาดเล็ก  สามารถสูง ได้ถึง   6 ~ 10amps ในบางครั้ง   (ซึ่งกระแสไฟฟ้า  ของพาวเวอร์ซัพพลาย รุ่น  พลังงาน  AC: 110 โวลต์  สามารถสูงได้ถึง   10 ~ 15amps)

2. ตรวจสอบให้แน่ใจว่า  มีระดับแรงดันไฟฟ้า  ที่มีความมั่นคง  และปกติ   สำหรับเครื่องทำน้ำเย็น! เนื่องจากอุปกรณ์  คอมเพรสเซอร์   ทำความเย็น    มีความไวต่อ   พาวเวอร์ซัพพลาย   และกระแสไฟฟ้า   ดังนั้นกระแสไฟ้า   สำหรับการทำงาน   ของสินค้าระมาตรฐาน   ของเราคือ   ที่ระดับ   200 ~ 250 โวลต์   (โดยรุ่น 110 โวลต์   คือพลังงาน  ระดับ 100 ~130V) ซึ่งหากคุณต้องการ  ช่วงแรงดันไฟฟ้า  ที่กว้างมากขึ้น  สามารถกำหนดขึ้นได้  สำหรับเรา

3. เพื่อป้องกัน  อุปกรณ์เครื่องปั้มน้ำ  มิให้เกิดความเสียหาย    ห้ามเปิดการใช้งาน   ของเครื่องทำน้ำเย็น   โดยเด็ดขาด    หากปราศจากน้ำ   ในถังเก็บน้ำ!  ซึ่งเครื่องใหม่    จะถูกบรรจุ    หลังจากที่ได้ระบายน้ำ   ทั้งหมดในถังออกแล้ว    ดังนั้นโปรดตรวจสอบให้แน่ใจ   ว่าในถัง    มีน้ำอยู่ด้านใน     ก่อนที่จะเริ่มต้นการทำงาน   ของตัวเครื่อง   มิฉะนั้นจะทำให้อุปกรณ์ปั๊ม   เกิดความเสียหายได้ง่าย

เมื่อระดับน้ำ  ลดลงต่ำกว่า   ช่วงระดับมาตรฐาน  สีเขียว ( ระดับปกติ ) ของมาตรวัดระดับน้ำ    ความสามารถ   ในการทำความเย็น  ของเครื่องทำน้ำเย็นของเรา   จะลดลงเล็กน้อย    ดังนั้นโปรดตรวจสอบให้แน่ใจว่าระดับน้ำอยู่ในช่วงสีเขียว ( ระดับปกติ ) ห้ามระบายน้ำ  ผ่านปั๊มหมุนเวียน   โดยเด็ดขาด!

4. โปรดตรวจสอบ  ให้แน่ชัดว่า   ช่องอากาศเข้า    และช่องระบายอากาศ   มีการถ่ายเทอากาศที่ดี      โดยช่องระบายอากาศ   จะต้องมีระยะห่าง  ย่างน้อย 30 ซ.ม.   จากสิ่งกีดขว้าง   ซึ่งอยู่บริเวณ  ทางด้านหลัง  ของเครื่องทำน้ำเย็น    และช่องอากาศเข้า  ควรมีระยะห่าง 8 ซ.ม.  จากสิ่งกีดขว้าง

5.แผ่นกรอง  จะต้องทำความสะอาด  อย่างสม่ำเสมอ!  สิ่งสำคัญคือ   ต้องล้างฝุ่นละอองออก   เนื่องจากการอุดตันที่รุนแรง  จะส่งผลต่อการทำความเย็น  ที่ล้มเหลว

6.โปรดใส่ใจกับ  ถาดรับน้ำทิ้ง  เมื่อความชื้นในอากาศสูงขึ้น   เมื่ออุณภูมิของน้ำ  ต่ำกว่าอุณหภูมิโดยรอบ  ถาดรับน้ำ  จะสร้างพื้นผิวที่ไม่ดี  ในท่อน้ำ  และส่วนประกอบทำความเย็นอื่นๆ   หากกรณีข้างต้นปรากฏขึ้น   ขอแนะนำให้ตั้งอุณหภูมิของน้ำที่สูงขึ้น   หรือรักษาท่อน้ำ    และชิ้นส่วนทำความเย็นให้อุ่น







One of the differences between the CW5200 water tank and the CW3000 tank lies in that the CW5200 water tank can keep the water at a uniform temperature. Its cooling function can keep the temperature at a certain value, which can be adjusted manually. All the parameters related to the water tank have been set as the correct value by our company before delivery. The user may refer to the parameter instruction manual of the water tank for detailed description on the parameters. It is strongly suggested that the user should not change the parameters without authorization. Our company accepts no responsibility for any insolvable problems caused by the user’s unauthorized changing of parameters

Maintenance
Cooling machine used in long term, you should open the machine and clean the dust in order to ensure good heat dissipation.  You can use non – corrosive antifreeze if you are in the northern cold regions.

Cautions
1. Please ensure that the power supply and electrical outlet are in good contact and the earth wire must be firmly grounded! Although the average operating current of the chiller is small, but the instantaneous operating current could be up to 6 ~ 10amps sometimes (The instantaneous operating current of models of AC110V power supply are possible to be up to 10 ~ 15amps).

2. Please make sure there is a stable and normal voltage for the working chiller! As the refrigeration compressor is more sensitive to the power supply and voltage, so the operating voltage of our standard product is of 200 ~ 250V (110V model
is of 100 ~130V). If you do need a wider operating voltage range, customization is available for us.

3. To protect the pump, it’s strictly forbidden to run the chiller without having water in the storage water tank! The new machine is packed after draining whole water in the tank, so please make sure the tank has water inside before machine starting, otherwise it’s easily to have the pump damaged. When the water level is below the green (NORMAL) range of the water level gauge, the cooling capacity of our chiller will go down slightly. Hence please ensure the water level is within the green (NORMAL) range. To drain through circulating pump is strictly prohibited!

4. Please be sure that the air inlet and air outlet are in good ventilation! There must be at least 30cm from obstructions to the air outlet which is in the back of the cooler, and should leave at least 8cm between obstructions and the side air inlet.

5. The filter screen must be regularly cleaned! It’s essential to unpick and wash the dust gauze, or the serious blockage will cause breakdown to the chiller.


6. Please pay attention to the effect of the condensate water! With greater ambient humidity, when the water temperature is lower than the ambient temperature, the condensate water will generate on the surface of water circular pipes and the cooled components. If above circumstance appears, it is recommended to set a higher water temperature or keep pipes and cooled parts warm.

Application:
1.CW-5200 industrial water chiller cool for a single 8KW spindle

2.CW5200 water chiller cool for 2 x 100W laser tube

3.CW5200-water-chiller-cool-for-cnc-machining-center-lathe

4.CW5200-water-chiller-for-cooling-argon-arc-welding-clamp

5.CW5200-water-chiller-cool-for-lab-vacuum-pump

6.CW5200-water-chiller-cool-for-SYNRAD-RF-metal-lasers

7.CW5200-water-chiller-cool-for-blender





Quality report




  • ทั้งหมด
  • คำแนะนำ
  • รายละเอียดสินค้า
  • การส่งสินค้า
  • การชำระเงิน
  • อื่น ๆ
ถามคำถาม

เลือกหัวข้อ:

รายละเอียดสินค้า การส่งสินค้า การชำระเงิน อื่น ๆ


Content:


แนบไฟล์:

Preview Size State Operation


รหัสยืนยัน:

การส่งสินค้า :
We ship to more than 200 countries and 300 ports worldwide!
By Express: 3-5 business days
By Sea: 20-60 business days
How much to ship to
my place?
การชำระเงิน:
T/T Bank Transfer:
:
:

Video Guide:

เข้าสู่ระบบ E-mail สำหรับข้อเสนอพิเศษ

อัพเดท ส่วนลด ข้อเสนอพิเศษ รายการฟรี และ รางวัลเงินสด

หาข้อมูลเพิ่มเติม>>

ดูโปรโมชั่นของเราในสัปดาห์นี้.

www.Sign-in-Thai.com, It is the biggest online supplier of sign products in Thailand and specialized in providing One Stop Solution for customers to select AD equipments, AD consuming materials, sign exhibition products, etc. We have set up overseas branches in 6 foreign countries in order to provide better service for our customers all over the world. Our products cover all field of the AD and signage and all the products we supply are made in accordance with international quality standards as a result that, at present, we have more than 9,000 products online for sale. Since we implement the centralized purchasing, all the products are quoted with competitive prices and good quality.
