เครื่องเจาะรูและทำรอยบนเอกสาร /315mm Paper Creasing & Perforating Machine-NO.43288000
  • เครื่องเจาะรูและทำรอยบนเอกสาร /315mm Paper Creasing & Perforating Machine-NO.43288000

See larger image and other views (with zoom)

เครื่องเจาะรูและทำรอยบนเอกสาร /315mm Paper Creasing & Perforating Machine-NO.43288000

   |   20 Transactions

รหัสสินค้า:SIC-HY-HCP315

  • ราคา Unit : ฿ 9,604 - 14,776/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

    ราคาขายส่ง :
    • จำนวน (sets) ส่วนลด Amount/set
      1. 1 - 2 0% ฿14,776
      2. 3 - 10 20% ฿11,821
      3. 11 - 30 35% ฿9,604
    • Need more quantities, please click Bulk Order
  • จำนวน: set(s) Total Cost: ฿14,776
  • น้ำหนักการส่ง: 26.4lb (12kg) freightขนส่งสินค้า

  • Add to  Cart

Buyer Protection

รายละเอียด:
เครื่องเจาะรูและทำรอยบนเอกสาร
ขนาดมิลลิเมตรไปตามด้านข้างของฐาน ใช้สำหรับปรับด้านหน้า, ด้านหลังและหยุดเชิงมุม ในระหว่างขั้นตอนการพับกระดาษน้ำหนักกระดาษสามารถทำได้สูงสุด 400gsm ความกว้างของรอยพับคือ 1.2 / 1.8 มม. และมุมที่พับเป็น 0 ~ 90 ° น้ำหนักของเครื่องเพียง 25.4 ปอนด์ (11.5 กิโลกรัม) เป็นการอำนวยความสะดวกสำหรับการเปลี่ยนแปลง เปลี่ยนแถบร่องด้านบนด้วยการเจาะกระดาษที่มีน้ำหนักสูงสุด 250gsm

Description:

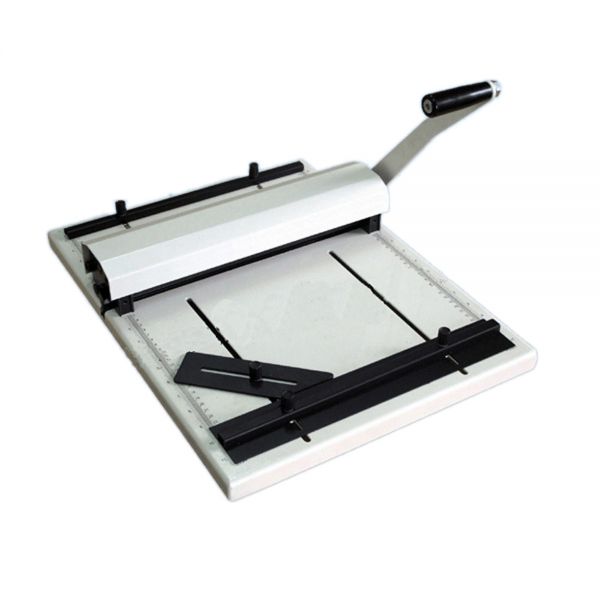

Creasing & Perforating Machine
A millimeter scale is running along the sides of its base. It is used to adjust the front, rear, and angular stop. In the process of creasing, the paper weight can up to 400gsm. The width of crease is 1.2 /1.8mm. And its creasing angle is 0 ~ 90°. The weight of the machine is only 25.4lb (11.5kg). It is convenience for transformation. Substitute the upper grooving bar with a perforation of paper whose maximum weight is 250gsm.





การประยุกต์ใช้งาน:

เครื่องทำรอยพับและเจาะรูถูกออกแบบเพื่อกระบวนการสุดท้ายของวัสดุกราฟฟิก. การเซาะร่องเสร็จทำให้การพับวัสดุประชาสัมพันธ์เรียบ, รายงานประจำปี, การ์ดแต่งงาน, การ์ดเชิญ, การเทศกาล, เมนู, และอื่นๆ. ข้อได้เปรียบคือการออกแบบที่สมบรูณ์แบบ,ความแม่นยำและบริการที่มีคุณภาพสูง. การเจาะรูเสร็จสิ้นจะถูกใช้กับผลิตภัณฑ์กระดาษที่ฉีกขาดตัวอย่างเช่นบัตรเข้าชม, คูปอง, คูปองอาหารเป็นต้น

Application:
The creasing & perforating machine is designed for the final processing of graphical materials. The grooving finish allows for the smooth folding of publicity materials, annual reports, wedding cards, invitation cards, seasonal cards, menu, and so on.
Theadvantage is perfect design, precision and high quality service. The perforated finish is applied on tear-off paper products such as admission tickets, vouchers, food coupons, etc.







องค์ประกอบ :
. HCP315 ได้ทำให้การทำรอยและการเจาะรูบนเอกสารมีคุณภาพที่ดีเยี่ยมสำหรับเอกสารแผ่นเดียว สำหรับการพับที่เนียนเรียบและการฉีกที่สะอาด
. เจาะ ถึง 250gsm กระดาษ
. เจาะ สำหรับคูปอง อาหาร บัตรกำนัล ฯลฯ ;
. มุมในการทำรอยและการเจาะ 0-90 องศา  ;
. กลไกการ ทำงานร่วมกับ มีด และ รูปตัววี  เคาน์เตอร์ เพื่อให้ เป็นไปอย่างราบรื่น มาก
. หน่วยวัดมิลลิเมตรวิ่งไปตาม ด้านข้าง ;
. ปรับง่าย ด้านหน้า, ด้านหลัง และ มุมนำกระดาษ ;
.  ปรับใช้ทั่วไป ต้องเปลี่ยน รหัส

รายละเอียดการบรรจุ :
ขนาดบรรจุ: ( 570 * 460 * 190มม. )
นํ้าหนักรวม .: 26.5lb ( 12กก. )

Fectures:
. HCP315 offers great quality creasing and perforating of single sheets, for smooth folds and clean tear off.
. Perforates up to 250gsm paper;
. Perforates for food coupons, vouchers, etc;
. 0-90 degree creasing & perforating angle;
. The mechanism is working with a knife and a v-shaped counter knife in order to be very smooth;
. Millimeter scale runs along the sides;
. Easy adjustment of front, rear & angular paper guides;
. Simple manual adjustment required to change codes.

Packing Details:
Packing Size: (570*460*190mm)
G. W.: 26.5lb (12kg)
