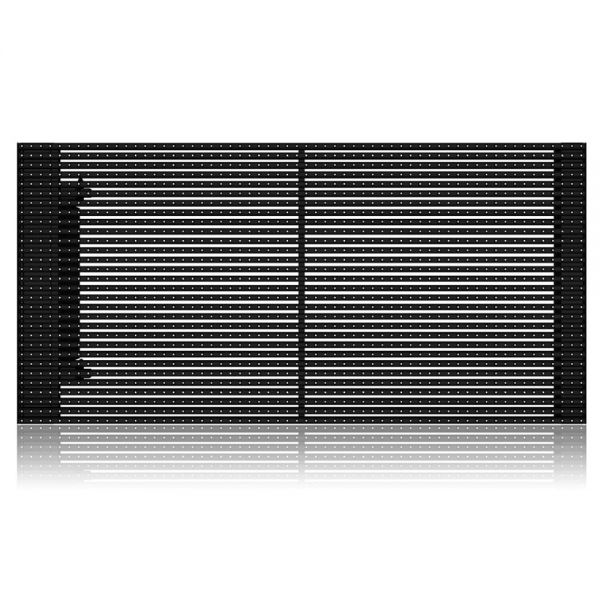

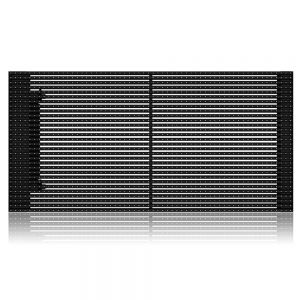

P10 Transparent LED Display จอ LED แบบโปร่งใส P10
  • P10 Transparent LED Display จอ LED แบบโปร่งใส P10

See larger image and other views (with zoom)

P10 Transparent LED Display จอ LED แบบโปร่งใส P10



รหัสสินค้า:SIT-LED-TP10

  • ราคา : ฿ 54,843/sq.m   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 14-20 วัน)

  • จำนวน: sq.m(s) Total Cost: ฿329,058
  • น้ำหนักการส่ง: 30.8lb (14kg) freightขนส่งสินค้า

Buyer Protection

LED Composition:

Structure Diagram
Structure Specification: 1R1G1B/Pixel   SMD3535
Professional Analyse
Item Analyse Item Analyse Contents
1 Colour Matching R:G:B/3:6:1
Color Blending In order to achieve the best white balance performance,
color blending has the strict requirements on led brightness.
And the R:G:B ratio is 3:6:1
2 Item Wavelength Brigtness Chip Brand
Pure Red 620nm-625nm 1000mcd JingYuan
Pure Green 524nm-528nm 2100mcd SanAn
Pure Blue 469nm-473nm 550mcd SanAn



Screen Specification:

Instruction Technology Index Parameters
Single Cabinet 1) Pixel: 10.4-10.4mm
2)Density: 9216dot/m2
3)  LED Composition: 1R1G1B
4)  Color: Pure Red + Pure Green + Pure Blue
Whole Screen 1) Best Viewing Distance: 15-250m
2) Best Viewing Angle: horizontal:120. Vertical: 120
3) Environment Temperature: Storage:-40℃ ~+85℃,Working:  -40℃ ~ +60℃
4) Humidity: 10%~95%
5) Screen Depth: t8cm
Power 1)Working Voltage: 100-220v
2)Average Consumption: 200W/m2
3)Max Consumption: ≤600W/m2
Control System 1) Control Computer: Lenovo
2)Operation System: WIN 98/ 2000/ NT/XP
3)Control Way: synchronization
4)Display Card: DVI display card
Main Technology Specification 1)  Driver IC:MBI5124/ICN2038
2)Driver Way: Static, 1/1scan
3)Refresh Rate: ≥1920HZ
4) Gray/Color: red/green/blue65536 levels, 16.7M colors
5)Brightness: ≥500cd/m2
6) Brightness Adjustment way: software adjust 100 levels.
7) Screen Signal: PAL/NTSC
8) Screen input/output way: 8 ways for input/ 8 ways for output
9) control system: PCTV+ DVI Display Card + Fullcolor Control System
10)  Average trouble-free time: ≥10000 hours
11) Lifetime: 10,0000 hours
12) Flatness: every pixels ≤1mm Every modules ≤1mm
14) Uniformity: the brightness is uniformity
Computer Display Mode: 800×600,1024×768,1280×960etc
Software LED Studio
ProtectionTechnoloty Humidity Protection, Dust Protection, Rust Protection, Static-Protection, etc.
Play content Text files, WORD files, all picture files (BMP/JPG/GIF/PCX...),
all animation files
(MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RMJ/ASF...).
Assembly structure The panel adopts modular - Display Box - display panel assembly
structure, which is convenient to assemble.

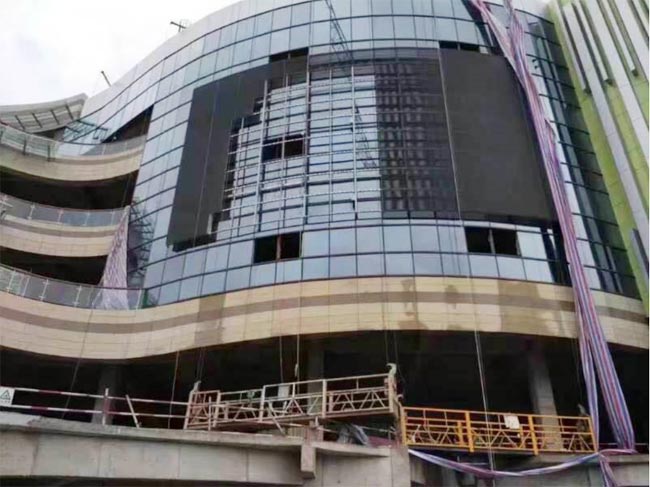

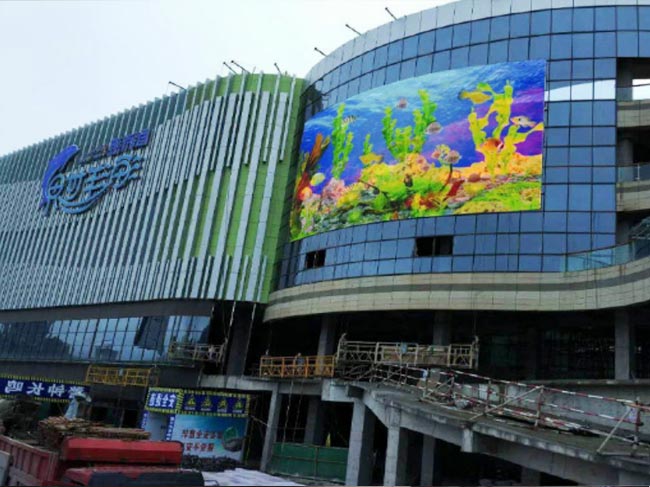

Application Scene:

Glass curtain wall gain a good space visual effect indoor, such as in chain store, shopping mall,exhibition center, airport, metro station, automobile 4S shop, jewelry store, bank etc. which brings strong visual impact and sense of hierarchy for LED transparent display.
