เครื่องเป่าเตาอบแบบลิ้นชักสำหรับการพิมพ์สกรีน---The Drawer Oven Dryer for Screen Printing



รหัสสินค้า:SPM-BELSEY-DC7090-3

  • ราคา Unit : ฿ 243,602/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

  • กรุณาเลือกประเภท
    China Warehouse
  • จำนวน: set(s) Total Cost: ฿243,602
  • น้ำหนักการส่ง: 550.0lb (250kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

เครื่องเป่าเตาอบแบบลิ้นชักสำหรับการพิมพ์สกรีน

รายละเอียด:
ลิ้นชักเตาอบนี้มีสามลิ้นชักใช้สำหรับการรักษาเสื้อยืดพิมพ์ดิจิตอล ลิ้นชักแต่ละอันมีมอเตอร์สำหรับขับเข้าและออก พัดลมดูดอากาศร้อนที่ด้านล่างของเตาอบและเครื่องทำความร้อน IR ที่ด้านบนของลิ้นชัก อากาศร้อนดำเนินการโดยเครื่องเป่าลมเพื่อรักษาเสื้อยืดผ่านช่องทางอากาศร้อน PLC ควบคุมเวลาการบ่มและการเข้า / ออกของแต่ละลิ้นชักด้วยหน้าจอสัมผัส ท่อระบายไอเสียที่ด้านบนของเตาอบก็สามารถดูดควันออกมาในระหว่างการบ่ม

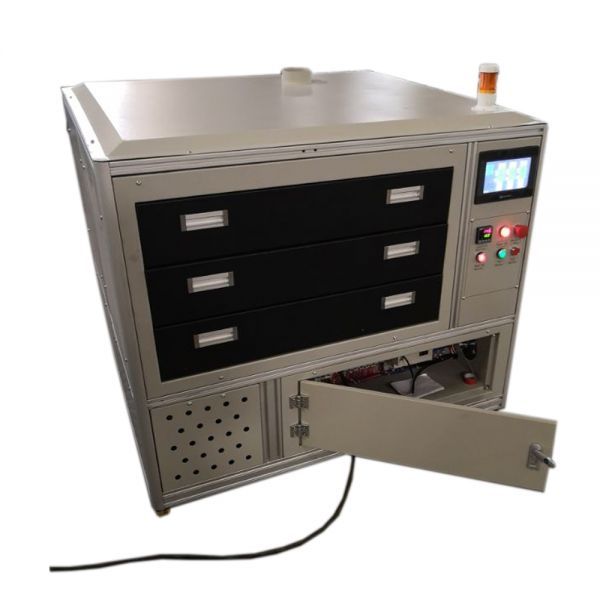

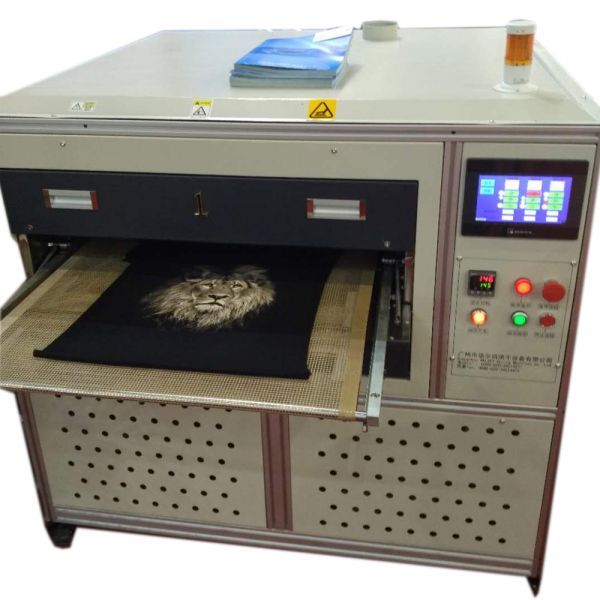

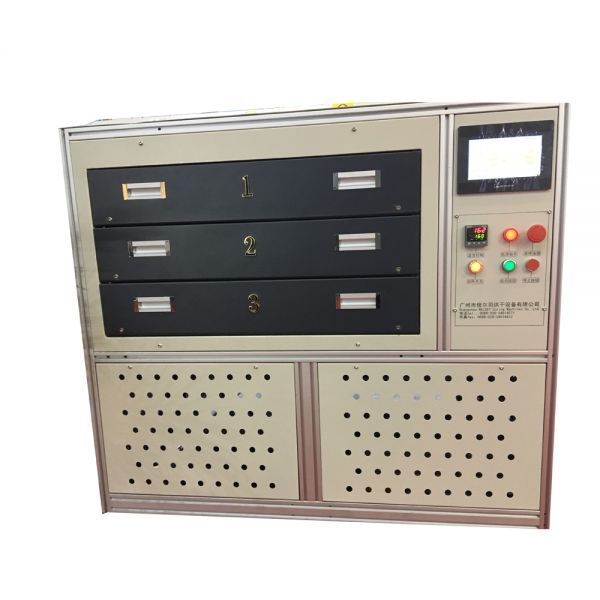

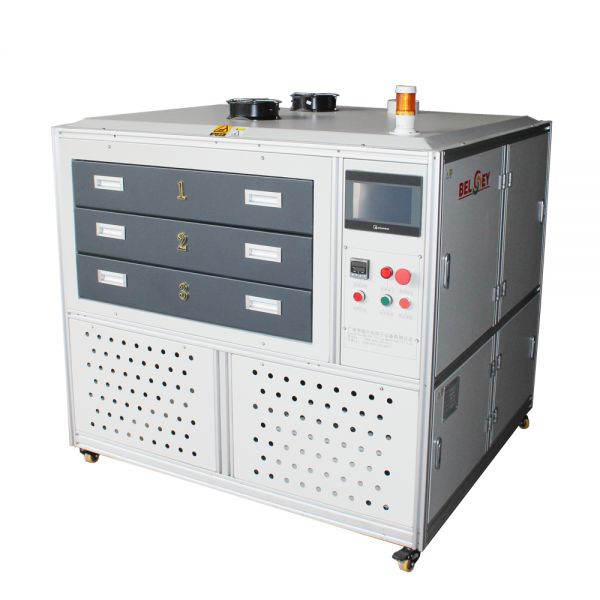

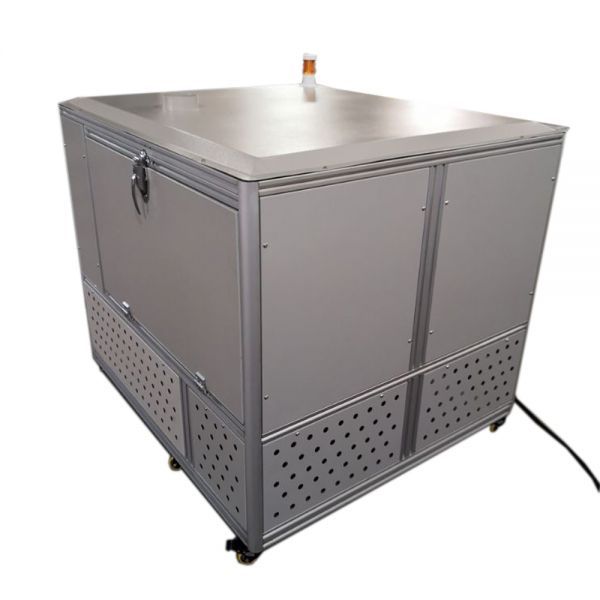

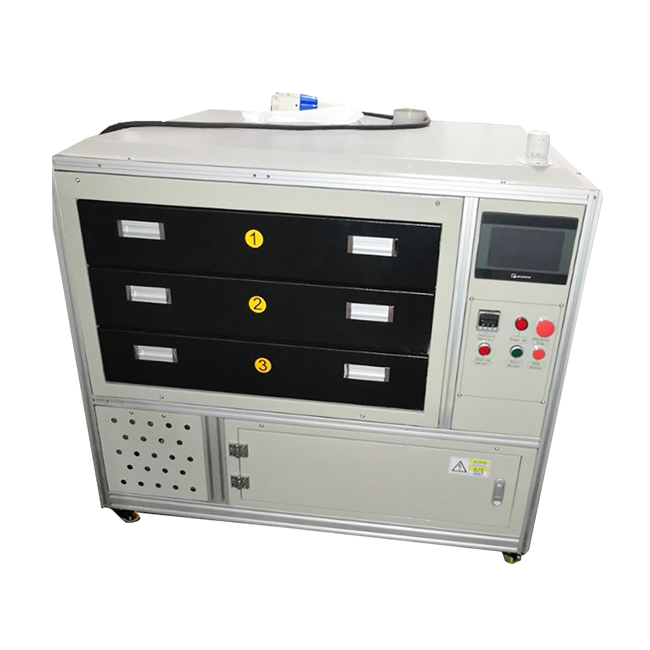

The Drawer Oven Dryer for Screen Printing

Description:

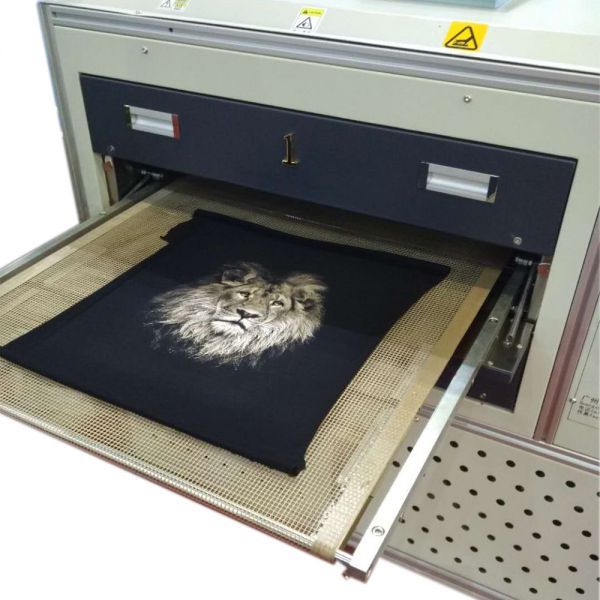

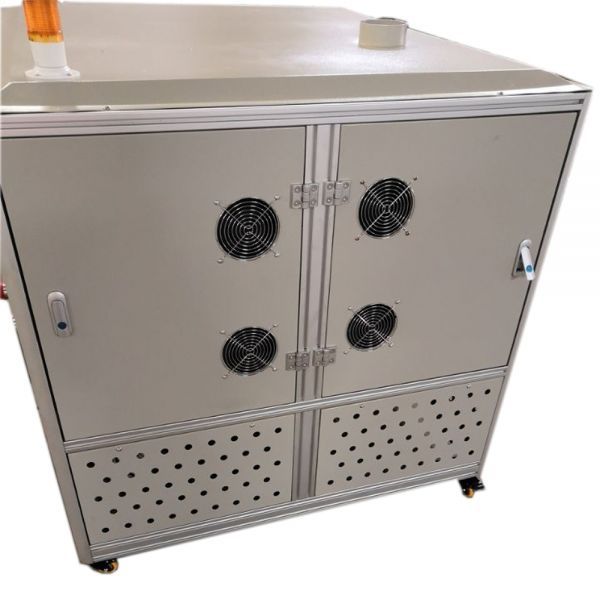

This drawer oven with three drawers is applying for curing digital printing T-shirt. Each drawer has the motor to drive in and out. The blower sucks the hot air for the bottom of the oven and the IR heater on the top of the draw. The hot air is running by the blower to cure the T-shirt through the hot air channel. The PLC controls the curing time and in/out of each drawer by the touch screen. The exhaust duct on the top of the oven, it can suck out the smoke during the period of curing.


รายละเอียด:
จำนวนลิ้นชัก: 3
ขนาดของลิ้นชัก: 37.4 "x 29" (95 x 74 ซม.)
แหล่งจ่ายไฟ: AC220V, 5500W
ขนาดโดยรวม: 48.4 "x 43.3" x 51 "(123 x 110 x 130 ซม.)
Temperature range :0-392℉/0-200 ℃
2 Year Heater Warranty! (except lamp)

คุณสมบัติ:
1. เครื่องทำความร้อน IR คุณภาพสูงสามารถเพิ่มอุณหภูมิได้อย่างรวดเร็วและเวลาทำงานนาน
2. ตัวเป่าลมกำลังดูดอากาศร้อนที่ด้านล่างของเตาอบมันสามารถกระจายความร้อนอย่างสม่ำเสมอในเตาอบ
3. ขนาดของลิ้นชักคือ 95x74 ซม. แต่ละตัวมีมอเตอร์ของตัวเองเพื่อควบคุมการเข้าและออกจากเตาอบ
4. หน้าจอสัมผัสควบคุม PLC เพื่อควบคุมเวลาการบ่มและเข้า / ออกของแต่ละลิ้นชักโดยอัตโนมัติ
5. เตาอบใช้ฉนวนที่หนามากเพื่อรักษาความร้อนในเตาอบ มันสามารถประหยัดพลังงานได้มากมาย



Specification:
The amount of drawers: 3
The dimension of drawer:37.4" x 29"(95 x 74 cm)
Power supply:AC220V, 5500W
The overall dimension:48.4" x 43.3" x 51"(123 x 110 x 130 cm)
Temperature range :0-392℉/0-200 ℃
2 Year Heater Warranty! (except lamp)

Feature:
1. The high quality IR heaters can raise the temperature very fast and long working time.
2. The blower is sucking the hot air for the bottom of the oven, it can evenly distribute the heat in the oven.
3. The dimension of the drawer is 95x74cm, each has its own motor to control the in and out through the oven.

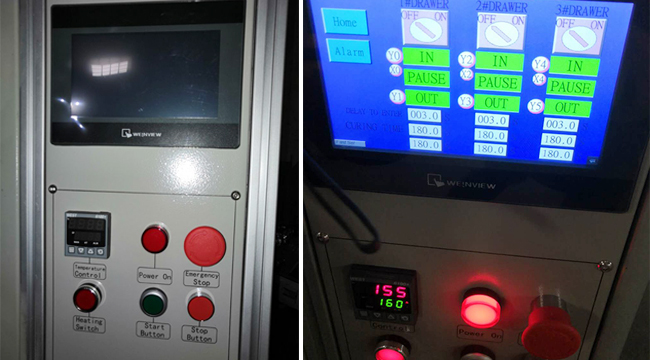

4. The touch screen controls the PLC to control the curing time and in/out of each drawer automatically.
5. The oven uses very thick insulation to keep the heat in the oven. It can save lots of power.


Detais:




แพคเกจ:
ขนาดบรรจุ: 52.4 "x 47.6" x 59 "(133 x 121 x 150 ซม.)
น้ำหนักรวม: 550 ปอนด์ (250 กก.)


Package:
Packing size:52.4" x 47.6" x 59"(133 x 121 x 150cm)
Gross weight:550 lbs(250 kg)
