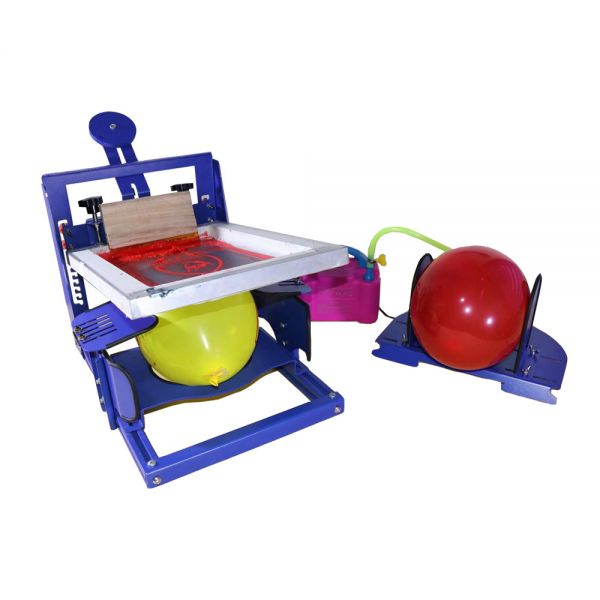

Manual Balloon Screen Printing Machine Kit for Balloon DIY Printer

See larger image and other views (with zoom)

Manual Balloon Screen Printing Machine Kit for Balloon DIY Printer

รหัสสินค้า:SPM-TJ-DQS-BALLOON

ราคา Unit : ฿ 14,856/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

กรุณาเลือกประเภท

110V 220V

จำนวน: set(s) Total Cost:
THB ฿14,856
น้ำหนักการส่ง: 48.4lb (22kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿

One color balloon screen printing machine configuration list
1. One balloon machine
2. One balloon limit station
3. One balloon air pump ( 220 and 110V)
4. One balloon drying rack
5. 100 pcs mixed-color balloons
6. Balloon clamps, sealing clamps, V type and H type 50 pieces each
7. 6 pieces plastic chains
8. paste shelf hooks 12 (2 bags)
9. 50 pcs balloons clips
10.14 cm wooden handle squeegee
11.One 006071 A type 2330 small no glue

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions:

One Color Balloon Complete Set of Screen Printing Equipment

This set of equipment is equipped with all the machines required for silk screen printing monochrome balloon, including silk screen printing machine, balloon limit table, air pump and six-layer balloon drying rack, free of no glue self-stretching frame, balloon, balloon sealing clamp, scraper, mesh and other materials and tools. Only need to buy balloon ink (or rubber ink) user can print small batch customized balloon.

Note:
Printing balloons must use special balloon ink or rubber ink, the ink has good ductility, the printed design when inflating will not crack after deflating ink, ink, when re-inflating, still can restore the original complete pattern, specific use method please consult the ink dealer.

Operation process:
1.Install the screen plate on the machine
2.Use air pump to blow the balloon to a certain degree, and then place it on the balloon platform of the screen printing machine.Place the balloon in the middle of press plate, put down the screen plate, and check whether the printed pattern is fully attached to the balloon; Balloon expansion is too large or too small,the balloon can be properly deflated or inflated, or adjust the height of the chuck to achieve the most appropriate printing standards.

3.Take out the balloon with appropriate air pressure and place it on the limit platform. Adjust the baffles on both sides of the limit platform.
Make both sides of the limit board stick on the balloon edge, fixed limit board, print after the balloon inflation with limit board as the standard.

4.Start printing, inflate the balloon and seal the air outlet with balloon clip;
5.Place on the screen printing table, press the pressure plates on both sides of the balloon.

6.Print, lift the screen plate, open the pressure plate, take out the balloon, and place it on the balloon drying rac.

Feature:
1.Screen frame chuck can be adjusted up and down 6.9"/176 mm; Just loosen 4 handles on the back, move up and down the strip hole, and tighten the handle after moving to the appropriate position.
2.Chuck balance support handle is located at the back of the middle,it can adjust the chuck and frame parallel, down or up.
3.The balloon placement platform can move forward and backward as required.
4.Both sides of explosion-proof safety baffles can move up and down, forward and backward. Protect your safety when the balloon may burst.
5. The pressure ball board on the upper part of the explosion-proof board can be flipped and moved around.

6.Screen frame handle can be installed on the side and upper part.

7.The baffles on both sides of the balloon limit table and the blowhole upright plate can move around according to the size of the balloon.

8.All parts that may come into contact with the balloon shall be installed with protective rubber strips to ensure that there is no sharp object in contact with the balloon during the whole printing process.

9. Special balloon air drying rack can expand 17"/440 mm up and down. When not in use, it can be folded and placed directly without taking up space.

Application:
This set equipment is very suitable for wedding companies, wedding gift shop, advertising production shop, flower gift shop, business etiquette companies, hotels and other businesses specializing in personalized custom use.
For the activity of the individual or unit such as wedding, birthday, opening,theme or blessing language, design is printed on adornment balloon, this can show the class of the activity to the utmost and savour, a lot of people still regard such adornment balloon as souvenir to collect, small batch of the personalized printing demand is very broad.

This set equipment includes:
One balloon screen printing machine
One balloon air pump (110V or 220V voltage optional)
One balloon limit table
One height retractable balloon drying rack (about 30 standard balloons can be hung, and all the necessary parts for hanging balloons to dry)
Free materials and tools: one no glue self-tensioning frame (reusable); A scraper with a width of 14cm; 100 pieces mixed-color balloons;100 pieces Balloon seal clip.

This product has no attributes!

Q&A

Specification
Product Code	SPM-TJ-BALLOON
Product Name	Manual Balloon Screen Printing Machine Kit for Balloon DIY Printer
HS code	8443192290
Product Color	Blue
Machine using material	Steel plate/Aluminum profile
Machine surface treatment	Electrostatic spraying
Accessory material	Stainless steel
Printing color	One color
Application	Printing on Balloons
Printing rate	500p / hr
Balloon tray diameter	9.8”/25cm
Max Frame size(OD)	12.4”x17”/31.5 x 43.5cm
Packing quantity	1
Net weight	44 lb /20kg
Gross weight	47 lb /22kg
Packing size	26 x 22 x 11 inch /67 x55 x27 cm
Packing volume	0.1 m³
Packing material	Carton
