Hot air Circulation Drying Machine Drying Oven
  • Hot air Circulation Drying Machine Drying Oven
  • Hot air Circulation Drying Machine Drying Oven
  • Hot air Circulation Drying Machine Drying Oven
  • Hot air Circulation Drying Machine Drying Oven
  • Hot air Circulation Drying Machine Drying Oven
  • Hot air Circulation Drying Machine Drying Oven

See larger image and other views (with zoom)

Hot air Circulation Drying Machine Drying Oven

   |   249 Transactions

รหัสสินค้า:SIT-JYD-160

  • ราคา Unit : ฿ 96,832/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

    • กรุณาเลือกประเภท

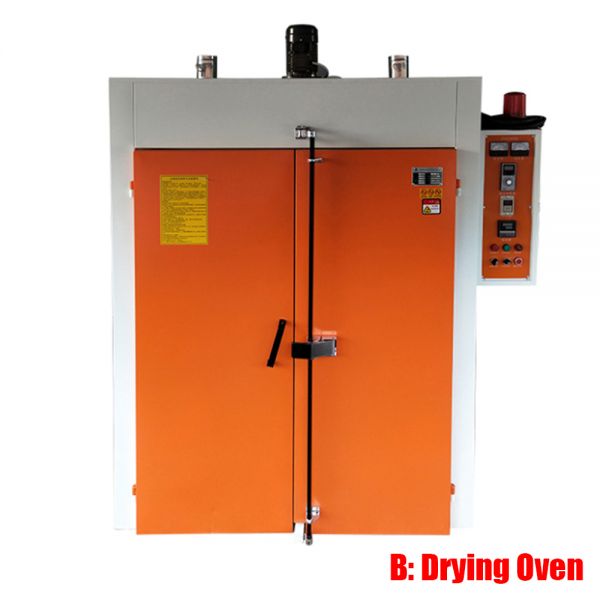

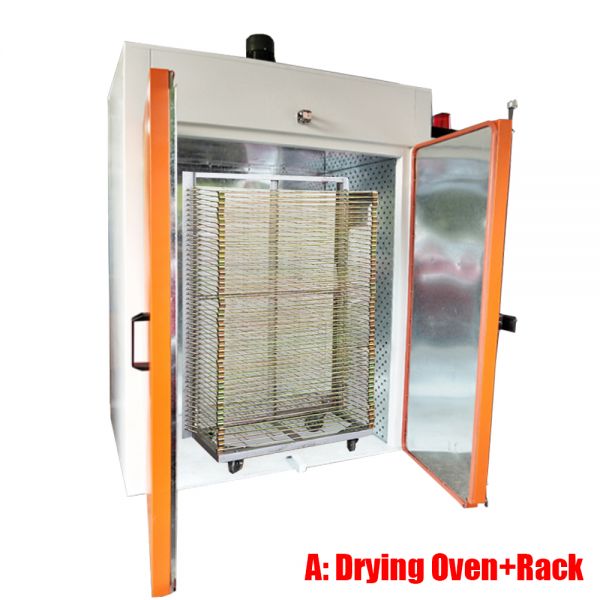

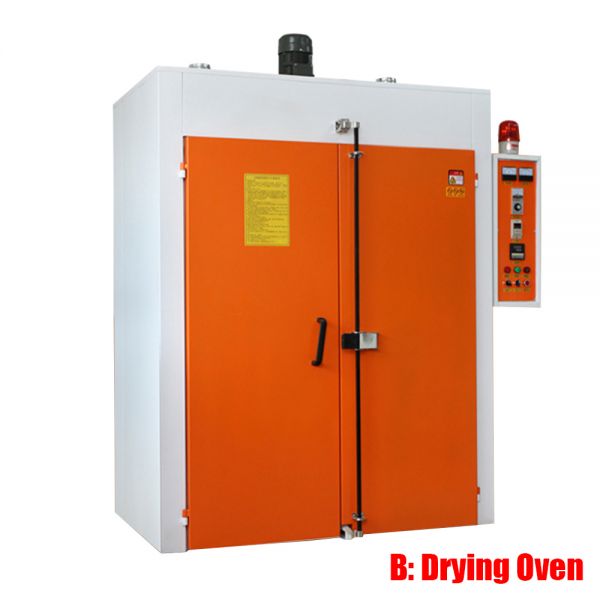

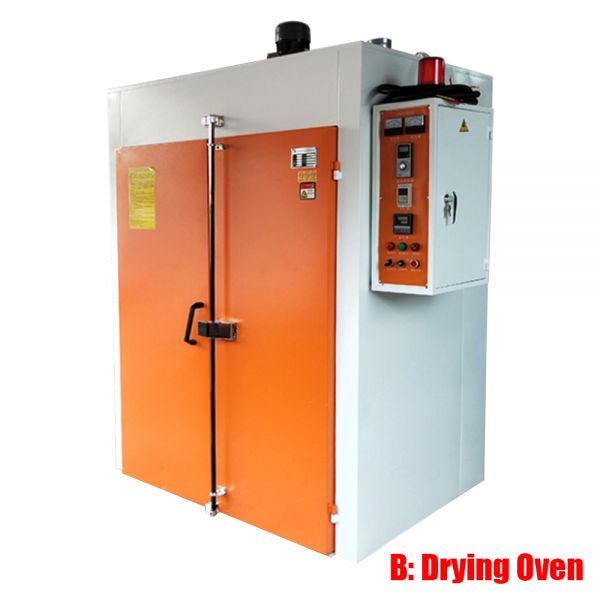

    กรุณาเลือกประเภท: A: Drying Oven+Rack B: Drying Oven C: Drying Rack
  • จำนวน: set(s) Total Cost: ฿96,832

  • น้ำหนักการส่ง: 1276.0lb (580kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to Cart

Buyer Protection

Hot air Circulation Drying Machine Drying Oven

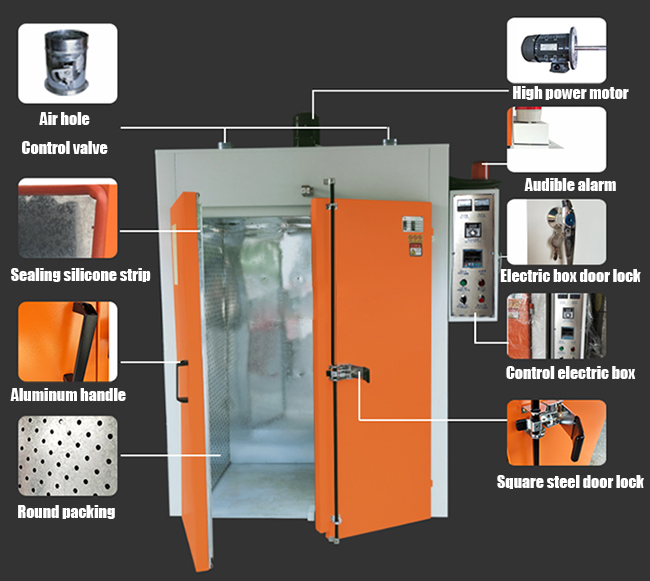

Features:

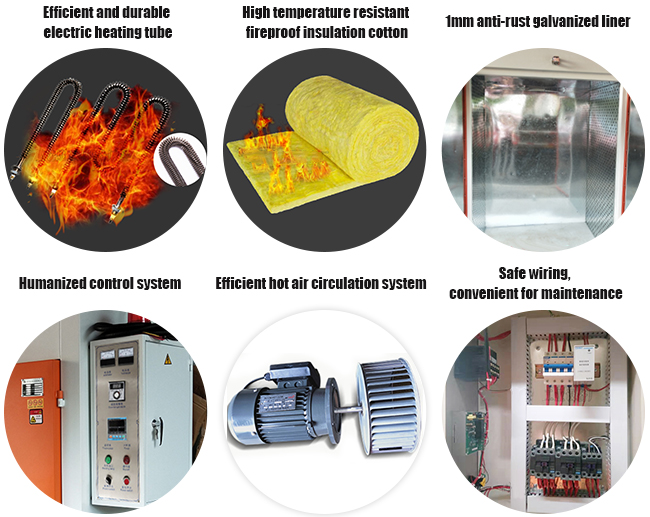

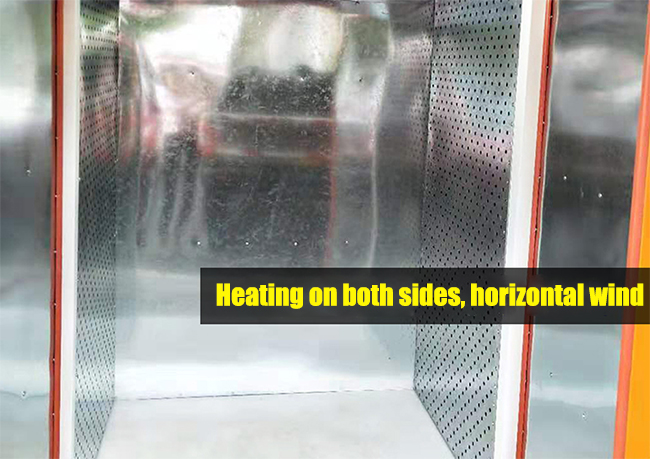

Heating on both sides/timing alarm/over-temperature power-off alarm protection

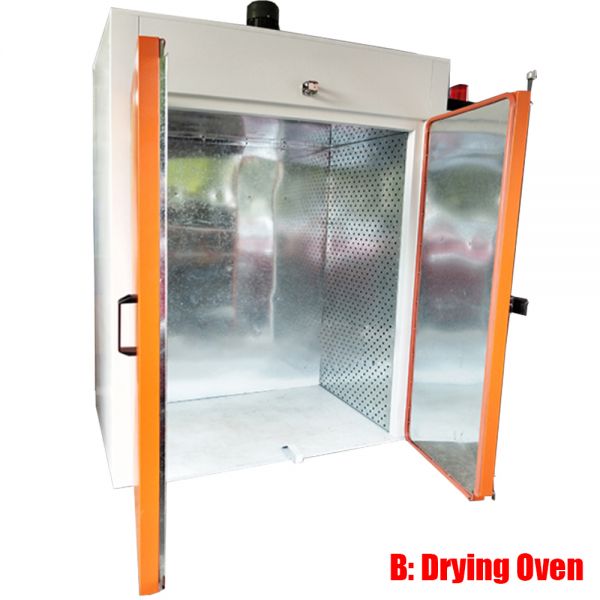

1. The inner box is made of 1.0mm galvanized sheet, and the outer box is made of 1.2mm thick A3 cold-rolled sheet;
2. Using Cistle 80K environmentally friendly high temperature cotton, the insulation thickness is 80mm;
3. Door side seal: use high temperature resistant silica gel to tightly seal;

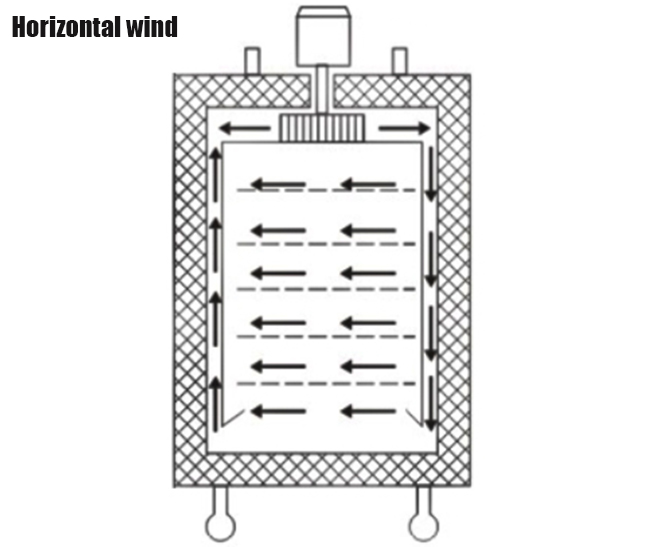

4. Adopt reinforced shaft type high temperature motor and equipped with powerful multi-wing wind wheel;
5. With over-temperature alarm and automatically cut off the heating power supply protection function (when over-temperature, the heating power supply is cut off)
6. Control circuit short circuit and overload protection, phase protection, leakage protection have manual and automatic timing conversion device, the timing is adjustable from 0 to 9999 minutes, and the function of constant temperature timing;
7. Use Φ11mm heat-dissipating dry-burning heating tube (made of imported resistance wire and high-temperature quartz sand), and the heating tube is installed on both sides of the furnace.

Parameters:
Product size: 1200x800x1600mm
Product dimensions:2300x1800x100mm
Package size:2500x2000x120mm
Weight:580kg
Voltage: 380V
Power: 15KW
Temperature: room temperature +10°C~250°C
Liner material: galvanized sheet

Details:

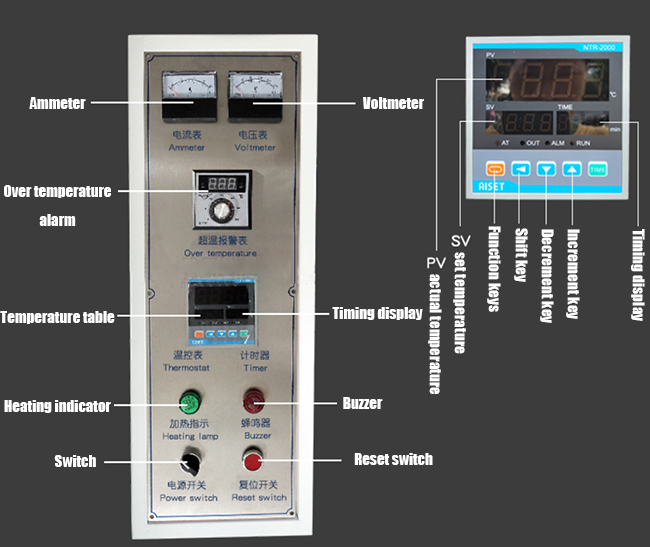

Intelligent temperature control console
Digital display temperature control with microcomputer intelligent PID self-tuning and timing and over-temperature alarm functions.

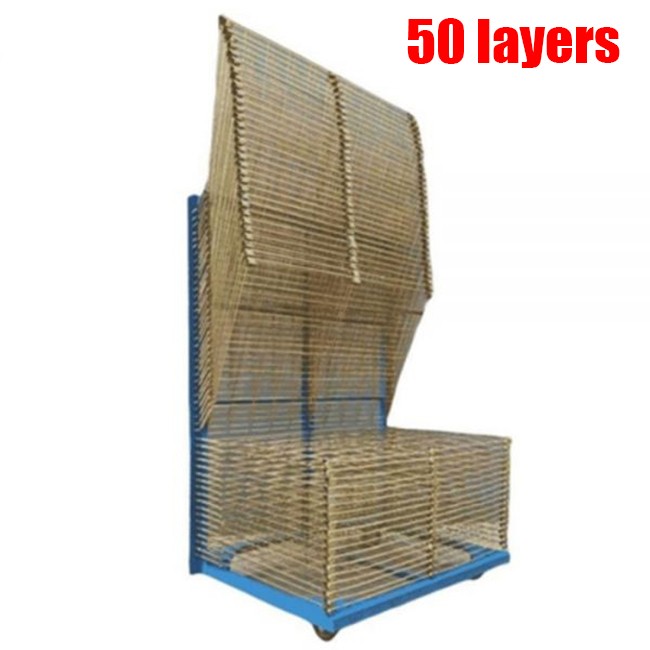

50 Layers 1000mm x 650mm Screen Printing Drying Rack Screen Printing Equipment Machine Dryer DIY

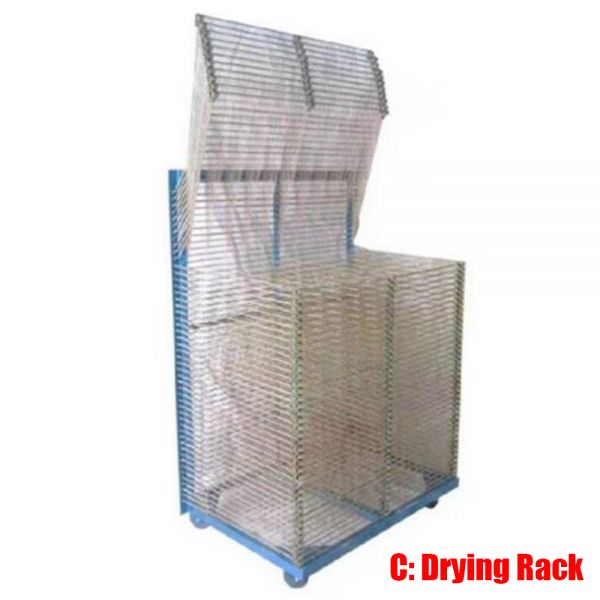

Drying rack, also known as thousands layer rack. It is mainly used in stacked drying and transporting various products after printing .Save space, improve efficiency; It is often used to pushing printing products overall to dry under the sun.

Description:

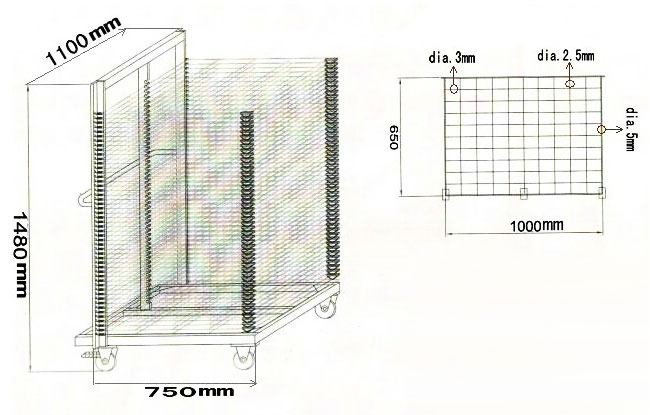

1. Net size: 1000mm x 650mm
2. Machine size:1600 x 1200 x 850mm
3. Number of layers: 50 Layers
4. Linear: 5 x 3mm
5. Each distance: 2.5cm.
6.Color: blue or red,color random


Application:
Suitable for most industrial purposes: heating, degassing, baking, polymerization, preheating. Heating for curing, drying, tempering, stability testing, vulcanization, testing, etc.
