650BH 2H DTF Printer Powder Shaker and Dryer with 2 Epson Printheads
  • 650BH 2H DTF Printer Powder Shaker and Dryer with 2 Epson Printheads
  • 650BH 2H DTF Printer Powder Shaker and Dryer with 2 Epson Printheads
  • 650BH 2H DTF Printer Powder Shaker and Dryer with 2 Epson Printheads

See larger image and other views (with zoom)

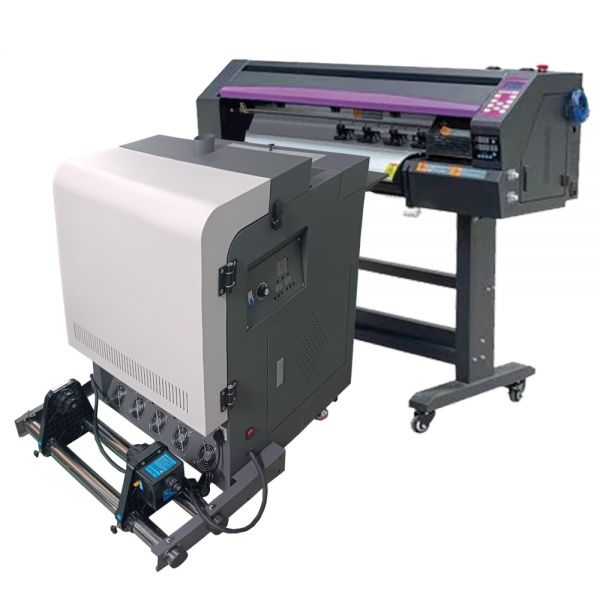

650BH 2H DTF Printer Powder Shaker and Dryer with 2 Epson Printheads

   |   352 Transactions

รหัสสินค้า:SIT-HTM-BSL-650BH

  • ราคา Unit : ฿ 208,000/set   (ขอส่วนลดพิเศษ) (สินค้าพร้อมส่ง)

  • กรุณาเลือกประเภท

    กรุณาเลือกประเภท: i3200B i3200A
  • จำนวน: set(s) Total Cost: ฿208,000
  • น้ำหนักการส่ง: 352.0lb (160kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart
Buyer Protection

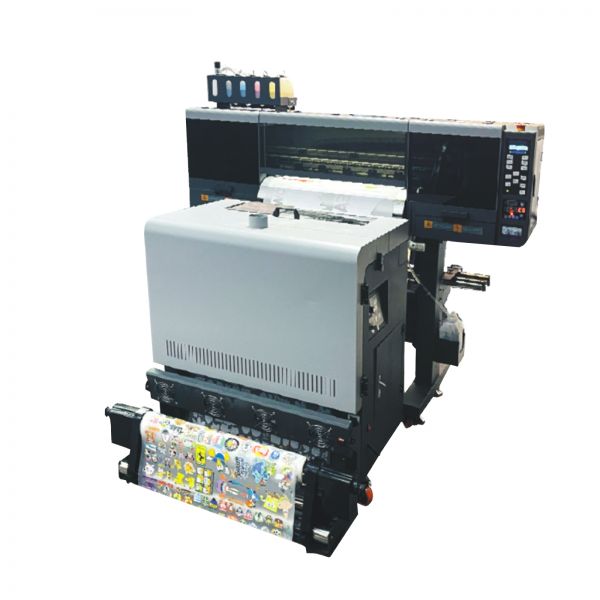

650BH DTF Printer Powder Shaker and Dryer with 2 Epson Printheads

Features:
- Universal matching, easy to use, labor saving.
- Digital offset heat transfer, one-time forming.
- Suitable for industries such as digital printing.
- No engraving, no waste discharge, no engraving, no white edges, environmental protection.

Specifications:

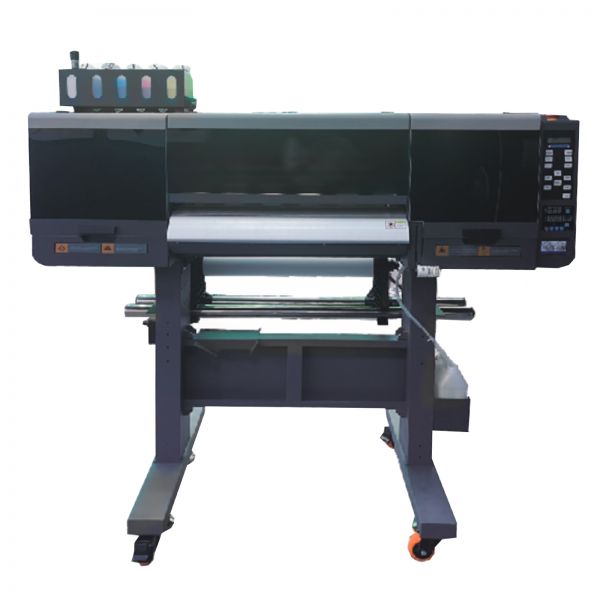

650 DTF Printer
Printing width ≤680mm
Print head Epson 5113 Epson i3200A1
Print head qty. (pc) 2 2
Printing speed 4pass 12 m²/h 12 m²/h
6pass 8.5 m²/h 8.5 m²/h
8pass 6 m²/h 6 m²/h
Suitable media PET film
Heating and drying function Front guide plate heating, solidified upper drying, and cold air cooling function
Print head cleaning Automatic
Heating method Front guide plate heating (30~65°C)
Platform suction adjustment Yes
Working environment Temperature 20~28°C
Relative humidity 40-60%
Software Maintop/ PhotoPrint
Operating system XP/ Win7/ Win10
Rewinding function Automatic induction rewinding
Rated power 350W
Powder Shaker and Dryer
Shake powder width ≤650mm
Applicable medium Nylon, chemical fiber, cotton, leather, swimsuit, diving suit, PVC, EVA, etc.
Fan control Shake powder control, dusting control, direction and quantity control
Heating and drying function Front guide plate heating, upper drying and curing, cold air cooling function
Rewinding function Automatic induction winding
Rated voltage 220V
Powder Shaker and Dryer 650BH
Number of heating tubes 5PCS
Total power 4KW
Length of temperature zone 90CM
Net weight 70KG
Gross weight 80KG
Packaging size 750*870*1100mm

We have 4 types of powder shakers for you to choose. See the following table for the differences.

Powder Shaker and Dryer
650 650B 650BH 650D
Number of heating tubes 3PCS 4PCS 5PCS 6PCS
Total power 3.1KW 3.6KW 4KW 5.2KW
Length of temperature zone 55CM 65CM 90CM 110CM
Net weight 95KG 120KG 70KG 180KG
Gross weight 135KG 160KG 80KG 220KG
Packaging size 1350*950*1170mm 1550*970*1170mm 750*870*1100mm 1900*980*1170mm

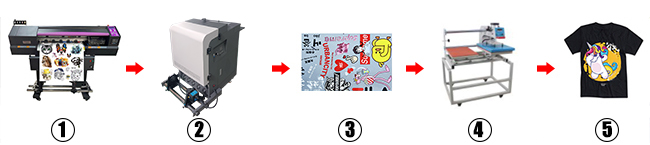

Digital printing solution:

1. Pictures typesetting and printing out
2. Powder feeding, shaking, drying, rewinding
3. Pictures waiting for heat transferring
4. Heat transferring
5. Finished printing effect

Details:
1. Powder feeding shaft: automatic powder feeding, evenly spreading powder.
2. Smoke outlet: It can be equipped with a smoke extractor, which is environmentally friendly and pollution-free.
3. Drying zone: Lengthen and widen the drying heating zone to evenly heat the screen.
4. Control panel: Chinese and English button panel, simplified operation, easy to understand.
5. Intelligent take-up device: The resistance of the take-up device can be adjusted, and the maximum load-bearing capacity of the thickened 5cm steel pipe is 70kg.

6. Powder shaking motor: Stepless speed regulation, shaking powder cleanly.

Applications:
