SAMPLE 1.8m Flatbed and Roll to Roll UV Inkjet Printer With 2pcs I3200U Printheads
  • SAMPLE 1.8m Flatbed and Roll to Roll UV Inkjet Printer With 2pcs I3200U Printheads
  • SAMPLE 1.8m Flatbed and Roll to Roll UV Inkjet Printer With 2pcs I3200U Printheads

See larger image and other views (with zoom)

SAMPLE 1.8m Flatbed and Roll to Roll UV Inkjet Printer With 2pcs I3200U Printheads

   |   24 Transactions

รหัสสินค้า:SIT-V8EUV-4-1

Buyer Protection

Description:

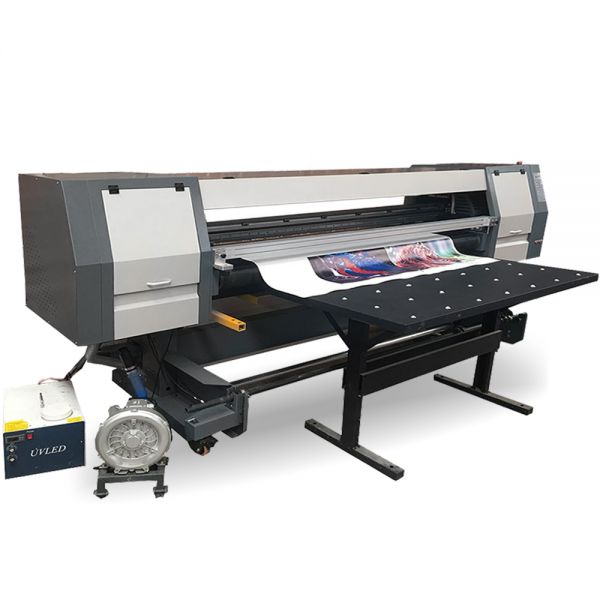

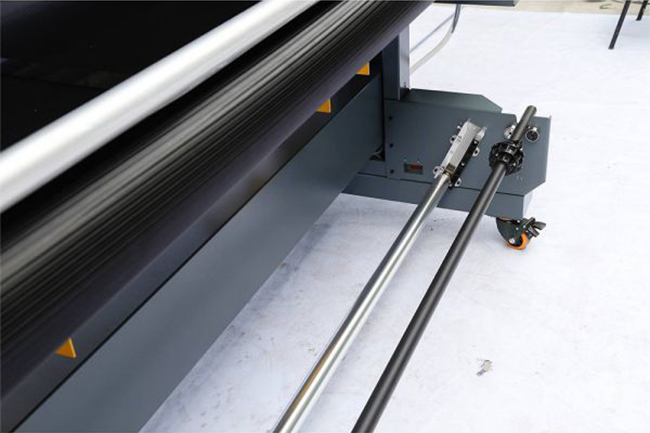

V8EUV roll to roll and flatbed printer is new printing machine which combined flatbed printer with inkjet printer in one machine, along with all features and advantangges of flatbed pritner and inkjet printer. Contuinuing consistent style of superior material, exquisite workmanship and stable production.V8EUV is equipped with the feeding and take up system for roll printing, and also comes with front and rear extention platform for plate printing. The converyor feeding system can convey both rigid and flexible media accurately. It can print roll and plate material at the same time. The vacuum system controls the whole printing platform of remain smooth without wave, and make true of "edge to edge" printing.

Advantage:
1. One machine can be eco solvent UV flatbed printer or uv flatbed printer
2. One machine can be flatbed or roll to roll
3. The vacuum system controls the whole printing platform to remain media smooth without wave, and make true of “edge to edge” printing.
4. Print both rolls and plate materials, efficiently solve the problem of printing rolls and plate materials in one machine, it's mainly used in advertising, photographic studio, decoration and other industries;
5. Full range of air-suction function, it is convenient for the transmission of rolls and plate materials.
6. Intelligent infrared heating, which can automatically shut down the heating system while the machine stop printing, very safe and reliable.
7. With advanced servo control system, ensure the accuracy of the printing position and consistency, very long length material can be also transmitted smoothly.
8. Adopt advanced band conveyor device and printhead adjustable device. It can adjust the height of cleaning system and carriage at the same time, it could fit all kinds of cloth thickness, Flat board material.Max printing thickness is 20mm.

Specification:

Model V8EUV
Printing speed
 6pass       24m²/h
 8pass       18m²/h
Printhead and Quantity 2*i3200U
Print width 1.83m
Max Print Height 3CM
Media Type Applicable for roll and sheet materials,mainly used in leather industry,home decoration industry,advertising industry.
Available materials:leather,KT board,wallpaper,soft film,car stickers,cloth,PVC soft film etc.
Cumputer Configuration Win 7 and above,64 bits;CPU I5 processor and above,8G memory,ASUS motherboard 3.0GHZ;C disk with SSD 150G,attached disk 1TB

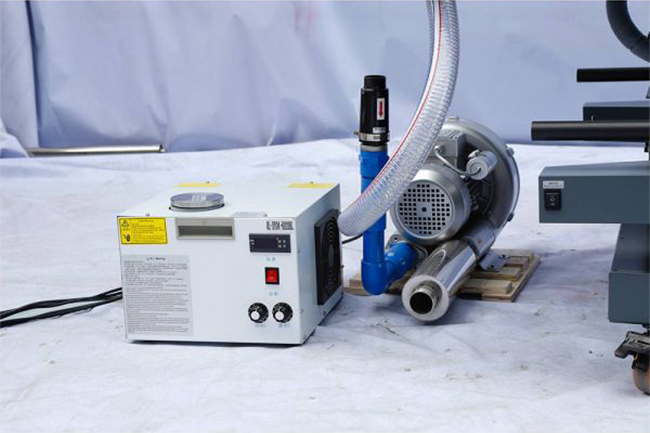

Heating System LED UV water-cooling curing system
Temperture/Humidity Temperture:20-30℃,Humidity:50-65%
RIP Software Maintop
Power Machine Power:500W
External heating:1200W


Tip: ค่าดังกล่าวเป็นข้อมูลเบื้องต้น  ขนาดปริ้นส์จริงหน้ากว้างที่แตกต่างค่าจะมีการเปลี่ยนแปลง10%-20%

Details:

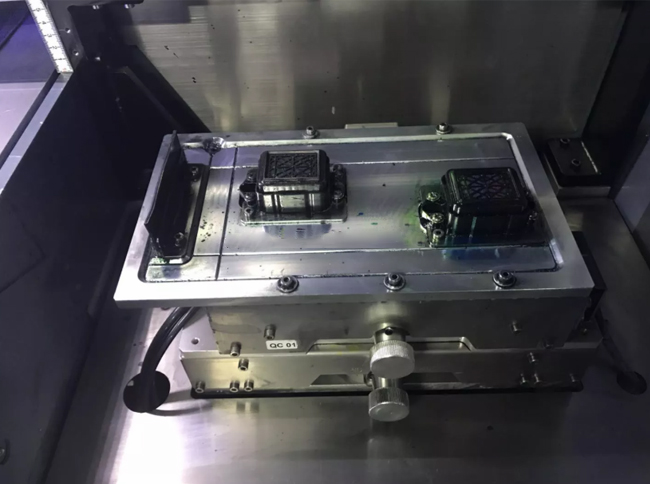

Newest design capping system, which is more reliable and durable.

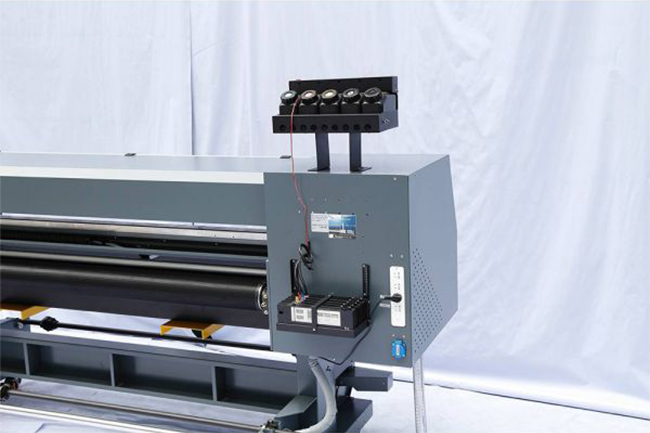

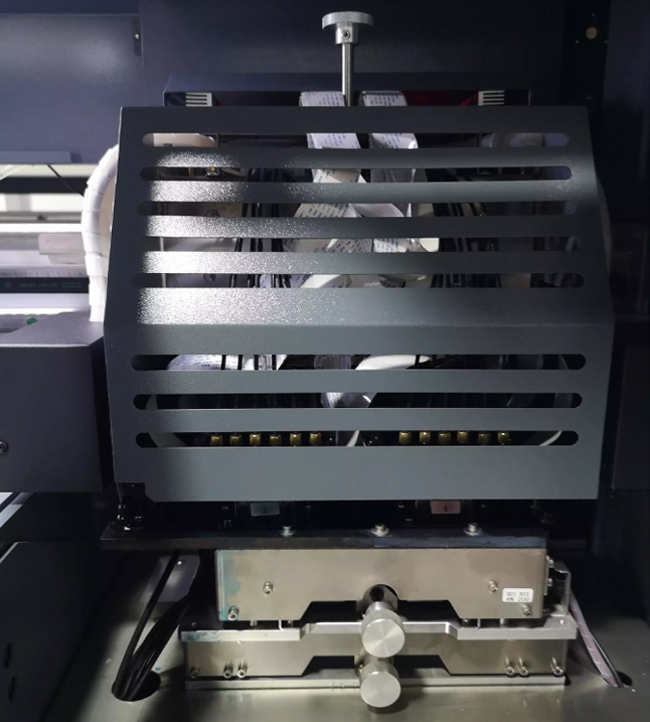

4PC1080 printhead avaible, CMKY*2 or CMKY+white ink printing for your choose.

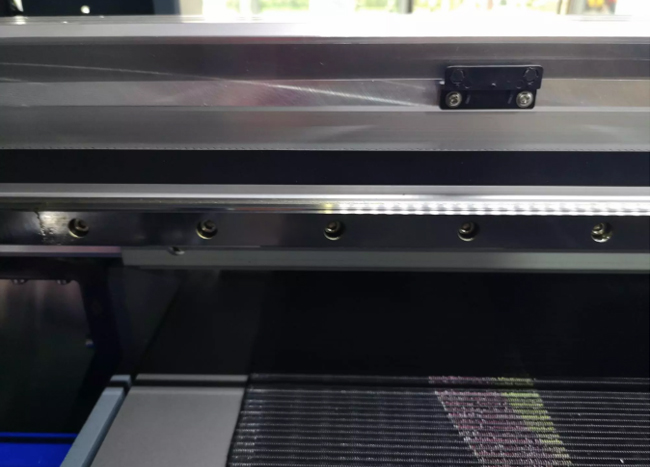

Adopt THK guide rails, high precision and smooth operation to ensure the quality output.

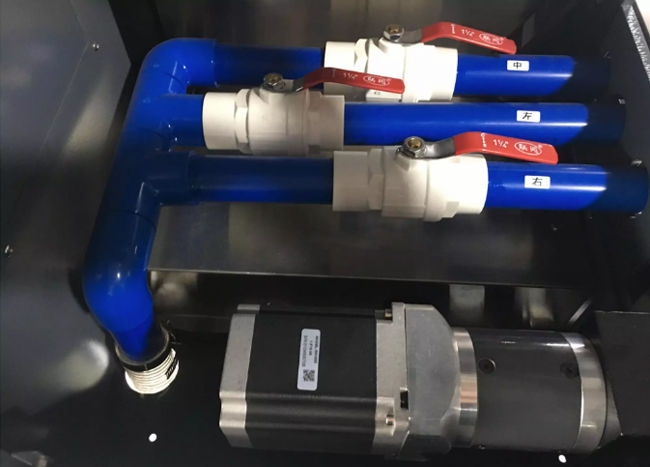

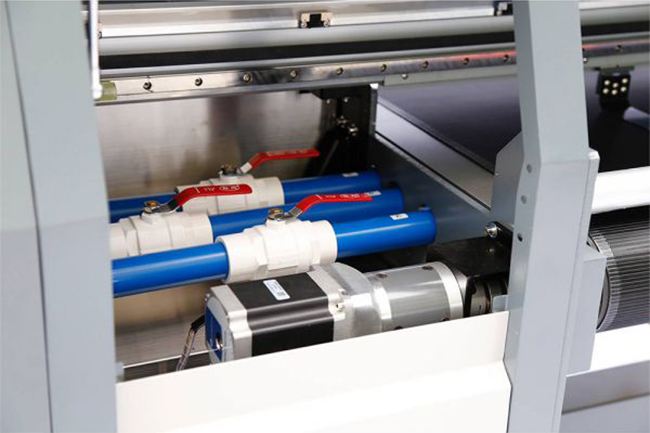

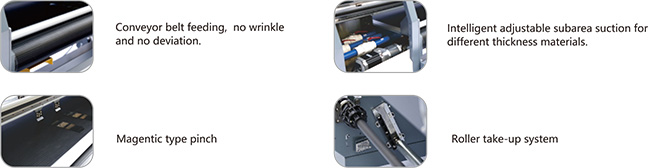

Interligent adjustable subarea suction for different thickness materials.

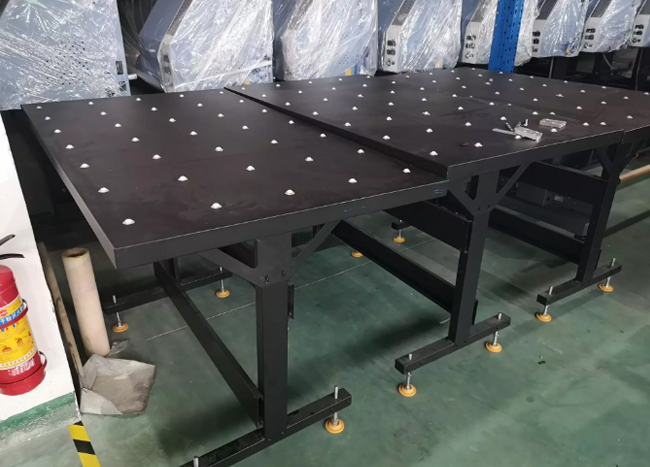

Strong front and back tables ensure perfect printing

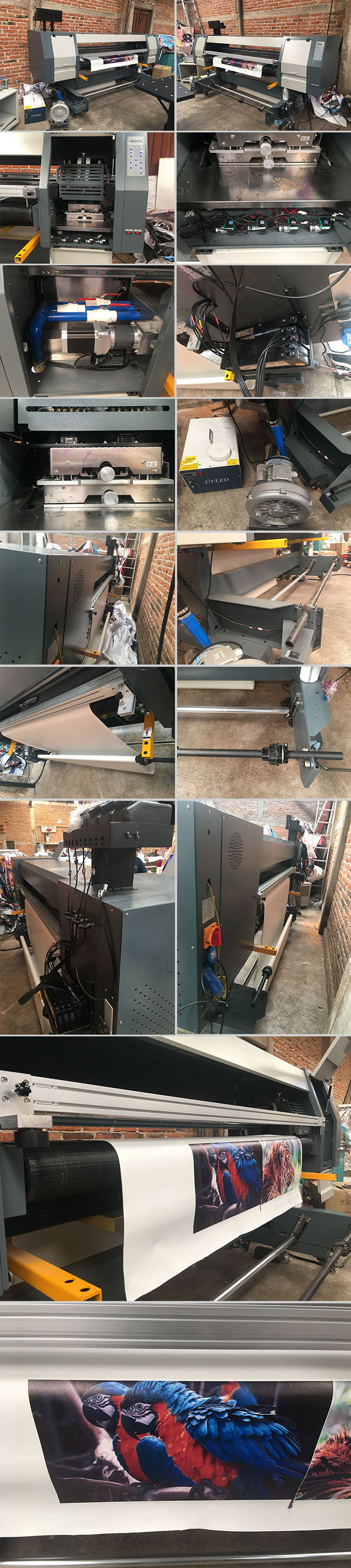

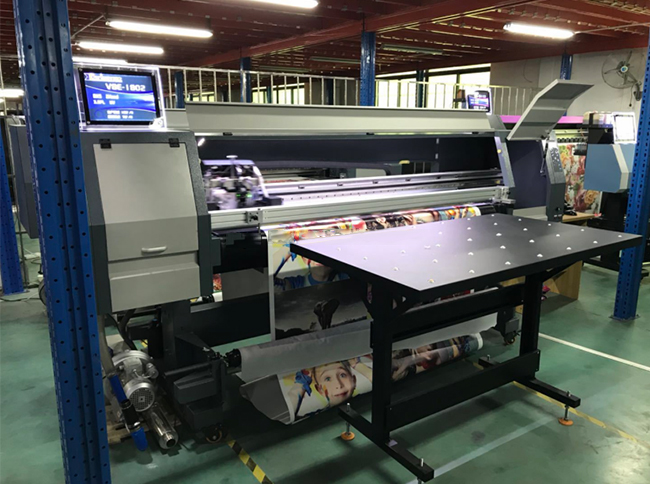

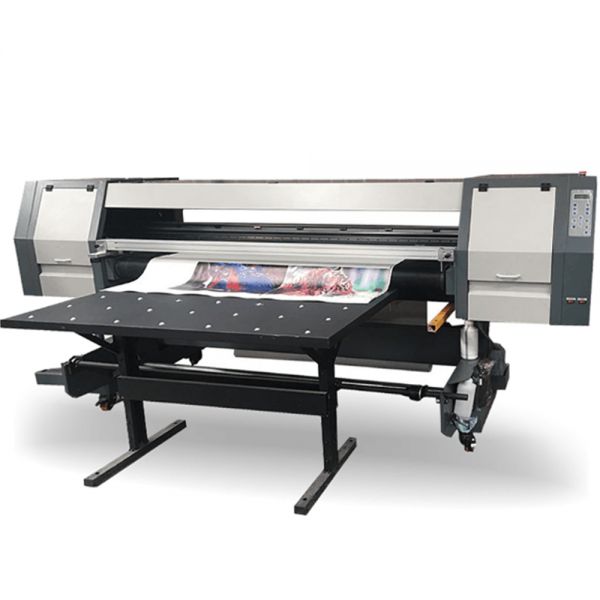

Product photos:

Application:
Applicable for roll and sheet materials,mainly used in leather industry,home decoration industry,advertising industry.
Available materials:leather,KT board,wallpaper,soft film,car stickers,cloth,PVC soft film etc.
