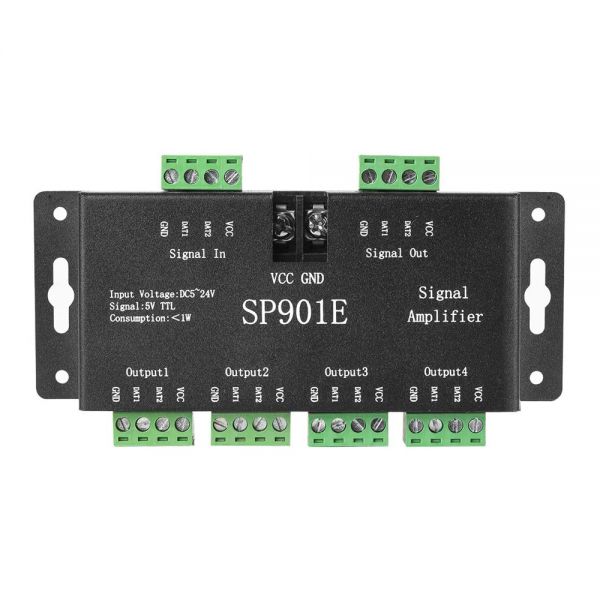

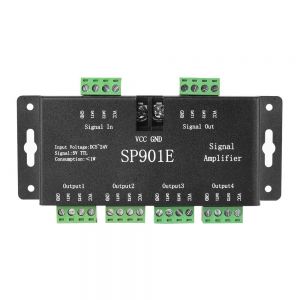

SP901E LED Pixel WS2812B WS2811 SPI Signal Amplifier Repeater

See larger image and other views (with zoom)

SP901E LED Pixel WS2812B WS2811 SPI Signal Amplifier Repeater

รหัสสินค้า:LED-GH-AM-004

ราคา Unit : ฿ 1,152/pc (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 14-20 วัน)

จำนวน: pc(s) Total Cost:
THB ฿1,152
น้ำหนักการส่ง: 0.5lb (0.24kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 0

Note: It is not a controller . It works with controller together. Can not support 4 pin or 5 pin RGB/RGBW no IC chip 5050 LED strip . This SPI signal amplifier is compatible with all kinds of 5V-TTL signal dual signals. It receives one signal and simultaneously output 4 or 8 channels of signals. Each channel can control the same quantity of LED pixels as main controller.
It can output 8 channels for addressable LED strip with single data wire, such as WS2812B, WS2811, SK6812RGB, SK6812-RGBW,SM16703, etc. It can output 4 channels for addressable LED strip with data & clock wires WS2801, APA102, SK9822 or dual data wires, such as WS2813, WS2815
You can use one controller to control DC5V WS2812B and DC5V WS2813 LED strip at the same time, control DC12V WS2811 ,DC12V WS2815, DC12V 1903, DC12V 6803 at the same time via this singal amplifier since they have the same singal.
DC5V~24V wide range of working voltage, but it cannot regulate the output voltage. That means the output voltage of power supply must be the same as the work voltage of your LED lights. The current through the amplifier is limited, when the current consumed is high, you need to add the power supply of the corresponding voltage.
Multiple signal amplifiers can be cascaded together synchronously. Particularly suitable for small and medium dream color lighting projects. It can work with K-1000C, SP105E, SP108E, SP107E, CSY08, CSY07, Raspberry pi, Arduino X2 music controller.

Specification:
Working voltage: DC5V~24V
Working temperature: -20-60℃
Output:8 channels / 4 channels
Compatibale IC type: WS2812B,WS2811,SK6812, SK6812-RGBW,SM16703,
WS2813, WS2815, CS8812, AL2815, WS2801, APA102,
SK9822,UCS1903, LPD6803, LPD8806, APA102
Static power consumption: <1W
Size: 140mm×56mm×28mm
Weight:240g
