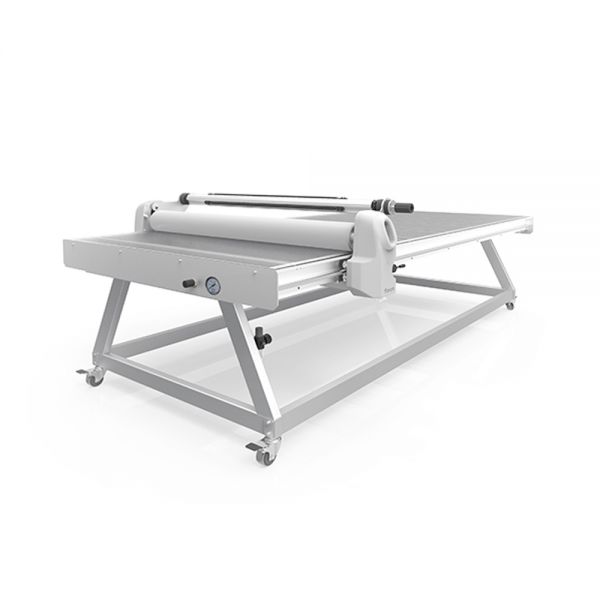

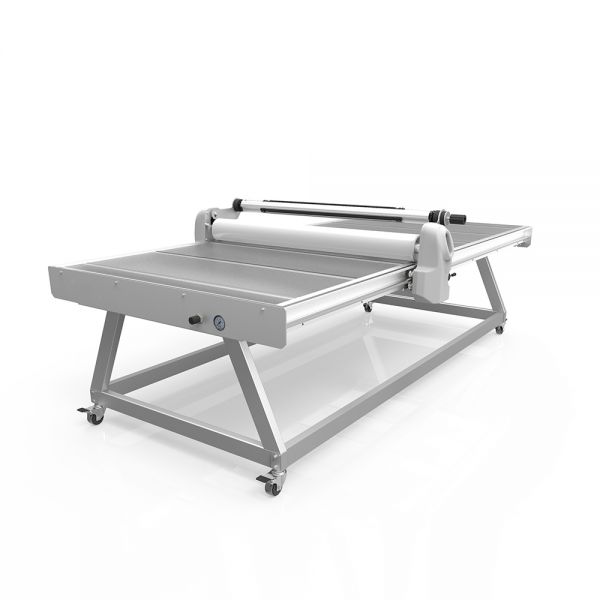

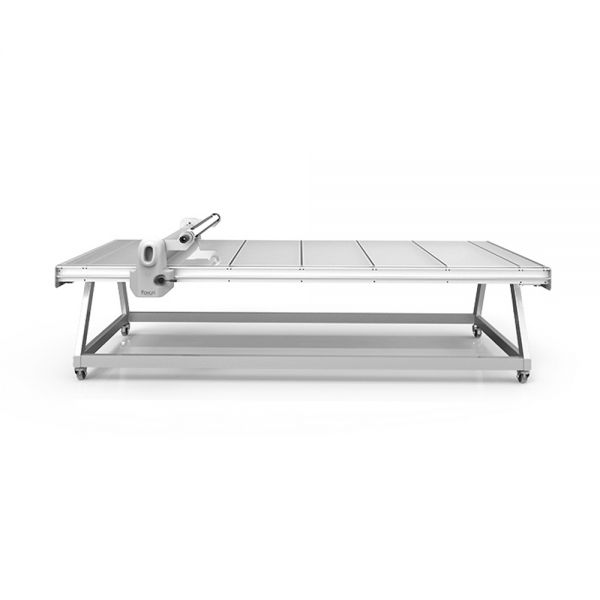

1325*2500mm/1500*3000mm Flatbed Lamination Table for All Size Prints and Kinds of Board

Flatbed laminator designed for the application of foil and all types of self-adhesive vinyl, transfer film, cold lamination and mounting of images on panels.It is an innovative flatbed laminator specially designed to enable easy and precise applications of foil and self-adhesive vinyl on a wide variety of materials (e.g. sheet metal, plastic, glass and banners). It is used as well for panels mounting and industrial applications.

Features:
1. 70% faster application to rigid boards
2. The only work bench you will ever need
3. Media holder and compressor included
4. Toughened Anti-Scratch tempered glass bed
5. LED table lighting system
6. Simple structure, easily operate

Specification:

Specification
Model FY1325-1530
Max laminating size 1300mm x 2500mm\1500mm x 3000mm
Max laminating thickness 50mm
Diameter of roller 130mm
Material of rollers Silicon dioxide
Table glass 10mm temper glass
Illumination LED tube illumination
Machine frame Alloy aluminum
Operation type Manual
Roller upgrade Air cylinder
Pressure Range 0.8-1.0kw/h
Pressure Range 0-0.8Mpa
Voltage 220V/110V, 50 / 60HZ

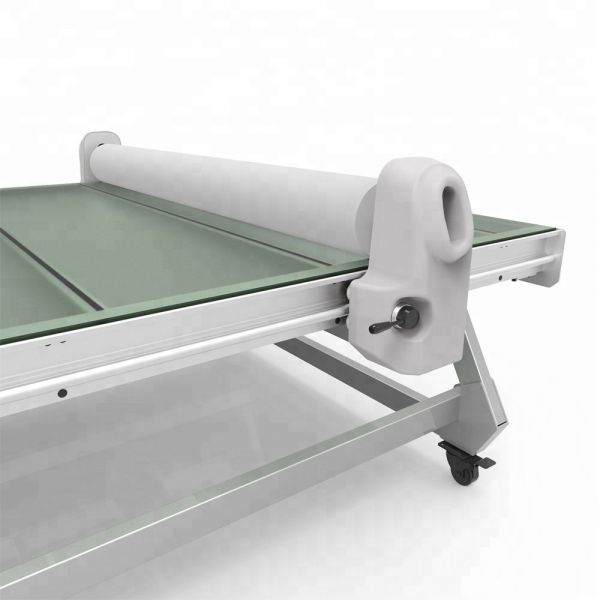

Product Details:
Pneumatic Handle Valve Control The table roll lifting is controlled by handle valve. can stands 100,000 times reciprocation.
Pure mechanical structure, without internal electric circuits.
Ergonomic design, comfortable grip feeling.

Slim but strong Machine Body
Pure Alloy Aluminum Profle structure
Laboratory level flat surface 10mm thickness Tempered Glass
Anti-scraching and withstand impact All corners and edges are rounded

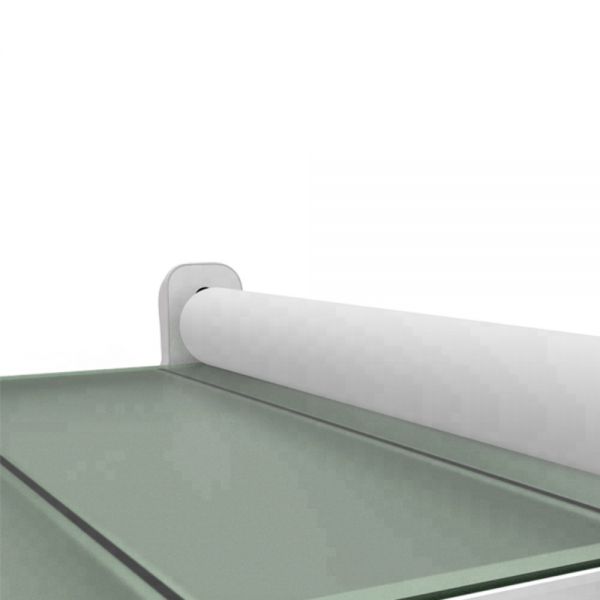

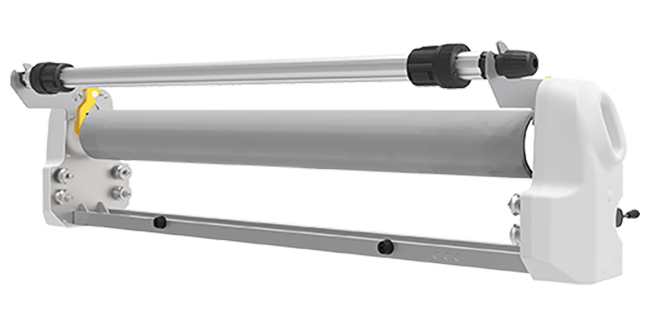

Free Gantry Design
Ensure there is nothing but the roll on the table, no longer need to pass the materials under the gantry, greatly simplify user operations.

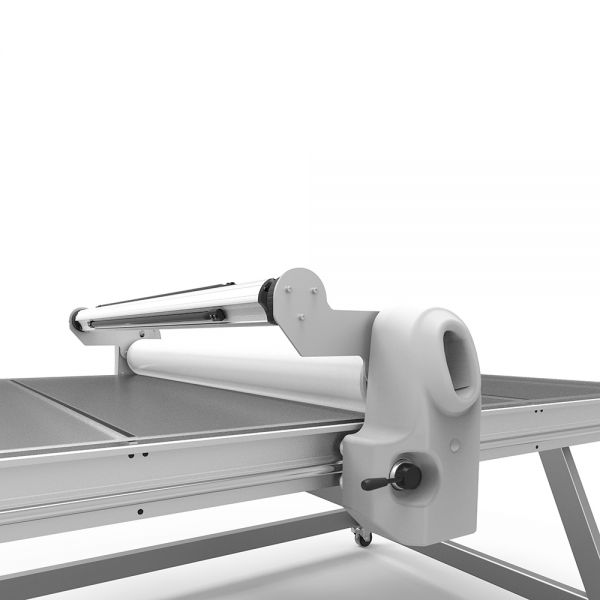

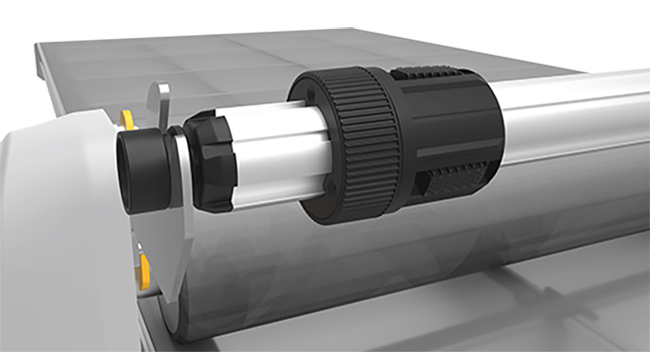

Exclusive design of mechanical tensiondevice
Invention Patent protection
Tight and fix the core by twisting the black ring outter, which can keep the whole locking continuous stable.

Exclusive structure on the tension Knob
We chose the rectangular spring to get the process of increasing friction more smoothly and continuously, result in a better control of materials tension.

Application:

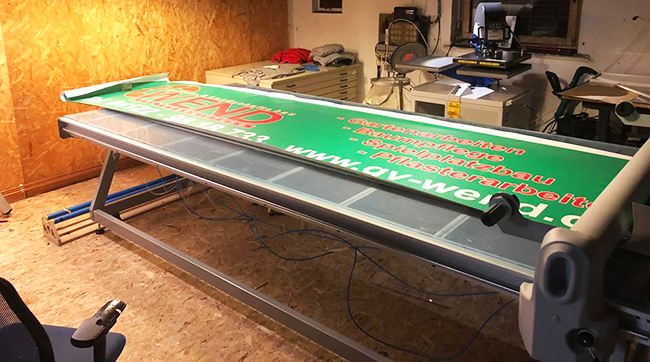

FY1530 working table is a professional equipment in the printing and post-processing, cater to your varying needs, widely used in the advertising, exhibition organizers, picture production, studio and many other fields.
The laminator flatbed applicator could save the time-consuming steps in Mounting, Laminating and Masking.

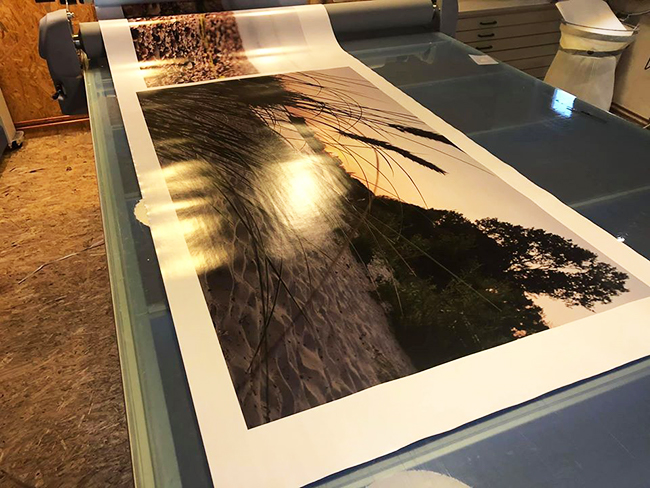

Samples:

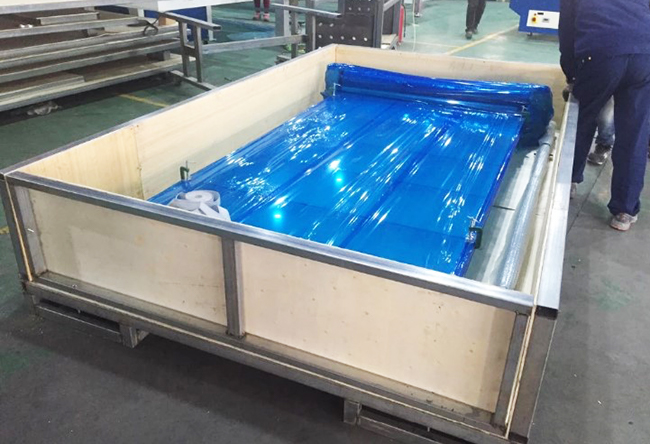

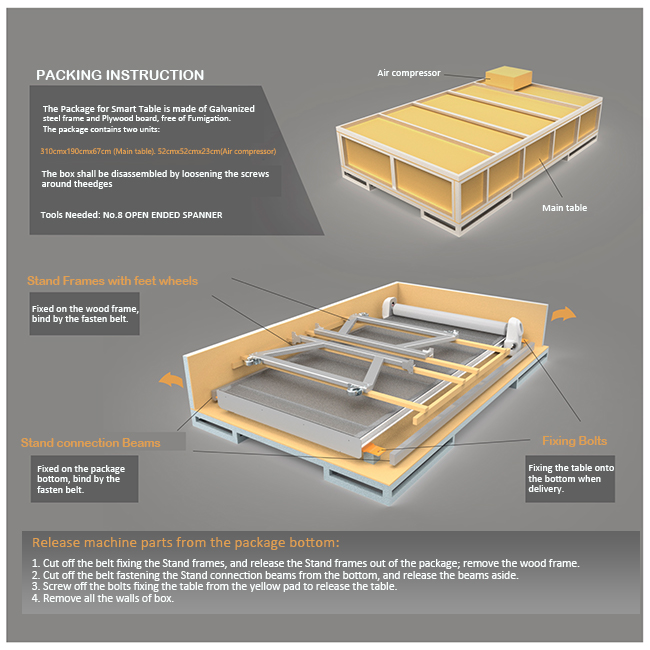

Package:
