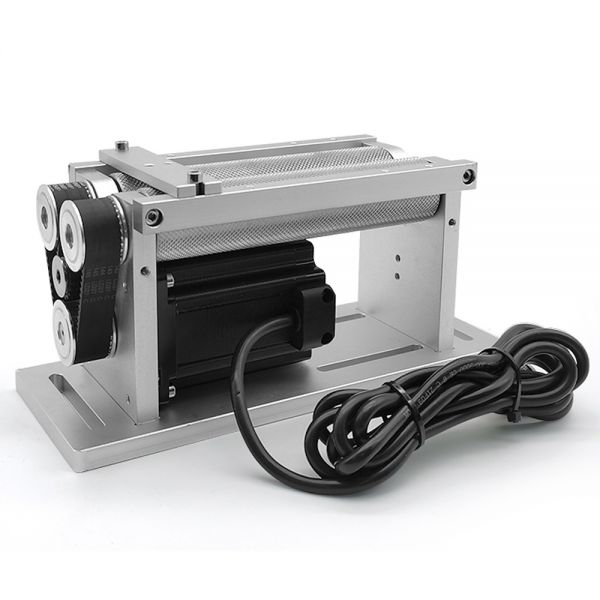

Roller Rotary Fixture Rotary Attachment Set for Ring Cup Cylinder Laser Marking

See larger image and other views (with zoom)

Roller Rotary Fixture Rotary Attachment Set for Ring Cup Cylinder Laser Marking

รหัสสินค้า:CS-GZ-230

ราคา Unit : ฿ 18,447/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 14-20 วัน)

จำนวน: set(s) Total Cost:
THB ฿18,447
น้ำหนักการส่ง: 15.4lb (7.02kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions:

Roller Rotary Fixture Rotary Attachment Set for Ring Cup Cylinder Laser Marking

Specification:
Model: CS-GZ-230
Brand: CALCA
Motor: 60 x 88, wire length 2m
Driver: MC542A
Power: 24V
Shaft Length: 148mm(5.8")
Wheelbase: 3mm(0.12")
Dimensions: 230 x 90 x 107mm(9.1" x 3.54" x 4.2")
Clamping: 5-150mm(0.2" x 5.9")
Bearing: Below 20 kg(44.1lb)
Package Size: 65cm x 27cm x 20cm (25.6" x 10.6" x 7.9")
Gross Weight: 6kg (13.2lbs)

Description:
1. High-precision rotating module, metal material, wear-resistant and durable.
2. Quick clamping, can mark the diameter, length and weight in a wide range.
3. Special for cylindrical marking, suitable for laser engraving machine, optical fiber marking machine, etc.
4. Calculate reduction ratio: product circumference (MM) divided by 100≈ reduction ratio
5. Adjust the reduction ratio: (play single line → turn 360 degrees + play single line → reverse 360 degrees - + play single line)
6. The better the coincidence of the three lines, the more accurate the reduction ratio.
7. Normal rotary marking: after filling in the correct reduction ratio, it can work like a direct-connected rotary table.
Note: Rotary disadvantages, the product is light and easy to lose steps, the speed is too fast and it is easy to lose steps, 360-degree full circle Difficult splicing is not suitable for tapered product marking.
