1.5m CCD Camera Vinyl Cutter with Full Auto Contour Cut Function
  • 1.5m CCD Camera Vinyl Cutter with Full Auto Contour Cut Function

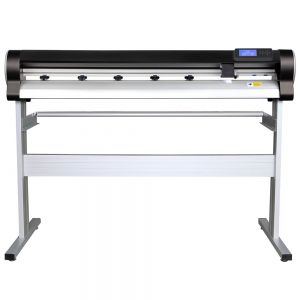

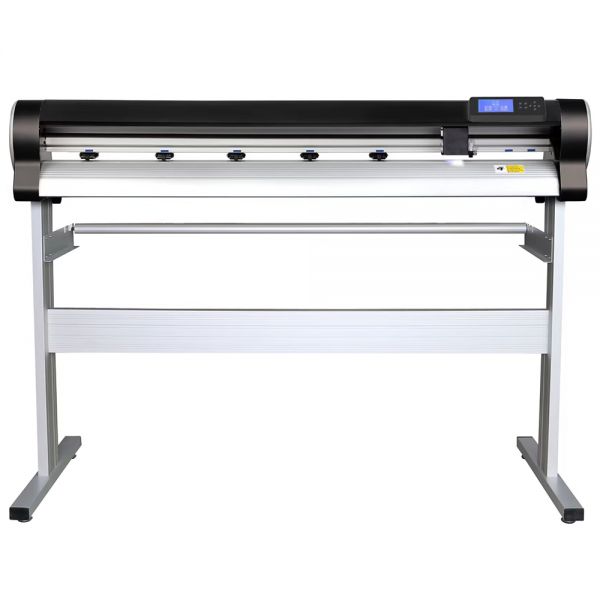

See larger image and other views (with zoom)

1.5m CCD Camera Vinyl Cutter with Full Auto Contour Cut Function

   |   24 Transactions

รหัสสินค้า:SIT-HS-CY1500

Buyer Protection
1.5m CCD Camera Vinyl Cutter with Full Auto Contour Cut Function

Feature:
1.Camera Scan,multi-marks,automatic contour cut.
2.Optional 1000g high force to cut strong 3M reflective film.Normal force to cut different materials. Such as sticker, car sticker, war sticker, reflective film and some others.
3.Max cutting speed 800 mm/s.
4.High precision steel roller: guaranteed 8 meters without deviation of paper feeding.MYCUT all machine adopt this way, to make all our machines with high precision.
5.Support cut 1.5mm small letters without distortion.
6.High performance 32-bit processor with ARM Cortex-M3.

Details:
Specification:
Model CY1500
Media Way Floor stand
Main Board High-performance & intelligentARM 32 CPU; 256MB memory
Driver High speed stepping motor, micro-step driver
Maximum Paper Feed Width 1600mm
Maximum Cutting Width 1500mm
Maximum Cutting Speed 800mm/s (1000mm/s servo motor optional)
Software Signmaster
Cutting Force 0-600g(digital adjustment,1200g high force optional)
Mechanical Precision 0.01mm
Repeatable Precision <±0.1mm
Plotter Instruction DM-PL/HP-GLAutomatic Identification
Interfaces USB port, Serial port, U-disc port
Power Supply AC110V /220V±10%, 50Hz/60Hz
Laser point Positioning Camera scan; Automatical Registration Marks system, Segment Montour Cutting
Noise at Work ≤50 DB
External Dimension 1900*320*390mm
Shipping Weight 50kg
