Z3 Automatic Feeding Sheet Label Cutter,Servo Motor
  • Z3 Automatic Feeding Sheet Label Cutter,Servo Motor
  • Z3 Automatic Feeding Sheet Label Cutter,Servo Motor

See larger image and other views (with zoom)

Z3 Automatic Feeding Sheet Label Cutter,Servo Motor



รหัสสินค้า:SIT-LPC-Z3

  • ราคา Unit : ฿ 69,800/set   (ขอส่วนลดพิเศษ) (สินค้าพร้อมส่ง)

  • จำนวน: set(s) Total Cost: ฿69,800
  • น้ำหนักการส่ง: 74.8lb (34kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

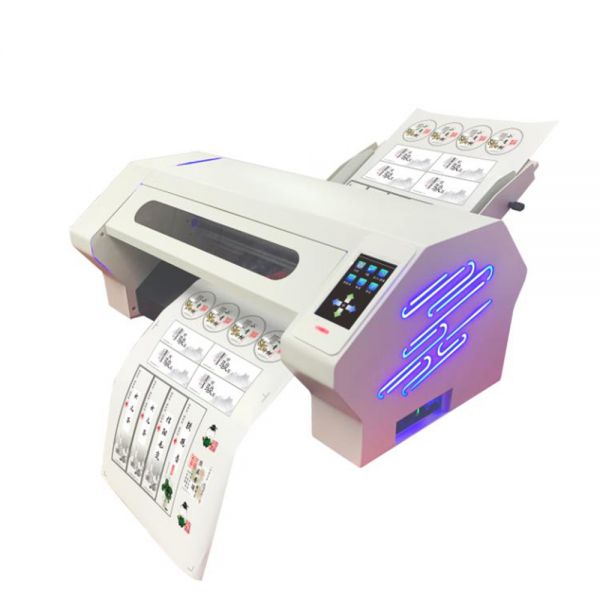

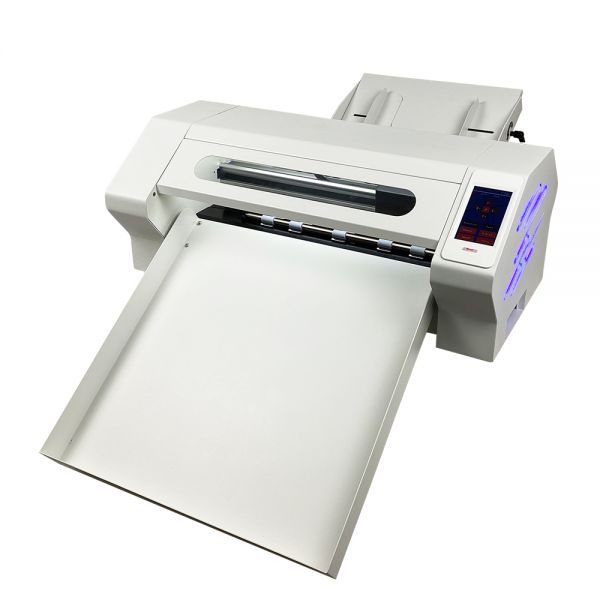

Z3 Servo Motor Automatic Feeding Sheet Label Cutter

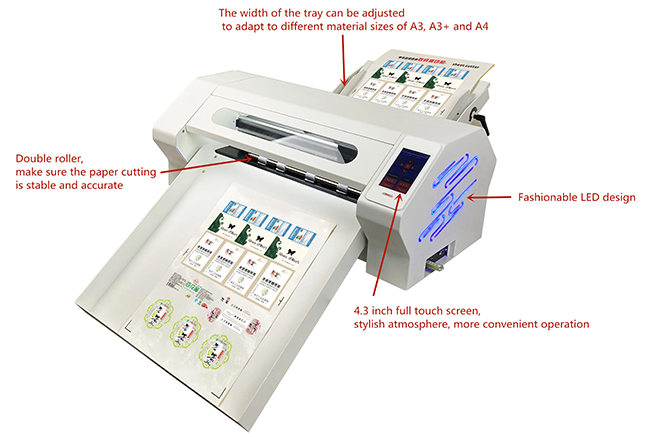

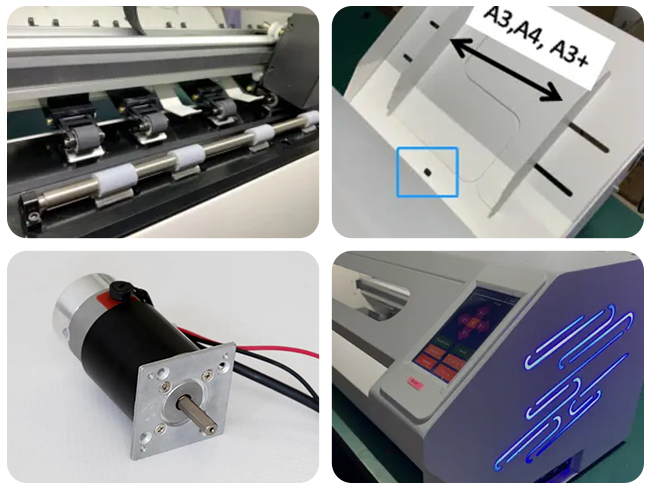

Feature:

1.Automatic feeding sheet and continuous cutting sheet
2.Automatic contour cutting with high precision for cutting any shape label design
3.Work offline with U disk, no need connected with computer
4.More faster cutting speed , save time and labour
5.Full Metal machine body,solid and pratical workmanship
6.The newest ARM processor smooth surface and accurate cutting
7.Big power motor,faster speed,working noise lower than 50db
8.Auto paper feeding system,maximum continuous cutting 100pcs
9.AAS automatic contour cutting,various materials can be scan
10.Automatic paper feeding system ensure continuous multi-sheet cutting
11.Servo motor cutting speed is faster, cutting precision is higher, and working sound is smaller.

Description:
Servo motor automatic feeding sheet and continuous cutting sheet label cutting plotter

Specification:

Media way Automatic paper feeding
Mainboard 32-bit ARM7 CPU,128Mb high-speed cache memory
Control panel 4.3 inch full touch screen
Driver High speed,big power servo motor
Maximum cutting area 483*329mm
Maximum cutting speed 1000mm/s
Cutting force 10-1000g(digital adjustment)
Mechanical precision 0.025mm
Repeatable precision <±0.025mm
Software Signmaster
Type of plotter pen All types diameter 11.4mm plotter pen
Plotter instruction Compatible DM/PL,HP/GL
Interface USB/U disk/Serial port/Wifi
Power supply AC220V,50Hz
Power consumption <80W
Knife Imported hardness alloy steel blade
Operating environment Temperature: 5-35°C  Relative humidity: 30%-70%
Package size 820*720*380mm
Gross weight 34kg

Applicaion:

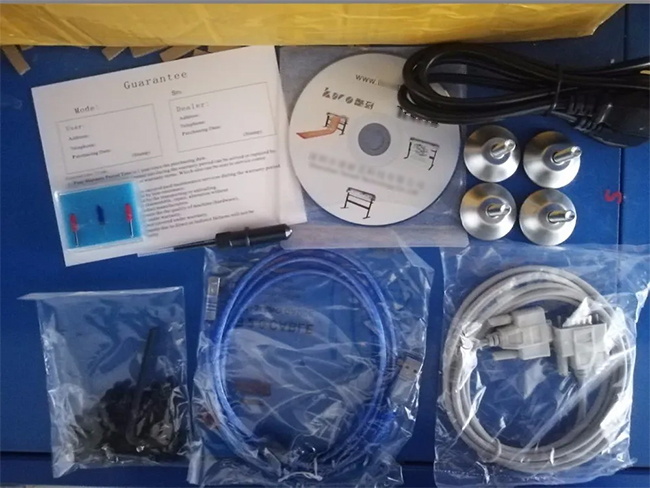

Package:
1*Power line
1*Pen
1*Serial cable
1*Stand
1*USB cable
1*CD
3*Blades
1*Warranty card
Certificate:

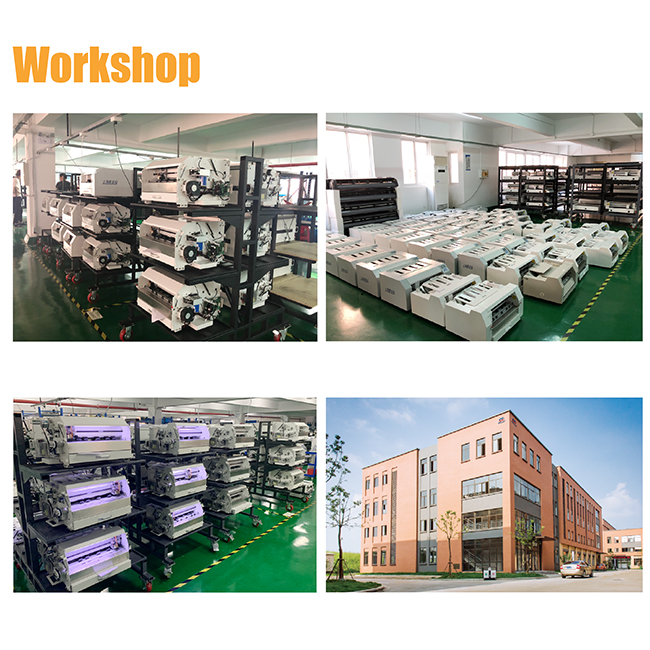

Process:
