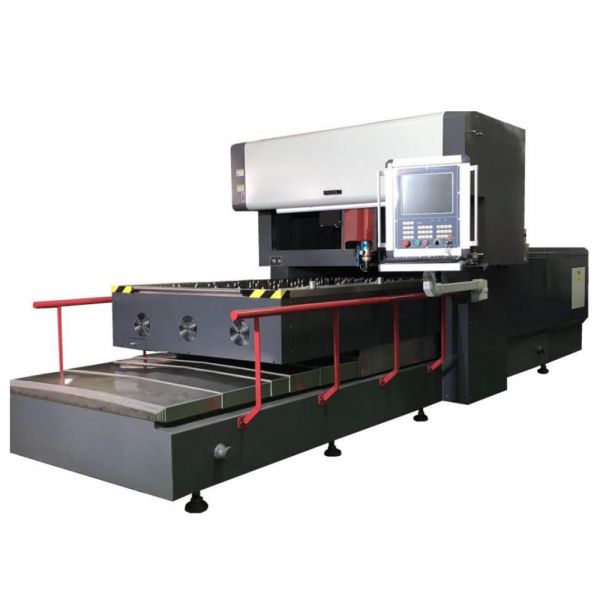

2512 1500W Laser Flat Mold Cutting Machine
Appliactions:
SIT-YT2512-1500W Flat die board laser machine is mainly for cutting various die board in color print industry, electronic products, and other light industry, sheet metal industry such as carbon steel, sheet, stainless steel sheet, aluminum alloy sheet; acrylic material, plastic material, and the other non-metal sheet.
With stable body structure design, flexible working function, professional CNC control system, the cutting efficiency and quality has more advantages over traditional cutting method. This machine satisfies the die making factory, carton factory and other package & printing factory who need to make flat dies.
Machine Components:
Product name | Picture |

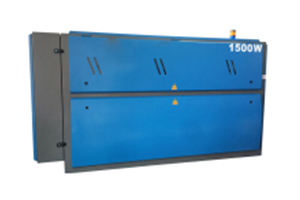

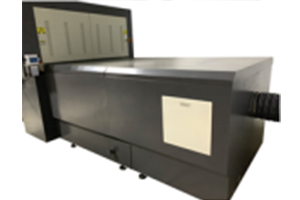

1500W Laser source Roots pump |
|
CNC Control system Germany (Power Automation) |
|

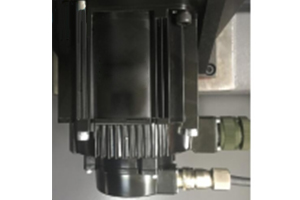

Motor and driver (YASKAWA Servo Motor and driver) |
|

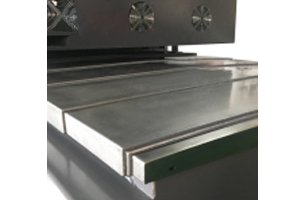

Dust cover Stainless steel |
|

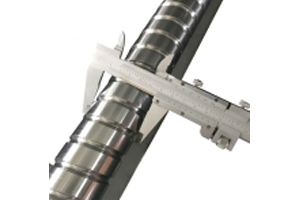

50mm Ball screw TAIWAN HIWIN |
|

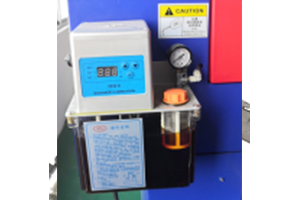

Automatic refueling system | |

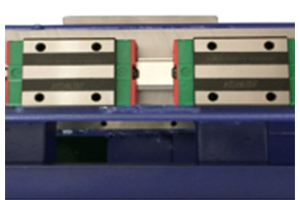

Linear guide TAIWAN HIWIN |
|

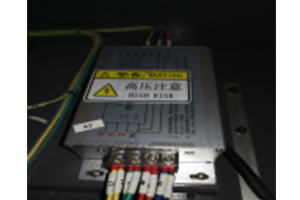

Transformer | |

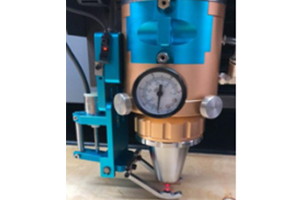

Laser head (With magnetic anti-collision system) |
|

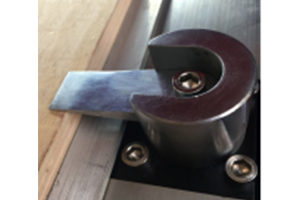

Auto Clamp | |
Dust cover | |

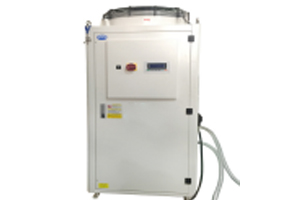

Water chiller system Tongfei 100C L1m*W0.9m*H1.8m Weight: 500kgs. |
Technical Parameters:
Model No. | SIT-YT2512-1500W |
Table size | 1280*2500mm |
Power | 1500W |
The table moving | Gantry construction |
Laser output power | High power axial flow CO2 laser source |
X-axis travel-length | 1220mm |
Y-axis travel-length | 2440mm |
Cutting speed | 90-120m/h |
Rapid speed | 20m/min |
Re-Positioning Precision | ≤0.02mm |
Cutting width kerf | 0.45mm, 0.71mm, 1.05/1.07mm,1.42mm at one time (die board) |
Controlling system | Germany PA |
Transmission system | Ball screw & Linear guide (TAIWAN) |
Driving system | Japan high-precision servo motors |
Optical system | US |
Moving structure | Gantry |
Chiller system | Made in China |
Overall dimensions (L x W x H) | 4800*2300*2300mm |
G. Weight | 4200kg |
Laser generator gas matched | He, N2, CO2 (99.999%) |
Laser cutting thickness | 0.1-30mm(plywood, acrylic board, rubber, pvc board, leather, MDF board) |
Metal cutting thickness | Carbon steel/Iron steel: 8mm Stainless steel: 3mm |
Centrifugal blower | 1 set |
Consumption:
Total rated Power | Electricity consumption | Gas consumption (He) | Gas consumption (N2) | Gas consumption (co2) |
18KW | 18 degree/H | 130hours/bottle | 130hours/bottle | 1bottle/year |
Function & Features:
Function:
- The machine has the laser cutting proprietary energy control functions, machine operator functions, laser operation function, and expert cutting technology library, remote diagnostics and other functions.
- Quick marking function: Make laser cutting and marking in one step. Realizing high-efficient and energy-saving flat die making job (Optional)
- Germany PA system: Auto focus system, 5 types line cut automatically at one time, continue cut once power off, show the path simulation before cutting
- Pulse cutting function, the cutting kerf is clamping the cutting rule very tight.
- Anti-collision system to protect the laser head from being damaged when power is suddenly off or wrong operation.
- Auto focus system to make sure perfect even plywood is not flat.
Features:
- The structure of gantry with small size is stable and reliable.
- PA laser dedicated CNC systems, lasers and machine control systems into one.
- The machine equipped with CAD/CAM dedicated automatic programming software, which is to facilitate the production of graphics, programming and maximize the conservation of raw materials, and special cutting process features.
- The machine uses fully-enclosed cover, the effect of removing smoke is very good, 100% no smoke left in the workshop during cutting.
- The machine with enclosed optical path, use positive pressure to remove the dust, which can ensure the lens life.
- The three cutting gases are free to choose. The entire system uses high pressure gas line design, when cut stainless steel plate.
- Stainless steel plate cover, can bear at least two weighted 80kg men standing on it, no deformation.
- Cast iron working bed, very strong and stable, make sure long-time high precision cutting. (optional)
1500W Laser Source Characters:
- With a red laser with the optical path indicator function.
- The unique structural design of the marble resonant cavity, resonant cavity is more stable, completely solved the shortcomings of epoxy plate high-voltage ignition.
- Large-screen touch-screen control functions, more user-friendly design, easy to understand.
- Unique stainless-steel gas tank can be pre-mixed gas, fast inflatable, immediately out of light, reducing the inflation time, and to cut the waiting time of the inflatable boot.
- Import adjustment end plate, allowing a more precise adjustment of laser output mode, convenient, reliable, and safe.
- All the optical lens imported from USA II VI Inc. making laser output power higher and more stable pattern, all the optical lens assembly are in the 100,000 clean room to complete, is the only manufacturer with clean assembly room.
- Entirely through ISO9002 quality system certification of the manufacturers, is the only one to do high-power CO2 laser manufacturers through this certification.

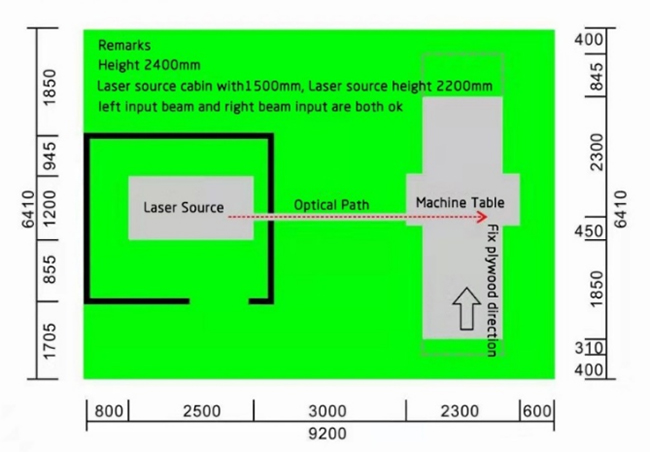

Machine Required Space:
Machine Enviroment Requirements:
- 1500W Power capacity: 45KVA;
- Laser gas requirements; Helium: purity 99.999%; Nitrogen gas purity: 99.999%; Carbon dioxide: purity 99.999%;
- Cutting gas requirements: compressed dry air
- Laser generator installation site environmental requirements:
a)Temperature Requirements: 5~25°C;
b)Humidity: ≤ 70%。
c)Air conditioner cabin size:3m(W)*4m(L)
d)1.5P AC
- In accordance with the drawing’s foundation provided
- Nitrogen, helium each two bottles, one bottle of carbon
- Purified water 150L
- Total power capacity ≥ 45KVA; quality of power supply: three-phase 380V voltage stability of less than ± 5%, three-phase power imbalance is less than 2.5%
- Specific cable length is determined depending on the user side
- AR acetone or alcohol (purity≥ 95%) for each 50 ML
- Air compressor best between 7.5HP
- Voltage regulator ≥ 45KVA
- Air drying machine
- Packaging:40GP (Table size: 1220mm*2440mm)
Certificate & Accuracy Report:

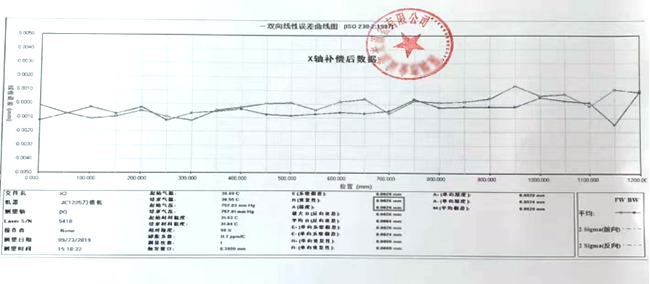

Moving accuracy testing by laser meter, Tolerance is 0.02mm

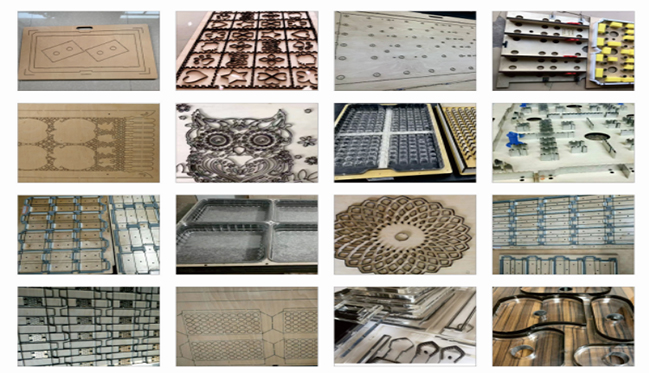

Cutting Sample & Application Area:
