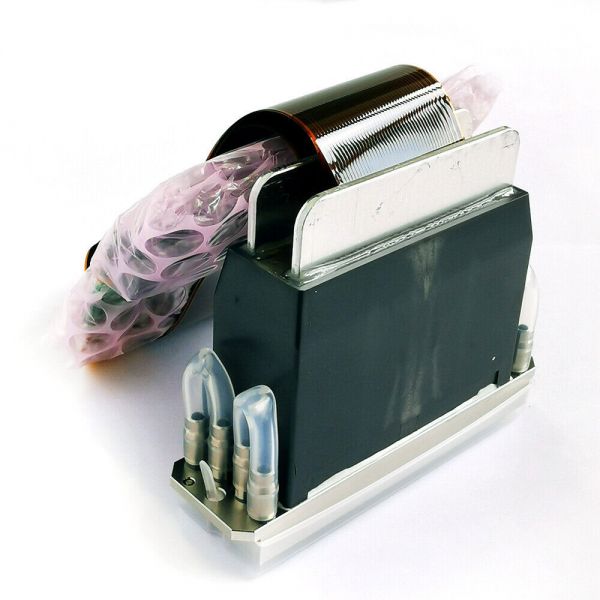

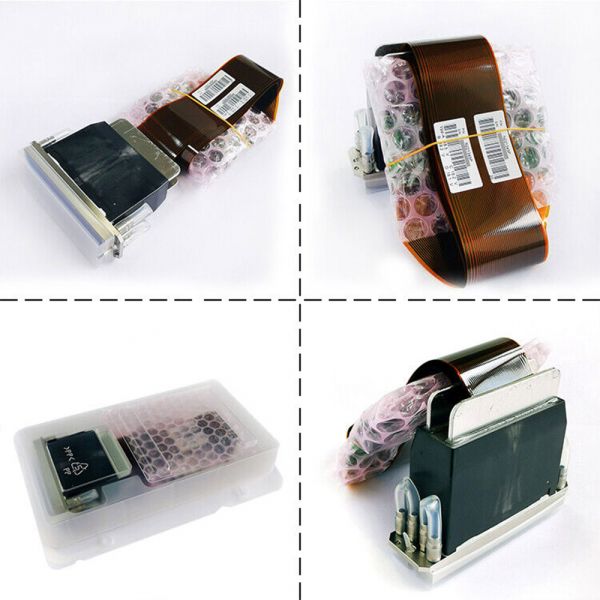

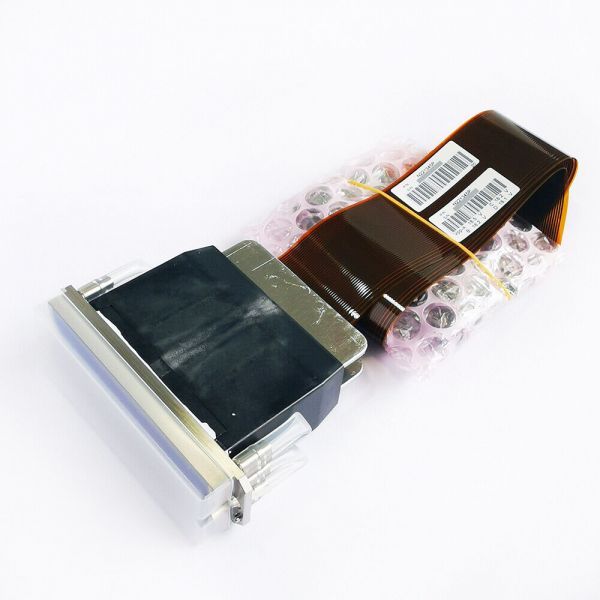

Ricoh GEN5 MH5440 Printhead (Four Colors)

See larger image and other views (with zoom)

Ricoh GEN5 MH5440 Printhead (Four Colors)

| 3 Transactions

รหัสสินค้า:SIT-PRH-RICOH-010

ราคา Unit : ฿ 68,141/pc (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 6-10 วัน)

จำนวน: pc(s) Total Cost:
THB ฿68,141
น้ำหนักการส่ง: 1.1lb (0.5kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿
Customers Who Bought This Item Also Bought

< >
มอเตอร์สแกนสำหรับเครื่องพิมพ์ Mimaki Mimaki JV3-160S / JV3-160SP / JV3-250SP / JV22-130 / JV22-160 --- Mimaki Scan Motor for JV22/ JV3

฿4,172 - 4,585/pc

Cap สำหรับเครื่องพิมพ์ Roland SJ-740 / FJ-740 / XC-540 / RS-640 / VP-540 ฯลฯ สินค้าของแท้ (หมายเลขชิ้นส่วน 1000004546 / 1000002794)--- Cap Capping Top

฿727 - 765/pc

มอเตอร์สแกนสำหรับเครื่องพิมพ์ Mimaki Mimaki JV3-160S / JV3-160SP / JV3-250SP / JV22-130 / JV22-160 --- Mimaki Scan Motor for JV22/ JV3

฿4,172 - 4,585/pc

Cap สำหรับเครื่องพิมพ์ Roland SJ-740 / FJ-740 / XC-540 / RS-640 / VP-540 ฯลฯ สินค้าของแท้ (หมายเลขชิ้นส่วน 1000004546 / 1000002794)--- Cap Capping Top

฿727 - 765/pc

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 3

Buyer
ราคา Unit
จำนวน
Order Date

Alb****
$68141.00
1 pc
2024-04-20

Lan****
$68141.00
1 pc
2024-04-04

And****
$2241.00
1 pc
2024-03-20

Ricoh GEN5 MH5440 Printhead (Four Colors)

Print Width: 54.1 mm (2.1")
Number of nozzles: 1,280 (4 × 320 channels), staggered
Nozzle spacing (4 color printing): 1/150"(0.1693 mm)
Nozzle spacing (Row to row distance): 0.55 mm
Nozzle spacing (Upper and lower swath distance): 11.81mm
Max.number of color inks: 4 colors
Operating temperature range: Up to 60℃
Temperature control: Integrated heater and thermistor
Jetting frequency: Binary mode : 30kHz / Grey-scale mode : 20kHz
Drop volume: Binary mode: 7pl / Grey-scale mode : 7-35pl *depending on the ink
Viscosity range: 10-12 mPa•s
Surface tension: 28-35mN/m
Grey-scale: 4 levels
Total Length: 500 mm (standard) including cables
Dimensions: 89x25x69 mm (excluding cable)
Number of ink ports: 4x dual ports
Alignment pin direction: Front (standard)
Ink compatibility: UV, Solvent, Aqueous, Others.
