Fully Automatic Suction Feed Laminating machine,Oil Heating System
  • Fully Automatic Suction Feed Laminating machine,Oil Heating System

See larger image and other views (with zoom)

Fully Automatic Suction Feed Laminating machine,Oil Heating System

   |   4 Transactions

รหัสสินค้า:SIT-SMFM-540

Buyer Protection
Features:

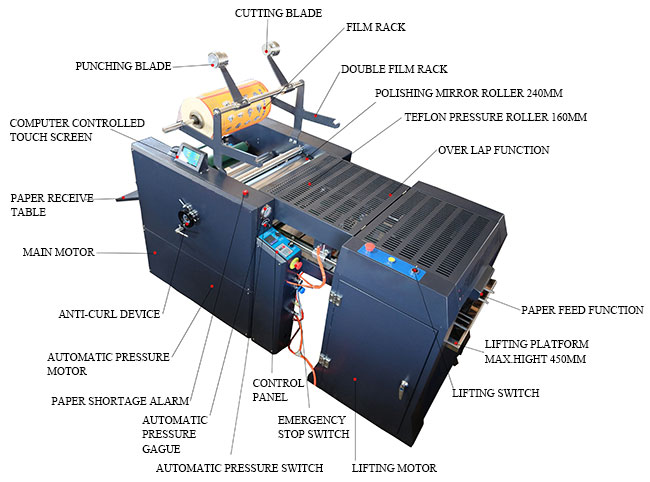

All machines’ heating rollers of our company are equipped with oil heating system, which can solve the problem that Allover black, red and green and will not appear white spots. The pressure roller is made of Teflon material, which is non-stick and has a better laminating effect.The pressure adopts automatic hydraulic lifting function. and use frequency conversion speed control function, the fastest laminate speed can be about  A3 paper 50 sheets in one minute. And our machine has Anti-curl function. Thinner paper after laminating will not curl.And with automatic overlap and automatic cut function.

The 520G hydraulic automatic laminating machine ,oil heating,the machine cover an area of an area small, easy to operate ,fast speed, equipped with automatic temperature control ,prevent circumnutate device ,and is equipped with automatic feed and automatic cut.

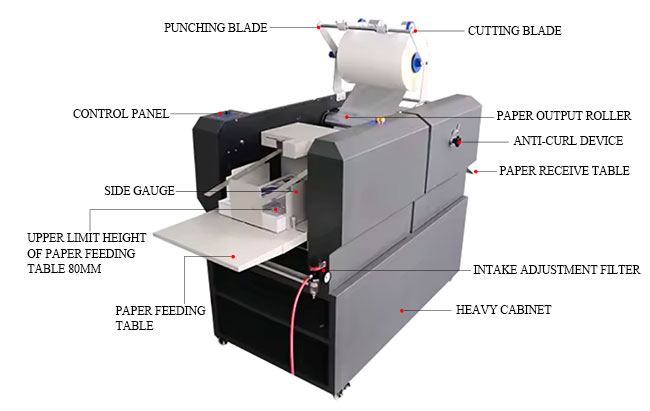

The 520H
adopts self-developed Feida automatic paper feeding, automatic breaking, and paper receiving table. It has a computer touch operation screen, which is easy to operate and fast. It is equipped with automatic temperature control and speed regulation, and anti curling settings

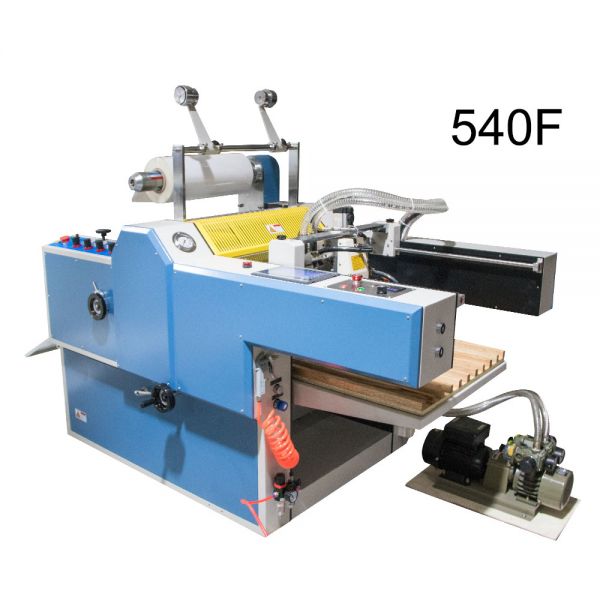

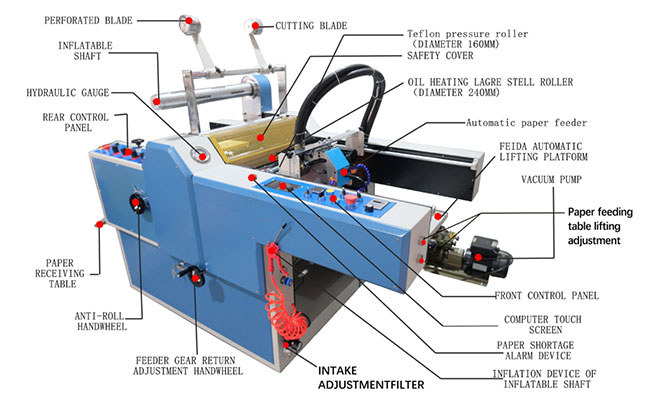

The 540F
is equipped with no paper miss sensor, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.Man-machine interface system,color touch screen simplifies the machine operation.

Warranty of core components:
1 Year
Core Components: Engine, Bearing, Motor, Gear

Specification:

Model 520G 520H 540F
Max paper size 490x570mm 490x580mm 530x730mm
Mini paper size 150x210mm 200x200mm 210x250mm
Max height of paper 15cm 45cm 40cm
Max paper thickness 350gsm
Heating roller 0il heating
Laminating temperature 60-120°C
Pressure 0.5Mpa 3-8Mpa 3-8Mpa
Operating speed 0-13m/min 0-25m/min 0-25m/min
Korea silicone roller diameter 108mm 240mm 240mm
Total power 2200W 3800W 3500W
Dimensions(LxWxH ) 1.97x0.75x1.42m 2.35x0.87x1.4m 1.95x0.83x1.3m
Voltage 220V/50Hz
Feeding mode Paper take up wheel Feida feeding Feida feeding
Auto collect paper yes yes yes
Automatic cut-off yes yes yes
Slitting function yes yes yes
Anti-curl function yes yes yes
Rolling-up after laminating yes yes yes

Application:

This machine can be widely used in packing box ,food box ,books, drawings ,advertisements , certificates , lase glass surface and son on , the printing after the film,waterproof , durable ,clear pattern, stereo sense is strong.
