Industrial Chiller 2000BNW12 for 2000W Handheld Laser Welder All-in-One Design

See larger image and other views (with zoom)

Industrial Chiller 2000BNW12 for 2000W Handheld Laser Welder All-in-One Design

รหัสสินค้า:CWFL-2000BNW12TY

ราคา Unit : ฿ 44,824/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

จำนวน: set(s) Total Cost:
THB ฿44,824
น้ำหนักการส่ง: 262.8lb (119.46kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 0

Industrial Chiller 2000BNW12 for 2000W Handheld Laser Welder All-in-One Design

Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.

Description:

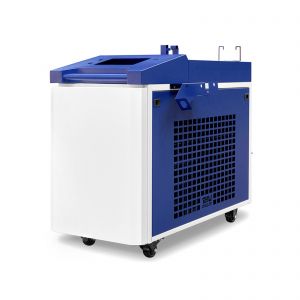

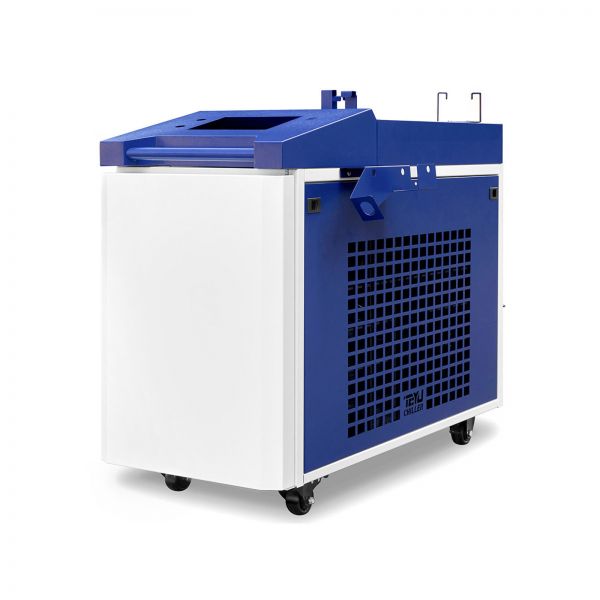

Industrial Chiller CWFL-2000BNW12 is specially designed for 2000W handheld laser welding machine. It boasts dual cooling circuits that can simultaneously cool both the fiber laser and the optics/laser gun. With excellent workmanship, efficient cooling, easy installation and maintenance, industrial chiller CWFL-2000BNW12 is an ideal cooling device for your handheld laser welding machine. It's also suitable to cool the handheld fiber laser cleaners/cutters/engravers.
Industrial chiller CWFL-2000BNW12 is user-friendly in that users no longer need to design a rack to fit in the laser and the rack water chiller. With a built-in industrial chiller, after installing the user's handheld laser welder on the top or right side, it constitutes a portable and mobile handheld laser welder. Laser gun holder & cable holder make it easy to place the laser gun and cables, saving space, and can easily be carried to the processing site in various application scenarios.

Features:
1. Dual cooling circuit
2. Active cooling
3. Temperature stability: ±1°C
4. Temperature control range: 5°C ~35°C
5. All-in-one design, Space-saving
6. Lightweight, Movable
7. Easy to carry
8. User-friendly
9. Applicable to various application scenarios
(Note: fiber laser is not included in the package)

Specification

Model	CWFL-2000BNW12TY
Voltage	AC 1P 220-240V 60Hz
Current	1.5~11.4A
Max. power consumption	2.46kW
Compressor power	1.33kW, 1.78HP
Precision	±1℃
Reducer	Capillary
Pump Power	0.32kW
Tank Capacity	10L
Inlet and Outlet	φ12+φ6 Fast connector
Max. pump pressure	4bar
Refrigerant	R-410a
Rated flow	2L/min+＞15L/min
Net Weight	69Kg(152lb)
Gross Weight	87Kg(192lb)
Dimension	42.5" x 17.7" x 32" (108 x 45 x 81cm)
Package Dimension	45.3" x 19.3" x 42" (115 x 49 x 106cm)

Note:
1. The working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product;
2. Clean, pure, impurity free water should be used. The ideal one could be purified water, clean distilled water, deionised water, etc.;
3. Change out the water periodically (every 3 months is suggested or depending on the actual working environment);
4. Location of the chiller should be well ventilated environment. There must be at least 50cm from the obstacles to the air outlet which is on the top of the chiller and should leave at least 30cm between obstacles and the air inlets which are on the side casing of the chiller.

PRODUCT INTRODUCTION

Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level
Green area - normal water level.
Red area - low water level.

Laser Gun Holder & Cable Holder
Easy to place the laser gun and cables, saving space, easy and portable, and can easily carry to the processing site in various application scenarios.

Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.
