Solid Carbide ดอกแกะสลัก /  ดอกกัด /เครื่องมือดอกแกะสลัก   CNC   Router สำหรับตัดลง   (   4   ร่องเกลียว)  ---Solid Carbide 4 Flutes Spiral CNC Router Cutting Bits
  • Solid Carbide ดอกแกะสลัก /  ดอกกัด /เครื่องมือดอกแกะสลัก   CNC   Router สำหรับตัดลง   (   4   ร่องเกลียว)  ---Solid Carbide 4 Flutes Spiral CNC Router Cutting Bits
  • Solid Carbide ดอกแกะสลัก /  ดอกกัด /เครื่องมือดอกแกะสลัก   CNC   Router สำหรับตัดลง   (   4   ร่องเกลียว)  ---Solid Carbide 4 Flutes Spiral CNC Router Cutting Bits
  • Solid Carbide ดอกแกะสลัก /  ดอกกัด /เครื่องมือดอกแกะสลัก   CNC   Router สำหรับตัดลง   (   4   ร่องเกลียว)  ---Solid Carbide 4 Flutes Spiral CNC Router Cutting Bits
  • Solid Carbide ดอกแกะสลัก /  ดอกกัด /เครื่องมือดอกแกะสลัก   CNC   Router สำหรับตัดลง   (   4   ร่องเกลียว)  ---Solid Carbide 4 Flutes Spiral CNC Router Cutting Bits
  • Solid Carbide ดอกแกะสลัก /  ดอกกัด /เครื่องมือดอกแกะสลัก   CNC   Router สำหรับตัดลง   (   4   ร่องเกลียว)  ---Solid Carbide 4 Flutes Spiral CNC Router Cutting Bits

See larger image and other views (with zoom)

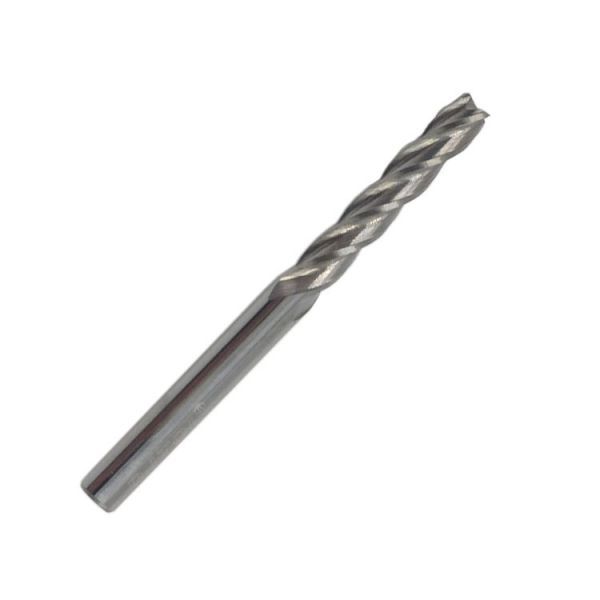

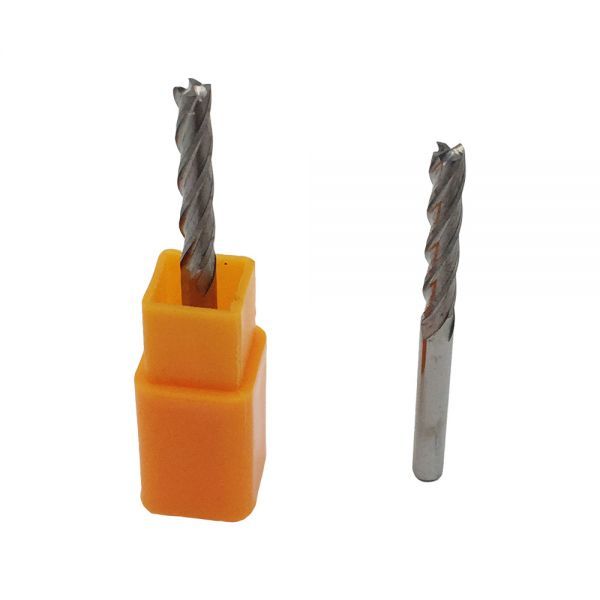

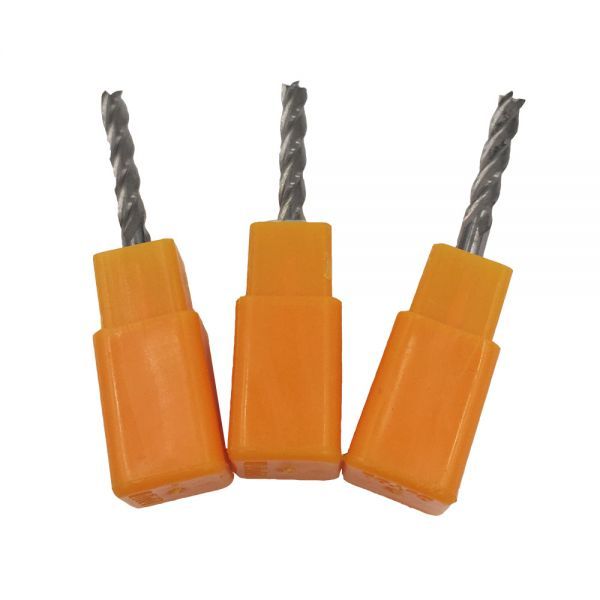

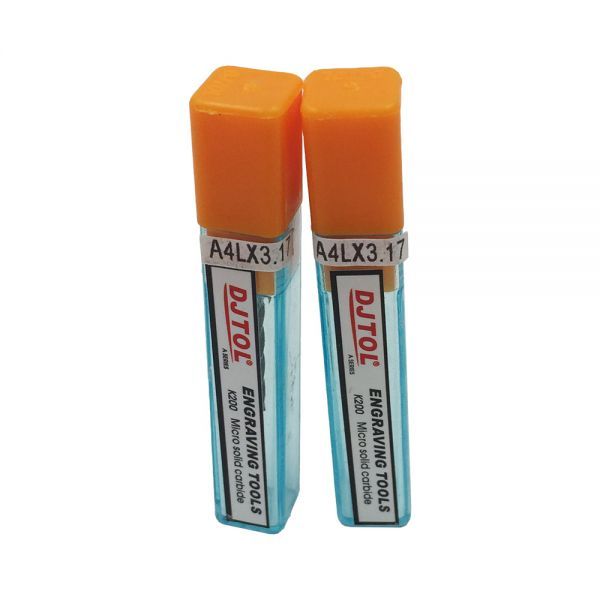

Solid Carbide ดอกแกะสลัก / ดอกกัด /เครื่องมือดอกแกะสลัก CNC Router สำหรับตัดลง ( 4 ร่องเกลียว) ---Solid Carbide 4 Flutes Spiral CNC Router Cutting Bits



รหัสสินค้า:EC-4LX

  • ราคา Unit : ฿ 167 - 204/pc   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 6-10 วัน)

    ราคาขายส่ง :
    • จำนวน (pcs) ส่วนลด Amount/pc
      1. 1 - 10 0% ฿204
      2. 11 - 30 10% ฿184
      3. 31 - 60 18% ฿167
    • Need more quantities, please click Bulk Order
  • จำนวน: pc(s) Total Cost: ฿204
  • น้ำหนักการส่ง: 0.0lb (0.001kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

Solid Carbide ดอกแกะสลัก /  ดอกกัด /เครื่องมือดอกแกะสลัก   CNC   Router สำหรับตัดลง   (   4   ร่องเกลียว)

เกี่ยวกับวัสดุ : เรามีวัสดุสำหรับนำเสนอ 4 ชนิดคือ N, A, AA, 3A,


    -วัสดุ ชุด N ผลิตจากวัสดุเหล็ก ทังสแตน ผลิตจากประเทศจีน  ซึ่งมีผลระดับความแข็งแรงถึง 88-89HRA  (การทดสอบความแข็งร็อคเวลล์ A สเกล)


    -วัสดุ ชุด A ซีเอ็นซี เราเตอร์ บิต ผลิตจากวัสดุ  เหล็ก ทังสแตน จากประเทศไต๋หวั่น ซึ่งมีระดับความแข็งแรงถึง 90-91HRA ,ผลกระบวนการทดสอบความแข็งแรงของวัสดุคือ 45 HRC


    -วัสดุ ชุด AA ซีเอ็นซี เราเตอร์ บิต ผลิตจาก เหล็กทังสแตน เยอรมัน ซึ่งมีระดับความแข็งแรงถึง 93-94HRA ,ผลกระบวนการทดสอบความแข็งแรงของวัสดุ 50 HRC

    -วัสดุ ชุด 3A ซีเอ็นซี เราเตอร์ บิต ผลิตจากวัสดุเหล็ก ทังสแตน คุณภาพดีเยี่ยม ซึ่งมีระดับความแข็งแรงถึง 96 HRA ,ผลกระบวนการทดสอบความแข็งแรงของวัสดุ 60 HRC

วัสดุคุณภาพดี มีความแข็งแรงสูง และมีความทนทานอย่างดีเยี่ยม เช่นเดียวกับอายุการใช้งานของวัสดุที่ยาวนาน ระดับผลการทดสอบความแข็งแรงของวัสดุ ไม่ได้มีการบิตเบือนข้อเท็จจริงจากกระบวนการทดสอบจริง เพื่อให้ได้ผลข้อมูลที่ดีที่สุด เกินความเป็นจริง

และด้วยความคมของใบมีดที่ใช้ ขัดแกะสลักพื้นผิววัสดุ ส่งผลให้ประสิทธิภาพของการประมวลผลงานแกะสลัก ออกมามีประสิทธิภาพที่ดีเยี่ยม


คำแนะนำ การใช้งาน :

สิ่งสำคัญขึ้นอยู่กับการเลือกขนาดของปลาย เมื่อคุณจะทำการสั่งซื้อเครื่องมือแกะสลัก  ขนาดของปลายเครื่องมือการแกะสลัก จะเป็นตัวกำหนดบงชี้ความกว้างของลายเส้น และสำหรับลักษณะของงานแกะสลัก ยกตัวอย่างเช่น การเลือกปลายที่มีขนาดเล็ก เมื่อคุณจะทำการแกะสลักขนาดตัวอักษรที่มีความสูง  1/8 นิ้ว คุณควรเลือกใช้ปลายขนาด  .010 หรือ .015 แต่ตัวอักษรที่มีขนาดความสูง 1/4 นิ้ว ควรใช้ปลายขนาด .020 หรือ .030


ลักษณะหรือ ความสูงของตัวอักษร ขึ้นอยู่กับขนาดความใหญ่ของปลายมีดที่ใช้  ยกตัวอย่างเช่น สำหรับตัวอักษรที่มีขนาดความสูง 1/4นิ้ว ควรเลือกใช้ขนาดปลาย .020 หรือ  .030 แต่สำหรับ ขนาดความสูงของตัวอักษร 1/8นิ้ว ควรเลือกใช้ขนาดปลาย   .010 หรือ .015 ซึ่งจะเป็นผลดีที่สุด เป็นต้น


หมายเหตุ : โปรดระบุเลือกรุ่น เมื่อคุณทำการสั่งซื้อ


รายละเอียด :

Model CED(mm) CEL(mm) SHK(mm) OVL(mm)
EC-4LX3.08 3.175 8 3.175 38
EC-4LX3.12 3.175 12 3.175 38
EC-4LX3.15 3.175 15 3.175 38
EC-4LX3.17 3.175 17 3.175 38
EC-4LX3.22 3.175 22 3.175 45
EC-4LX3.25 3.175 25 3.175 50
EC-4LX412 4 12 4 40
EC-4LX417 4 17 4 40
EC-4LX422 4 22 4 45
EC-4LX425 4 25 4 50
EC-4LX512 5 12 5 50
EC-4LX517 5 17 5 50
EC-4LX522 5 22 5 50
EC-4LX612 6 12 6 45
EC-4LX617 6 17 6 45
EC-4LX622 6 22 6 50
EC-4LX625 6 25 6 60
EC-4LX628 6 28 6 60
EC-4LX632 6 32 6 70
EC-4LX642 6 42 6 70
EC-4LX652 6 52 6 80
EC-4LX672 6 72 6 100
EC-4LX825 8 25 8 60
EC-4LX835 8 35 8 75
EC-4LX845 8 45 8 90
EC-4LX1025 10 25 10 60
EC-4LX1035 10 35 10 75
EC-4LX1045 10 45 10 90
EC-4LX12.35 12.7 35 12.7 80
EC-4LX12.45 12.7 45 12.7 90
EC-4LX12.55 12.7 55 12.7 100









4 Flutes Spiral CNC Router Cutting Bits

About Materials: At present, we have N, A, AA, 3A, four kinds of materials.
· The N series material stands for tungsten steel material made in China and its rigidity is at 88-89HRA (Rockwell Hardness, A Scale).
· The A series cnc router bits are made of tungsten steel material from Taiwan and their rigidity at 90-91HRA., HRC of material to be processed is 45.
· The AA series cnc router bits stand for German ultrafine tungsten steel and rigidity is at 93-94HRA, HRC of material to be processed is 50.
· The  3A series cnc router bits stand for German best quality ultrafine tungsten steel and rigidity is at around 96HRA. HRC of material to be processed is 60.
The better quality of material is, the higher rigidity and durability as well as materially longer lifespan.
The stronger rigidity it is, the bits won’t distort during process and give better processing effect.
And the more fine tungsten steel’s particle is, the sharp bits of the blade polished as a result for better processing effect.

Usage Tips:

It is important that you choose a tip size when ordering your engraving tools. The tip size will determine how wide your line is.
For small character engraving choose a smaller tip size. For example when engraving 1/8" tall letters use a .010 or .015 tip, but for 1/4" tall letters use a .020 or .030 tip.
The taller the letters or characters is, the larger the tip size of the cutter should be. For example; for 1/4" tall letters you should use a .020 or .030 tip but for 1/8" tall letters a .010 or .015 tip would be better.

Remark: Please Choose the Model when ordering.
