เครื่องหล่อเย็น  S&A CW-5300AN Industrial Water Chiller (AC220V 50HZ)(Cooling 75W Semiconductor, 18KW CNC Spindle or Welding Machine, 0.82HP)
  • เครื่องหล่อเย็น  S&A CW-5300AN Industrial Water Chiller (AC220V 50HZ)(Cooling 75W Semiconductor, 18KW CNC Spindle or Welding Machine, 0.82HP)
  • เครื่องหล่อเย็น  S&A CW-5300AN Industrial Water Chiller (AC220V 50HZ)(Cooling 75W Semiconductor, 18KW CNC Spindle or Welding Machine, 0.82HP)
  • เครื่องหล่อเย็น  S&A CW-5300AN Industrial Water Chiller (AC220V 50HZ)(Cooling 75W Semiconductor, 18KW CNC Spindle or Welding Machine, 0.82HP)
  • เครื่องหล่อเย็น  S&A CW-5300AN Industrial Water Chiller (AC220V 50HZ)(Cooling 75W Semiconductor, 18KW CNC Spindle or Welding Machine, 0.82HP)
  • เครื่องหล่อเย็น  S&A CW-5300AN Industrial Water Chiller (AC220V 50HZ)(Cooling 75W Semiconductor, 18KW CNC Spindle or Welding Machine, 0.82HP)
  • เครื่องหล่อเย็น  S&A CW-5300AN Industrial Water Chiller (AC220V 50HZ)(Cooling 75W Semiconductor, 18KW CNC Spindle or Welding Machine, 0.82HP)

See larger image and other views (with zoom)

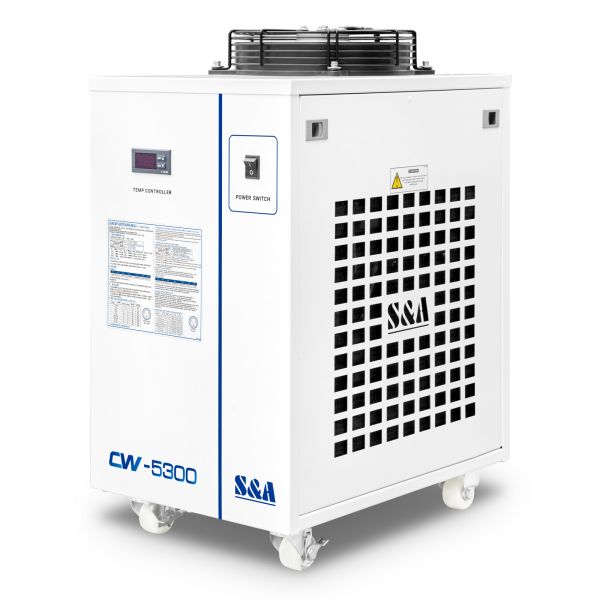

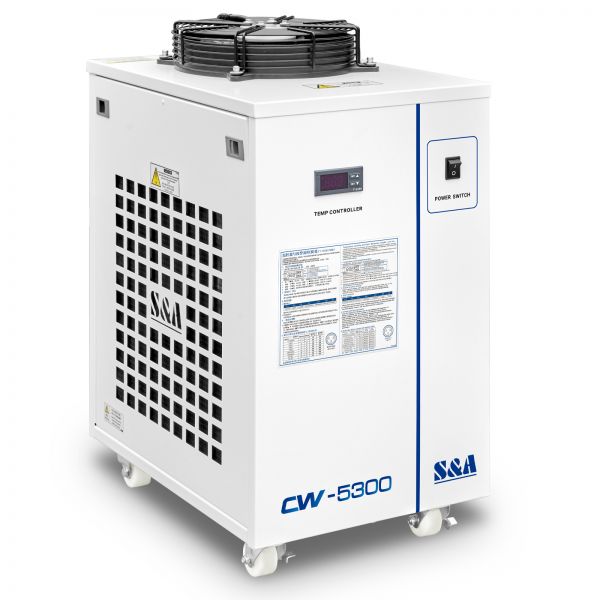

เครื่องหล่อเย็น S&A CW-5300AN Industrial Water Chiller (AC220V 50HZ)(Cooling 75W Semiconductor, 18KW CNC Spindle or Welding Machine, 0.82HP)

1800W cooling capacity, 100W DC pump, 1 outlet and 1 inlet. With intelligent temperature control,completed configuration,perfect protection and alarm system.

   |   3 Transactions

รหัสสินค้า:CW-5300ANTY

  • ราคา Unit : ฿ 26,980/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

  • จำนวน: set(s) Total Cost: ฿26,980
  • น้ำหนักการส่ง: 123.2lb (56kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection


Description:
S&A CW-5300 series is high-precision compression refrigeration small water chiller,with intelligent temperature control,completed configuration,perfect protection and alarm system. S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.

Features:
• 1800W cooling capacity; optional environmental refrigerant;
•  ±0.3°C precisely temperature control;
• The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
• Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
• Multiple power specifications; CE approval; RoHS approval;
• Long working life and simple operation;
• Optional heater and water filter;
• High-precision compression refrigeration water chiller, with intelligent temperature control, completed configuration, perfect protection and alarm system.

SPECIFICATION

Model CW-5300ANTY
Voltage 220V
Frequency 50Hz
Current 2.3~7.6A
Machine power 1.29kW
Compressor Power 0.87kW, 1.16HP
Capacity 8188Btu/h
2.4kW
2063Kcal/h
Refrigerant R-410a
Refrigeration Charge 610g
Pecision ±0.5℃
Reducer Capillary
Protection Overcurrent protection for compressor, flow alarm, over temperature alarm
Pump Power 0.37KW
Tank Capacity 10L
Inlet and outlet Rp1/2"
Max. lift 27M
Max. flow 75L/min
Net Weight 44Kgs(97lb)
Gross Weight 52Kgs(114.6lb)
Product Dimension 23.2" x 15" x 29" (590 x 380 x 740mm)
Package Dimension 26" x 19" x 36.2" (66 x 48 x 92cm)

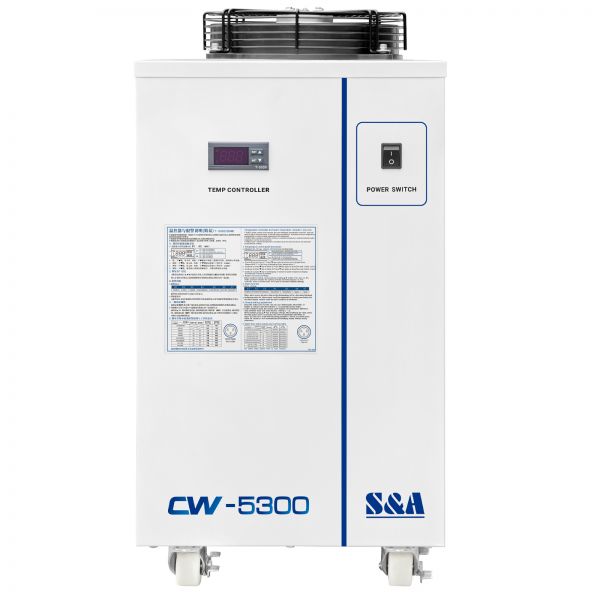

Intelligent temperature controller



The temperature controller offers high precision temperature control of ±0.3°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.



Equipped with water pressure gauges and universal wheels.

Water pressure gauges help monitor the discharge pressure of water pump while univeral wheels facilitate the moving of the chiller.

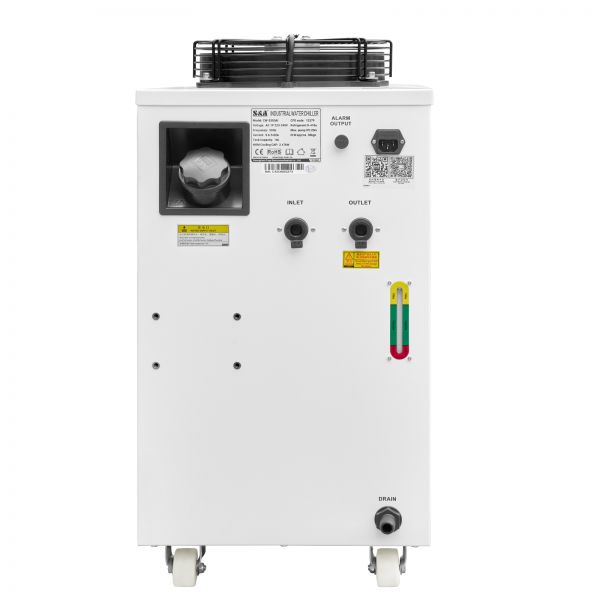

Inlet and outlet connector equipped.

Multiple alarm protection.

The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

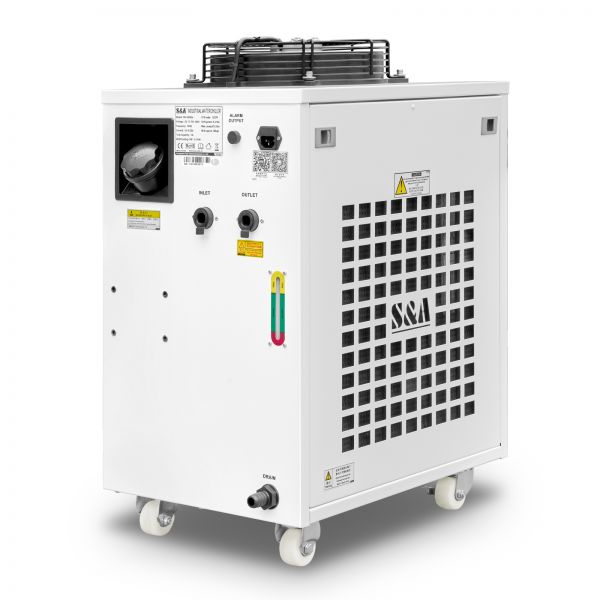

Easy-to-read water level indicator

The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

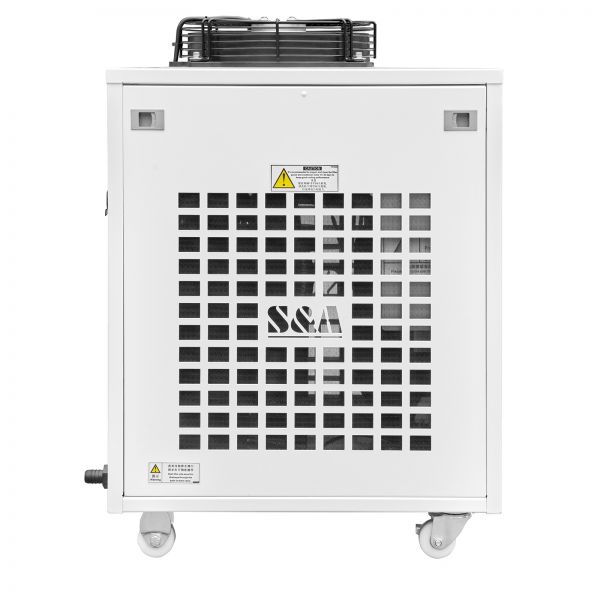

Cooling fan of famous brand installed.
Adopt SAN JU cooling fan with high quality and low failure rate.
Customized dust gauze available and easy to take apart.

Ventilation Distance

Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.


Note: The Water Chiller is ordering production, need 3 to 5 days of stock up time.



CHILLER APPLICATION
