เครื่องหล่อเย็น S&A CW-FL-1500AN Industrial Water Chiller for Cooling 1500W Fiber Laser, 2.35HP, AC 1P 220V, 50Hz

See larger image and other views (with zoom)

เครื่องหล่อเย็น S&A CW-FL-1500AN Industrial Water Chiller for Cooling 1500W Fiber Laser, 2.35HP, AC 1P 220V, 50Hz

5200W cooling capacity, with intelligent temperature control,perfect protection and alarm system

รหัสสินค้า:CW-FL-1500ANPTY

ราคา Unit : ฿ 67,070/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 40-55 วัน)

จำนวน: set(s) Total Cost:
THB ฿67,070
น้ำหนักการส่ง: 180.4lb (82kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 0

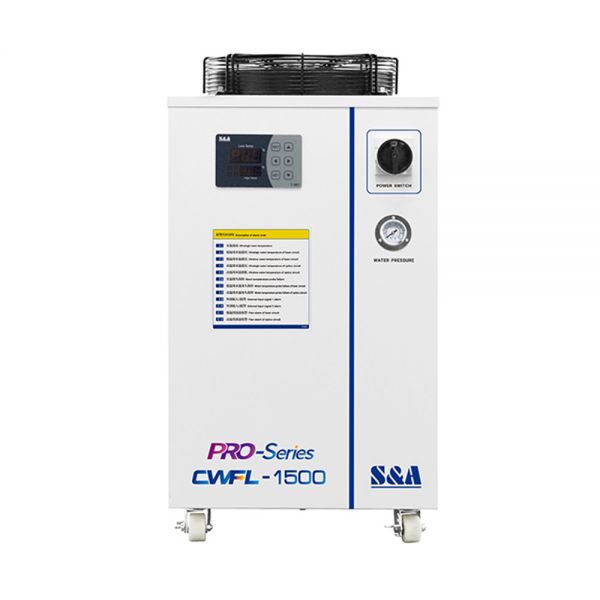

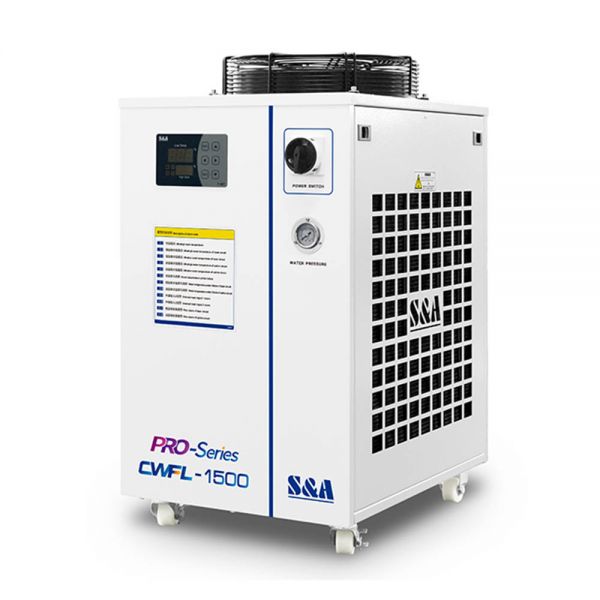

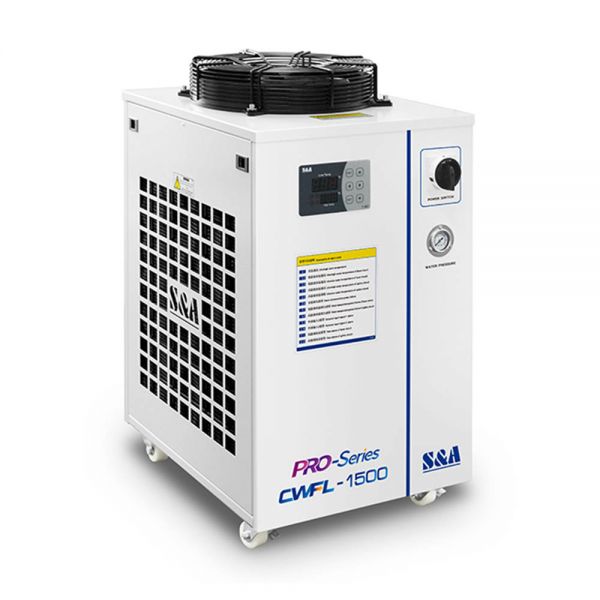

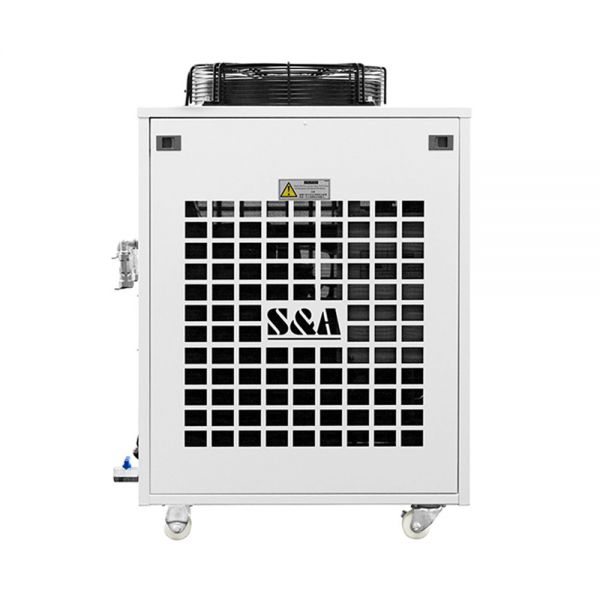

S&A CW-FL-1500AN Industrial Water Chiller for Cooling 1500W Fiber Laser, 2.30HP, AC 1P 220V, 50Hz

CWFL-1500 water chiller developed by S&A is made especially for fiber laser applications up to 1.5KW. This industrial water chiller is a temperature control device featuring two independent refrigeration circuits in one package. Therefore, separate cooling from just ONE chiller can be provided for the fiber laser and the laser head, saving considerable space and cost at the same time.
Two digital temperature controllers of the chiller are designed with built-in alarms so that your fiber laser machine can always be well protected against circulation problems or overheating. This laser water chiller is also designed with easy-to-read level check, caster wheels for easy mobility, high performance cooling fan and intelligent temperature control function which suggests water temperature can adjust itself automatically as the ambient temperature changes.

Features
1. Dual cooling circuit
2. Active cooling
3. Temperature stability: ±0.5°C
4. Temperature control range: 5°C ~35°C
5. Refrigerant: R-410a
6. User-friendly controller interface
7. Integrated alarm functions
8. Back mounted fill port and visual water level
9. Optimized for high performance at low temperatures
10. Ready for immediate use

Specification
Model	CW-FL-1500AN
Voltage	AC 1P 220~240V
Frequency	50Hz
Current	2.5~16.1A
Machine Power	2.65kW
Electric assisted power	400W+600W
Refrigerant	R-410a
Refrigerant charge	1100g
Precision	±0.5℃
Reducer	Capillary
Pump power	0.37KW
Tank capacity	14L
Inlet and outlet	Rp1/2”+Rp1/2”
Max. pump lift	36M
Rated Flow	2L/min+>15L/min
N.W	70Kgs (154.3lb)
G.W	82Kgs (180.8lb)
Dimension	700mm x 470mm x 890mm(27.6in x 18.5in x 35in)
Package dimension	740mm x 610mm x 1030mm(29.1" x 24" x 40.6")

The max. pump flow is obtained by testing the pump individually on test criteria GB/T 3216-2005.criteria GB/T 3216-2005.

Note:
1. The working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product;
2. Clean, pure, impurity free water should be used. The ideal one could be purified water, clean distilled water, deionised water, etc.;
3. Change out the water periodically (every 3 months is suggested or depending on the actual working environment);
4. Location of the chiller should be well ventilated environment. There must be at least 50cm from the obstacles to the air outlet which is on the top of the chiller and should leave at least 30cm between obstacles and the air inlets which are on the side casing of the chiller.

PRODUCT INTRODUCTION

Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

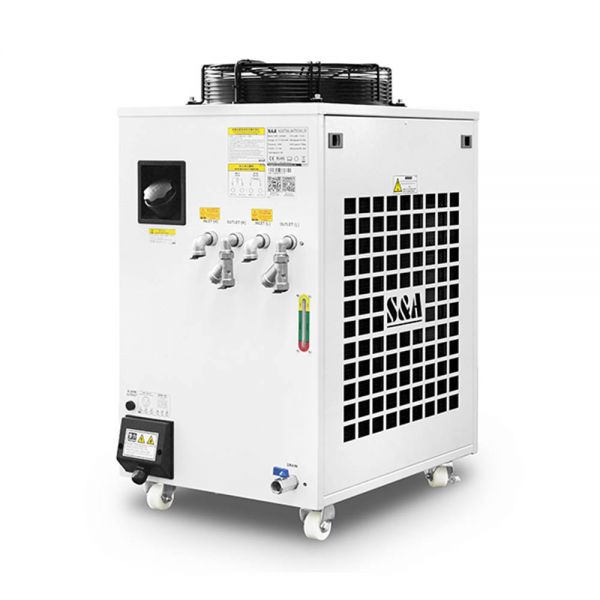

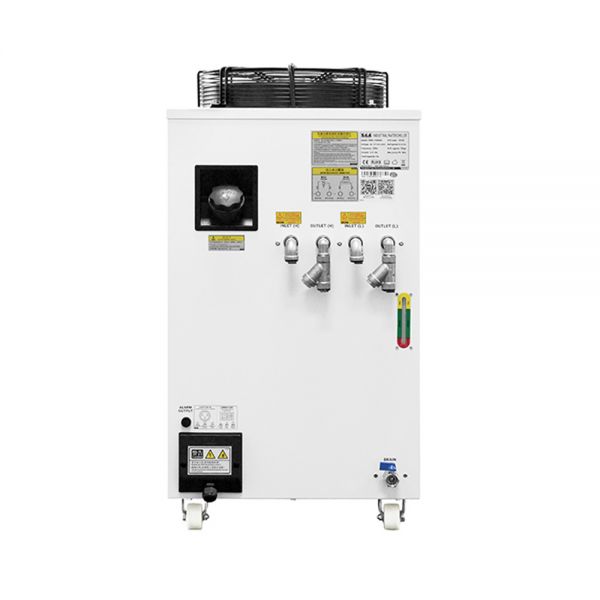

Dual water inlet and water outlet
Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.

Water level check lets you know when it’s time to refill the tank

Cooling fan of famous brand installed.
With high quality and low failure rate.

Alarm Description

CWFL-1500 water chiller is designed with built-in alarm functions.
E1 - ultrahigh room temperature
E2 - ultrahigh water temperature
E3 - ultralow water temperature
E4 - room temperature sensor failure
E5 - water temperature sensor failure
E6 - external alarm input
E7 - water flow alarm input

CHILLER APPLICATION

PRODUCT WORKING PRINCIPLE

CERTIFICATE

This product has no attributes!

Q&A

Specification
Model	CW-FL-1500AN
Voltage	AC 1P 220~240V
Frequency	50Hz
Current	2.5~16.1A
Machine Power	2.65kW
Electric assisted power	400W+600W
Refrigerant	R-410a
Refrigerant charge	1100g
Precision	±0.5℃
Reducer	Capillary
Pump power	0.37KW
Tank capacity	14L
Inlet and outlet	Rp1/2”+Rp1/2”
Max. pump lift	36M
Rated Flow	2L/min+>15L/min
N.W	70Kgs (154.3lb)
G.W	82Kgs (180.8lb)
Dimension	700mm x 470mm x 890mm(27.6in x 18.5in x 35in)
Package dimension	740mm x 610mm x 1030mm(29.1" x 24" x 40.6")
