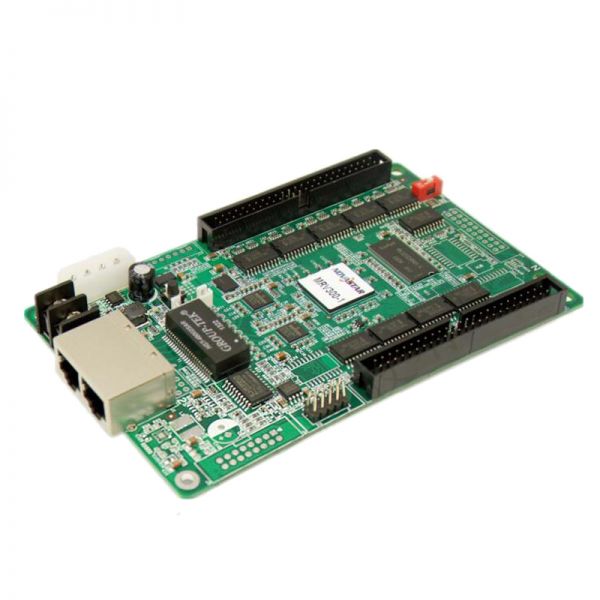

การ์ดรับ NovaStar MRV300  NovaStar MRV300 Receiving Card
  • การ์ดรับ NovaStar MRV300  NovaStar MRV300 Receiving Card

See larger image and other views (with zoom)

การ์ดรับ NovaStar MRV300 NovaStar MRV300 Receiving Card

   |   104 Transactions

รหัสสินค้า:SIT-NOVA-MRV300

  • ราคา Unit : ฿ 1,944/pc   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 6-10 วัน)

  • จำนวน: pc(s) Total Cost: ฿1,944
  • น้ำหนักการส่ง: 1.1lb (0.5kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection



คุณสมบัติ:
MRV300 เป็นรูปแบบมาตรฐานของบัตรรับโนวา มันมี
คุณลักษณะต่อไปนี้:
1) การ์ดใบเดียวแสดงผลข้อมูล RGBR 16 กลุ่ม;
2) การ์ดใบเดี่ยวจะแสดงข้อมูล RGB 20 กลุ่ม;
3) บัตรเดียวออก 64 กลุ่มของข้อมูลอนุกรม;
4) บัตรเดียวรองรับความละเอียด 256x226;
5) อ่านไฟล์การตั้งค่า;
6) การตรวจวัดอุณหภูมิ
7) การตรวจสอบสถานะการสื่อสารผ่านสายเคเบิล Ethernet;
8) การคัดลอกโปรแกรมสนับสนุน;
9) การตรวจจับแรงดันไฟฟ้าของแหล่งจ่ายไฟ;
10) ความสว่างแบบพิกเซลโดยพิกเซลและการปรับเทียบสี ค่าสัมประสิทธิ์การปรับเทียบความสว่างและสีของแต่ละ LED
11) การตั้งค่าภาพก่อนจัดเก็บ;
12) สอดคล้องกับมาตรฐานของสหภาพยุโรป RoHs;
13) เป็นไปตามมาตรฐาน EU CE-EMC



Feature:
MRV300 is the standard model of Nova receiving card. It has the
following features:
1) Single card outputs 16-group of RGBR 'data;
2) Single card outputs 20-group of RGB data;
3) Single card outputs 64-group of serial data;
4) Single card supports resolution of 256x226;
5) Configuration file readback;
6) Temperature monitoring;
7) Ethernet cable communication status detection;
8) Support program copying;
9) Power supply voltage detection;
10) Pixel-by-pixel brightness and chromaticity calibration. Brightness and chromaticity calibration coefficients for each LED;
11) Pre-store picture setting;
12) Comply with EU RoHs standard;
13) Comply with EU CE-EMC standard.



ค่าทางเทคนิค:

Technical Parameters:

Working Environment  สิ่งแวดล้อมการทำงาน
Rated Voltage (V)  อัตราแรงดันไฟฟ้า 5 Max 5.5 Min 3.3
Rated Current (A)  อัตรากระแส 0.5 Max 0.55 Min 0.45
Rated Power Consumption (W)  อัตราการใช้พลังงาน 2.5 Max 3 Min 2
Limit temperature (°C)  อุณหภูมิที่จำกัด   Max 100 Min -40
Working Environment Temperature (°C)  อุณหภูมิแวดล้อมการทำงาน   Max 75 Min -20
Working Environment Humidity (%)  ความชื้นการทำงาน   Max 95 Min 0
