TIG New High-Energy Precision Welder Aluminum Welder
  • TIG New High-Energy Precision Welder Aluminum Welder

See larger image and other views (with zoom)

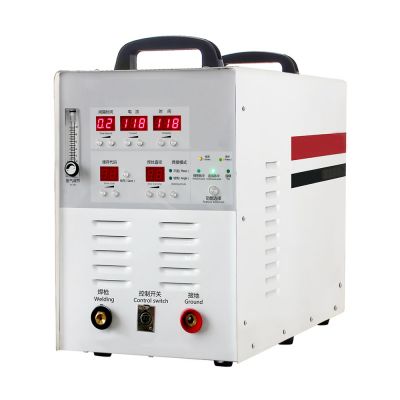

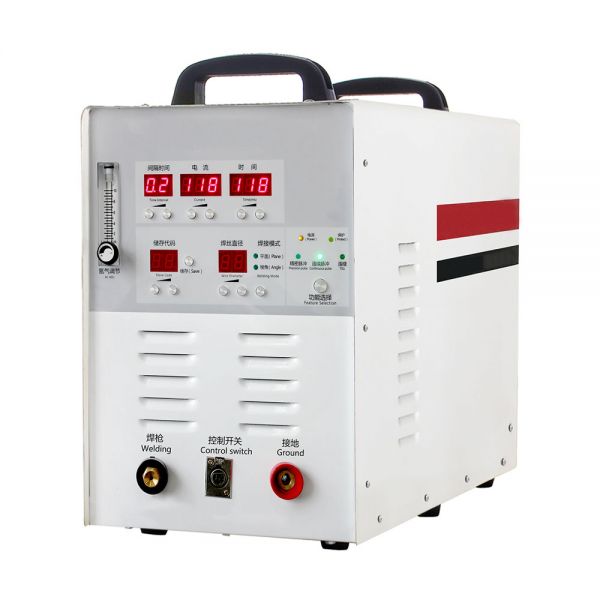

TIG New High-Energy Precision Welder Aluminum Welder

   |   58 Transactions

รหัสสินค้า:LWM-LV-ZLL-5800

  • ราคา Unit : ฿ 119,503/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

  • จำนวน: set(s) Total Cost: ฿119,503
  • น้ำหนักการส่ง: 88.0lb (40kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

เครื่องนี้ได้รวมฟังก์ชั่นการเชื่อมสองอย่างของการเชื่อมเย็นที่มีความแม่นยำสูงและการเชื่อมอาร์กอนขั้นสูง (TIG) เข้าด้วยกันและเพิ่มฟังก์ชั่นใหม่ห้าฟังก์ชั่นเพื่อปรับให้เข้ากับการเชื่อมที่แตกต่างกัน
การดำเนินงานเชื่อมภายใต้เงื่อนไขทางเทคนิคที่แตกต่างกัน กระแสไฟฟ้าขั้นต่ำของเครื่องนี้สำหรับการเชื่อมอาร์กอนความแม่นยำสูงสามารถเข้าถึง 2A
ผลการเชื่อมหรือการเชื่อมโดยไม่มีการเสียรูป, ความผิดปกติเล็ก ๆ , ความเร็วที่รวดเร็ว, แรงผูกพัน, การคุ้มครองสิ่งแวดล้อม, การดำเนินงานสากล, ฟรีขัดและขัดและข้อดีอื่น ๆ และการเพิ่มโหมดการจัดเก็บข้อมูล
ประเภทลูกค้าสามารถสมบูรณ์ตามความต้องการการเชื่อมของพวกเขาเองสำหรับการสลับโหมดยืดหยุ่นและการจัดเก็บข้อมูลไม่อยู่ภายใต้ข้อ จำกัด ของคนงานเชื่อมที่แตกต่างกัน

ข้อดีทางเทคนิคของผลิตภัณฑ์:
โปรเซสเซอร์ ARM 32 บิตประสิทธิภาพสูงนำเข้าจากสหรัฐอเมริกาถูกนำมาใช้เป็นชิปควบคุมหลักด้วยความเร็วในการประมวลผลสูงถึง 72MHZ การสุ่มตัวอย่างในปัจจุบันที่แม่นยำการควบคุมเวลาเชื่อมที่แม่นยำและการเชื่อม
ความเร็วในการสลับของพาร์ติชั่นปัจจุบันรวดเร็ว นำเข้า MOSFET ประสิทธิภาพสูงทนต่ออุณหภูมิสูงถึง 150 องศาเซลเซียสเสถียรภาพในการทำงาน ส่วนควบคุมของกระบวนการเคลือบแบบเต็มการเคลือบอัตโนมัติ
เครื่องติดตั้งฟิล์มแม่นยำมั่นใจในเสถียรภาพและคุณภาพของผลิตภัณฑ์

คุณสมบัติการเชื่อม:
เครื่องเชื่อมนี้สามารถเสร็จสิ้นกระบวนการเชื่อมระหว่างแผ่นลวดและแผ่นในหลายสิบมิลลิวินาทีเมื่อเทียบกับเครื่องเชื่อมธรรมดา (มากกว่าสองสามวินาที) ความร้อนที่ถ่ายโอนไปยังชิ้นงาน
ค่อนข้างน้อยดังนั้นเมทริกซ์ชิ้นงานความร้อนน้อยกว่านอกประสานอุณหภูมิวัสดุที่เพิ่มขึ้นร่วมกันจะไม่ผลิตสาดผิดปกติและปัญหาอื่น ๆ
เนื่องจากปริมาณการอาบน้ำที่เกิดจากพัลส์การเชื่อมแต่ละครั้งมีค่าน้อยกว่า 2 มม. 3 ความเครียดที่เกิดขึ้นจึงมีขนาดเล็ก แม้ว่าการซ่อมแซมการเชื่อมหรือการเชื่อมต้องมีการรวมกันของหลายอาบน้ำ แต่โดยทิศทางความเครียดของข้อต่อประสานจะแยกย้ายกันไปและความเครียดที่เข้มข้นในชิ้นงานมีขนาดเล็กดังนั้นการเสียรูปชิ้นงานหลังจากการเชื่อมหรือการเชื่อมมีขนาดเล็กมาก ความผิดปกติ
ภายใต้โหมดที่แตกต่างกันและกฎระเบียบในปัจจุบันที่แตกต่างกันโหมดการควบคุมเครื่องสามารถรับรู้นั่นคือโหมดการตั้งค่าและพารามิเตอร์ที่สามารถใช้ในการตระหนักถึงความเร็วในการเชื่อมความกว้างเชื่อมและขนาดจุดเชื่อม
ความหลากหลายของความต้องการความสมบูรณ์ของการเปลี่ยนจากการควบคุมการควบคุมเครื่องทำลายข้อ จำกัด ของการเชื่อมมืออาชีพ สามารถร่วมมือกับอุปกรณ์ติดตั้งหรืออุปกรณ์ระดับมืออาชีพเพื่อรับรู้การเชื่อมอัตโนมัติหรือกึ่งอัตโนมัติ

คุณสมบัติใหม่ห้าประการ:
1. 99 กลุ่มของหน่วยความจำข้อมูลและฟังก์ชั่นจัดเก็บข้อมูล
2. ฟังก์ชั่นการซ่อมแซมการเชื่อมเชื่อมแม่นยำอัลต้าเลเซอร์
3. ฟังก์ชั่นการเชื่อมจังหวะอย่างต่อเนื่องกับ 18 เกียร์
4. การเชื่อมและการซ่อมแซมฟังก์ชั่นของขอบเครื่องบินและมุม
5. ความแม่นยำสูงเครื่องควบคุมการเชื่อมอาร์กอน (TIG) ฟังก์ชั่น

1. ฟังก์ชั่นการจัดเก็บข้อมูลของ 99 กลุ่มของข้อมูล:
ผู้ใช้สามารถใช้ปุ่ม "การจัดเก็บ" เพื่อตั้งค่าการจัดเก็บข้อมูลภายใต้เงื่อนไขการเชื่อมที่แตกต่างกันและเมื่อมีการใช้อีกครั้งมันสามารถเรียกข้อมูลที่เก็บไว้ก่อนระบบตาม "หมายเลขซีเรียลการจัดเก็บ"
ค่าพารามิเตอร์ เครื่องสามารถจัดเก็บข้อมูลประสบการณ์สะสมได้มากถึง 99 ชุดซึ่งสามารถเรียกและอัปเดตได้ตลอดเวลา ดังนั้นการดำเนินการที่ชาญฉลาดมากขึ้นง่ายขึ้นสะดวกสบายมากขึ้น

2 ฟังก์ชั่นการซ่อมแซมเชื่อมแม่นยำอัลต้าเลเซอร์:
ในโหมดนี้ความแม่นยำในการเชื่อมสามารถเข้าถึงหรือเกินความแม่นยำของเลเซอร์และประสิทธิภาพการซ่อมแซมการเชื่อมสูง เนื่องจากมีการควบคุมแบบดิจิทัลข้อมูลที่บันทึกจึงมีความแม่นยำและแม่นยำยิ่งขึ้น

3. ฟังก์ชั่นจังหวะการเต้นอย่างต่อเนื่องของ 18 เกียร์:
สามารถเลือก 18 เกียร์ได้อย่างยืดหยุ่นตามความหนาชิ้นงานความต้องการและความเร็วและสามารถติดตั้งอุปกรณ์หุ่นยนต์ได้อย่างยืดหยุ่นเพื่อให้เกิดการเชื่อมอัตโนมัติหรือกึ่งอัตโนมัติ

4. ฟังก์ชั่นการเชื่อมและซ่อมแซมขอบและมุมเครื่องบิน:
ตามความต้องการกระบวนการเชื่อมที่แตกต่างกันของตำแหน่งการเชื่อมเดียวกันฟังก์ชั่นของ "การเชื่อมระนาบ" และ "การเชื่อมขอบและมุม" ถูกนำมาใช้
การเชื่อมที่แม่นยำเป็นพิเศษสามารถทำได้โดยการเลือกโหมดการเชื่อม "ขอบและมุม" แม้ว่าเส้นผ่านศูนย์กลางของรูตะปูคือ 0.2 มม. การเชื่อมที่สมบูรณ์แบบสามารถทำได้

5. ความแม่นยำสูงเครื่องควบคุมการเชื่อมอาร์กอน (TIG) ฟังก์ชั่น:
โหมด TIG ต่อเนื่องให้การเชื่อมที่เร็วกว่าและราบรื่นกว่าหรือการซ่อมแซมรอยเชื่อมเมื่อต้องการงานจำนวนมาก (ช่วงเวลาคือ 0.1 ถึง 0.2 วินาที)
ขอบเขตการใช้งาน

แผ่นเหล็กเชื่อมอุตสาหกรรม:
เหมาะสำหรับภาชนะรับความดันขนาดใหญ่และขนาดเล็ก, อุตสาหกรรมประตูโลหะ, ตัวถังโลหะ, เครื่องจักรกล, อาหาร, ชั้นวางจอแสดงผล, ตู้, ท่อโลหะ, ถังเก็บน้ำ, อุตสาหกรรมอุปกรณ์ทำความเย็น, ยา
อุปกรณ์งานฝีมือโลหะและอื่น ๆ ไม่มีความผิดปกติหรือความผิดปกติเล็ก ๆ ไม่กัดขอบแรงผูกพันผลสวยงามหลังจากเชื่อมรวดเร็วรวดเร็วใช้งานง่ายประหยัดค่าแรง

อุตสาหกรรมซ่อมแม่พิมพ์:
แม่พิมพ์ฉีด 2, แม่พิมพ์ปั๊ม 3, แม่พิมพ์หล่อ 4, แม่พิมพ์ยาง 5, แม่พิมพ์โลหะผสมทองแดง แม่พิมพ์หลังจากเชื่อมสามารถกลึงความร้อนและไนไตรด์

อุตสาหกรรมซ่อมแซมส่วนต่าง ๆ :
เครื่องนี้สามารถดำเนินการซ่อมแซมรอยเชื่อมที่สมบูรณ์แบบสำหรับเพลาฟันและชิ้นงานอื่น ๆ เช่นความแตกต่างของขนาดชิ้นงานจากไม่กี่เธรดไปไม่กี่มิลลิเมตรสามารถซ่อมแซมได้ดีมาก

ช่วงเชื่อม:
0.2mm-8mm สแตนเลส, เหล็กคาร์บอน, เหล็กแม่พิมพ์, แผ่นสังกะสี, แผ่นรีดเย็น, โลหะผสมไทเทเนียม, โลหะผสมทองแดงและวัสดุโลหะอื่น ๆ

ขอบเขตการซ่อมแซมการเชื่อม:
·ขอบเลื่อน, ขอบแคบ, รูเล็บ, ร่อง, รูอากาศและตะเข็บชั้นดี

·ซ่อมแซมข้อบกพร่องของแม่พิมพ์ (เช่นภาวะซึมเศร้าบนพื้นผิวและความพรุน ฯลฯ ) หลังจากเชื่อมด้วยเครื่องเชื่อมอาร์กอน

·เชื่อมและซ่อมแซมแม่พิมพ์หลังจากการตัดเฉือนปล่อยไนไตรด์และการรักษาไนไตรดิงแบบอ่อน





This machine has successfully combined two welding functions of high precision cold welding and advanced argon welding (TIG), and added five new functions to adapt to different welding.
Welding operation under different technical conditions. The minimum current of this machine for high precision argon welding can reach 2A.
Welding or welding repair effect, with no deformation, small deformation, fast speed, strong binding force, environmental protection, universal operation, free of polishing and polishing and other advantages, and the addition of data storage mode
Type, the customer can completely according to their own welding requirements for flexible mode switching, and data storage, not subject to the restrictions of different welding workers.

Product Technical Advantages:
The high performance 32-bit ARM processor imported from the United States is adopted as the main control chip, with processing speed up to 72MHZ, accurate current sampling, precise welding time control and welding.
The switching speed of current partition is fast. Imported high-performance MOSFET, temperature resistance up to 150 degrees Celsius, stable performance. Control part of the full lamination process, automatic lamination.
Film machine mounting, accurate, ensure the stability and quality of products.

Welding features:
This welding machine can complete the welding process between plates, wires and plates in tens of milliseconds, compared with the ordinary welding machine (more than a few seconds), the heat transferred to the workpiece.
Relatively little, so the workpiece matrix, less heat, outside the solder joint material temperature rise, will not produce splash, deformation and other problems.
Since the volume of the bath generated by each welding pulse is less than 2mm3, the stress formed is also small. Although a welding or welding repair requires a combination of many bath, but by the stress direction of the solder joint is dispersed, and the concentrated stress on the workpiece is small, so the workpiece deformation after welding or welding is very small, or even no deformation.
Under different modes and different current regulation, machine control mode can be realized, that is, setting mode and parameters can be used to realize welding speed, weld width and weld spot size
The diversification of requirements, the completion of the transition from control to machine control, break through the limitations of professional welding. Can cooperate with fixture or professional equipment to realize automatic or semi-automatic welding function.

Five new features:
1. 99 groups of data memory and storage functions
2. ultra-laser precision welding welding repair function
3. Continuous welding pulse function with 18 gears
4. Welding and repairing function of plane edges and corners
5. High precision machine controlled argon welding (TIG) function

1. Data storage function of 99 groups of data:
The user can use the "storage" key to set the storage of data under different welding conditions, and when it is used again, it can call up the data stored before the system according to the "storage serial number"
Parameter values. The machine can store up to 99 sets of accumulated experience data, which can be called and updated at any time. So the operation is more intelligent, more simple, more convenient.

2, ultra-laser precision welding welding repair function:
In this mode, the welding precision can reach or exceed the laser precision, and the welding repair efficiency is high. As it is controlled digitally, the data captured is more accurate and accurate.

3. Continuous pulse function of 18 gears:
18 gears can be selected flexibly according to workpiece thickness, requirement and speed, and can be equipped with robot devices flexibly to achieve automatic or semi-automatic welding.

4. Welding and repairing functions of plane edges and corners:
According to different welding process requirements of the same welding position, the function of "plane welding" and "edge and corner welding" is adopted.
Ultra-precision welding can be carried out by selecting the "edges and corners" welding mode, even if the diameter of the nail hole is 0.2mm, perfect welding effect can be achieved.

5. High precision machine-controlled argon welding (TIG) function:
Continuous TIG mode provides faster and smoother weld or weld repair when a large amount of work is required. (the interval is 0.1 to 0.2 seconds)
The scope of application

Stainless steel plate welding industry:
Suitable for large and small pressure vessels, metal door industry, metal chassis, food machinery, cabinet display shelves, metal pipes, industrial water tanks, refrigeration equipment, pharmaceutical
Equipment, metal crafts and so on, no deformation or small deformation, no edge bite, strong binding force, beautiful effect after welding, on fast, easy to operate, save labor costs.

Mold repair industry:
Injection mould 2, stamping mould 3, die-casting mould 4, rubber mould 5, copper alloy mould. The molds after welding can be machined, heat treated and nitrided.

Various parts repair industry:
This machine can carry out perfect welding repair for shaft, tooth and other workpieces, such as workpiece size difference, from a few threads to a few millimeters can be very good repair.

Welding range:
0.2mm-8mm stainless steel, carbon steel, mold steel, galvanized sheet, cold rolled sheet, titanium alloy, copper alloy and other metal materials

Welding repair scope:
· sliding edge, narrow edge, nail hole, groove, air hole and fine seam

· repair the mold defects (such as surface depression and porosity, etc.) after welding by argon arc welding machine

· weld and repair the molds after discharge machining, nitriding and soft nitriding treatment.
