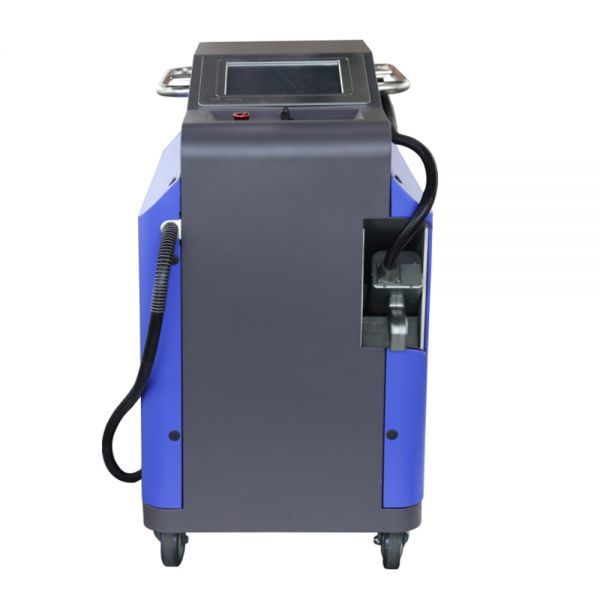

Handheld 100W Metal and Non-metal Surface Laser Cleaner Oil Cleaner Dust Cleaning Machine

See larger image and other views (with zoom)

Handheld 100W Metal and Non-metal Surface Laser Cleaner Oil Cleaner Dust Cleaning Machine

รหัสสินค้า:CS-MAX-CL100-H

ราคา Unit : ฿ 670,076/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45วัน)

กรุณาเลือกประเภท

100W 200W

จำนวน: set(s) Total Cost:
THB ฿670,076
น้ำหนักการส่ง: 374.0lb (170kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿

Machine size	835mm x 500mm x 925mm(32.8in x 19.7in x 36.4in)
Weight	93 kg (205lb)
Package	Wooden Crate
Packing Size	1030mm x 780mm x 1190mm (40.6in x 30.7in x 46.9in)
Gross Weight	170kg(374.8lb)

User's Maunal

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions:

Handheld 100W Metal and Non-metal Surface Laser Cleaner Oil Cleaner Dust Cleaning Machine
Fully enclosed external optical path system, combined with special mode of laser, the high-energy pulse laser collected in the surface of object, with the principles of plasma blasting, high energy pulse excitation and complex photochemical reactions, and by controlling the effective displacement of the laser beam to achieve cleaning. The computer according to the program controls the whole process.
Laser cleaning—new technology，environmental protection，high tolerance range of processing height on the work piece, not only can be used in a stable industrial environment, more suitable for complex outdoor fine cleaning; the use of special mode laser, both to ensure the high tolerance range of non-stable environment, but also efficient removal of rust stains with no hurt to base material.
It is widely used in industrial area, such as automotive, mechanical, food processing, electronics, historic conservation, shipbuilding and power generation, etc.

Features:
1. High energy pulsed laser focusing on the surface of object to simulate plasma, continuous irradiation of high-energy plasma instantaneous formation and expansion, resulting in a series of tiny explosions, formatting plasma blasting, finally achieve the relative smooth corrosive layer of object surface to physical blasting burst, and move through the high speed laser spot to form a plume that will clean the debris to complete the cleaning. Mainly used in metal rust.

2. High energy pulsed laser focusing on the surface of object, dirty rust and other irregular structure and dark surface absorption the laser energy and plasma energy formatted by metal surface, is instantaneous vaporization from the base metal. Mainly used in the mold cleaning and cultural relics repair and other industries.

3. The final reaction product is discharged in the form of gas, and the special mode of laser is lower than the damage threshold of the parent material, which can peel off the coating without damaging the parent material. Mainly used for paint removal and coating stripping.

LASER CLEANING PARAMETERS COMPARISON
Base Material	Surface	Effective DOF (mm)	Low Speed (mm2/s)	Normal Speed (mm2/s)	High Speed (mm2/s)	Effect
Cast iron	Severe rust (0.05mm thick)	10	1800	2200	3500	Clean surface and no harm to base material
Carbon steel	Moderate rust (0.05mm thick)	10	1800	2000	2500	Clean surface and no harm to base material
Stainless steel	Greasy dirt, slight rust	10	1800	2200	3000	Clean surface and no harm to base material
Mould- steel gear	Moderate greasy, iron residue	10	1800	1800	2500	Clean surface and no harm to base material
Aluminum	Oxide, Dirty surface	10	1500	1800	2200	Clean surface and no harm to base material
Paint without putty	white Plain paint (0.1mm thick)	10	2000	2200	3000	Clean surface and no harm to base material

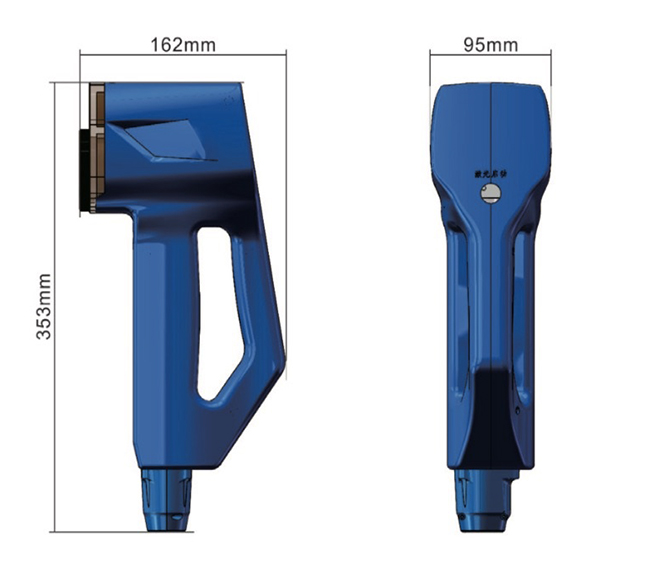

Dimensions of the 100W-200W Laser Erasers

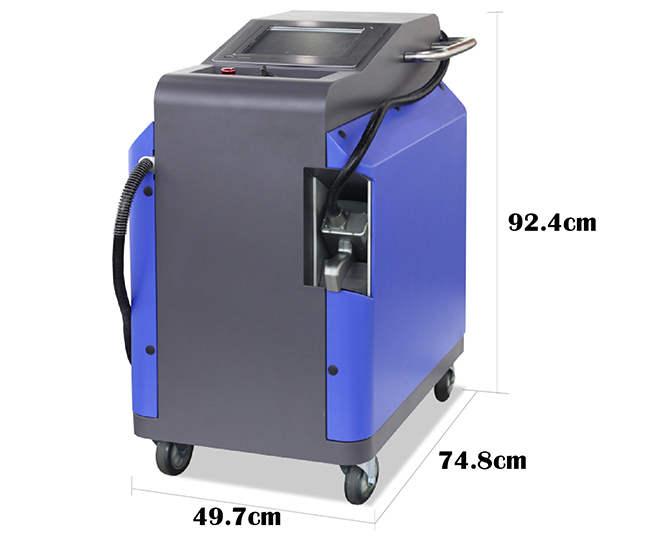

Dimensions of the cabinet of the Laser Cleaning Machine

Note:

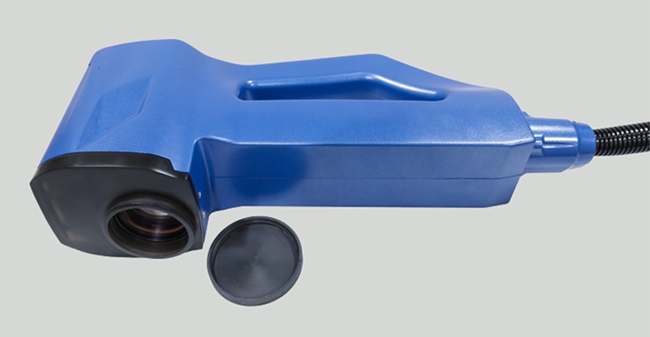

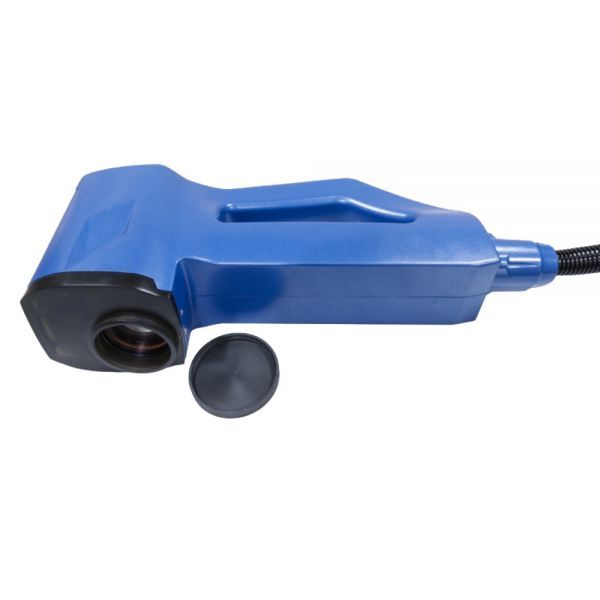

Before using，open the protection cover of the laser cleaning head；

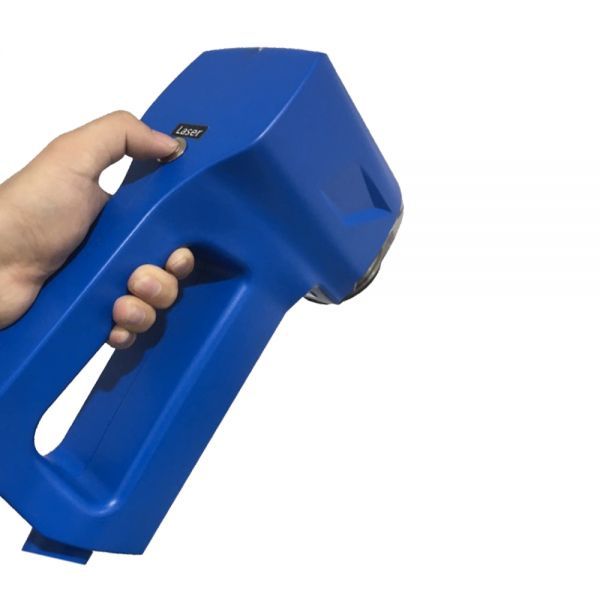

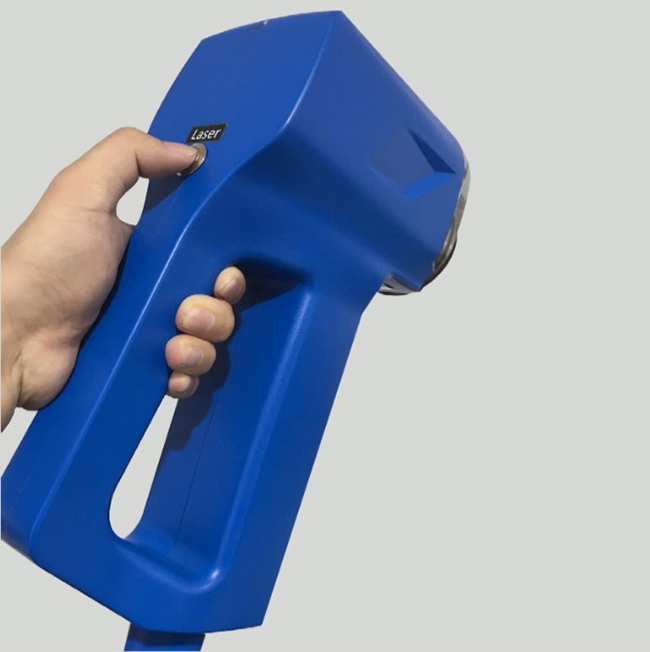

After used, press the “Handle Laser Button” again.

Applications:
Rust Erasing

Sample: angle iron
Base material: Q235
Erasing Efficiency: 1400mm2/s
Erasing Effects: surface undamaged and no rust left behind

Sample: propeller gear shaft
Base material: 40Cr
Erasing Efficiency: 1400mm2/s
Erasing Effects: surface undamaged and no rust left behind

Sample: carbon steel tube
Base material: carbon steel
Erasing Efficiency: 2000mm2/s
Erasing Effects: surface undamaged and no rust left behind

Sample: chuck
Base material: alloy steel
Erasing Efficiency: 1700mm2/s
Erasing Effects: surface undamaged and no rust left behind

Pre and Post Treatment of Welding

Sample: water pipe joint
Base material: alloy cast iron
Erasing Efficiency: 1800mm2/s
Erasing Effects: surface polished and no stained layer left behind

Oxide Erasing

Sample: vane of air blower
Materials: 2Cr13
Erasing Efficiency: 500mm2/s
Erasing Effects: surface polished without any oxide residue

Sample: Aluminum alloy plate
Materials: 6033
Erasing Efficiency: 1500mm2/s
Erasing Effects: surface polished without any oxide residue

Paint Cleaning

Sample: gif box 
Base material: cold-roll steel sheets
Erasing Efficiency: 1800mm2/s
Erasing Effects: paint coat remove completely, no damage to the base material

This product has no attributes!

Q&A

Specification
Average Output power	100W / 200W
Laser source type	MAX
Specify accordingly	Wavelength 1064 nm
Operation Mode	Pulse
Cooling Method	Air Cooling
Scan Width	10-80mm
Graphic length	max 68mm
Graphic width	max 3.0mm
Galvanometer speed	Fastest Speed 32
Laser frequency	25KHz-200KHz
Field Lens selection	160mm, 254mm(default, 330mm
Current consumption	4-6 A
Warm up Time	10s
Operating Ambient Temperature	0-40°C
Storage Temperature	-10-60°C
Power supply	220 V / AC 50-60 Hz
