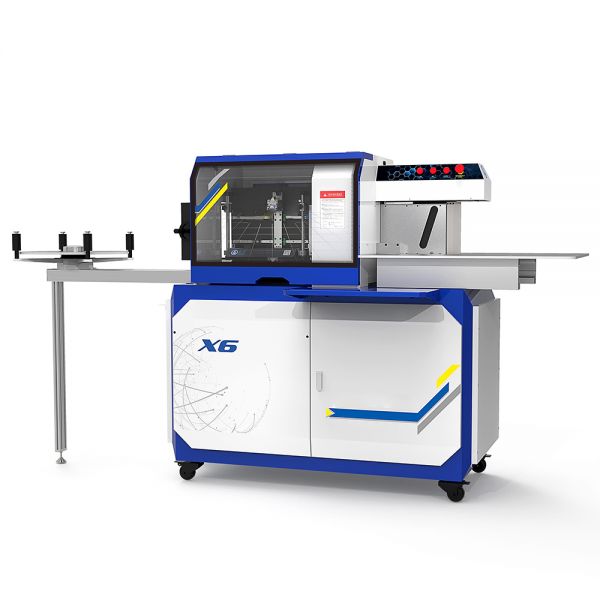

X3/X6 Automatic Channel Letter High Edge Full Function Bending Machine
  • X3/X6 Automatic Channel Letter High Edge Full Function Bending Machine

See larger image and other views (with zoom)

X3/X6 Automatic Channel Letter High Edge Full Function Bending Machine

   |   145 Transactions

รหัสสินค้า:SIT-XW-X6

  • ราคา Unit : ฿ 214,000/set   (ขอส่วนลดพิเศษ) (สินค้าพร้อมส่ง)

  • กรุณาเลือกประเภท

    กรุณาเลือกประเภท: X3 X6
  • จำนวน: set(s) Total Cost: ฿214,000
  • น้ำหนักการส่ง: 1056.0lb (480kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

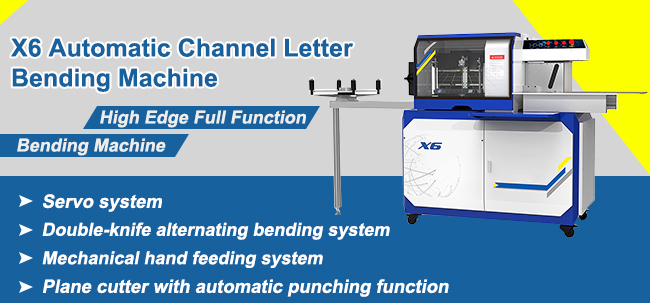

X6 Automatic Channel Letter High Edge Full Function Bending Machine

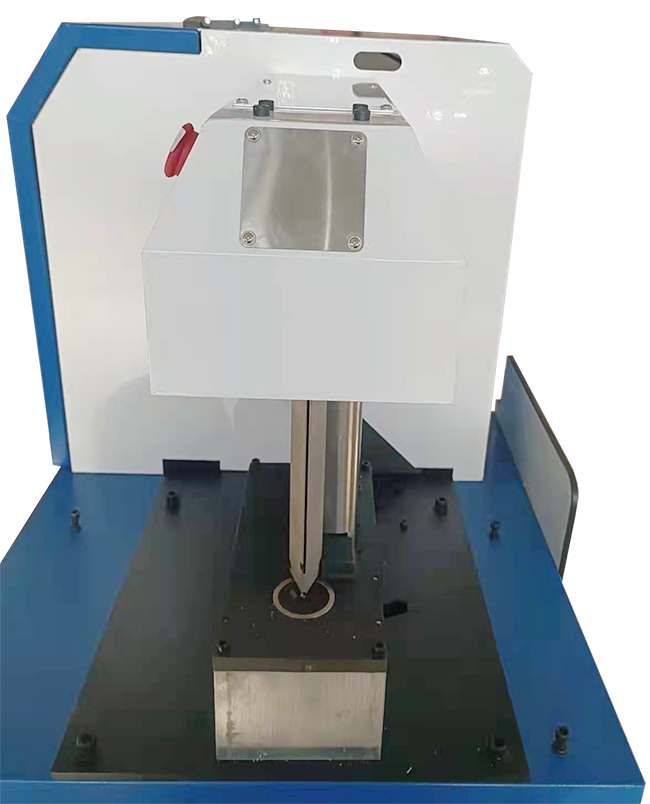

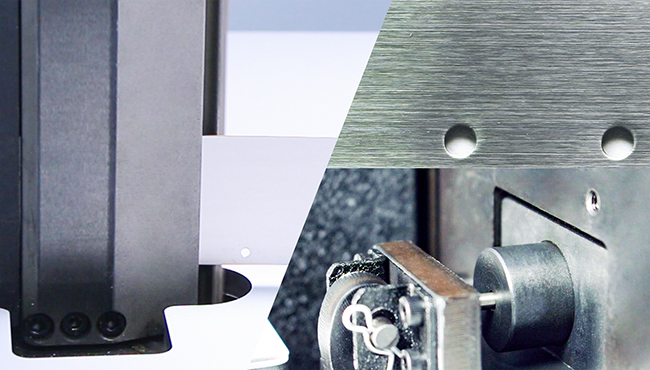

1.Bending system
Double knife alternating bending,specially designed cutlasses and edge structure,compatible with plate and profile processing.More suitable for small Angle small radian bending.

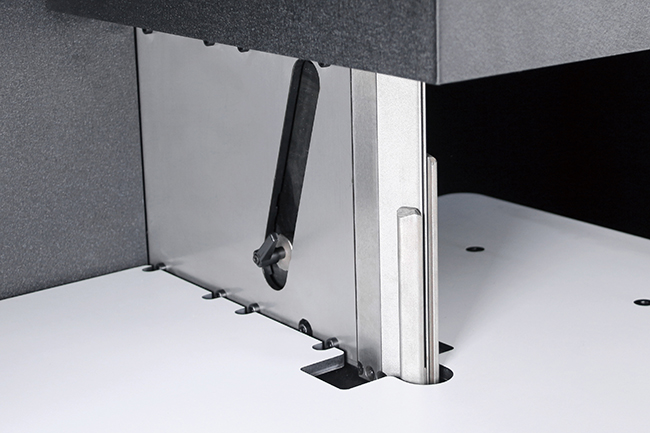

2. Slotting system
Plane cutter works for stainless steel, galvanized board and aluminum plate.

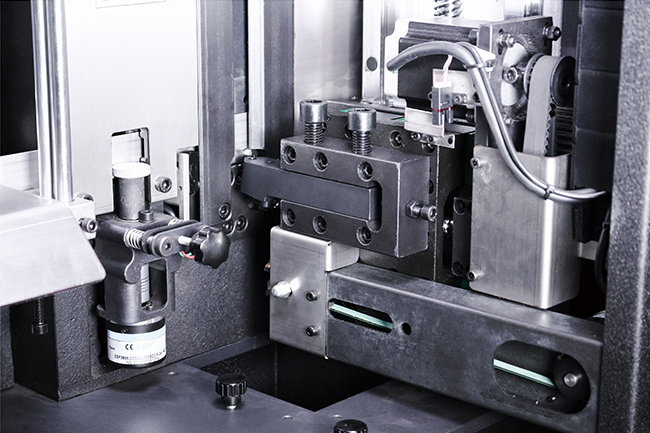

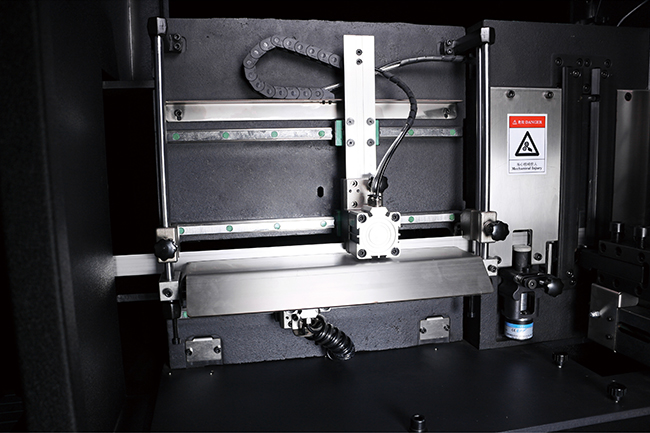

3. Feeding system
The design of circulating clamping feeding,manipulator circulating clamping feeding,the configuration of servo drive+high quality ball screw and linear guide rail makes the feeding smooth and smooth without causing deformation to the material,and the closed-loop control composed of length encoder and system makes the finished products perfectly match with the source files.

Features:

1.18cm processing range,equipped with fixed cutlery with a small Angle of 44°. In the higher processing range,to achieve high speed,stable bending.
2.Part of the structure adopts precision casting,making the bending machine precise and efficient (casting includes:fixed scimitar,fixed scimitar safety,encoder,manipulator,feeding bracket,feeding bracket presser,etc.)
3.Can produce stainless steel,galvanized board,aluminum plate,and other flat materials.

Details:

Specification:

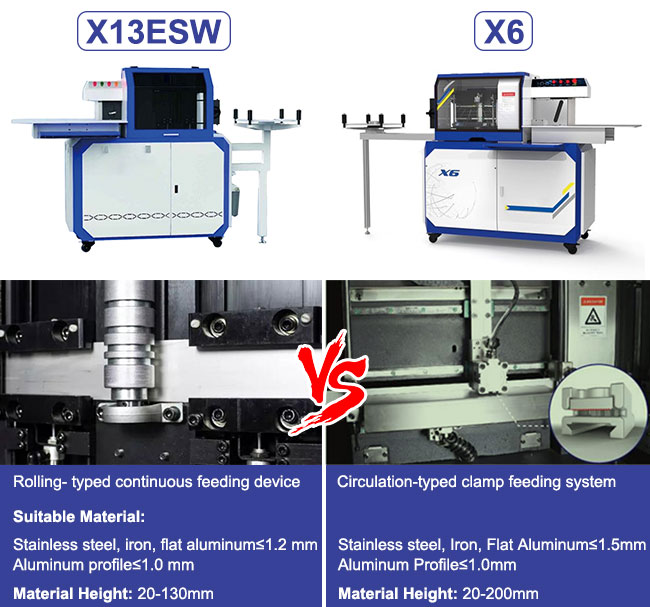

Model X3 X6
Feeding system Circulation-typed clamp feeding system
Slotting system Plane&milling cutter slotting system
Bending system Double blade alternating bendingsystem
Material Apecification Stainless steel, Iron,Flat Aluminum≤1.5mm,Aluminum Profile≤1.0mm
Material Height 20-130mm 20-200mm
Accuracy ±0.1mm
Input File format *.dxf
Power supply AC220V/50HZ/2.5KW
Air supply 0.6m³/min
Dimensions L2453mm×W915mm×H1671mm
Machine weight 450kg 480kg

Remark:
The air pump and computer is not included, please prepare it by yourself.The air pump should be above 0.6Mpa and computer should be Windows7 32/64-bit with PCI slot.

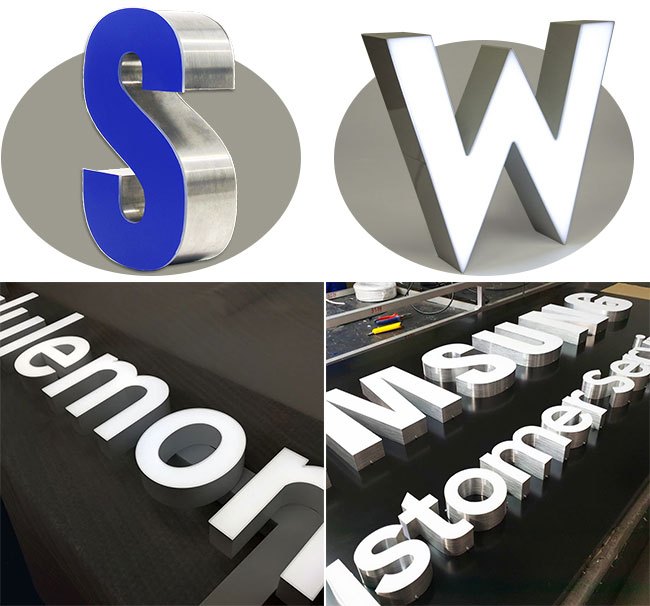

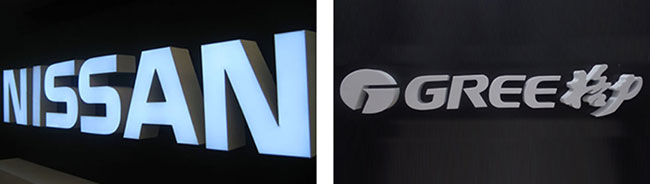

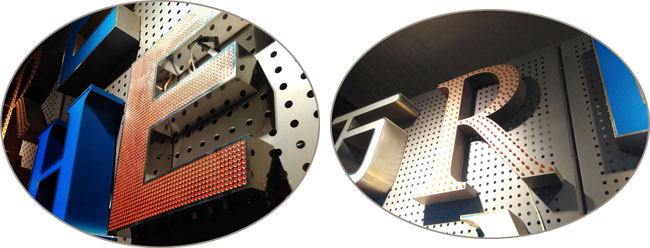

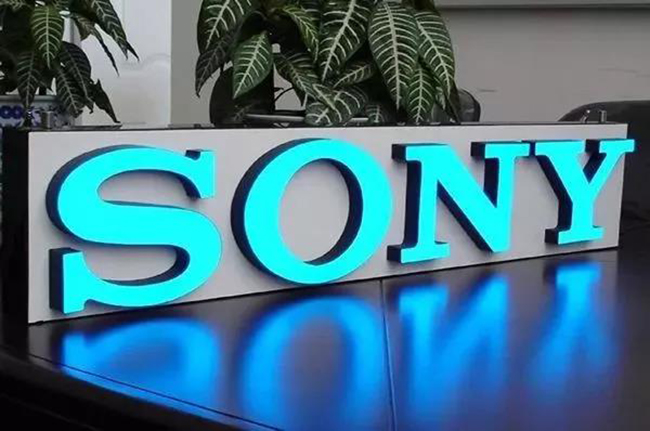

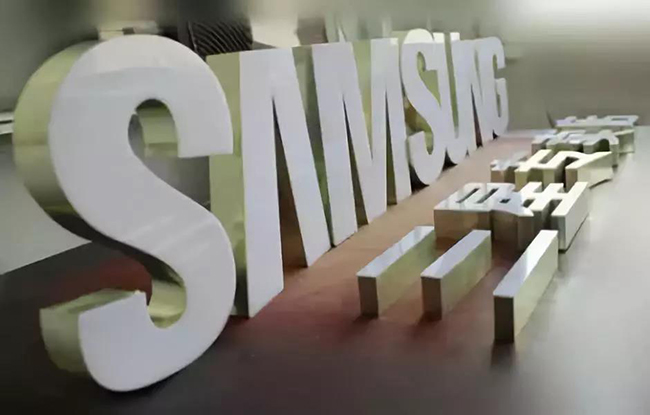

Sample Display:

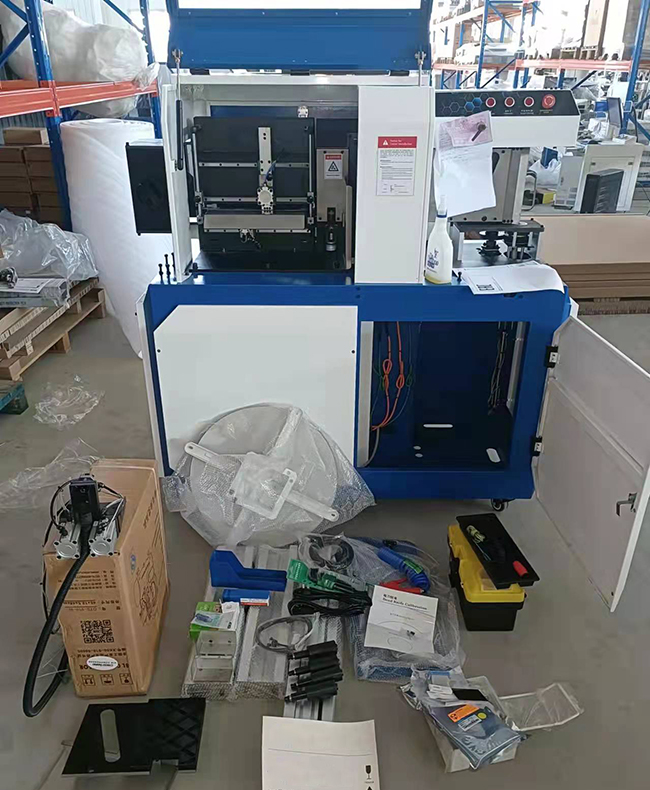

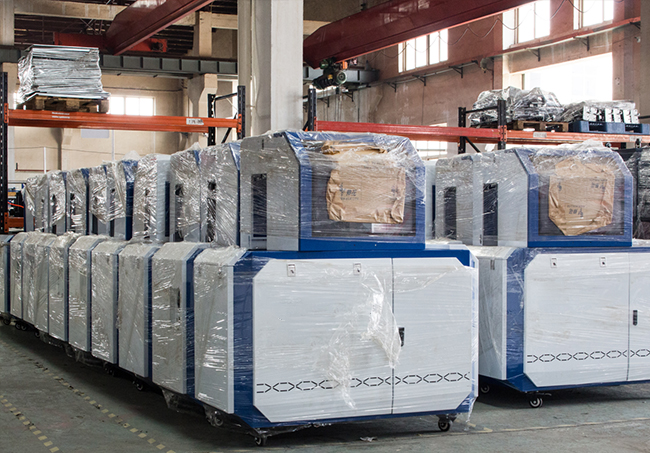

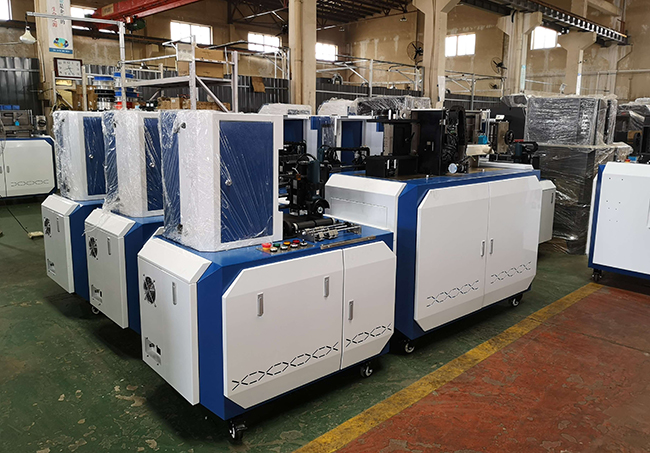

Factory:
