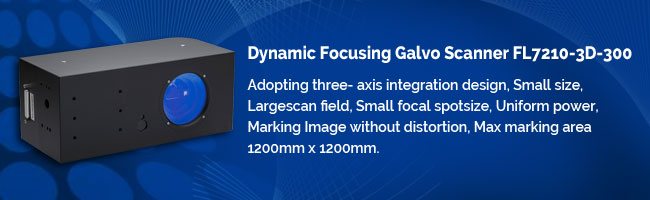

High-speed 3D Dynamic Focusing Scanning System with 10mm Aperture

The advanced servo control algorithm and efficient optoelectronic sensing and positioning technology are use in the system to meet most application demands for the product performance and positioning accuracy. We guarantee the permanent stability of the system by our demanding material control, well-developed manufacture technologies, long-period drifting test and aging test.

Features:
1. The advanced small focal spot design, the minimum focal spot is 24um.
2. Accurate optical path design and fabrication, low energy decrement for large scan field and curved surface processing.
3. High speed system, meets above 3000mm/s precision hatch speed.
4. Scan field up to 300x300mm, meet large scan field engraving requirements.
5. The maximum marking height up to 130mm, far exceed the industry height standard of 80mm.
6. The focal axis position is optimized for deep engraving, suitable for embossment, etc. 3D applications.

FAQ:
1.Q: What can this type scanner use for?
A: 3D laser engraving, coding, marking and cutting.
2.Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
3.Q: What kind of materials can process with this machine?
A: This scanner is 1064nm type, used on metal and non-metal.
4.Can this scanner print on curve?
A: Yes it can print on curve.

This product has no attributes!

Q&A

Specification
Model	FL7210-3D
Material of outer holder	Aluminum Alloy
Color Of Outer holder	Black
Working Temperature	0-45℃
Linearity	0.999
Setting Time	≤0.3ms
Scale Drift	<40PPM/℃
Zero Drift	<15μRad./℃
Long-term Drift Over 8 Hours	<0.5mRad
RMS Current	2.0A
Peak Current	15A(Max)
Maximum Scan Angle	±15°
Storage Temperature	-10 to +60℃
Resolution	12μrad
Repeatability	8μrad
Input Aperture	10mm
Beam Displacement	13.4mm
Motor Weight	220g
Frequency	≤1200Hz
Product Size	116mm x 110mm x 262mm(4.57in x 4.33in x 10.3in)
Net weight	7.5kg(16.5lb)
Package Size	340mm x 240mm x 360mm(13.4in x 9.5in x 14.2in)
Gross Weight	15kg(33lb)
