CNC Router Mill Zero Check Touch Plate Z Axis Auto-Check Instrument Setting Probe
  • CNC Router Mill Zero Check Touch Plate Z Axis Auto-Check Instrument Setting Probe

See larger image and other views (with zoom)

CNC Router Mill Zero Check Touch Plate Z Axis Auto-Check Instrument Setting Probe



รหัสสินค้า:CS-TPP-Z01

  • ราคา Unit : ฿ 580/pc   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 14-20 วัน)

  • จำนวน: pc(s) Total Cost: ฿580
  • น้ำหนักการส่ง: 1.3lb (0.6kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

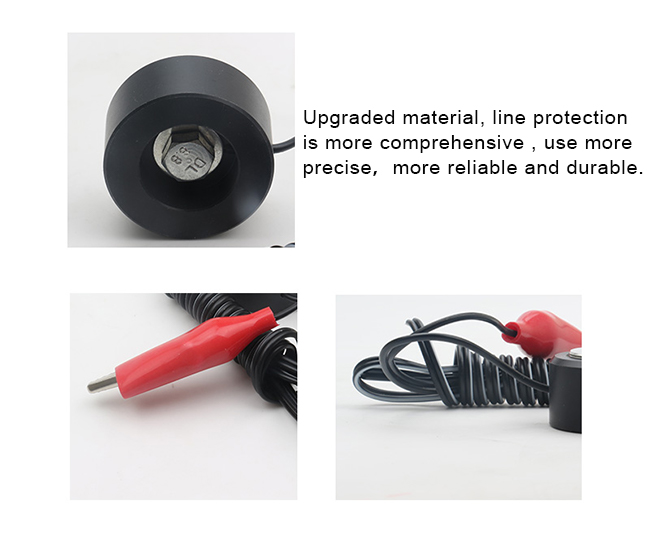

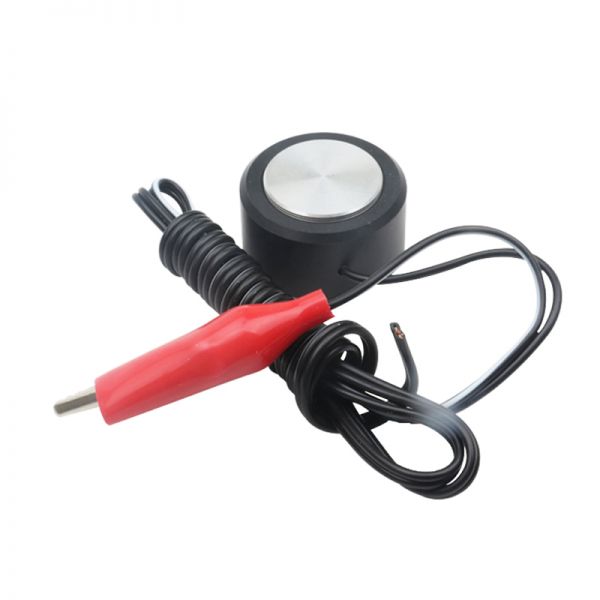

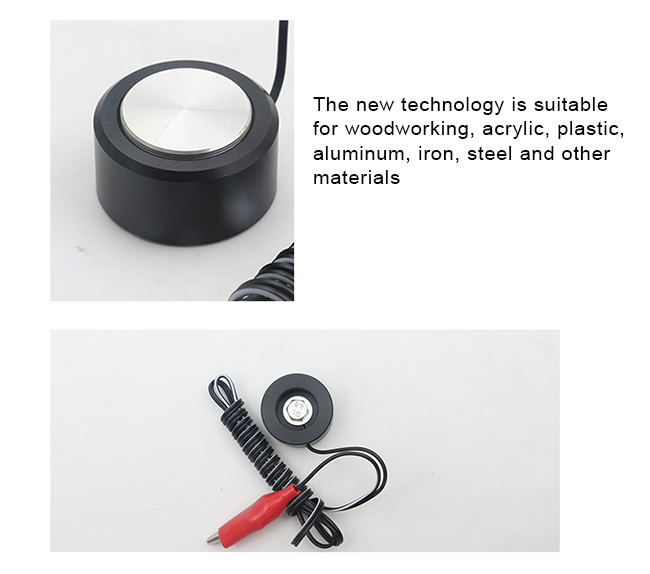

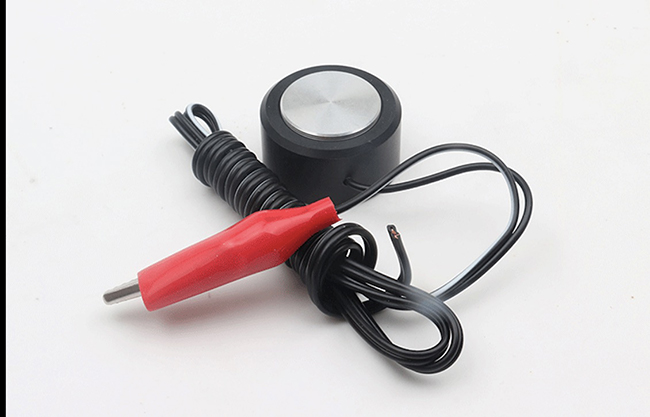

CNC Z-Axis Tool Setting Touch Plate Probe
The tool setting device is mainly composed of a tool setting block and a feeler gauge to determine the relative position of the clamp to the cutter.

Description:
100% Brand new and high quality。
Diameter: 35mm(1.4in)
Height: 20mm(0.8in)
Effective surface of the knife: 25mm(0.98in) diameter
Cable length: 1.2 m (47in)
Diameter: 0.2 square feet
Including alligator clips
Connect the wire of this tool check instrument to the tool connector of your control board of the machine, then the control board's GND connect to the frame of your router (the frame of the router and the spindle must have connections)

Package Including:

1 x automatic knife setting block
Packing Size: 73mm x 30mm x 30mm (28.7in x 11.8in x 11.8in)
Gross Weight: 0.6kg (1.3lb)

Two ways to connect this item:
1. If your interface board has the limit switch port or other probe port, you can connect it to that port
2. If your interface board does not have that port, your driver board has that port; you can connect it to the driver board's limit switch port. Then in the Mach 3, you need to setup the probe (Mach3 --- Config---Ports and Pins---Input signals Probe enabled, the pin number type the one you use) and the Auto-Tool-Zero.
