1900mm Digital Roller Heat Transfer Machine
  • 1900mm Digital Roller Heat Transfer Machine

See larger image and other views (with zoom)

1900mm Digital Roller Heat Transfer Machine

   |   4 Transactions

รหัสสินค้า:SIT-GS-R190

  • ราคา Unit : ฿ 653,218/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

  • กรุณาเลือกประเภท

    กรุณาเลือกประเภท: 420mm 600mm 800mm
  • จำนวน: set(s) Total Cost: ฿653,218
  • น้ำหนักการส่ง: 8800.0lb (4000kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart
Buyer Protection

1900mm Digital Roller Heat Transfer Machine

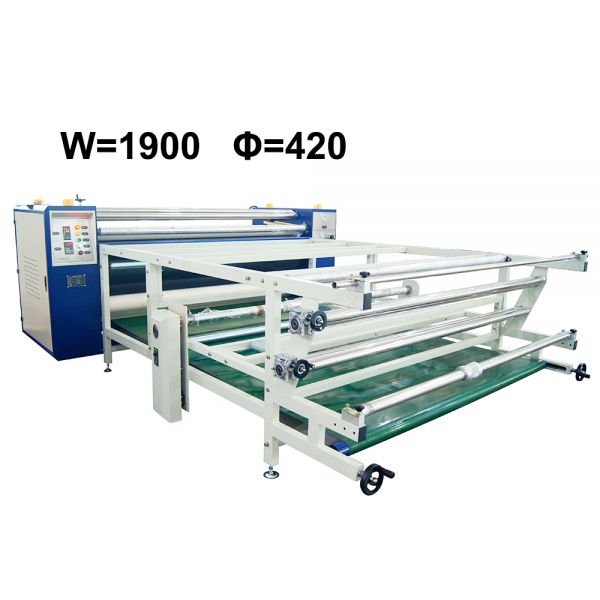

1900mm New upgrade 420/600/800mm diameter upper feeding conveyor roller heat transfer machine for mouse pad cutting piece

Features:
1. Digital PLC touch screen programmable control system is adopted by Taiwan Dongyuan TECO,The system has powerfulfunctions, with counter function ,accurate reading, beautiful and generous,Chinese and English can be switched.
2. Infrared independent automatic intelligent correction system, the blanket does not deviate during continuous transfer.
3. The main drum is finely ground and chrome-plated surface treatment, wear-resistant, oil temperature heat conductioninternal circulation system in the drum, uniform temperature without color difference.
4. European and American style, made with ingenuity,each shaft end is exquisitely made,high frequency processing.
5. Low voltage 24V control, built in transformer, with infrared pressure defense hands device, safe and long life.

Details:
Teflon coating surface on oil drum
100% seamless roller. the outer roller linner roller is dealt with precislion work, and then plated Teflon,to ensure consistent temperature of each point. Seamless steel drum can provide more heat uniformity, no chrormatism, saving the power 20%-30%. Keep the performance printed no color difierence.
Intergrated intelligent controller panel
Frequency convertor, Temp. control, roller speed adjustor.
 Air inflation expanding shaft for unwind/rewind
Imported Dupon material blanket/felt
Up to 60% blanket coverage, High efficiency output and printing speed fast. Top quality blanket with high temperature resistence, it can be use lang life.
External electric control box
Fmous component part, heating sink linked together, it can be cooler soon. Lower power, power saving. Safety operation, money saving.


Specification:



Mode(CM) Voltage(V) Power(KW) Temp.Range(°C) Worktalbe Size(M) Working Pressure(KG/CM²) Packing size(CM)
42x190 220 24 0-399 2.65 0-8 288x123x155
60x190 220 48 0-399 3.35 0-8 300x138x160
80x190 220 72 0-399 3.35 0-8 315x155x195

Application:
