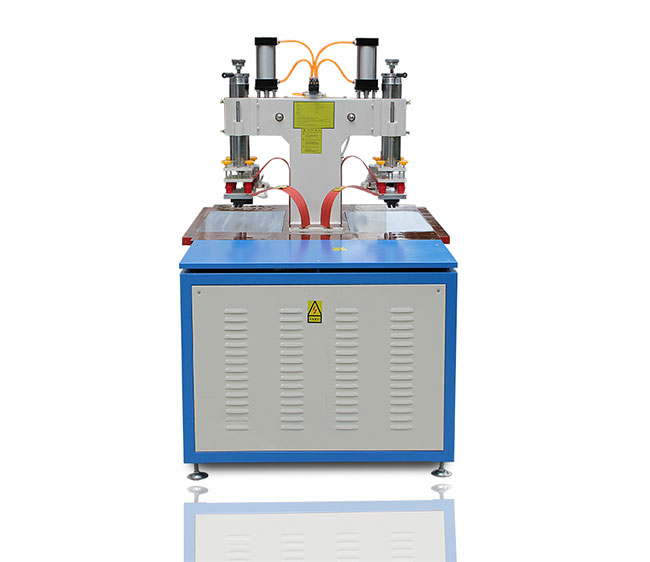

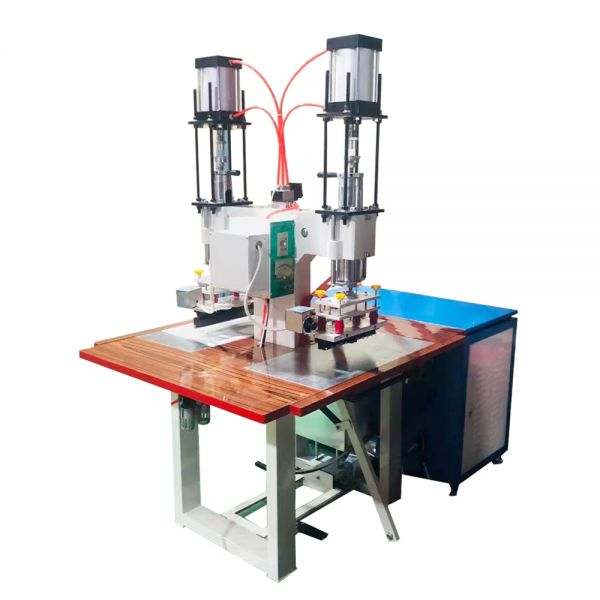

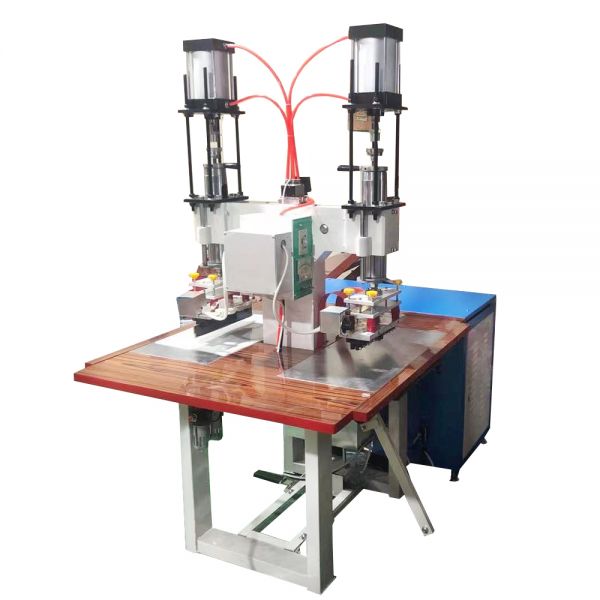

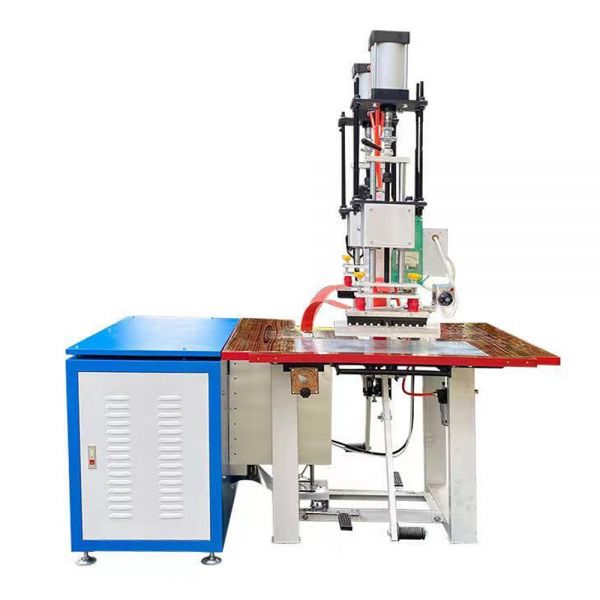

5KW Double Head Hydraulic High Frequency Machine
  • 5KW Double Head Hydraulic High Frequency Machine
  • 5KW Double Head Hydraulic High Frequency Machine
  • 5KW Double Head Hydraulic High Frequency Machine

See larger image and other views (with zoom)

5KW Double Head Hydraulic High Frequency Machine

   |   1 Transactions

รหัสสินค้า:SIT-HQ-5KW

Buyer Protection

5KW Double Head Hydraulic High Frequency Machine

Features:
1.Anti-spark machine:The anti-spark machine could cut off the high frequency to minimize the impacttowards thematerials and moulds and at the same time ,the alarm will also de on in that case.
2.Jamming prevention device,Equipped with frequency stabilizer and high frequency magnetic leakage suppressor,This device previce leakage of electromagnetic radiation to anoid jamming other electrical instruments such astelevisions and ridios,etc.
3.Safety device,When the current exceeds its limits,the overload relay functions automaticaly to protect oscillationtubes and rectifier,Frequency deviation caused dy misoperation is also prevented.
4.Mechanical structure of the special,Thanks to the excellent design and structure,our machines enjoy very fineprecision and intensity.
5. oil pressure device,It is provided hydraulic pressurizing device, which can adjust the pressure if practical,
greatlydecrease the operation difficulty and improve equipments, change the controlling method may modify thehigh- frequency processing technology.

Specifications:

Model

HQ-5KW
Output Power 5KW
Voltage AC 380V
Input Power 8KVA
Scillation Frequency 27.12MHz
Oscillation Tube 7T85RB
Max Pressure 1500kg
Working Space 270mm
Size of Lower Eleetrode 350mm*700mm
Machine Size 1800*1100*1800mm

Machine Weight

350KG

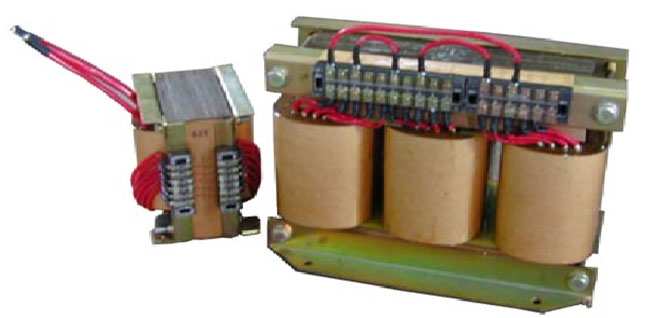

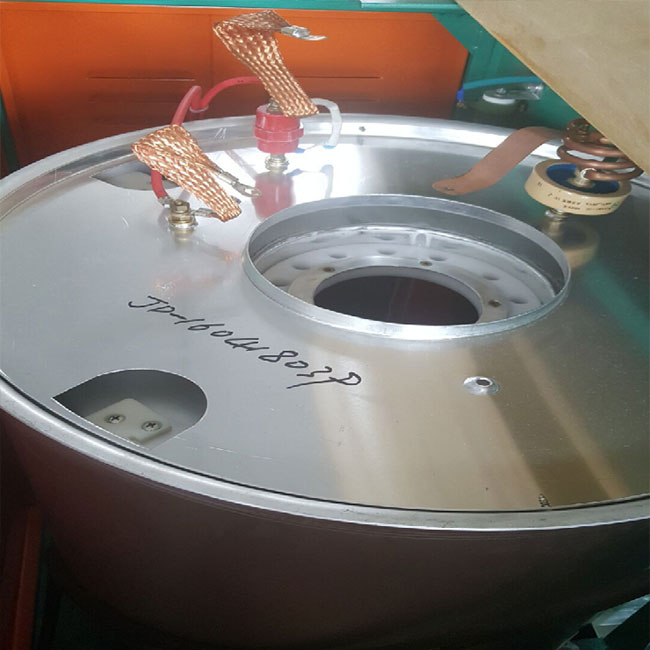

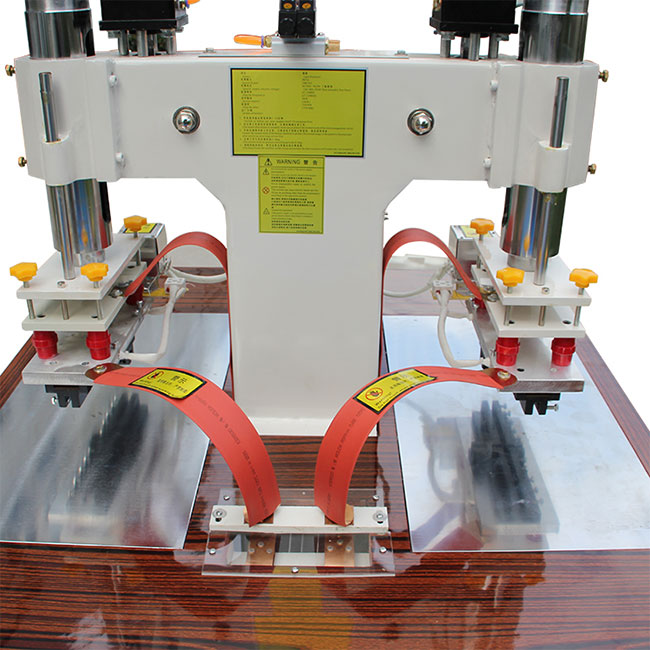

Details:




Application:

Suitable for processing PVC, TPU, EVA plastic materials or mixed materials containing 30% PVC
It can be used for plastic heat sealing, heat melting, trimming; leather embossing.

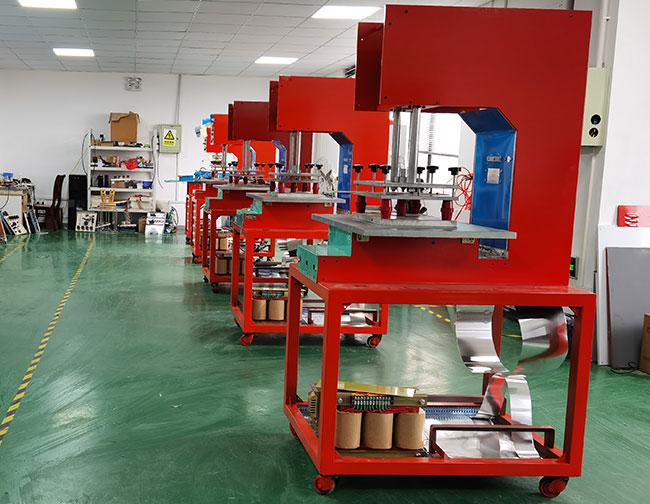

 Factory:
