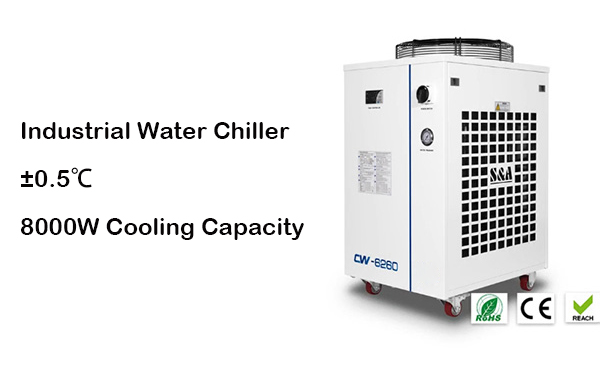

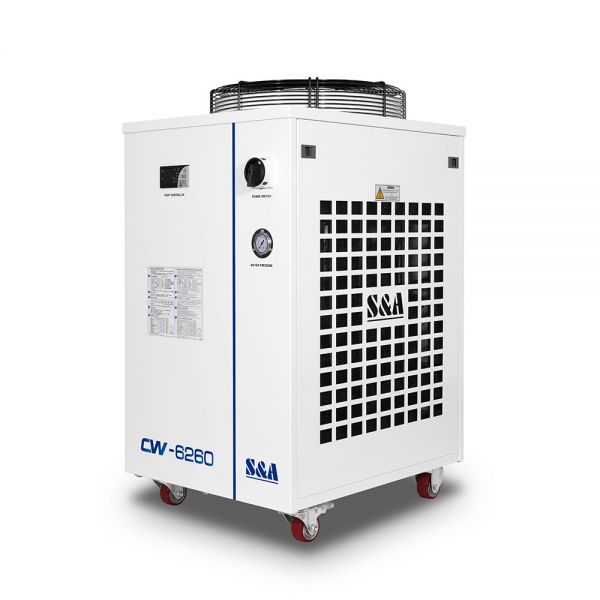

S&A CW-6260AN Industrial Water Chiller (3.76HP, AC 1P 220V 50HZ) for CO2 Laser Cutter

See larger image and other views (with zoom)

S&A CW-6260AN Industrial Water Chiller (3.76HP, AC 1P 220V 50HZ) for CO2 Laser Cutter

รหัสสินค้า:CW-6260AN

ราคา Unit : ฿ 97,787/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

จำนวน: set(s) Total Cost:
THB ฿97,787
น้ำหนักการส่ง: 333.8lb (151.73kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿

User Manual for CW-6200 series water chiller

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 0

CAUTIONS

We are authorized as "S&A" brand name product agent.
All of S&A water chillers are certified with design patent. Counterfeiting is not allowed,
Please recognize S&A logo when you purchase S&A water chillers.

Description

Laser chiller CW-6260 is the highly recommended option for cooling 400W industrial CO2 laser cutter. It is designed with a durable and reliable compressor, ensuring stable cooling performance for the laser. The controllable temperature range is 5°C to 35°C with constant temperature mode and intelligent temperature control mode available to choose from. What makes the intelligent temperature control mode special is that it enables automatic water temperature adjustment, setting users’ hands free. This laser water chiller is CE, RoHS and REACH certified and packed in durable materials. Suitable fluid would be purified water, distilled water and deionised water.

Features：

Cooling Capacity: 8kW
Active cooling
Temperature stability: ±0.5℃
Temperature control range: 5°C ~35°C
Refrigerant: R-410a
Intelligent temperature controller
Multiple alarm functions
Ready for immediate use
Easy maintenance and mobility
Visual water level

SPECIFICATION

Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.

Model	CW-6260AN
Power Supply	AC 1P 220V, 50Hz
Current	3.4~21.6A
Machine Power	4.3kW
Compressor Power	2.76kW
Compressor Power	3.76HP
Refrigerating Capacity	27876Btu/h
	8.17kW
	7024Kcal/h
Refrigerant	R-410a
Refrigerant Charge	980g
Precision	±0.5℃
Tank Capacity	22L
Reducer	Capillary
Protection	Over current protection for compressor, flow alarm, over temperature alarm
Pump Power	0.55kW
Maximum Flow	70L/min
Maximum Pumping Lift	44M
Inlet and Outlet	Rp1"
Net Weight	95Kgs(209.4lb)
Gross Weight	111Kgs(244.7lb)
Product Dimension	30.3" x 21.7" x 40.6" (770 x 550 x 1030mm)
Package Dimension	33.5" x 29.5" x 46.9" (850 x 750 x 1190mm)

CONTOUR AND PARTS INTRODUCTION

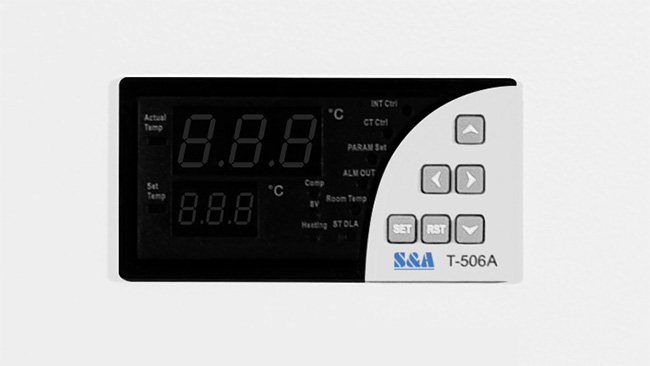

Intelligent temperature controller
The temperature controller offers high precision temperature control of ±0.5°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

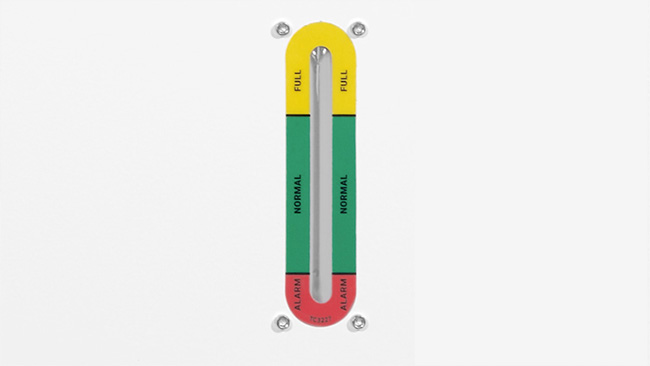

Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

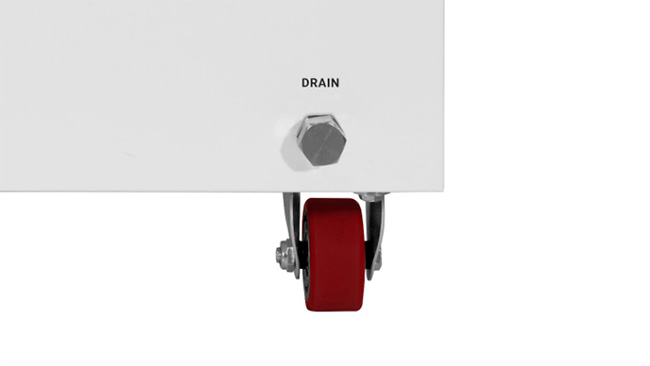

Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.

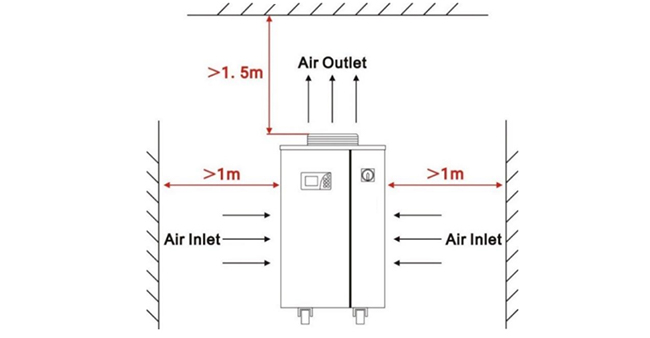

Ventilation Distance

Certificate

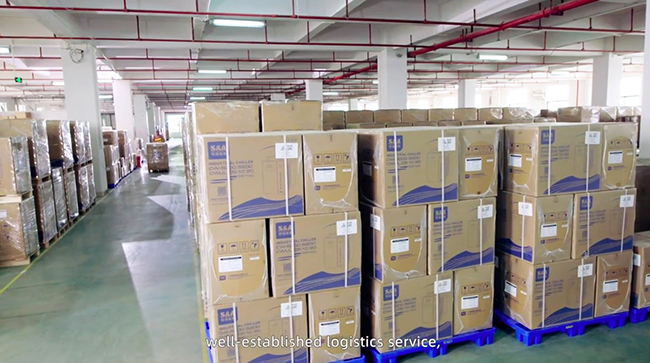

Warehouse

Test System

Packing

Installation

Open the package to check if the machine is intact and all the necessary accessories are completed.

Open the injection port to feed cooling water. (Do not let the water spill over!)

Observing the water level gauge and adding water slowly, be careful not to have the water overflowed! For the cooling of carbon steel equipment, the water should be added an appropriate amount of cooling water additive (anti-corrosion water aqua). Working in cold north area, it’s better to use noncorrosive antifreeze fluid.

According to system conditions, please connect the water inlet and outlet pipe well.

Plug in power, turn on the power switch. (Do not start up without water in the water tank!)

(1) Power switch turned on, the circulation pump of the chiller starts working. The first time of operating may cause more bubbles in the pipe leading to a flow alarming occasionally, but running for a few minutes later, it will go back to normal.
(2) After the first boot, you must immediately check whether the water pipe leaks.
(3) Power switched on, if the water temperature is below the set value, it is normal that fans and other components of the machine do not work. The temperature controller will automatically control the working conditions of the compressor, magnetic valve, fans and other parts based on the set controlling parameters.
(4) As it takes a longer time to start over the compressor and other components, according to different conditions, the time is range from seconds to minutes, so do not turn off the power and again on frequently.

Check the water level in the water tank.

The first startup of the new chiller empties the air in the water pipe, leading a slight water level decline, but in order to keep the water level in the green area, it’s allowed to add adequate water again. Please observe and record the current water level, and inspect it again after the chiller running for a period of time, if the water level drops obviously, please re-inspect the water pipeline leakage.

Adjust parameters of temperature controller.

CW-6200 series use an intelligent thermostat. Normally users do not need to adjust it. If it is really necessary, please refer to page 17, “Operating status and parameters adjustment.”

Cautions

Please ensure that the power supply and electrical outlet are in good contact and the earth wire must be firmly grounded!

Please make sure there is stable and normal voltage for the working chiller!

As the refrigeration compressor is more sensitive to the power supply and voltage, so the operating voltage of our standard product is of 210 ~ 240V (110V model is of 100 ~120V). If you do need a wider operating voltage range, customization is available for us.

Unmatched power frequency can cause the chiller damage!

Please choose model of 50Hz or 60Hz according to actual circumstance.

To protect the pump, it’s strictly forbidden to run the chiller without water in the storage water tank!

The new machine is packed after draining whole water in the tank, so please make sure the tank has water inside before machine starting, otherwise it’s easily to have the pump damaged. When the water level is below the green (NORMAL) range of the water level gauge, the cooling capacity of our chiller will go down slightly. Hence please ensure the water level is within the green (NORMAL) range. To drain through circulating pump is strictly prohibited!

Please be sure that the air inlet and air outlet are in good ventilation!

There must be at least 30cm from obstructions to the air outlet which is in the back of the cooler, and should leave at least 8cm between obstructions and the side air inlet.

The filter screen must be regularly cleaned!

It’s essential to unpick and wash the dust gauze, or the serious blockage will cause breakdown to the chiller.

Please pay attention to the effect of the condensate water!

With greater ambient humidity, when the water temperature is lower than the ambient temperature, the condensate water will generate on the surface of water circular pipes and the cooled components. If above circumstance appears, it is recommended to set a higher water temperature or keep pipes and cooled parts warm.

Professional use only!

The appliance is not to be used by children or persons with reduced physical,sensory or mental capabilities, or lack of experience and knowledge,unless they have been given supervision or instruction,children being supervised not to play with the appliance!

Troubleshooting

Failure	Failure Cause	Approach
Machine turned on but unelectrified
	Power cord is not plugged in place	Check and ensure the power interface and the power plug is plugged in place and in good contact.
	Fuse burnt-out	Replace the protective tube in the power socket on the back of chiller.
Flow Alarm (controller displays E6)use a water pipe directly connect to the water outlet and inlet but still without water flowing	Water level in the storage water tank is too low	Check the water level gauge display, add water until the level shown in the green area; And check whether water circulation pipe leaks.
Flow Alarm occurs while running with other equipment (controller displays E6),but there is water flowing and no alarm whten use a water pipe directly connected to the chiller water outlet and inlet.	Water circulation pipes are blocked or a pipe bending deformation.	Check water circulation pipe
Ultra-high temperature alarm (controller displays E2)
	Blocked dust gauze, bad thermolysis	Unpick and wash the dust gauze regularly
	Poor ventilation for air outlet and inlet	To ensure a smooth ventilation for air outlet and inlet
	Voltage is extremely low or astable	To improve the power supply circuit or use a voltage regulator
	Improper parameter settings on thermostat	To reset controlling parameters or restore factory settings
	Switch the power frequently	To ensure there is sufficient time for refrigeration (more than 5 minuets)
	Excessive heat load	Reduce the heat load or use other model with larger cooling capacity
Ultrahigh room temperature alarm (controller displays E1)	The working ambient temperature is too high for the chiller	To improve the ventilation to guarantee that the machine is running under 40℃.
Serious problem of condensate water	Water temperature is much lower than ambient temperature, with high humidity	Increase water temperature or to preserve heat for pipeline
Water drains slowly from outfall during water changing	Water supply inlet is not open	Open the water supply inlet
