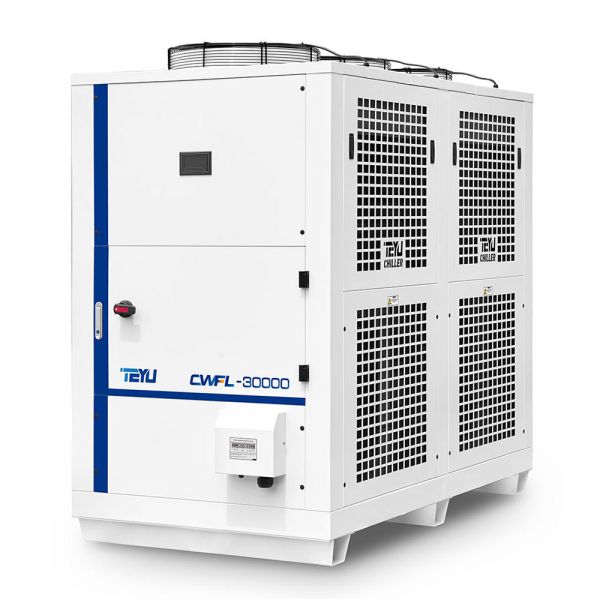

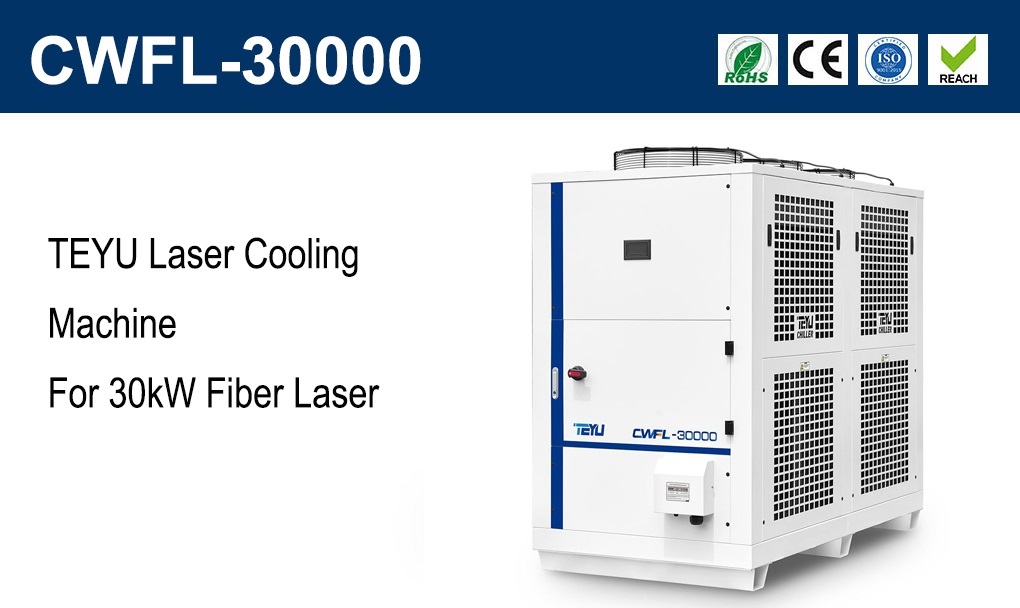

Laser Cooling Machine CWFL-30000 for 30KW High Performance Fiber Laser( AC 3P 380V, 60HZ)

See larger image and other views (with zoom)

Laser Cooling Machine CWFL-30000 for 30KW High Performance Fiber Laser( AC 3P 380V, 60HZ)

รหัสสินค้า:CW-FL-30000FTTY

ราคา Unit : ฿ 795,310/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

จำนวน: set(s) Total Cost:
THB ฿795,310
น้ำหนักการส่ง: 3083.1lb (1401.4kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 0

Laser Cooling Machine CWFL-30000 for 30KW High Performance Fiber Laser( AC 3P 380V, 60HZ)
Laser cooling machine CWFL-30000 is designed to offer advanced features while also making 30KW fiber laser cooling easier and more efficient. With dual refrigeration circuit, this circulating water chiller has enough capacity to cool the fiber laser and the optics independently and simultaneously. All of the components are carefully selected to ensure reliable operation. A smart temperature controller is installed with advanced software to optimize the chiller's performance. The refrigerant circuit system adopts solenoid valve bypass technology to avoid frequent start and stop of the compressor to prolong its service life.

Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.

Features:
1. Dual cooling circuit
2. Active cooling
3. Temperature stability: ±1°C
4. Temperature control range: 5°C ~35°C
5. Refrigerant: R-407C
6. Intelligent digital control panel
7. Integrated alarm functions
8. Back mounted fill port and easy-to-read water level check
9. RS-485 Modbus communication function
10. High reliability, energy efficiency and durability

Specification

Model	CW-FL-30000FTTY
Voltage	AC 3P 380V
Frequency	60Hz
Current	7.9~62.5A
Machine power	25.66kW
Heater power	1800W+10800W
Precision	±1℃
Reducer	Capillary
Pump power	5.5kW
Tank capacity	330L
Inlet and outlet	Rp1/2" + Rp2"
Lift	8bar
Rated flow	10L/min+250L/min
Warranty	2 years
Standard	CE, REACH and RoHS
N.W	737Kgs (1624.8lb)
G.W	966Kgs (2129.7lb)
Dimension	228cm x 112cm x 190cm (90" x 44.1" x 74.8")
Package dimension	239cm x 137cm x 214cm (94" x 54" x 84.3")

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Details

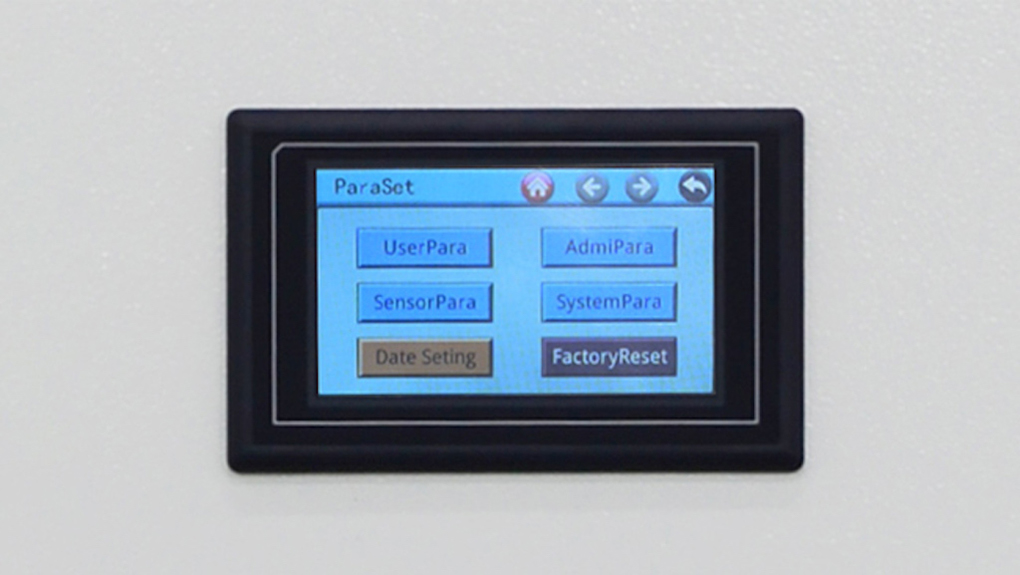

Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the optics.

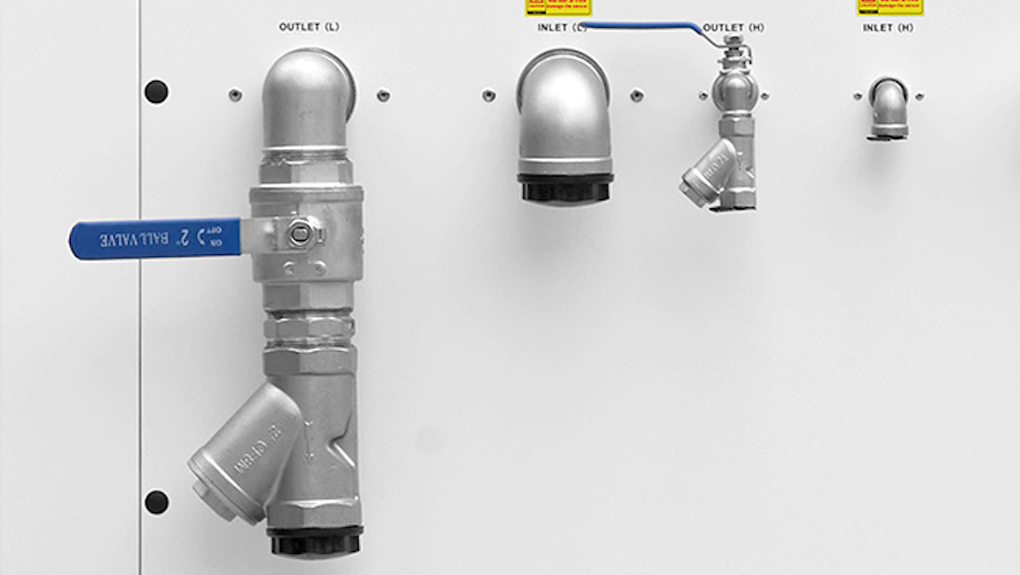

Dual water inlet and water outlet
Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

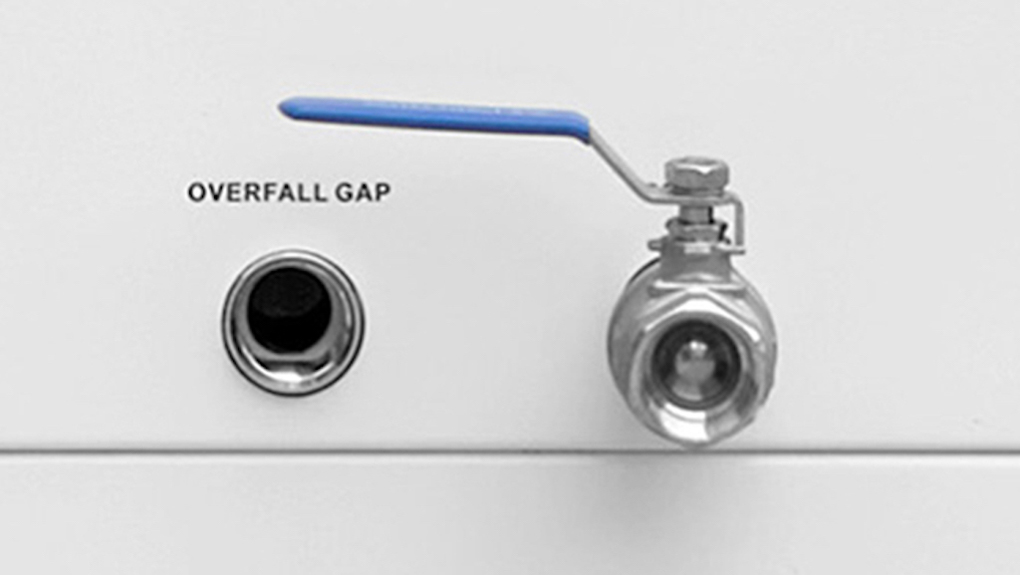

Easy drain port with valve
Draining process can be controlled very easily.

Certificate

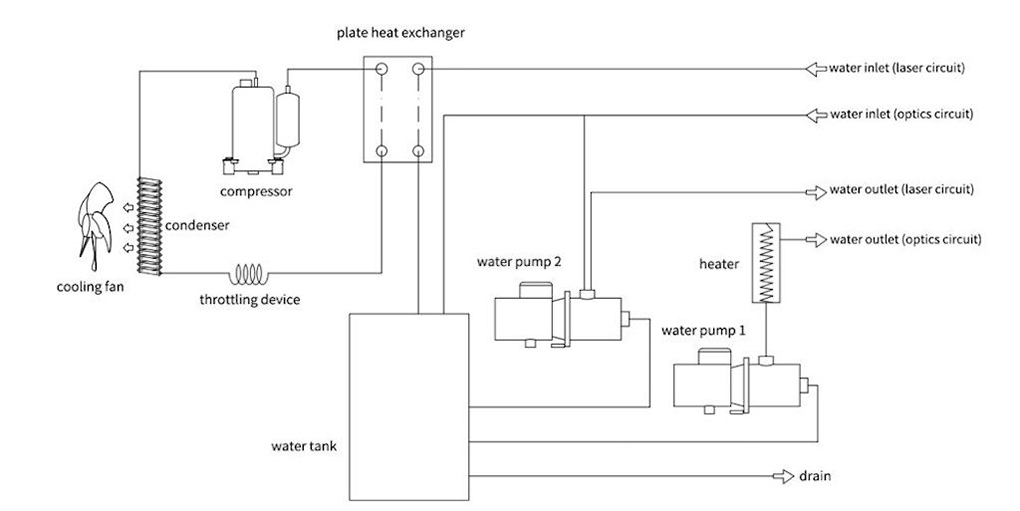

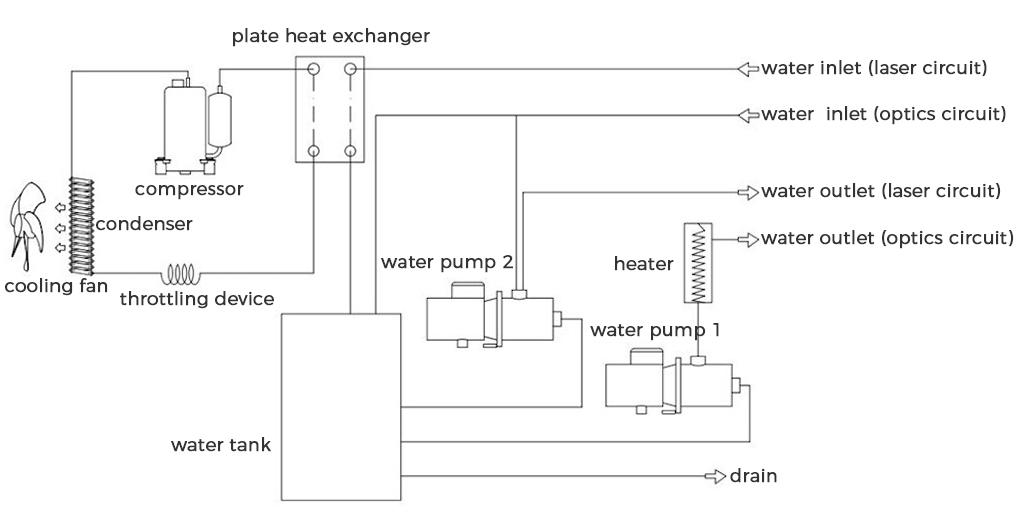

Product Working Principle

Warehouse
