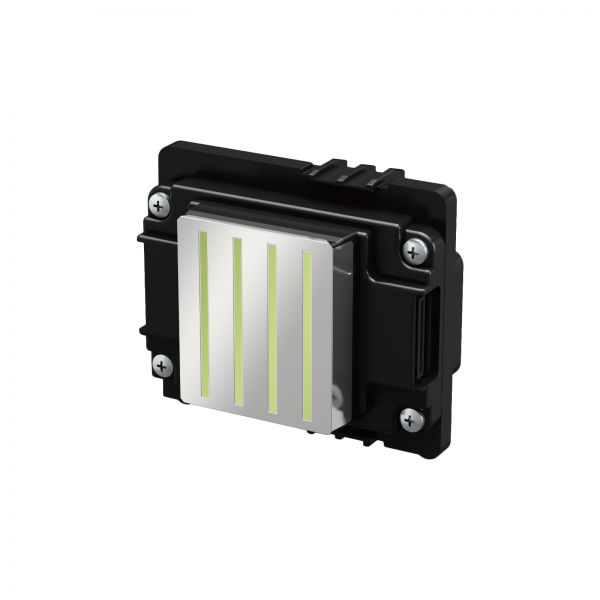

Epson I3200-U1HD Printhead
  • Epson I3200-U1HD Printhead

See larger image and other views (with zoom)

Epson I3200-U1HD Printhead

   |   26 Transactions

รหัสสินค้า:SIT-PRH-EPS-UV-068

Buyer Protection

Epson I3200-U1HD Printhead, special for A3 UV printer (UVFP-UL-A3)

Specifications:
Product name: Epson I3200-U1HD
Ink type: UV
Type: PrecisionCoreMicroTFP Printhead
Width × Depth × Height: 2.7×2.3× 1.4 inch (69.1x 59.4 x 35.6mm)
Weight: 82g
Number of nozzle: 3200
Nozzle pitch / nozzle row: 1/300 inch
Nozzle rows: 8 rows
Nozzle Resolution: 300npi/row, 600npi/2 rows
Max. number of color inks: 4 colors
Effective print width: 1.33 inches (33.8 mm)
Viscosity range: 5.0-7.0 mPa・s
Positioning Mechanism: Reference hole
Remarks: Original

Features:
1. PrecisionCore Technology
a.MEMS manufacturing and thin film piezo technology enable high precision and a high nozzle density, creat-ing compact, high-speed, high-quality print heads with excellent image quality.
b. Epsonʼs unique precision MEMS nozzles and ink flow path, ensure that perfectly round ink droplets are placed accurately and consistently.
2. Support for grey scale
Epsonʼs unique Variable Sized Droplet Technology (VSDT) delivers smooth graduations by ejecting droplets of different volumes.
3. High resolution​
Ink ejection of up to 4 colours realizes with high resolution (600 dpi/colour).
4. High durability
PrecisionCore print heads have proven durability and extended service life demonstrated by Epsonʼs own industrial printers.
