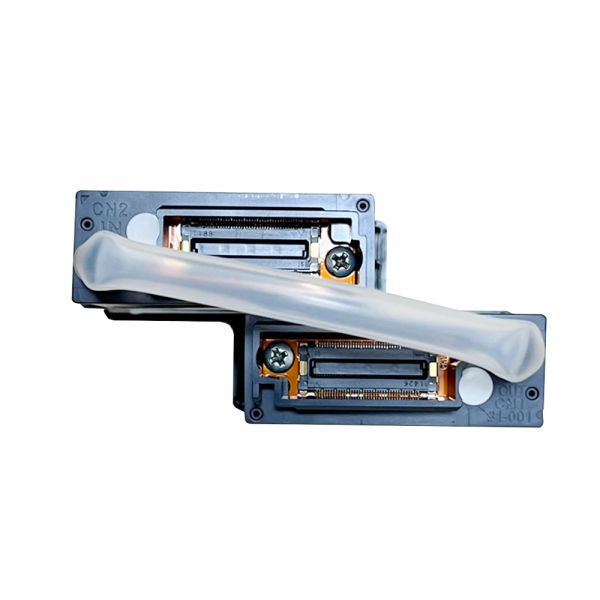

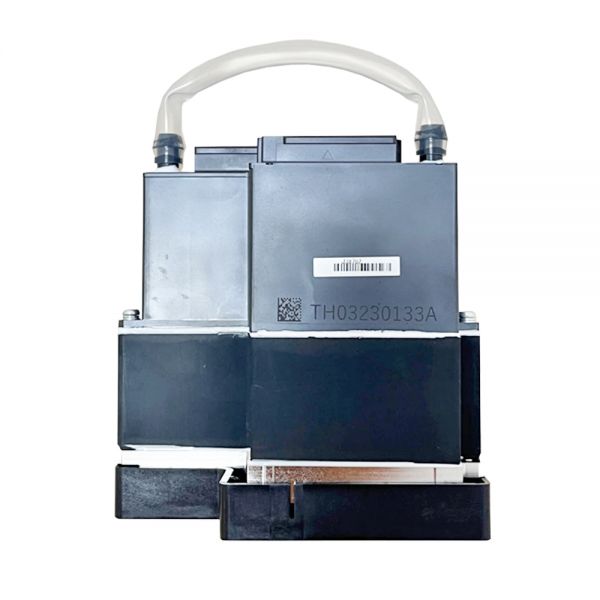

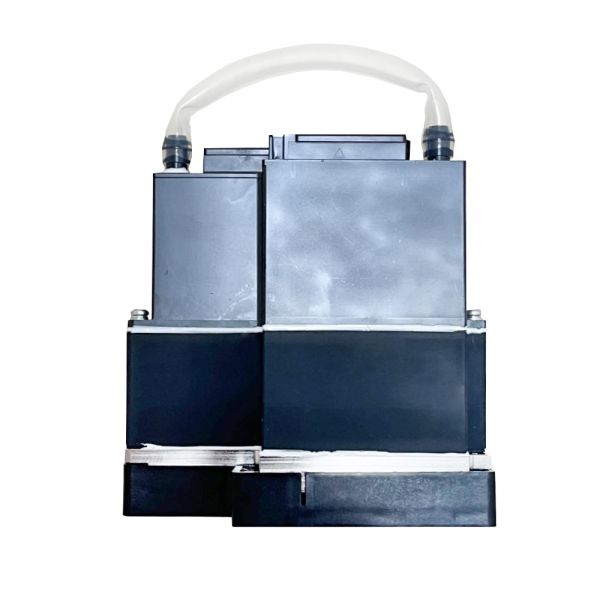

Ricoh TH6310F Printhead, (1 color, 5PL) - J388-00

See larger image and other views (with zoom)

Ricoh TH6310F Printhead, (1 color, 5PL) - J388-00

| 1 Transactions

รหัสสินค้า:SIT-PRH-RICOH-013

ราคา Unit : ฿ 106,162/pc (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 6-10 วัน)

จำนวน: pc(s) Total Cost:
THB ฿106,162
น้ำหนักการส่ง: 1.1lb (0.5kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿
Customers Who Bought This Item Also Bought

< >
มอเตอร์สแกนสำหรับเครื่องพิมพ์ Mimaki Mimaki JV3-160S / JV3-160SP / JV3-250SP / JV22-130 / JV22-160 --- Mimaki Scan Motor for JV22/ JV3

฿4,172 - 4,585/pc

Cap สำหรับเครื่องพิมพ์ Roland SJ-740 / FJ-740 / XC-540 / RS-640 / VP-540 ฯลฯ สินค้าของแท้ (หมายเลขชิ้นส่วน 1000004546 / 1000002794)--- Cap Capping Top

฿727 - 765/pc

มอเตอร์สแกนสำหรับเครื่องพิมพ์ Mimaki Mimaki JV3-160S / JV3-160SP / JV3-250SP / JV22-130 / JV22-160 --- Mimaki Scan Motor for JV22/ JV3

฿4,172 - 4,585/pc

Cap สำหรับเครื่องพิมพ์ Roland SJ-740 / FJ-740 / XC-540 / RS-640 / VP-540 ฯลฯ สินค้าของแท้ (หมายเลขชิ้นส่วน 1000004546 / 1000002794)--- Cap Capping Top

฿727 - 765/pc

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 1

Buyer
ราคา Unit
จำนวน
Order Date

Sto****
$106162.00
1 pc
2024-04-25

Ricoh TH6310F Printhead, (1 color, 5PL) - J388-00

Characteristics:
Precise control of an ink droplet landing position even with wide print gap
In addition to high precision jetting enabled by MEMS technology, that achieves a nozzle placement design that avoids air flow influencing adjacent drops and effecting the image quality, and also achieves a stable ink droplet landing on media with a wide print gap and results in high image quality printing.

Improved printing reliability with the ink circulation mechanism
Reduces the risk of missing jets due to nozzle dryness and ink particle sedimentation by circulating ink behind the nozzles.

High productivity at 600dpi multi-drop jetting
It enables ink jetting at 80kHz at 5pl binary driving or 40kHz at 5/10/18pl multi-drop driving. It also achieves the high productivity of 100m+/minute print speed at 600 dpi.

Simple Design
One in/out ink tube connection enables a simple ink delivery system for designing a printer.

Ink Compatibility
It is compatible with all types of ink such as Aqueous, UV and Solvent for wide applications from Textile/Label to Corrugated.

Thin film piezo printhead with high-definition, high-reliability and high-versatility.

Specification:

RICOH TH6310
Method	Thin-film piezoelectric transducer with bend mode
Print Width	66.7mm
Number of nozzles	1,600 (8 × 100 channels × 2 Modules), staggered(Net: 1,576)
Nozzle Resolution	600npi
Nozzle spacing (Row to row distance)	A: 0.677mm (8 pixels of 600npi) B: 20.909mm (494 pixels of 600npi)
Compatible ink	Aqueous, UV, Solvent, Others.
Total printhead dimensions	W : 104.6mm D : 44.9mm H : 104mm
Weight	374g
Max.number of color inks	1 color
Operating temperature range	60°C
Temperature control	Integrated thermistor, heater
Firing frequency	80kHz(2 levels) 60kHz(3 levels) 40kHz(4 levels)
Grayscale	4 levels
Drop volume	5pL(Single drop) 5-18pL(Multi drop)
Viscosity range	5.5mPa・s
Surface tension	31.6±5mN/m
Ink circulation structure	〇
Separately sold parts	TH6310F dedicated cable
