All-in-One Design Chiller Machine 3000FNW12 for 3kW Handheld Welder Cutter Engraver Cleaner
  • All-in-One Design Chiller Machine 3000FNW12 for 3kW Handheld Welder Cutter Engraver Cleaner

See larger image and other views (with zoom)

All-in-One Design Chiller Machine 3000FNW12 for 3kW Handheld Welder Cutter Engraver Cleaner



รหัสสินค้า:CWFL-3000FNW12TY

  • ราคา Unit : ฿ 62,491/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

  • จำนวน: set(s) Total Cost: ฿62,491
  • น้ำหนักการส่ง: 345.3lb (156.96kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection


All-in-One Design Chiller Machine 3000FNW12 for 3kW Handheld Welder Cutter Engraver Cleaner

Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.

Description:

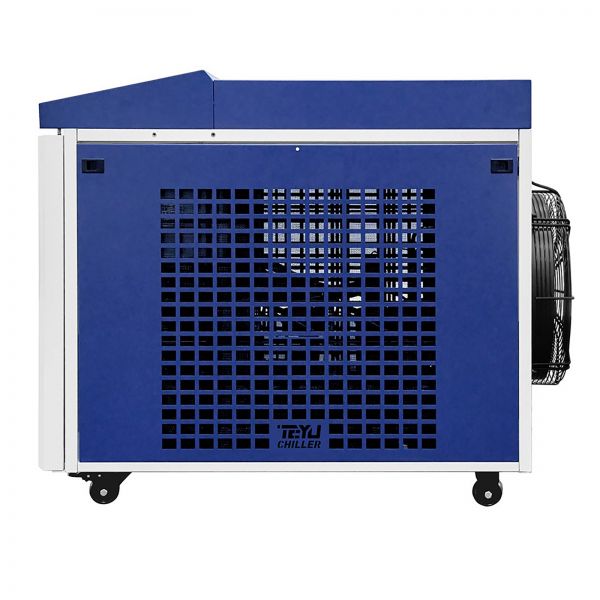

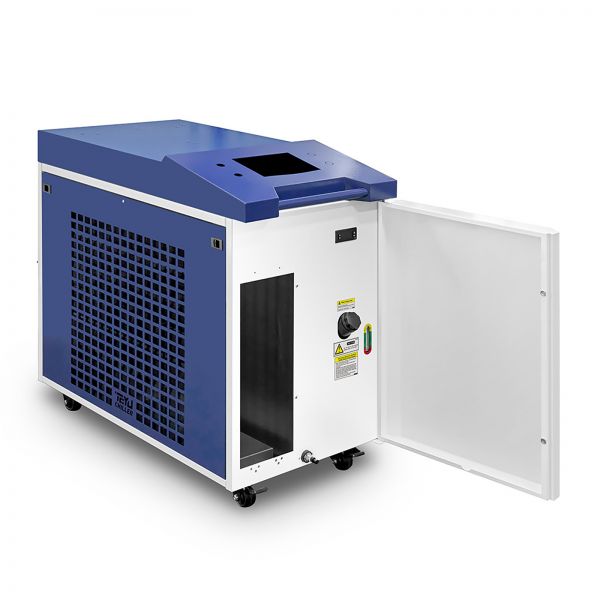

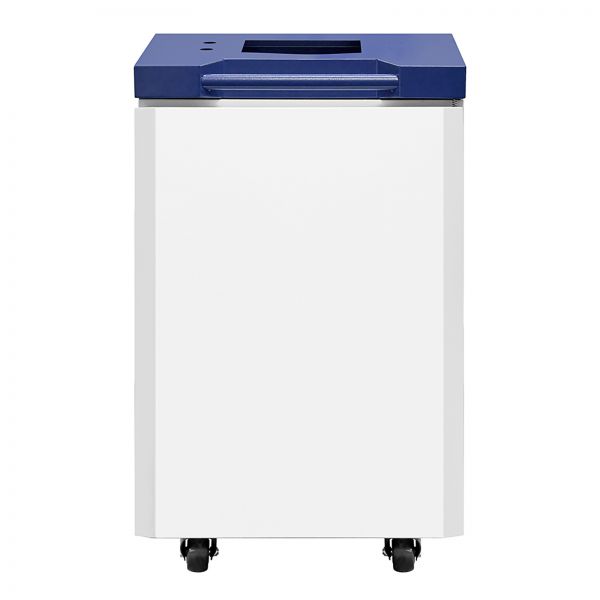

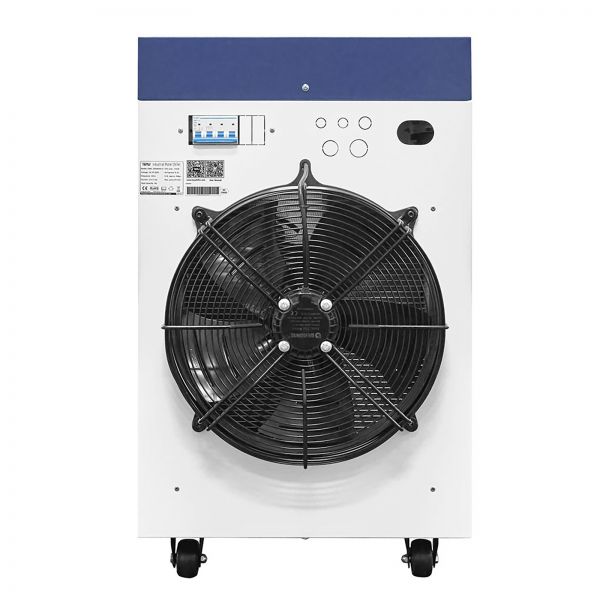

All-in-one handheld chiller machine CWFL-3000FNW12 is user-friendly in that users no longer need to design a rack to fit in the laser and the rack mount water chiller. With a built-in industrial chiller, after installing the user's fiber laser for welding/cutting/cleaning, it constitutes a portable and mobile handheld laser welder/cutter/cleaner.
All-in-one handheld chiller machine CWFL-3000FNW12 boasts dual cooling circuits that can simultaneously cool both the fiber laser and the optics/laser gun. Manufactured with premium compressor, evaporator, water pump, and sheet metal, the handheld laser chiller CWFL-3000FNW12 is robust and durable. Excellent workmanship, efficient cooling, easy installation and maintenance! Note that the fiber laser is not included in the package.

Features:
1. Dual cooling circuit
2. Active cooling
3. Temperature stability: ±1°C
4. Temperature control range: 5°C ~35°C
5. All-in-one design, Space-saving
6. Lightweight, Movable
7. Easy to carry
8. User-friendly
9. Applicable to various application scenarios
(Note: fiber laser is not included in the package)

Specification

Model CWFL-3000FNW12TY
Voltage AC 3P 380V 60Hz
Current 2.3~18.9A
Max. power consumption 4.17kW
Compressor power 2.22kW, 2.97HP
Precision ±1℃
Reducer Capillary
Pump Power 0.48kW
Tank Capacity 16L
Inlet and Outlet Φ6 Fast connector + Φ20 Barbed connector
Max. pump pressure 4.3bar
Refrigerant R-410a
Rated flow 2L/min+>20L/min
Net Weight 94Kg(207lb)
Gross Weight 114Kg(251lb)
Dimension 44.1" x 21" x 37.8" (112 x 53 x 96cm)
Package Dimension 47.2" x 23.6" x 43" (120 x 60 x 109cm)

Note:
1. The working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product;
2. Clean, pure, impurity free water should be used. The ideal one could be purified water, clean distilled water, deionised water, etc.;
3. Change out the water periodically (every 3 months is suggested or depending on the actual working environment);
4. Location of the chiller should be well ventilated environment. There must be at least 50cm from the obstacles to the air outlet which is on the top of the chiller and should leave at least 30cm between obstacles and the air inlets which are on the side casing of the chiller.

PRODUCT INTRODUCTION

Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level
Green area - normal water level.
Red area - low water level.

Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.
