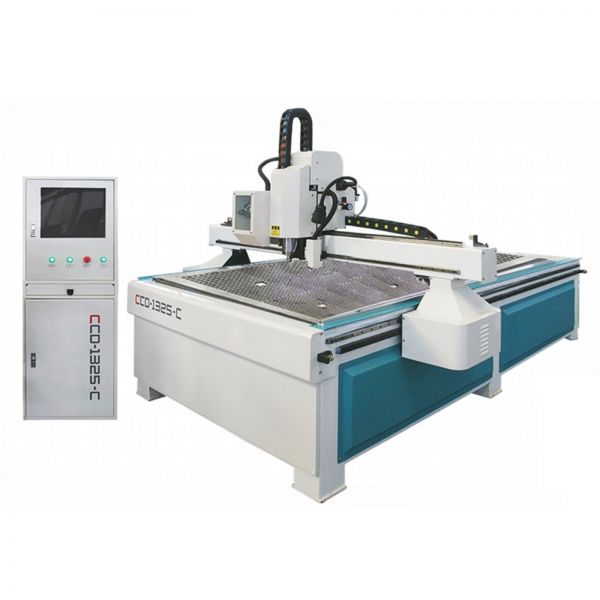

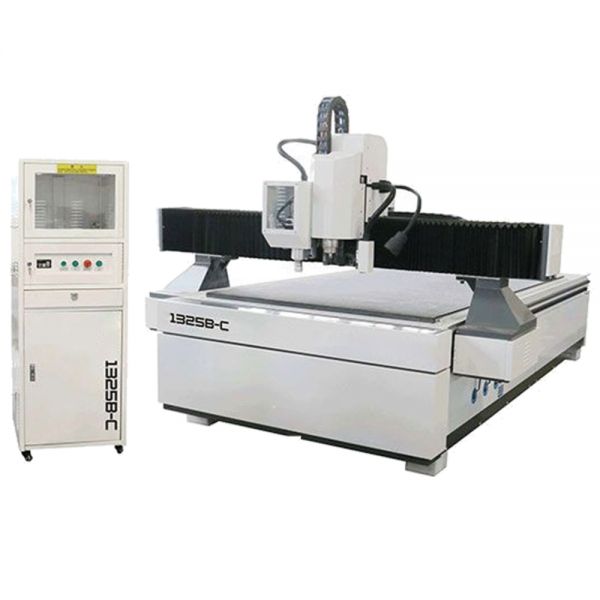

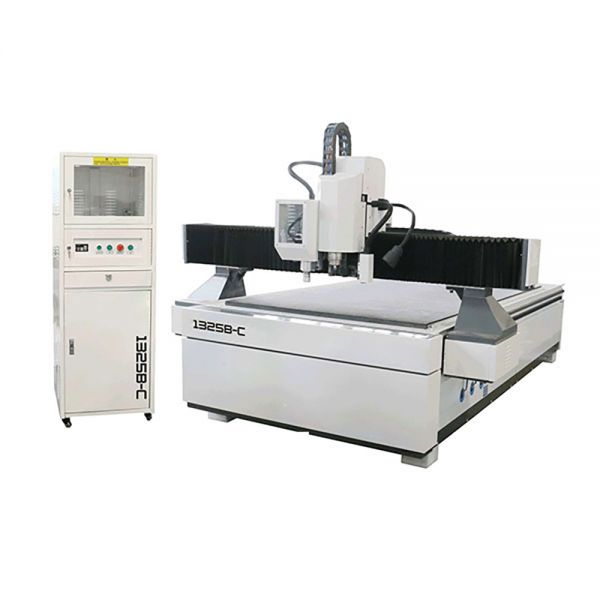

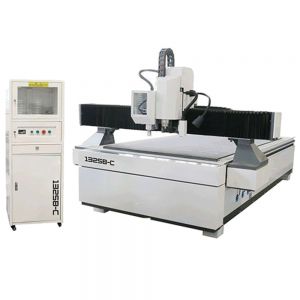

เครื่องแกะสลักซีเอ็นซีเร้าเตอร์ไดคัท 2ระบบดิจิตอล----1300mm x 2500mm CNC Engraving Machine, 2 Digital Die Cutters CNC ROUTER 1325
  • เครื่องแกะสลักซีเอ็นซีเร้าเตอร์ไดคัท 2ระบบดิจิตอล----1300mm x 2500mm CNC Engraving Machine, 2 Digital Die Cutters CNC ROUTER 1325

See larger image and other views (with zoom)

เครื่องแกะสลักซีเอ็นซีเร้าเตอร์ไดคัท 2ระบบดิจิตอล----1300mm x 2500mm CNC Engraving Machine, 2 Digital Die Cutters CNC ROUTER 1325

   |   390 Transactions

รหัสสินค้า:SIT-CCD-1325B-C

Buyer Protection

คุณสมบัติ:
หัวเครื่อง Mlli-funtion พร้อมการคว้านและการลากการตั้งตำแหน่งกล้องที่ตั้งไว้ล่วงหน้า
ตัวขับลานเกลียวแกน XY, สกรูแกน Z ความแม่นยำสูง, การทำงานที่เสถียรและความต้านทานการสึกหรอสูง
·เข้ากันได้กับซอฟต์แวร์ CAM ขั้นสูงใด ๆ ในโลก: Type31ArtcamICAXAlUG / Pro-EMastercamlucancam ฯลฯ
ตัวยึดแผ่นสไลด์ Z-direction และแผ่นขับ X-direction เป็นแบบหล่อและโครงสร้างมีความเสถียรสูงและความแม่นยำสูงคู่มือการเชิงเส้นแบบมาตรฐานที่นำเข้าทั้งหมดความจุแบริ่งที่แข็งแกร่งการทำงานที่มั่นคงและความแม่นยำที่สูงขึ้น
·หนัง, กระดาษแข็ง, กระดานสีเทา, KT board, Chevron board, แผ่นรังผึ้ง, สติกเกอร์รถ, โคมไฟ, กาว PP, ผ้าอิงค์เจ็ท, แบนเนอร์ผ้า, กระดาษลูกฟูกรุ่นต่างๆ, โฟม EPE, EVA, กระดาน PVC, แผ่นอะคริลิค, MDF, ขายไม้กระดาน ฯลฯ



Features:
· Mlli-funtion machine head with boring and mlling,ull-cut utting,precise camera positioning.
· XY axis helical rack drive, Z- axis screw drive. High precision, stable operation and high wear resistance.
· Compatible with any advanced CAM sofware in the world:Type31ArtcamICAXAlUG/Pro-EMastercamlucancam,etc.
· The bracket,the Z-direction slide plate and the X-direction drive plate are castings,and the structure has high stabilitand high precision.Standard imported linear guide all,strong bearing capacity,stable operation and higher precision.
· Leather, cardboard,gray board,KT board,Chevron board,honeycomb board,car sticker,lamp,PP adhesive,inkjet cloth,banner cloth,various corrugated paper,EPE foam,EVA,PVC board,foam,Acrylic sheet,MDF,Sold wood board,etc.

Technical Parameters: ค่าพารามิเตอร์ทางเทคนิค:

Model  รุ่น CCD-1325B-C
Working area  พื้นที่ทำงาน X1300 x Y2500 x Z150mm
Control system  ระบบควบคุม NC Studio Control System + CCD Control System

Vibrating knife cutting speed

ความเร็วการตัดมีดสั่น

15m/min

Vibrating knife cutting thickness

ความหนาการตัดมีดสั่น

≤50mm(According to different materials,special thickness can be customized)
Spindle  สปินเดิ้ล Oscillating Tool and 3KW Water-cooled Spindle
Spindle speed  ความเร็วสปินเดิ้ล 6000-24000 rpm/min
Working voltage แรงดันไฟการทำงาน AC220V/50Hz or AC380V/50Hz
Engraving tools เครื่องมือการแกะสลัก Ø3.175/4/6/12.7mm
File format รูปแบบไฟล์ DXF/PLT/JPG/TIF/NC,etc
Positioning accuracy  ความแม่นยำของตำแหน่ง ±0.05mm
Repeat positioning accuracy ความแม่นยำของตำแหน่งซ้ำ ±0.02mm
Size  ขนาด L3270 x W2260 x H1800

Features:

• Adopt heavy duty structure,CNC machinery center processing and forming,high strength and good stability.
• Configure with high accuracy THK linear rail,high accuracy helical gear rack transmitting,more stability,higher precision.
• Configured advanced NC controlling system and CCD control system,with oscillating knife,quick calculation,strong anti-interference ability.
• Equipped with industrial camera,the probe is clear.High positioning precision.
• Standard configured with 220V 3KW high speed water cooling spindle motor,high power high efficiency.
• Independent control cabinet,stronger power and weak power separate,maintenance easily.
• Be compatible with many CAD/CAM software like Type3/Artcam/Castmate/Probe/UG/Artgrave etc.
• Standard with industrial matrix vacuum system.

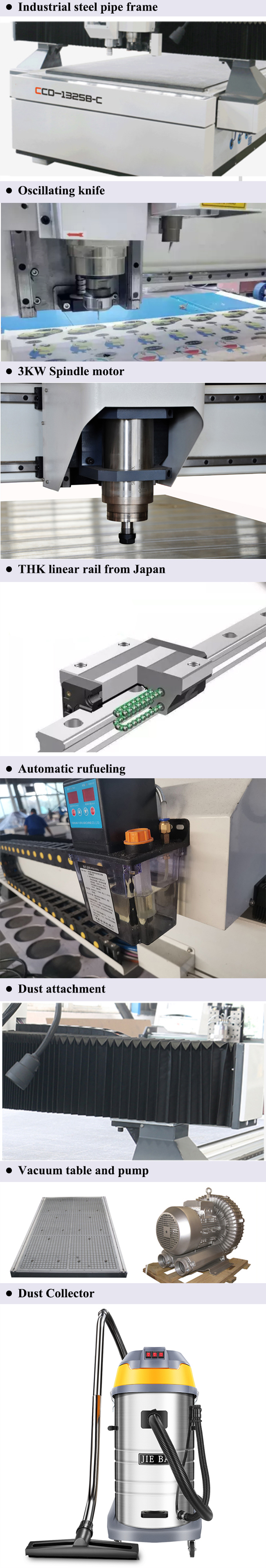

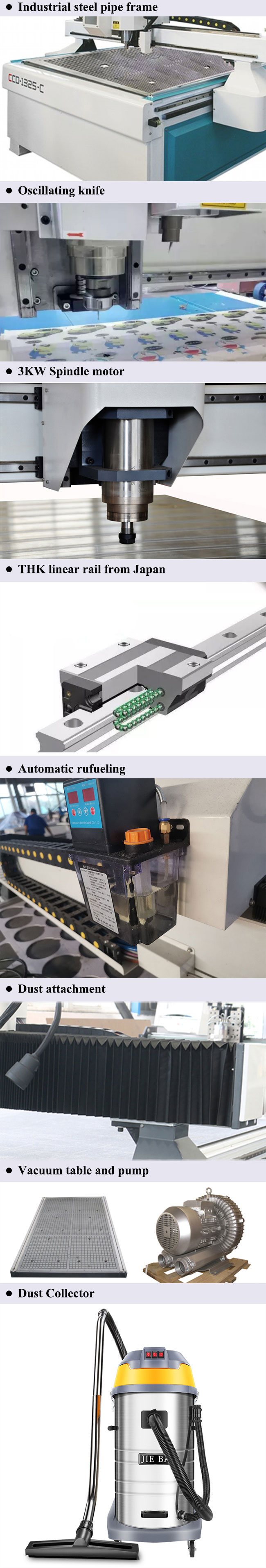

Details:

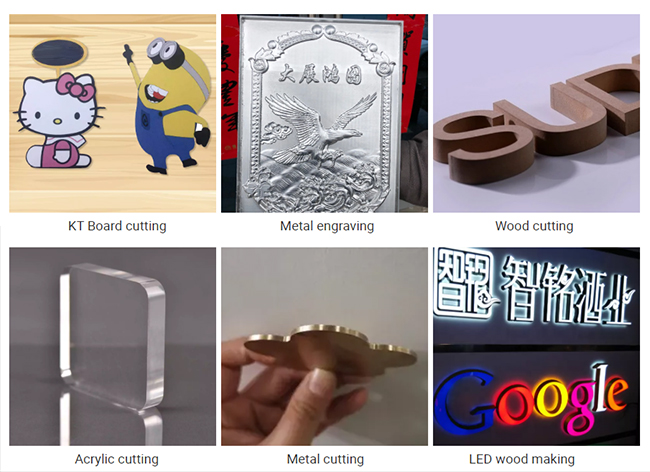

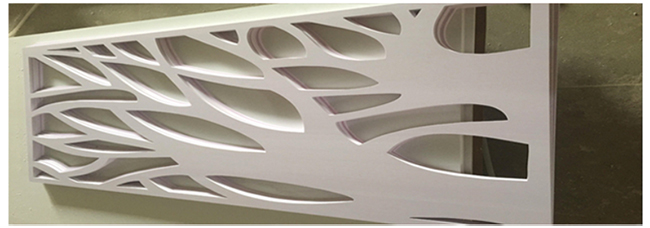

Applications:

Leather, cardboard,gray board,KT board,PVC board,Chevron board,honeycomb board,car sticker,lamp,PP adhesive,inkjet cloth,banner cloth,various corrugated paper,EPE foam,EVA,foam,Acrylic sheet,MDF,Sold wood board,etc.

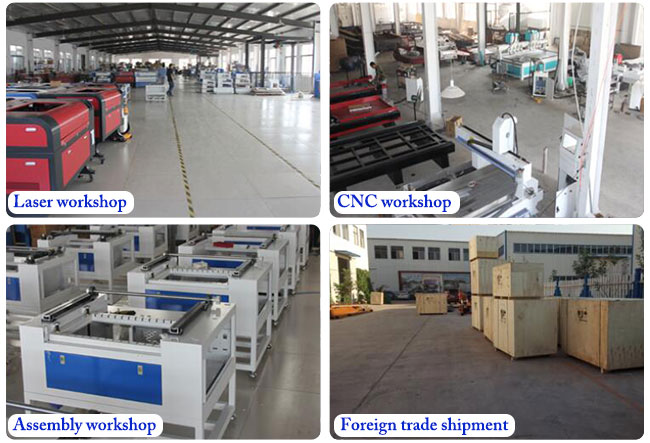

Factory:



Exhibition Gallery:

Certifiation:
