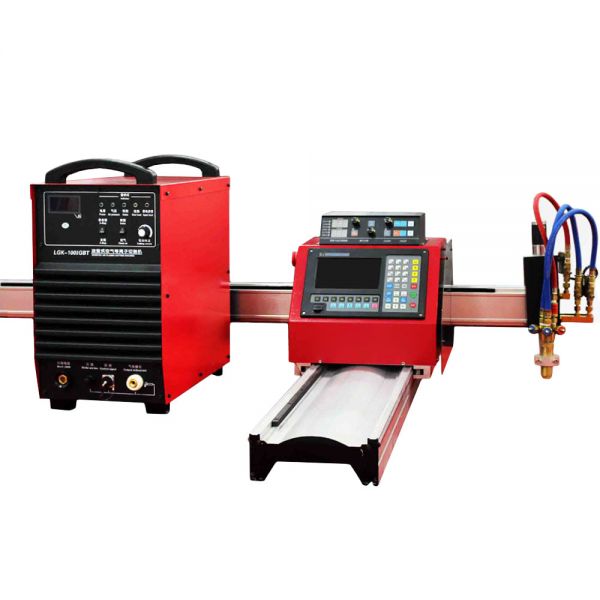

เครื่องตัดพลาสม่า CNC แบบพกพา 1530---1530 Metal Portable CNC Plasma Cutting Machine
  • เครื่องตัดพลาสม่า CNC แบบพกพา 1530---1530 Metal Portable CNC Plasma Cutting Machine

See larger image and other views (with zoom)

เครื่องตัดพลาสม่า CNC แบบพกพา 1530---1530 Metal Portable CNC Plasma Cutting Machine

   |   84 Transactions

รหัสสินค้า:SIT-KP-1530

  • ราคา Unit : ฿ 111,789/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

  • กรุณาเลือกประเภท

    กรุณาเลือกประเภท: 63A 100A 120A 160A 200A
  • จำนวน: set(s) Total Cost: ฿111,789
  • น้ำหนักการส่ง: 376.2lb (171kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart
Buyer Protection

คุณสมบัติ:
เครื่องตัดพลาสมาแบบพกพาสามารถตัดเหล็กอ่อนเหล็กคาร์บอนสูงสแตนเลสอลูมิเนียมทองแดงและโลหะอื่น ๆ ที่ไม่ใช่เหล็ก ฯลฯ

มันถูกนำมาใช้กันอย่างแพร่หลายในอุตสาหกรรมเช่นรถยนต์, การต่อเรือ, เครื่องมือเครื่องจักร, ภาชนะรับความดัน, เครื่องจักรวิศวกรรม, เครื่องจักรทำเหมือง, พลังงานไฟฟ้า, การสร้างสะพาน, อุตสาหกรรมเหล็ก



Features:

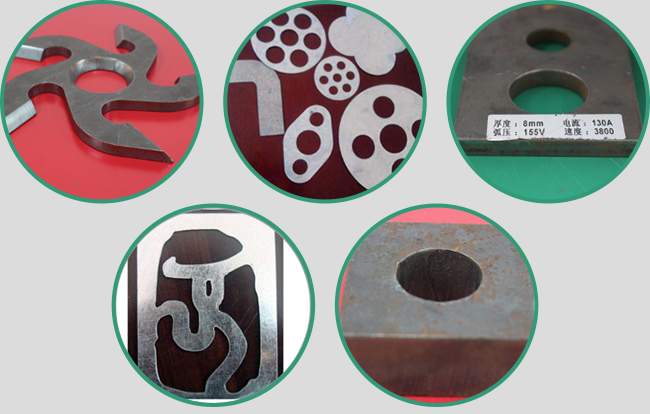

Portable plasma cutter can cut mild steel, high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal, etc.

It is widely applied in industries such as automobile, shipbuilding, machine tools, pressure vessels, engineering machinery, mining machinery,electric power, building bridges, steel Industries.

รายละเอียดเฉพาะ:

Specification:

Model  รุ่น 1530
Effective cutting range(mm)  ระยะการตัดที่มีประสิทธิภาพ (มม.) 1500×3000
Cutting speed (mm/min)  ความเร็วการตัด (มม./นาที) 20-3200(max. 3200)
Input power source  แหล่งพลังงานเข้า 380V  50HZ
Plasma cutting thickness(mm)  ความหนาการตัดพลาสม่า (มม.) Steel plate
63A-10mm;100A-16mm;120A-20mm;160A-25mm;200A-30mm

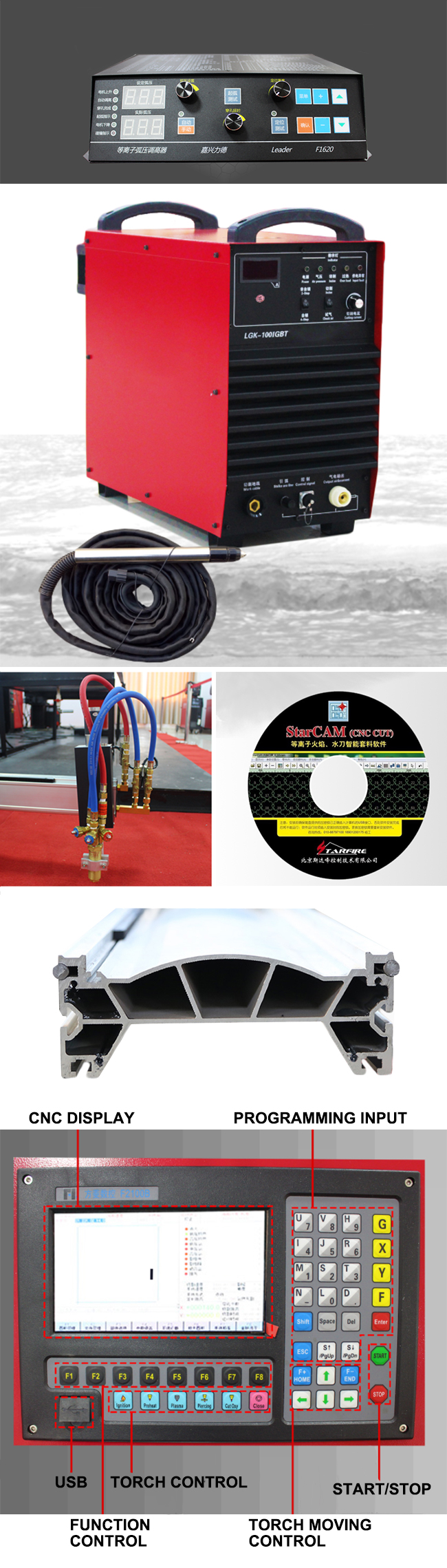

Torch height controller ตัวควบคุมความสูงคบเพลิง F1620
Plasma cutting gas แก็สการตัดพลาสม่า N2, O2 or compressed air
CNC controller system  ระบบตัวควบคุม CNC Shanghai Jiaotong University CNC system
Motor  มอเตอร์ Leadshine Stepper motor and drive
Operation precision  ความแม่นยำการปฏิบัติงาน ±0.2mm/m
Nesting software ซอฟแวร์ StarCam
Cutting tool Conversion Kit  ชุดการแปลงเครื่องมือการตัด Oxygen(flame) and plasma cutting machine spare parts can change easily
