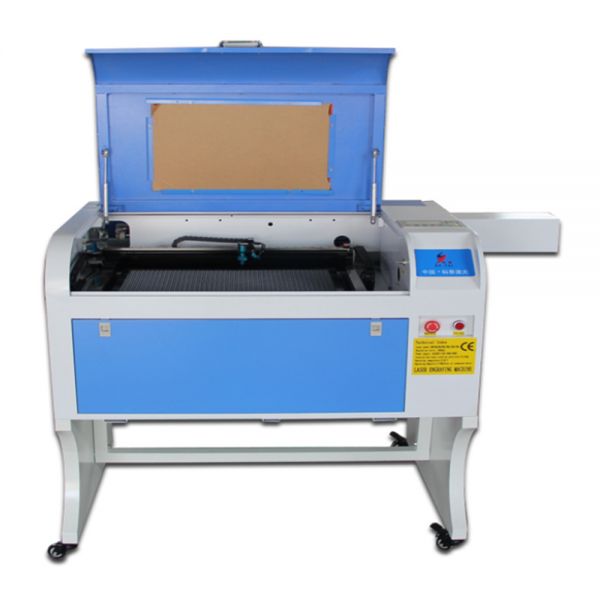

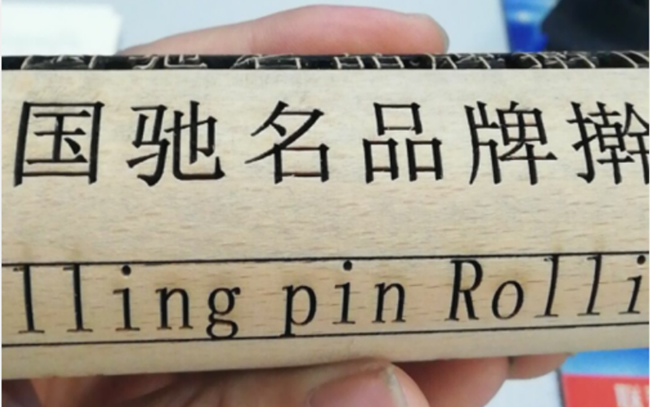

4060 60W/80W/100W CO2 Laser Engraver Machine for Rolling Pin
  • 4060 60W/80W/100W CO2 Laser Engraver Machine for Rolling Pin

See larger image and other views (with zoom)

4060 60W/80W/100W CO2 Laser Engraver Machine for Rolling Pin

   |   7 Transactions

รหัสสินค้า:SIT-KT-4060

Buyer Protection
 Technical Parameters:
Laser Power 60W/80W/100W
Supply Voltage 220V±10% ,/60Hz
Max width 600mmx400mm

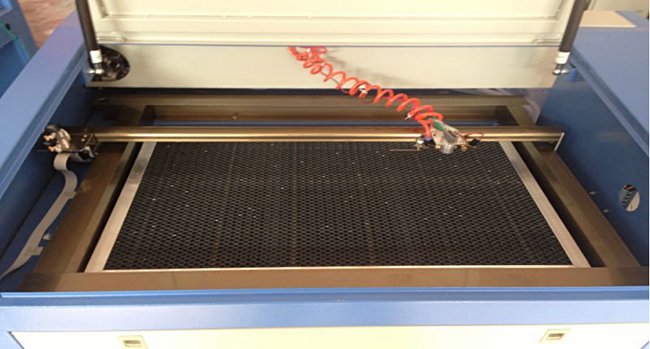

Working table Aluminum knife and honey comb
Up and down size 250mm
Table control mode Manual/Electric
Max engraving Speed 500mm/s
Max cutting speed 60mm/s
Locating Precision <0.01mm
Min shaping character  Character 2x2mm ,Letter 1x1mm
Resolution  0.0125mm
Cutting thickness 0-15mm
Control Configuration DSP
Data transfer Interface USB
System Environment WINDOWS XP/Win7/8
Graphic file format BMP,PLT,AI,CDR,DXF
256 Color separation output Support
360 degree slope engraving Support
Off line working Support
Cooling Way Water Cooling
Operating temperature 5°C -35°C
Water protecting sensor and alarm Yes
Net Weight  80Kg
Machine Dimension 57 x 74 x140cm
Gross weight 103Kg
Packing List 150x87x77cm

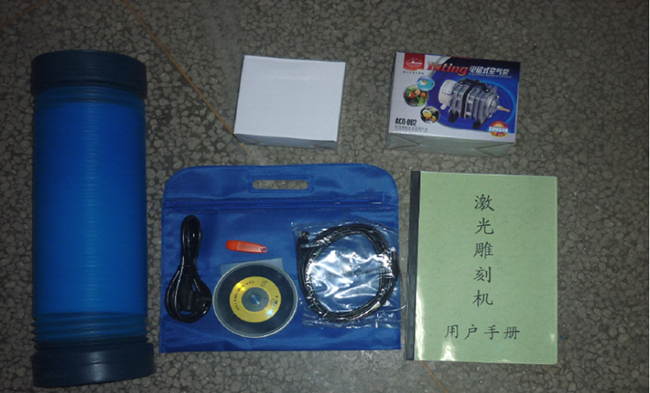

The machine accessories:
1.usb port wire
2.power line
3.user manual
4.The software CD
5.The USB key
6.smoke pipe

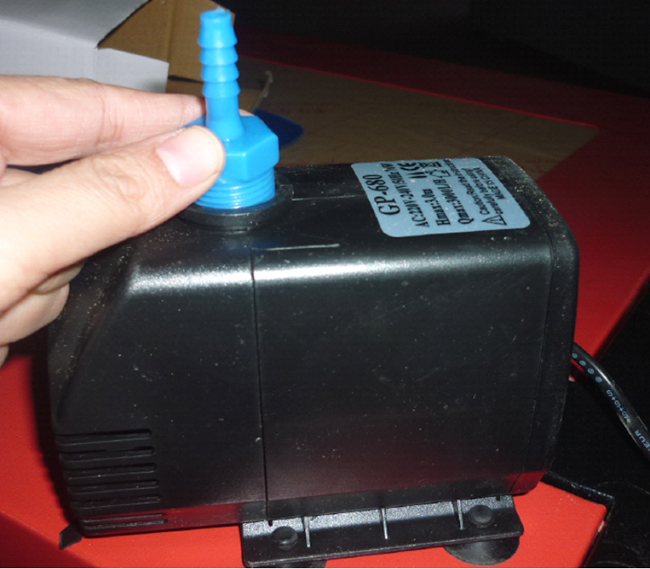

7.water pump
8 .Air pump

Installation instructions:
1.After receiving the machine, open the packing cases, open the host machine, accessories, and cut off the machine platform above the belt.


2.Connect the power cord, USB cable and the host is good.

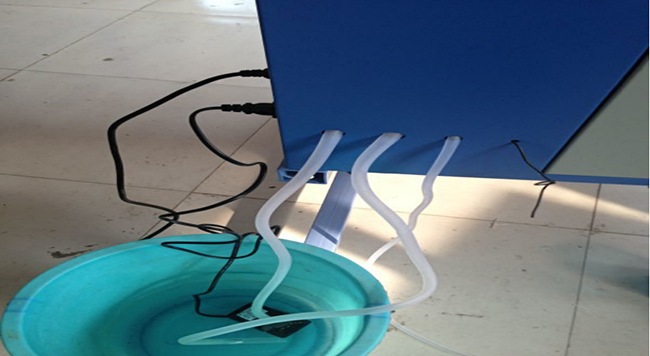

3.Connect water pump (machine with clear water and water).

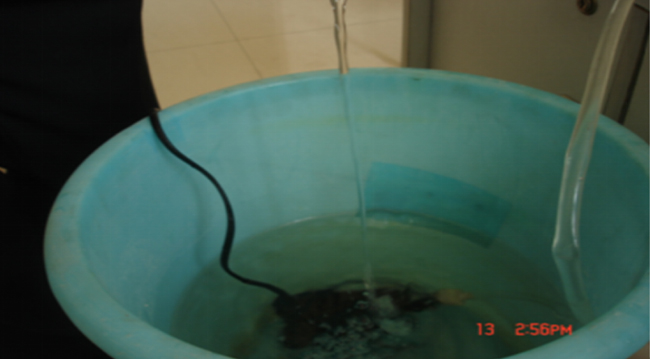

4.Good connection after put the pump into the bucket, outlet pipe into the above the water, can see the water situation.

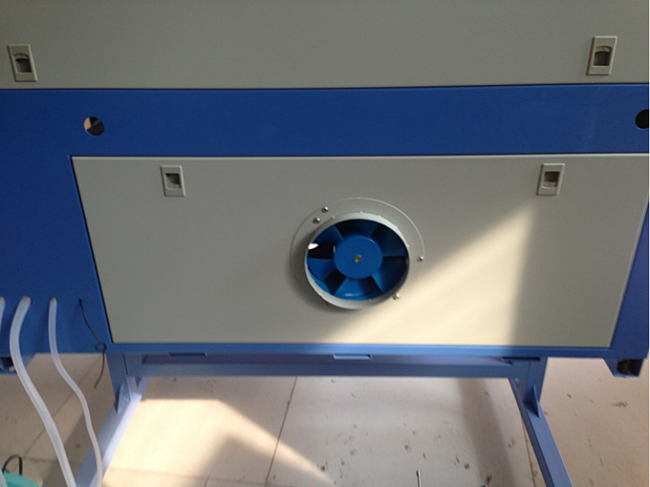

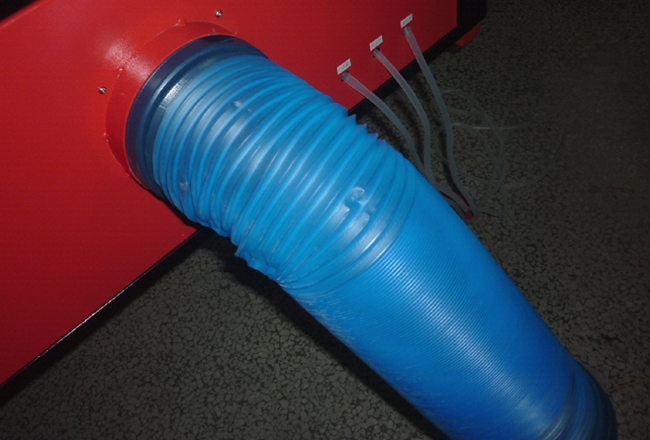

5.Tracheal card to the rear of the machine, and then fan above have crack, it is best to tape sealing.

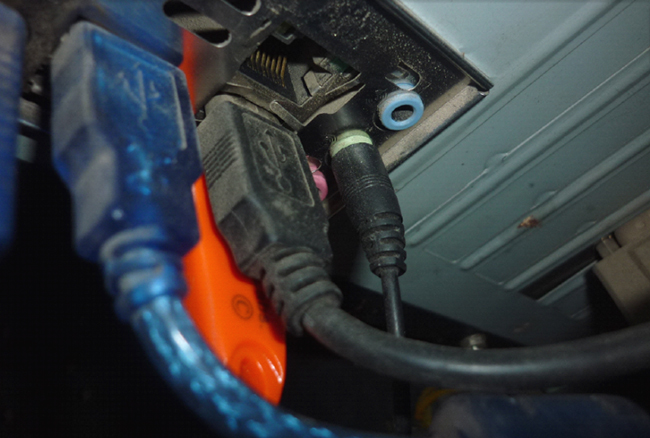

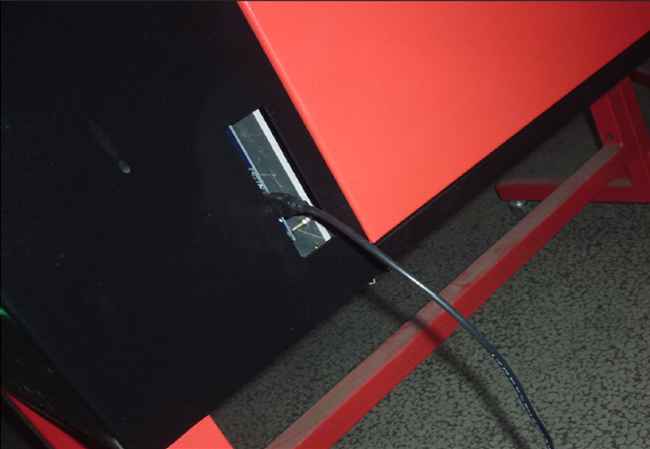

6.The machine cable and USB key (that is, with little U disk) into the host computer or laptop U mouth.

7.Connect the USB cable and the machine.


Applicable materials:
Wood,MDF,Acrylic,Plastic,Plexiglass,Crystal,Rubber,Fabric,Paper and other non-metal materials.

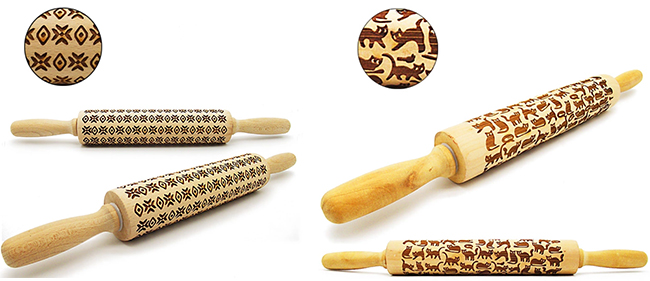

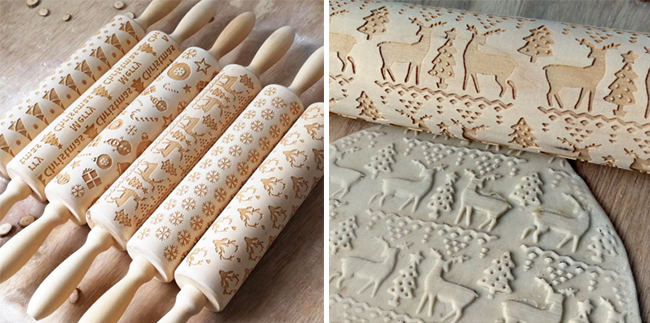

Applicable industry:Mainly used for the engraving and cutting of little artistic works.such as engraved portraits,badges,breast cards and various engraved packages.It can also engrave little artistic ,seals and crabs.
