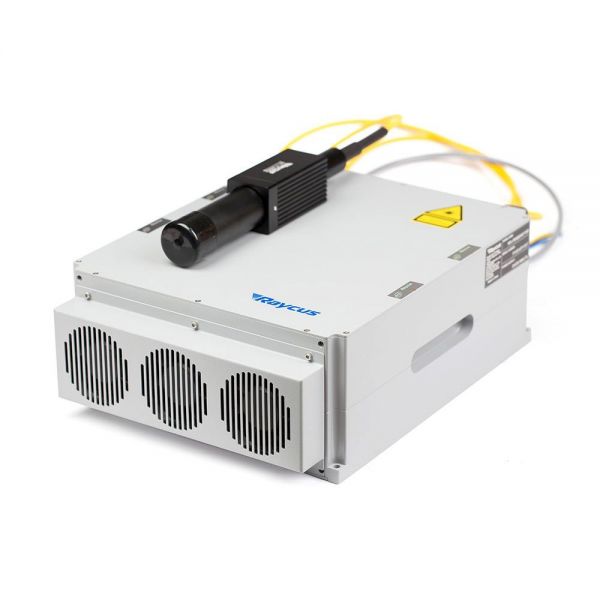

Raycus Laser Source 20W-50W Q-switched Pulse Fiber Laser Source 1064nm for Fiber Laser Marker
  • Raycus Laser Source 20W-50W Q-switched Pulse Fiber Laser Source 1064nm for Fiber Laser Marker

See larger image and other views (with zoom)

Raycus Laser Source 20W-50W Q-switched Pulse Fiber Laser Source 1064nm for Fiber Laser Marker

   |   19 Transactions

รหัสสินค้า:CS-RC-Q-RFL

  • ราคา Unit : ฿ 70,805/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

  • กรุณาเลือกประเภท

    กรุณาเลือกประเภท: 20W 30W 50W
  • จำนวน: set(s) Total Cost: ฿70,805
  • น้ำหนักการส่ง: 44.0lb (20kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart
Buyer Protection

Raycus Laser Source 20W-50W Q-switched Pulse Fiber Laser Source 1064nm for Fiber Laser Marker

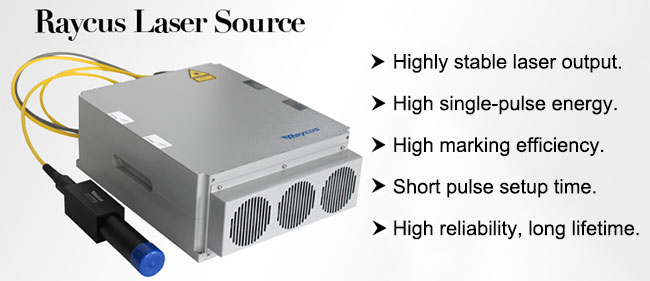

Q-switched fiber lasers are widely used in industrial marking and micromachining. This series of pulsed fiber lasers are characterized by high peak power, high single pulse energy, and optional spot diameter. They are widely used in non-metallic, high-inverse gold, silver, copper, aluminum and non-high-resistance materials. Marking, precision machinery, graphic marking, thins plate precision cutting, drilling and other fields.

Specification
Pulsed fiber laser 20W 30W 50W
Wavelength(nm) 1064
Polarization Random
Optical isolator Yes
Nominal average output power (W) ≥20 ≥30 ≥50
Single pulse energy (mJ) @20kHz 1@30kHz
Beam quality(M2) <1.8
Beam Diameter(mm) 6~8
Pulse duration(ns)@20kHz <120@30kHz
Pulse repetition rate(kHz) 20-60 30-60 50-100
Output Power Tunability(%) 10-100
Output Fiber Cable length(m) 2
Working voltage(VDC) 24±1
Power consumption(20°)(W) 200 300 400
Cooling Forced Air Cooled
Dimension W×D×H(mm) 260×391×120 396×360×125
Operating temperature 0°~40°
Store temperature -10°~60°
Humidity 30%~85%

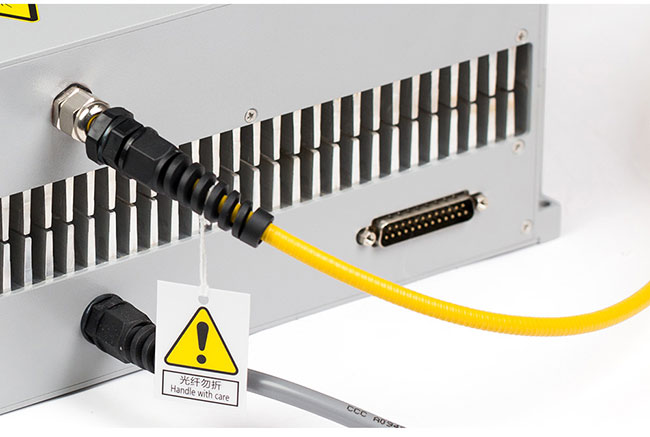

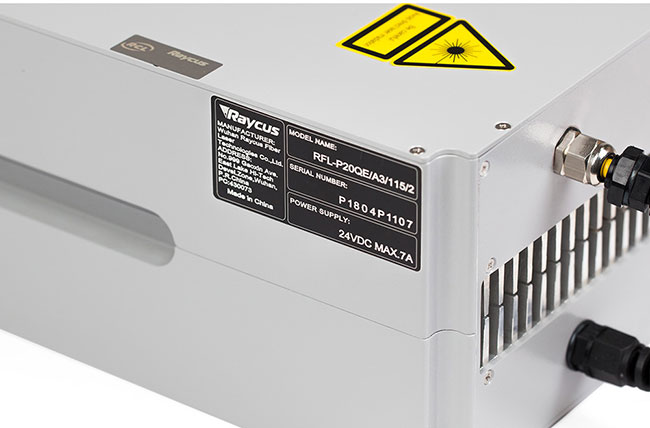

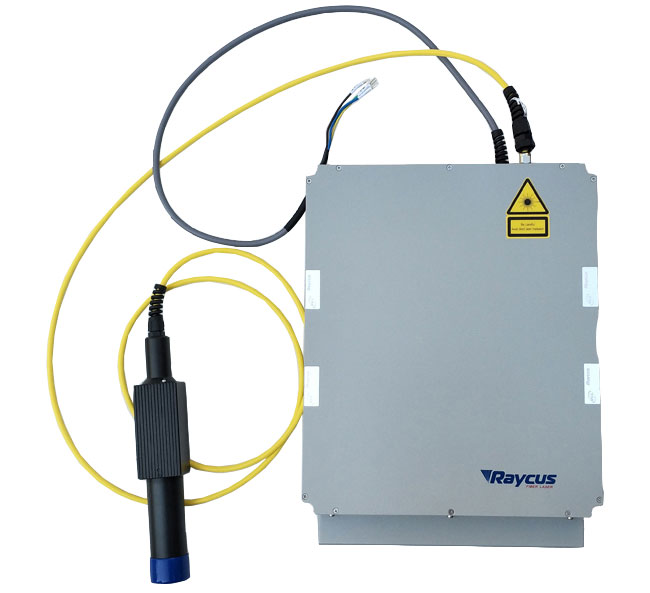

Details:

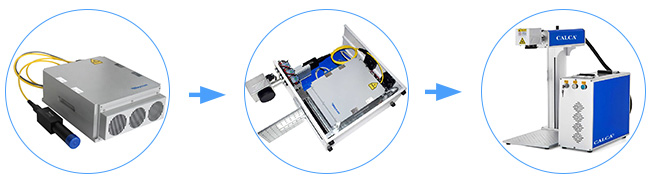

Application:

Packaging:
