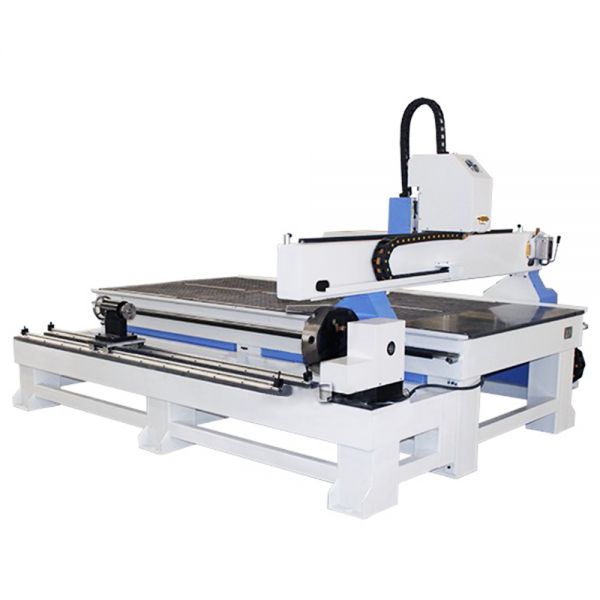

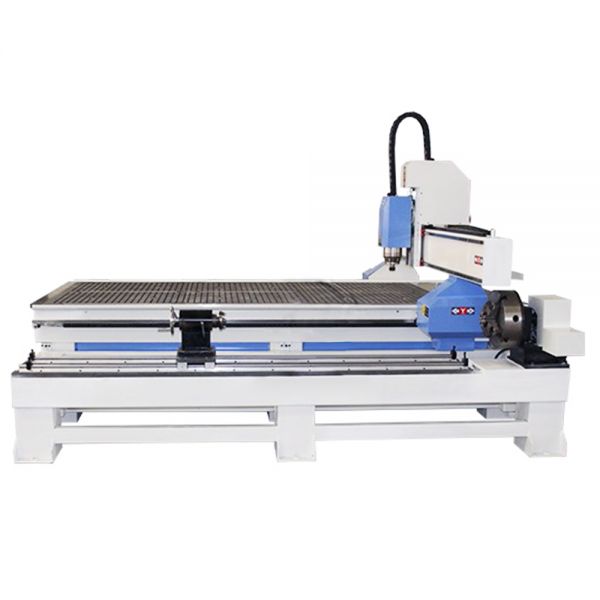

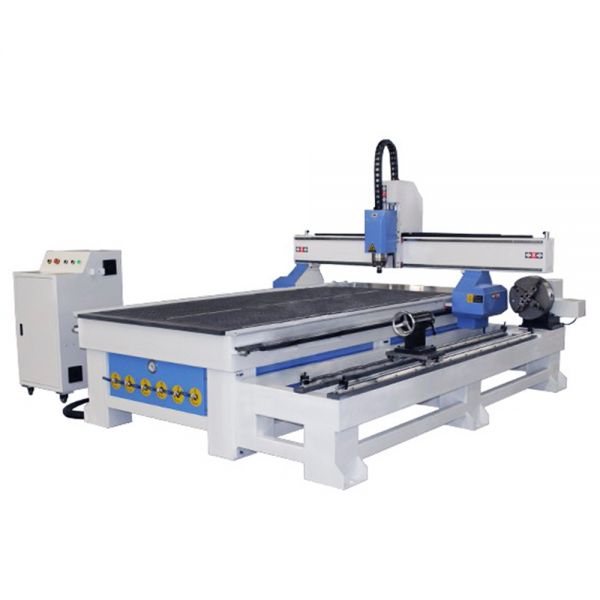

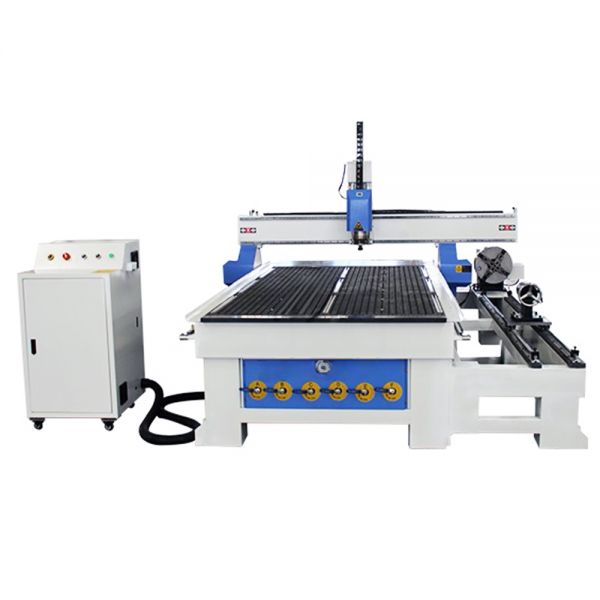

4 Axis Vacuum Table Woodworking CNC Router

See larger image and other views (with zoom)

4 Axis Vacuum Table Woodworking CNC Router

รหัสสินค้า:SIT-QL-1725

ราคา : ฿ 246,245/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

จำนวน: carton(s) Total Cost:
THB ฿246,245
น้ำหนักการส่ง: 3300.0lb (1500kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿
Customers Who Bought This Item Also Bought

< >
ชุดดัดป้ายตัวอักษรโลหะรูปแบบแกนคู่ระยะความกว้างการดัด 100 ม.ม.--- Dual-axis Metal Channel Letter Angle Bender Bending Tools, Bending Width 100mm

฿1,369 - 1,556/set

เครื่องปั้มอากาศแม่เหล็กไฟฟ้า ขนาด 45 วัตต์ สำหรับเครื่องตัดเลเซอร์ --- 45W Electromagnetic Air Pump for Laser Cutter Laser Engraving Machine, 220V

฿375 - 408/pc

1200mm เครื่องดัดอะคริลิก ด้วยความร้อน สำหรับดัดแผ่น PVC , อะคริลิก , พลาสติก เพื่อผลิตป้ายไฟกล่องแสง , ขนาดตัวเครื่อง 48"(1200 ม.ม.) ความหนาของ วัสดุอะคริลิก 1 - 6 ม.ม.

฿2040/set

ชุดดัดป้ายตัวอักษรโลหะรูปแบบแกนคู่ระยะความกว้างการดัด 100 ม.ม.--- Dual-axis Metal Channel Letter Angle Bender Bending Tools, Bending Width 100mm

฿1,369 - 1,556/set

เครื่องปั้มอากาศแม่เหล็กไฟฟ้า ขนาด 45 วัตต์ สำหรับเครื่องตัดเลเซอร์ --- 45W Electromagnetic Air Pump for Laser Cutter Laser Engraving Machine, 220V

฿375 - 408/pc

1200mm เครื่องดัดอะคริลิก ด้วยความร้อน สำหรับดัดแผ่น PVC , อะคริลิก , พลาสติก เพื่อผลิตป้ายไฟกล่องแสง , ขนาดตัวเครื่อง 48"(1200 ม.ม.) ความหนาของ วัสดุอะคริลิก 1 - 6 ม.ม.

฿2040/set

Related Products

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 0

Features:

1. Strong welded T type steel tube structure as a whole with vibration Temper aging treatment ensures no deformation for long time.

2. Square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.

Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost.

Z- axis with precision ball screw, high precision and more durable.

3. 3.5kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.

4. Extended gantry & independent removable rotary axis holder, with diameter 300mm, working length 2500mm, cylinder processing is in a special zone, each time, no need put the heavy rotary axis on the working table, saving labor and improving working efficiency.

5. Vacuum adsorption system with 5.5kw air cooling vacuum pump, vacuum table which is divided into 6 zones,can adsorb different size materiel from small to big, saving materials load-unloaded time.

6. Auto tool calibration, more convenient for each time Z-axis 0 point setting.

Applications:

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out and simple copper aluminum plastic board, etc.

This product has no attributes!

Q&A

Specification:

Model	QL-1725
Working area	Flat:1300(X)mm2500(Y)mm200(Z)mm stereoscopic:400mm900/400mm1200/400mm*1500
Machine structure	square steel tube structure，Vacuum adsorption table
Machine size	255031001750(mm)
Traveling speed	40000mm/min
Engraving speed	25000mm/min
Spindle power	4.5kw air cooling
XYZ Guide rail	Three-axis square linear guide rail
Transmission	Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis
Machine accuracy	<0.05/300mm
Control system	system Weihong
Carving Instructions	G code
Working voltage	AC380V,50Hz
Material fixation	Vacuum adsorption
Tool available diameter	φ3.175 φ4 φ6 φ12.7
