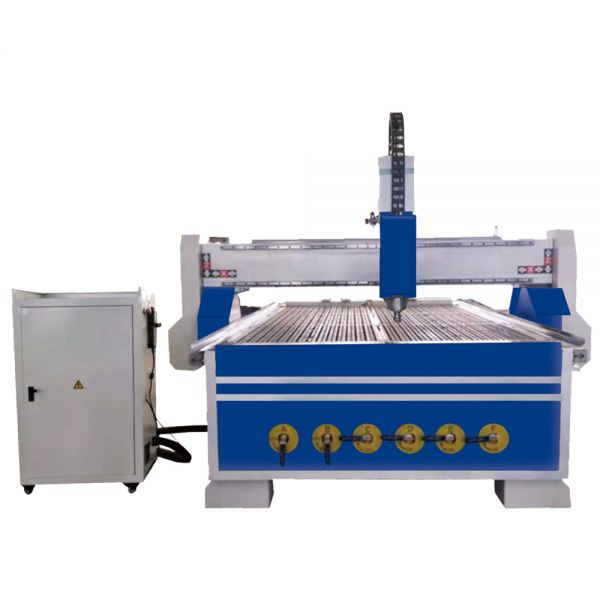

CNC Router Machine with Vacuum Table
  • CNC Router Machine with Vacuum Table

See larger image and other views (with zoom)

CNC Router Machine with Vacuum Table



รหัสสินค้า:SIT-QL-CNC-1325H

Buyer Protection
CNC Router Machine with Vacuum Table

Descriptions:
The machine body is constructed of thick-walled steel pipes, has been subjected to finite element analysis (FEA) and designed to provide a rigid and stable processing platform for the machine tool. All the machine body parts have been relieved of stress before the machine body is processed. All positioning bearings, ball screws, linear guides, and racks are maintained by the centralized automatic lubrication system of the machine tool control system. The Y-axis of the machine tool adopts double-track bilateral drive, which can carry out heavy cutting. It adopts the domestic advanced Weihong control system to ensure high-speed and high-precision processing of the machine tool. This machine is suitable for the processing of diversified and complex products and is more suitable for production projects: aluminum plate, density board, Cabinet doors, computer desks, panel furniture, etc.

Specification:
Model QL1325H
X Y Working Area 1300×2500mm
Z Working Area 300mm
Table Size 2050×3100mm
Max. Speed >50m/min
Clamping type Suction clip integrated
Processor Main frequency 100MHz
Interface USB
Command Code G code*.u00*.mmg*.plt
Software Operating Environment Weihong G3
Power (not including spindle) 1840W
Working Voltage AC 380V/50Hz
Spindle Power 7.5KW(water cooling)
Spindle Running Speed 0-24000rpm/min
Motor Servo 850W

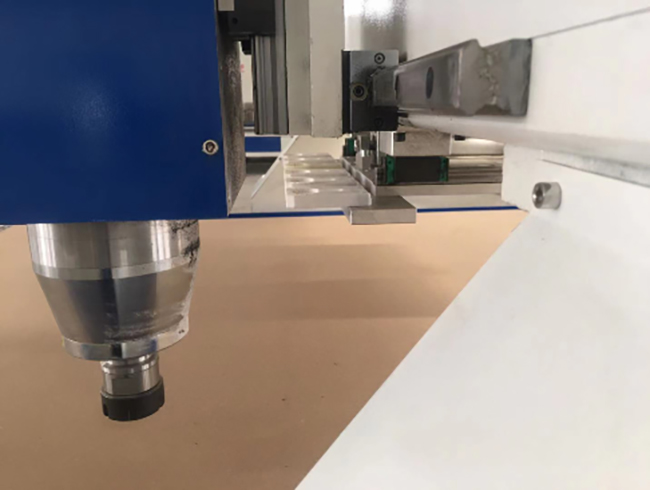

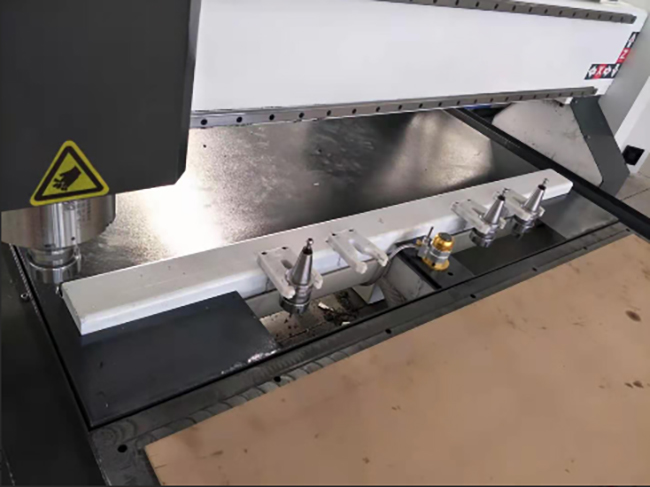

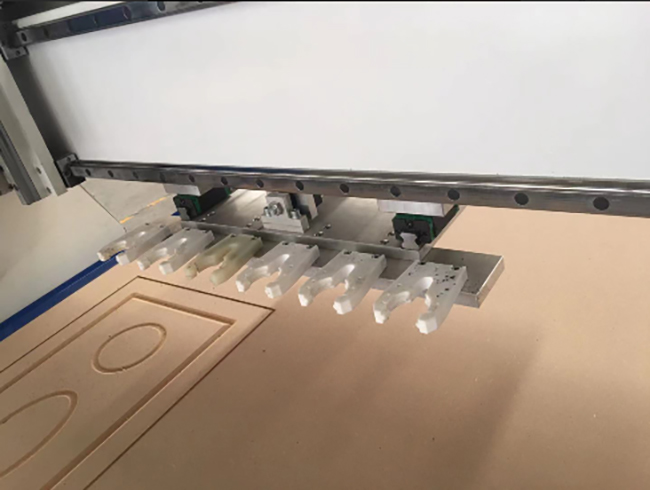

Detais:
Application:

  • ทั้งหมด
  • คำแนะนำ
  • รายละเอียดสินค้า
  • การส่งสินค้า
  • การชำระเงิน
  • อื่น ๆ
ถามคำถาม

เลือกหัวข้อ:

รายละเอียดสินค้า การส่งสินค้า การชำระเงิน อื่น ๆ


Content:


แนบไฟล์:


(File Format:Jpg,Png,CDR,PSD,Ai,PDF or any other file to describe the product.Maximum Single File Size:2GB.)


รหัสยืนยัน:

การส่งสินค้า :
We ship to more than 200 countries and 300 ports worldwide!
By Express: 3-5 business days
By Sea: 20-60 business days
How much to ship to
my place?
การชำระเงิน:
T/T Bank Transfer:
:
:
